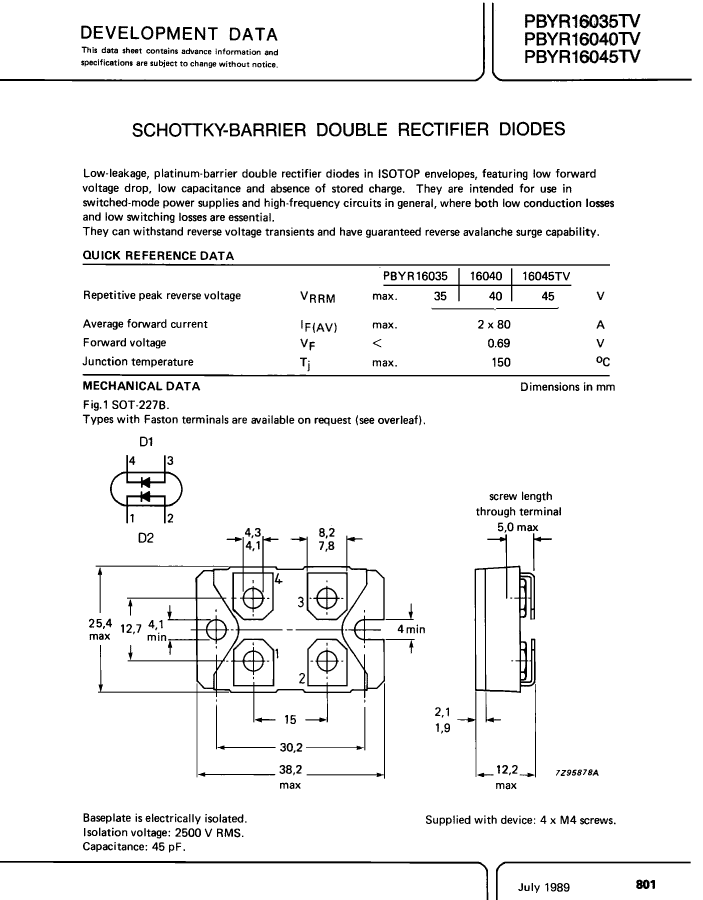

Rectifier Diode, Schottky, 1 Phase, 2 Element, 80A, 35V V(RRM), Silicon

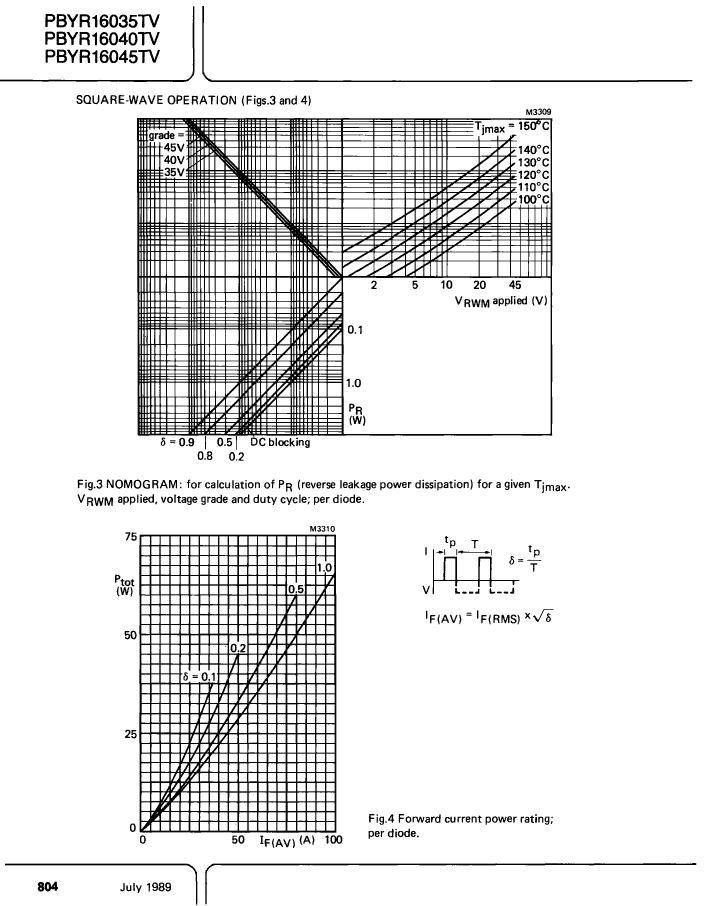

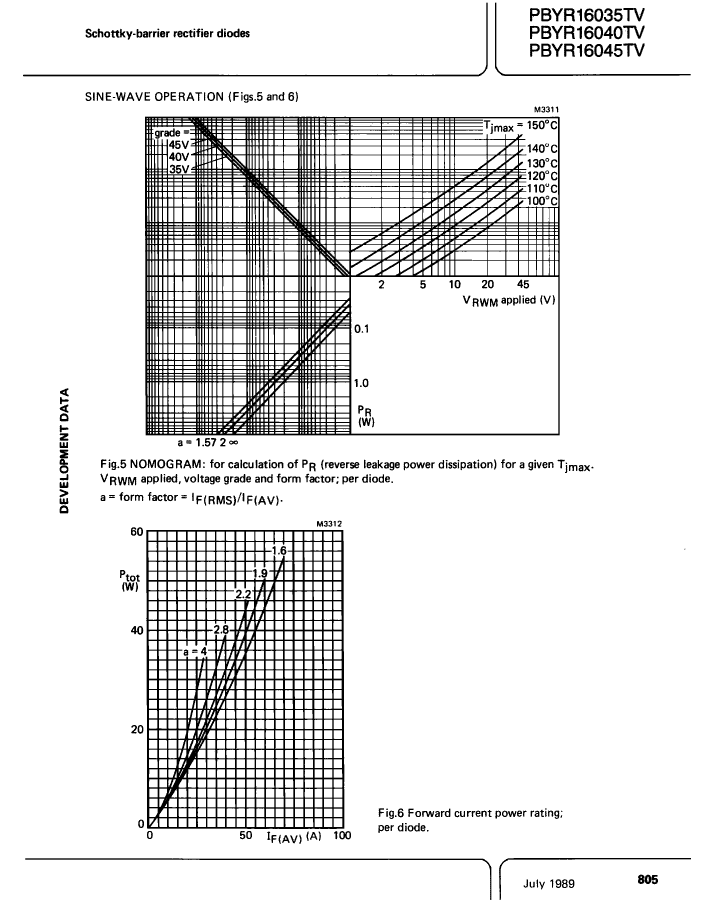

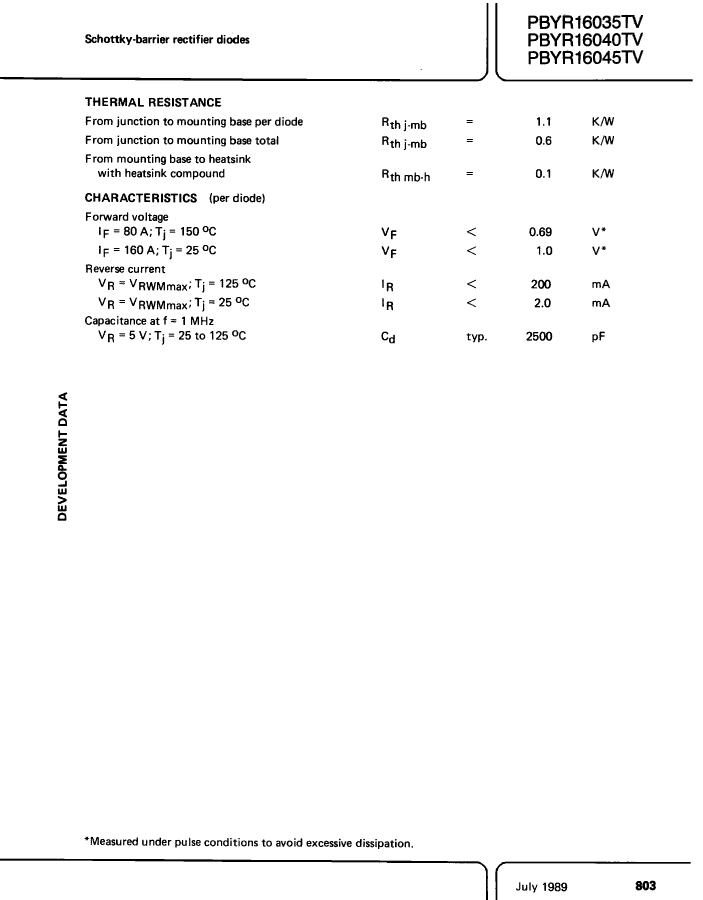

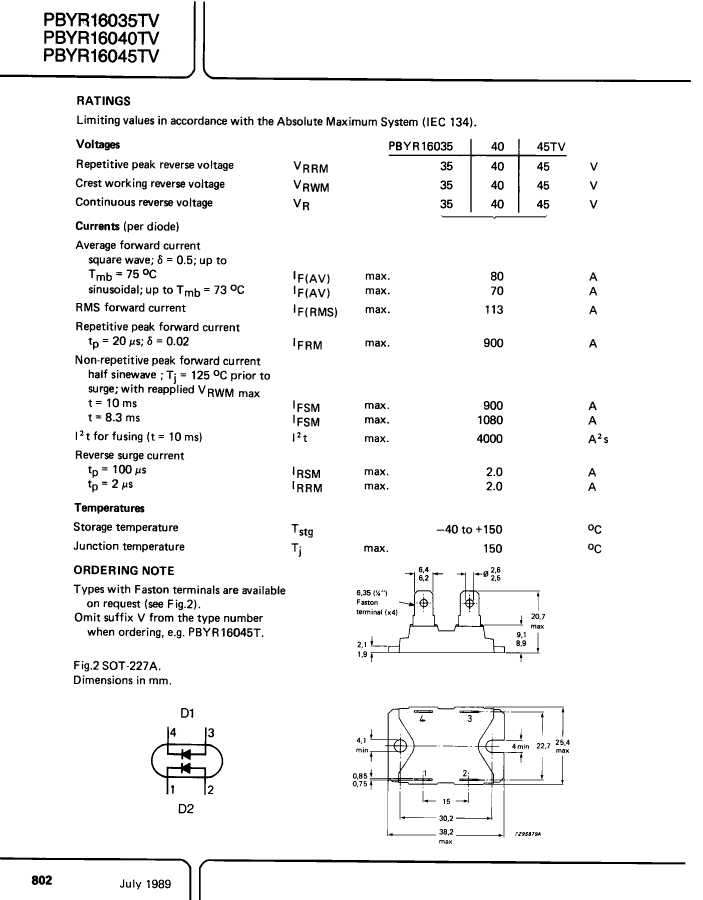

| Parameter Name | Attribute value |
| Maker | YAGEO |
| package instruction | R-XUFM-D4 |
| Reach Compliance Code | unknown |
| ECCN code | EAR99 |
| application | GENERAL PURPOSE |
| Shell connection | ISOLATED |
| Configuration | SEPARATE, 2 ELEMENTS |
| Diode component materials | SILICON |
| Diode type | RECTIFIER DIODE |
| Maximum forward voltage (VF) | 1 V |
| JESD-30 code | R-XUFM-D4 |
| Maximum non-repetitive peak forward current | 1080 A |
| Number of components | 2 |
| Phase | 1 |
| Number of terminals | 4 |
| Maximum operating temperature | 150 °C |
| Maximum output current | 80 A |
| Package body material | UNSPECIFIED |
| Package shape | RECTANGULAR |
| Package form | FLANGE MOUNT |
| Certification status | Not Qualified |
| Maximum repetitive peak reverse voltage | 35 V |
| Maximum reverse current | 2000 µA |
| surface mount | NO |
| technology | SCHOTTKY |
| Terminal form | SOLDER LUG |
| Terminal location | UPPER |
| PBYR16035T | PBYR16045T | PBYR16045TV | PBYR16035TV | PBYR16040TV | PBYR16040T | |
|---|---|---|---|---|---|---|
| Description | Rectifier Diode, Schottky, 1 Phase, 2 Element, 80A, 35V V(RRM), Silicon | Rectifier Diode, Schottky, 1 Phase, 2 Element, 80A, 45V V(RRM), Silicon | Rectifier Diode, Schottky, 1 Phase, 2 Element, 80A, 45V V(RRM), Silicon | Rectifier Diode, Schottky, 1 Phase, 2 Element, 80A, 35V V(RRM), Silicon | Rectifier Diode, Schottky, 1 Phase, 2 Element, 80A, 40V V(RRM), Silicon | Rectifier Diode, Schottky, 1 Phase, 2 Element, 80A, 40V V(RRM), Silicon |
| Maker | YAGEO | YAGEO | YAGEO | YAGEO | YAGEO | YAGEO |
| package instruction | R-XUFM-D4 | R-XUFM-D4 | R-XUFM-D4 | R-XUFM-D4 | R-XUFM-D4 | R-XUFM-D4 |
| Reach Compliance Code | unknown | unknown | unknown | unknown | unknown | unknown |
| ECCN code | EAR99 | EAR99 | EAR99 | EAR99 | EAR99 | EAR99 |
| application | GENERAL PURPOSE | GENERAL PURPOSE | GENERAL PURPOSE | GENERAL PURPOSE | GENERAL PURPOSE | GENERAL PURPOSE |
| Shell connection | ISOLATED | ISOLATED | ISOLATED | ISOLATED | ISOLATED | ISOLATED |
| Configuration | SEPARATE, 2 ELEMENTS | SEPARATE, 2 ELEMENTS | SEPARATE, 2 ELEMENTS | SEPARATE, 2 ELEMENTS | SEPARATE, 2 ELEMENTS | SEPARATE, 2 ELEMENTS |
| Diode component materials | SILICON | SILICON | SILICON | SILICON | SILICON | SILICON |
| Diode type | RECTIFIER DIODE | RECTIFIER DIODE | RECTIFIER DIODE | RECTIFIER DIODE | RECTIFIER DIODE | RECTIFIER DIODE |
| Maximum forward voltage (VF) | 1 V | 1 V | 1 V | 1 V | 1 V | 1 V |
| JESD-30 code | R-XUFM-D4 | R-XUFM-D4 | R-XUFM-D4 | R-XUFM-D4 | R-XUFM-D4 | R-XUFM-D4 |
| Maximum non-repetitive peak forward current | 1080 A | 1080 A | 1080 A | 1080 A | 1080 A | 1080 A |
| Number of components | 2 | 2 | 2 | 2 | 2 | 2 |
| Phase | 1 | 1 | 1 | 1 | 1 | 1 |
| Number of terminals | 4 | 4 | 4 | 4 | 4 | 4 |
| Maximum operating temperature | 150 °C | 150 °C | 150 °C | 150 °C | 150 °C | 150 °C |
| Maximum output current | 80 A | 80 A | 80 A | 80 A | 80 A | 80 A |
| Package body material | UNSPECIFIED | UNSPECIFIED | UNSPECIFIED | UNSPECIFIED | UNSPECIFIED | UNSPECIFIED |
| Package shape | RECTANGULAR | RECTANGULAR | RECTANGULAR | RECTANGULAR | RECTANGULAR | RECTANGULAR |
| Package form | FLANGE MOUNT | FLANGE MOUNT | FLANGE MOUNT | FLANGE MOUNT | FLANGE MOUNT | FLANGE MOUNT |
| Certification status | Not Qualified | Not Qualified | Not Qualified | Not Qualified | Not Qualified | Not Qualified |
| Maximum repetitive peak reverse voltage | 35 V | 45 V | 45 V | 35 V | 40 V | 40 V |
| Maximum reverse current | 2000 µA | 2000 µA | 2000 µA | 2000 µA | 2000 µA | 2000 µA |
| surface mount | NO | NO | NO | NO | NO | NO |
| technology | SCHOTTKY | SCHOTTKY | SCHOTTKY | SCHOTTKY | SCHOTTKY | SCHOTTKY |
| Terminal form | SOLDER LUG | SOLDER LUG | SOLDER LUG | SOLDER LUG | SOLDER LUG | SOLDER LUG |
| Terminal location | UPPER | UPPER | UPPER | UPPER | UPPER | UPPER |
