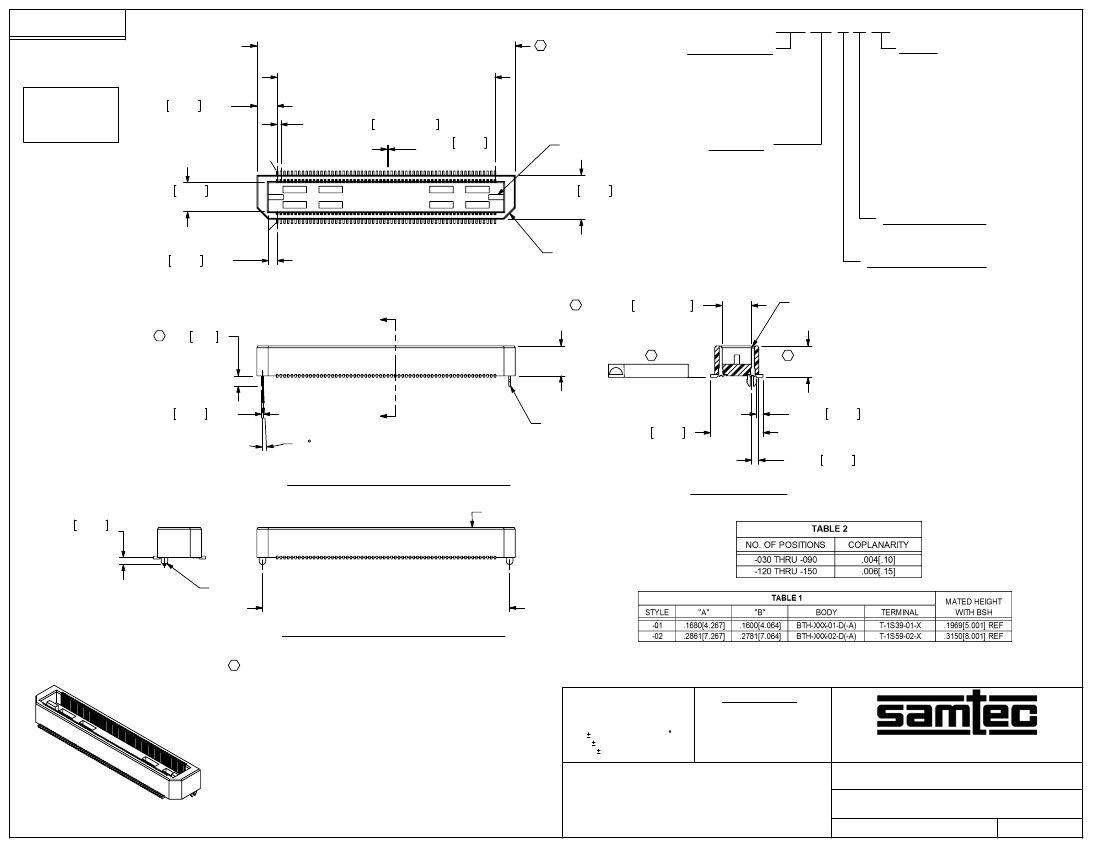

REVISION AL
(No OF POS. x .01969[.5000]) + .1968[5.000] REF
(No OF POSITIONS -1) x .01969[.5000]
DO NOT
SCALE FROM
THIS PRINT
.1082 2.749 REF
.0197±.0030 0.500±0.076 TYP
01
C
BTH-XXX-XX-X-D-XX
No OF POSITIONS
030, ***050, 060, 090,
*120, *150
(PER ROW)
LEAD STYLE -02 ONLY: 030 - 180
MULTIPLES OF 10
*SEE NOTE 7
SEE NOTE 10
LEAD STYLE
-01: .1680[4.267]
-02: .2861[7.264]
(030 -180 POSITIONS AVAILABLE)
-03: .4042[10.267]
-04: .6000[15.240]
-05: .7180[18.237]
-06: .8360[21.234]
-09: .5224[13.269]
*** = 50 POS. ONLY AVAILABLE FOR
-01 AND -02 LEAD STYLE
(REF ASP-65267-02), NOT
TOOLED FOR -03 LEAD STYLE
T-1SXX-XX-X
OPTION
-A: ALIGNMENT PINS
(USE BTH-XXX-XX-D-A FOR
STYLES -01 & -02)(FOR STYLES
-03 THRU -09, SEE TABLE 4 &
FIG 4, SHEET 3)
-LC: LOCKING CLIPS (SEE NOTE 8)"
(USE LC-08-TM-01)
-K: POLYIMIDE FILM
(USE K-DOT-.276-.375-.005, SEE FIG 2)
(AVAILABLE ON STYLES -01
THRU -04 & -09 ONLY)
-TR: TAPE & REEL (120 POS MAX)
[N/A ON -05 THRU -06]
ROW SPECIFICATION
-D: DOUBLE (USE BTH-XXX-XX-D
& BTHH-XXX-XX-D)
PLATING SPECIFICATION
-F: 3µ" SELECTIVE GOLD IN CONTACT
AREA, MATTE TIN ON TAIL
-L: 10µ" SELECTIVE GOLD IN CONTACT
AREA, MATTE TIN ON TAIL
-H: 30µ" GOLD IN CONTACT AREA,
3µ" GOLD ON TAIL
-C: 50µ" GOLD IN CONTACT AREA,
MATTE TIN ON TAIL
.0080 0.203
REF
.1550 3.937 REF
(SEE NOTE 9)
02
.2350 5.969
REF
.0470 1.194 REF
BTH-XXX-XX-D
C
"A"
C
.155±.003 3.94±0.076
.055 1.40
"B" REF
C
C
"A"
SEE TABLE 2
(SEE NOTE 3)
.003[.08]
.001[.03]
.0100 0.254 REF
"A"
2 MAX SWAY
(TYP)
LC-08-TM-01
.0370 0.939 REF
.2800 7.112
.0372 0.945 REF
-LC: LOCKING CLIP OPTION SHOWN
.0375 0.952
REF
BTH-XXX-XX-D-A
SECTION "A"-"A"
R
(No OF POS. x .01969[.5000]) + .1368[3.475] REF
-A: ALIGNMENT PIN OPTION SHOWN
NOTES:
1.
C
REPRESENTS A CRITICAL DIMENSION.
2. MINIMUM PUSHOUT FORCE: 6 OZ. FOR STYLES -01 & -02
8 OZ. FOR STYLES -03 THRU -09
3. MAXIMUM VARIANCE: .002[.05].
4. LEAD STYLES -03 THRU -09: TOP BODY (BTH)
CANNOT HAVE -A OPTION.
5. -L PLATING CAN BE SUBSTITUTED FOR -F PLATING.
6. NOTE DELETED.
7. FOR NEW APPLICATIONS REQUIRING THESE POSITIONS,PLEASE
CONTACT SAMTEC INTERCONNECT PROCESSING GROUP.
8. DUE TO THE HIGH AMOUNT OF INSERTION FORCE NEEDED, THE
–LC OPTION IS NOT COMPATIBLE WITH AUTO PLACEMENT.
SAMTEC RECOMMENDS MANUAL PLACEMENT FOR ALL
ASSEMBLIES WITH THE –LC OPTION.
9. PIN CAN EXTEND PAST THE WALL: .003 [.08].
10. FEATURE PRESENT ONLY ON -01 LEAD STYLE.
UNLESS OTHERWISE SPECIFIED,
DIMENSIONS ARE IN INCHES.
TOLERANCES ARE:
.XX: .01[.3]
.XXX: .005 [.13]
.XXXX: .0020 [.051]
MATERIAL:
PROPRIETARY NOTE
THIS DOCUMENT CONTAINS INFORMATION
CONFIDENTIAL AND PROPRIETARY TO
SAMTEC, INC. AND SHALL NOT BE REPRODUCED
OR TRANSFERRED TO OTHER DOCUMENTS OR
DISCLOSED TO OTHERS OR USED FOR ANY
PURPOSE OTHER THAN THAT WHICH IT WAS
OBTAINED WITHOUT THE EXPRESSED WRITTEN
CONSENT OF SAMTEC, INC.
DECIMALS
ANGLES
2
520 PARK EAST BLVD, NEW ALBANY, IN 47150
PHONE: 812-944-6733
FAX: 812-948-5047
e-Mail: info@SAMTEC.com
code: 55322
DO NOT SCALE DRAWING
SHEET SCALE: 1:0.533333
DESCRIPTION:
INSULATOR: BLACK LCP
FLAMMABILITY RATING: UL 94V-O
TERMINAL: PHOS BRONZE
F:\dwg\MISC\Mktg\BTH-XXX-XX-X-D-XX-MKT.SLDDRW
.5mm DOUBLE ROW TERMINAL ASSEMBLY
DWG. NO.
BTH-XXX-XX-X-D-XX
5/28/1999
SHEET
1
OF
3
BY:
DEAN P
REVISION AL

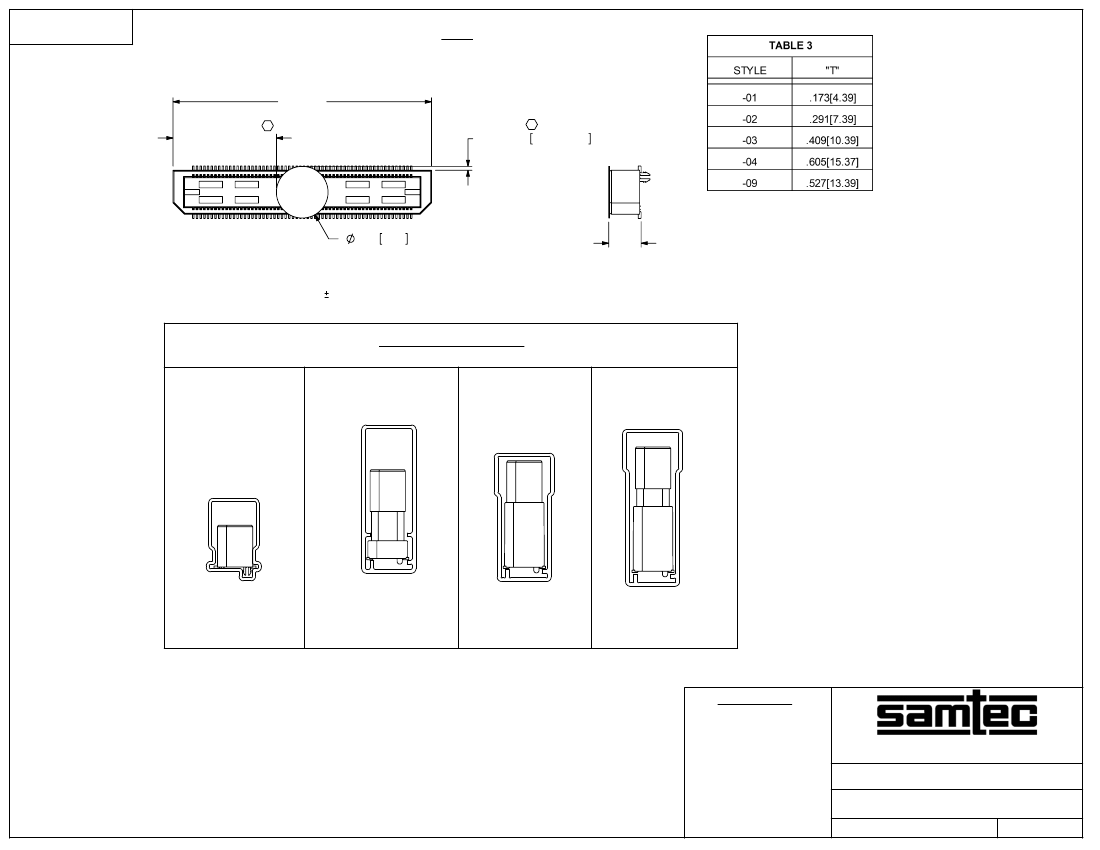

-K: POLYIMIDE FILM PAD OPTION
FIG 2
"R" REF
C
C
"S"±.020 [.51]
.020±.010 0.52±0.254
.276 7.00 REF
"T"
NOTE: "R" = (No OF POSITIONS x .01969[.5000]) + .1968[5.000]
"S" = (("R" - .276[7.01]) / 2) .020[.51]
(PARTS TO HAVE POSITIOIN #01 LOADED IN SAME DIRECTION AS ARROW)
[STYLES -01 & -02]
[STYLES -03, -04, & -09]
[STYLE -05]
[STYLE -06]
PACKAGING VIEW
TUBE: PT-1-24-01-78
PLUG: TP-03
TUBE: PT-1-24-01-98
PLUG: TP-26
TUBE: PT-1-24-02-105
PLUG: TP-26
TUBE: PT-1-24-01-105
PLUG: TP-26
F:\dwg\MISC\Mktg\BTH-XXX-XX-X-D-XX-MKT.SLDDRW
PROPRIETARY NOTE
THIS DOCUMENT CONTAINS INFORMATION
CONFIDENTIAL AND PROPRIETARY TO
SAMTEC, INC. AND SHALL NOT BE REPRODUCED
OR TRANSFERRED TO OTHER DOCUMENTS OR
DISCLOSED TO OTHERS OR USED FOR ANY
PURPOSE OTHER THAN THAT WHICH IT WAS
OBTAINED WITHOUT THE EXPRESSED WRITTEN
CONSENT OF SAMTEC, INC.
520 PARK EAST BLVD, NEW ALBANY, IN 47150
PHONE: 812-944-6733
FAX: 812-948-5047
e-Mail: info@SAMTEC.com
code: 55322
DESCRIPTION:
DWG. NO.
DO NOT SCALE DRAWING
SHEET SCALE: 1.875:1
.5mm DOUBLE ROW TERMINAL ASSEMBLY
BTH-XXX-XX-X-D-XX
5/28/1999
SHEET
2
OF
3
BY:
DEAN P
REVISION AL

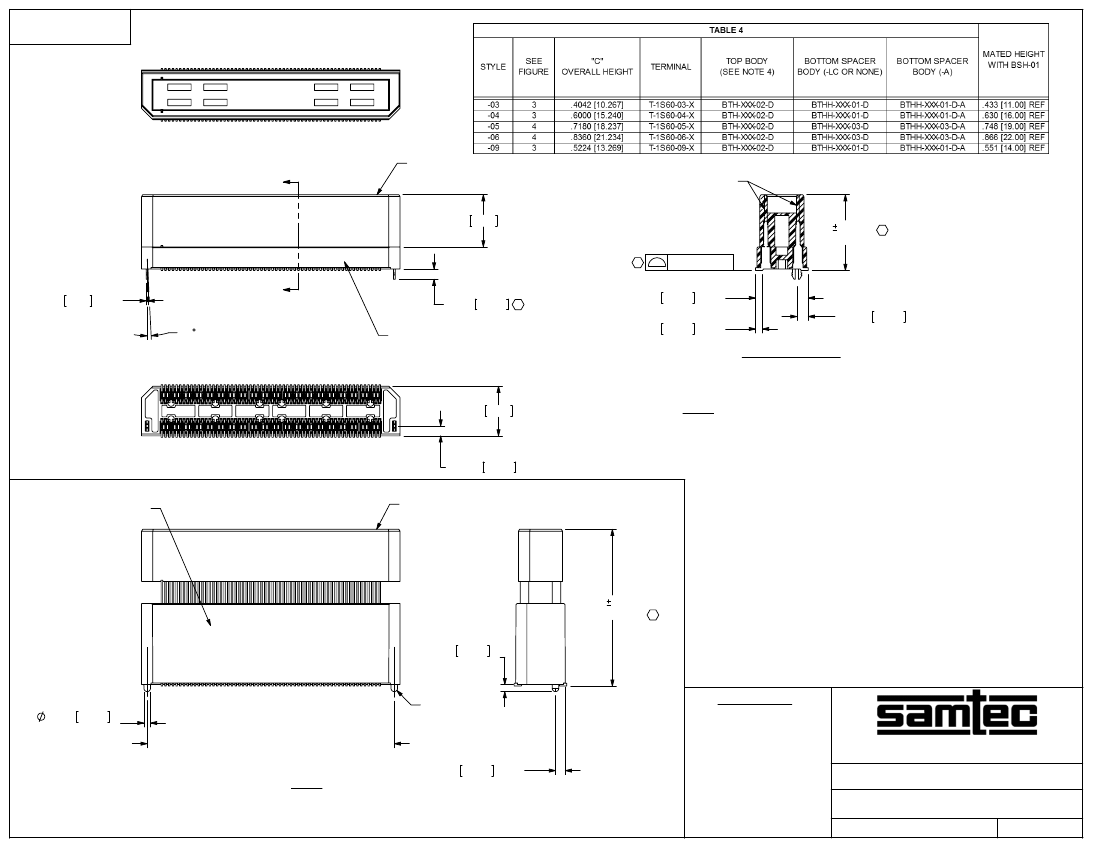

01
02
BTH-XXX-02-D (SEE NOTE 4)
"B"
.278 7.06 REF
T-1S60-XX-X
C
.003
C
.001
(SEE NOTE 3)
C
.010 0.25 REF
2 MAX SWAY
(TYP)
"B"
.055 1.397
BTHH-XXX-01-D
C
SEE TABLE 2
(SEE SHEET 1)
.0605 1.537 REF
.2810 7.137 REF
.0370 0.940 REF
SECTION "B"-"B"
.265 6.73 REF
BTH-060-03-X-D-LC SHOWN
(STYLES -03, -04, & -09)
(DIIFERENT AS SHOWN, OTHERWISE SAME AS FIG 1)
FIG 3
.0525 1.334
BTHH-XXX-03-D-A
BTH-XXX-02-D (SEE NOTE 4)
"C"
.001[.03]
(SEE NOTE 3)
.0375 0.953
REF
.003[.08]
C
F:\dwg\MISC\Mktg\BTH-XXX-XX-X-D-XX-MKT.SLDDRW
.0350 0.889
REF
R
(No OF POS x .01969[.50000]) + .1368[3.475] REF
PROPRIETARY NOTE
THIS DOCUMENT CONTAINS INFORMATION
CONFIDENTIAL AND PROPRIETARY TO
SAMTEC, INC. AND SHALL NOT BE REPRODUCED
OR TRANSFERRED TO OTHER DOCUMENTS OR
DISCLOSED TO OTHERS OR USED FOR ANY
PURPOSE OTHER THAN THAT WHICH IT WAS
OBTAINED WITHOUT THE EXPRESSED WRITTEN
CONSENT OF SAMTEC, INC.
520 PARK EAST BLVD, NEW ALBANY, IN 47150
PHONE: 812-944-6733
FAX: 812-948-5047
e-Mail: info@SAMTEC.com
code: 55322
DESCRIPTION:
DWG. NO.
-A: ALIGNMENT PIN OPTION
BTH-060-06-X-D-A SHOWN
[STYLES -05 & -06]
(DIFFERENT AS SHOWN, OTHERWISE SAME AS FIG 1)
FIG 4
.0525 1.334 REF
DO NOT SCALE DRAWING
SHEET SCALE: 1:0.533333
.5mm DOUBLE ROW TERMINAL ASSEMBLY
BTH-XXX-XX-X-D-XX
5/28/1999
SHEET
3
OF
3
BY:
DEAN P
