HDAC7542AACD datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Analog mixed-signal IC> converter> HDAC7542AACD

HDAC7542AACD: DescriptionD/A Converter, 1 Func, Parallel, 4 Bits Input Loading, 0.5us Settling Time, CDIP16,; CategoryAnalog mixed-signal IC converter; File Size330KB，9 Pages; ManufacturerSignal Processing Technologies

Download Datasheet Parametric Compare View All

HDAC7542AACD Overview

D/A Converter, 1 Func, Parallel, 4 Bits Input Loading, 0.5us Settling Time, CDIP16,

HDAC7542AACD Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	Signal Processing Technologies
Reach Compliance Code	unknown
Maximum analog output voltage	7 V
Minimum analog output voltage	-0.3 V
Converter type	D/A CONVERTER
Enter bit code	BINARY, OFFSET BINARY
Input format	PARALLEL, 4 BITS
JESD-30 code	R-GDIP-T16
JESD-609 code	e0
Maximum linear error (EL)	0.012%
Number of digits	12
Number of functions	1
Number of terminals	16
Maximum operating temperature	70 °C
Minimum operating temperature
Package body material	CERAMIC, GLASS-SEALED
encapsulated code	DIP
Encapsulate equivalent code	DIP16,.3
Package shape	RECTANGULAR
Package form	IN-LINE
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
power supply	5 V
Certification status	Not Qualified
Maximum stabilization time	1 µs
Nominal settling time (tstl)	0.5 µs
Maximum slew rate	2.5 mA
Nominal supply voltage	5 V
surface mount	NO
technology	CMOS
Temperature level	COMMERCIAL
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE
Terminal pitch	2.54 mm
Terminal location	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED

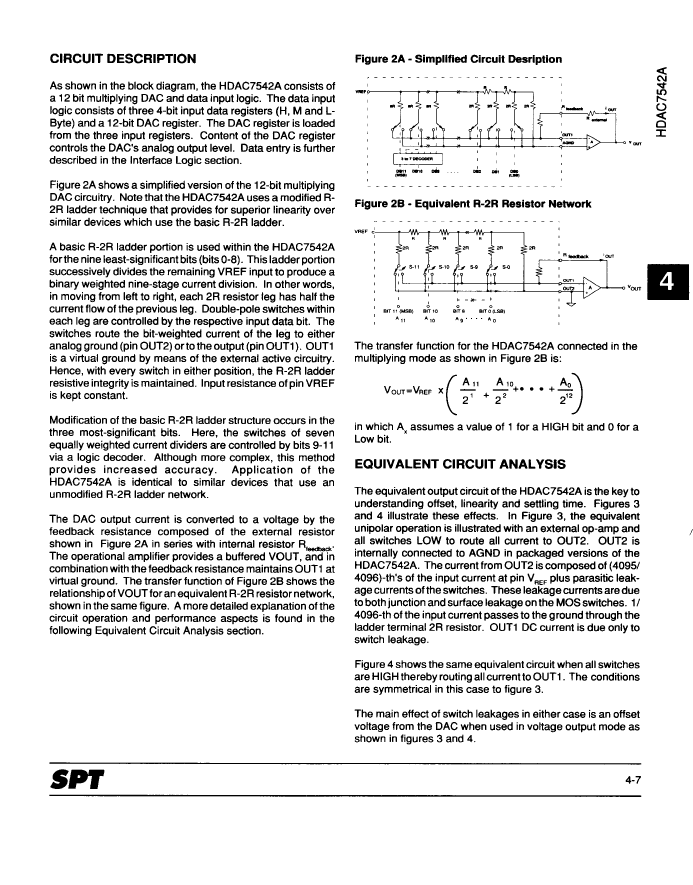

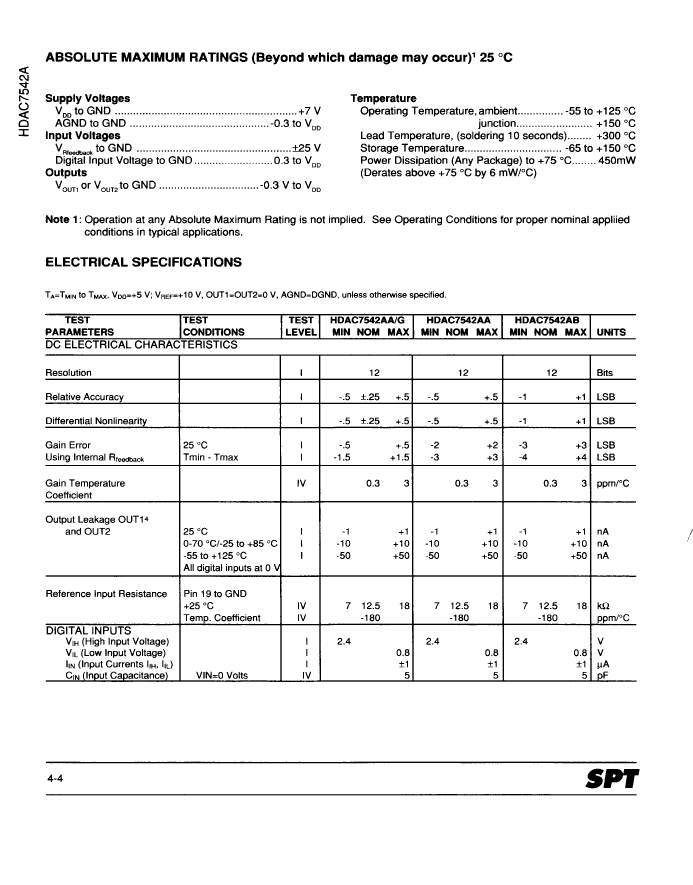

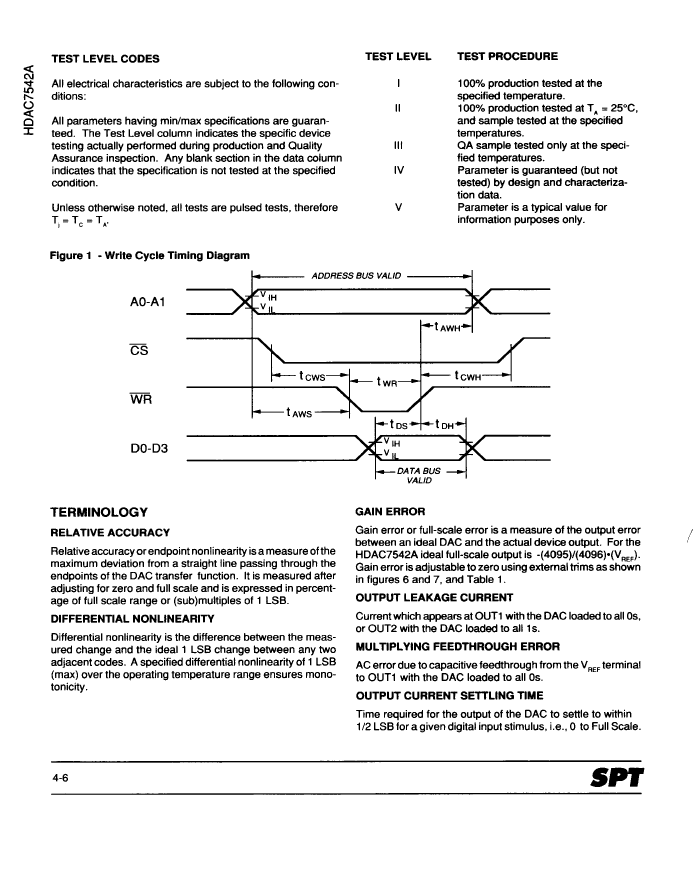

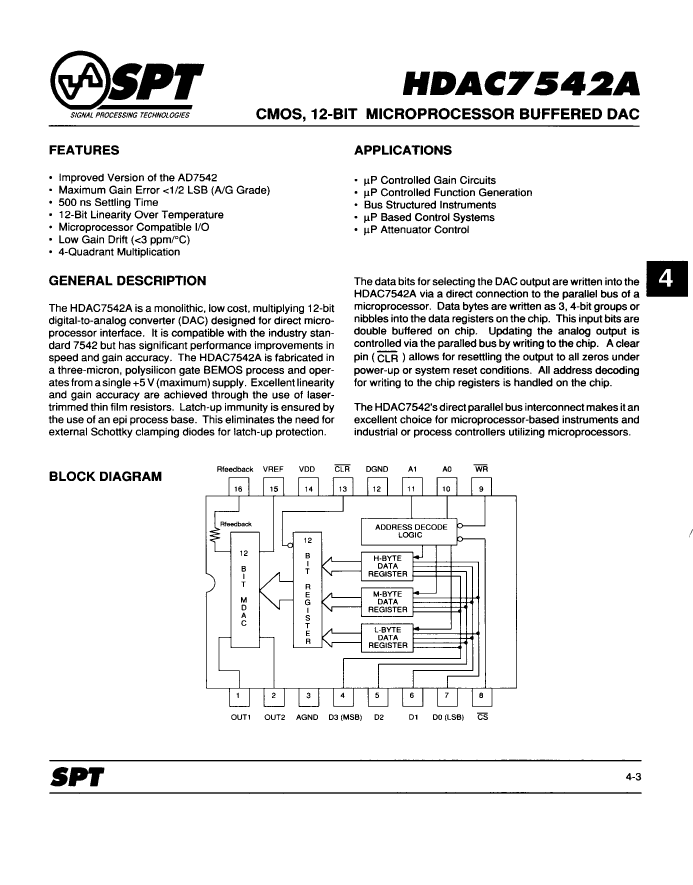

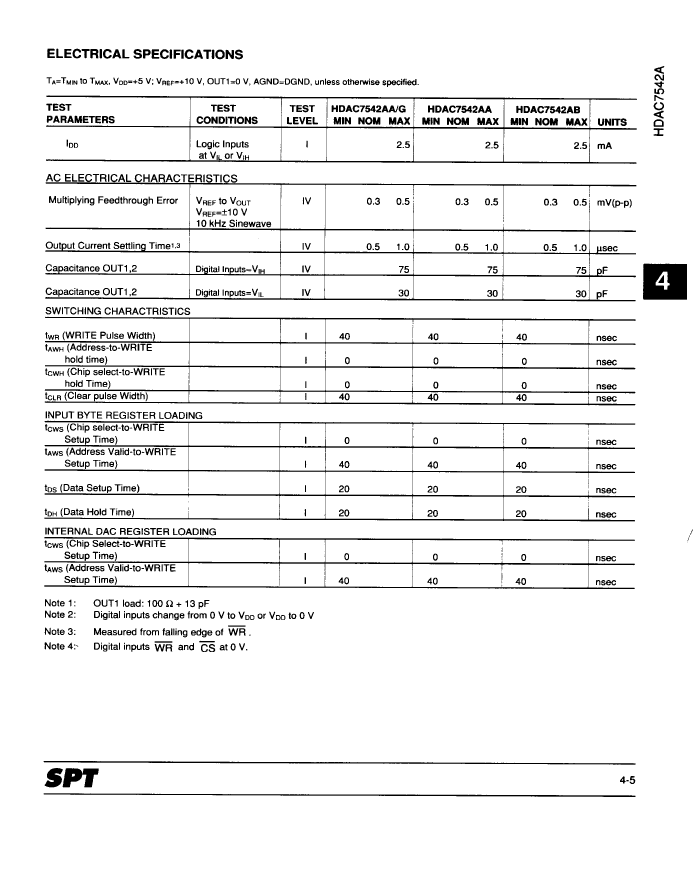

Preview

Download Datasheet

View All

This Material Copyrighted By Its Respective Manufacturer

HDAC7542AACD Related Products

	HDAC7542AACD	HDAC7542AAID/G	HDAC7542ABMD	HDAC7542AACD/G	HDAC7542AAMD/G	HDAC7542AAMD	HDAC7542ABCD	HDAC7542ABID
Description	D/A Converter, 1 Func, Parallel, 4 Bits Input Loading, 0.5us Settling Time, CDIP16,	D/A Converter, 1 Func, Parallel, 4 Bits Input Loading, 0.5us Settling Time, CDIP16,	D/A Converter, 1 Func, Parallel, 4 Bits Input Loading, 0.5us Settling Time, CDIP16,	D/A Converter, 1 Func, Parallel, 4 Bits Input Loading, 0.5us Settling Time, CDIP16,	D/A Converter, 1 Func, Parallel, 4 Bits Input Loading, 0.5us Settling Time, CDIP16,	D/A Converter, 1 Func, Parallel, 4 Bits Input Loading, 0.5us Settling Time, CDIP16,	D/A Converter, 1 Func, Parallel, 4 Bits Input Loading, 0.5us Settling Time, CDIP16,	D/A Converter, 1 Func, Parallel, 4 Bits Input Loading, 0.5us Settling Time, CDIP16,
Is it Rohs certified?	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible
Maker	Signal Processing Technologies	Signal Processing Technologies	Signal Processing Technologies	Signal Processing Technologies	Signal Processing Technologies	Signal Processing Technologies	Signal Processing Technologies	Signal Processing Technologies
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknown
Maximum analog output voltage	7 V	7 V	7 V	7 V	7 V	7 V	7 V	7 V
Minimum analog output voltage	-0.3 V	-0.3 V	-0.3 V	-0.3 V	-0.3 V	-0.3 V	-0.3 V	-0.3 V
Converter type	D/A CONVERTER	D/A CONVERTER	D/A CONVERTER	D/A CONVERTER	D/A CONVERTER	D/A CONVERTER	D/A CONVERTER	D/A CONVERTER
Enter bit code	BINARY, OFFSET BINARY	BINARY, OFFSET BINARY	BINARY, OFFSET BINARY	BINARY, OFFSET BINARY	BINARY, OFFSET BINARY	BINARY, OFFSET BINARY	BINARY, OFFSET BINARY	BINARY, OFFSET BINARY
Input format	PARALLEL, 4 BITS	PARALLEL, 4 BITS	PARALLEL, 4 BITS	PARALLEL, 4 BITS	PARALLEL, 4 BITS	PARALLEL, 4 BITS	PARALLEL, 4 BITS	PARALLEL, 4 BITS
JESD-30 code	R-GDIP-T16	R-GDIP-T16	R-GDIP-T16	R-GDIP-T16	R-GDIP-T16	R-GDIP-T16	R-GDIP-T16	R-GDIP-T16
JESD-609 code	e0	e0	e0	e0	e0	e0	e0	e0
Maximum linear error (EL)	0.012%	0.012%	0.024%	0.012%	0.012%	0.012%	0.024%	0.024%
Number of digits	12	12	12	12	12	12	12	12
Number of functions	1	1	1	1	1	1	1	1
Number of terminals	16	16	16	16	16	16	16	16
Maximum operating temperature	70 °C	85 °C	125 °C	70 °C	125 °C	125 °C	70 °C	85 °C
Minimum operating temperature	-	-25 °C	-55 °C	-	-55 °C	-55 °C	-	-25 °C
Package body material	CERAMIC, GLASS-SEALED	CERAMIC, GLASS-SEALED	CERAMIC, GLASS-SEALED	CERAMIC, GLASS-SEALED	CERAMIC, GLASS-SEALED	CERAMIC, GLASS-SEALED	CERAMIC, GLASS-SEALED	CERAMIC, GLASS-SEALED
encapsulated code	DIP	DIP	DIP	DIP	DIP	DIP	DIP	DIP
Encapsulate equivalent code	DIP16,.3	DIP16,.3	DIP16,.3	DIP16,.3	DIP16,.3	DIP16,.3	DIP16,.3	DIP16,.3
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	IN-LINE	IN-LINE	IN-LINE	IN-LINE	IN-LINE	IN-LINE	IN-LINE	IN-LINE
Peak Reflow Temperature (Celsius)	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
power supply	5 V	5 V	5 V	5 V	5 V	5 V	5 V	5 V
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum stabilization time	1 µs	1 µs	1 µs	1 µs	1 µs	1 µs	1 µs	1 µs
Nominal settling time (tstl)	0.5 µs	0.5 µs	0.5 µs	0.5 µs	0.5 µs	0.5 µs	0.5 µs	0.5 µs
Maximum slew rate	2.5 mA	2.5 mA	2.5 mA	2.5 mA	2.5 mA	2.5 mA	2.5 mA	2.5 mA
Nominal supply voltage	5 V	5 V	5 V	5 V	5 V	5 V	5 V	5 V
surface mount	NO	NO	NO	NO	NO	NO	NO	NO
technology	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS
Temperature level	COMMERCIAL	OTHER	MILITARY	COMMERCIAL	MILITARY	MILITARY	COMMERCIAL	OTHER
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE
Terminal pitch	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm
Terminal location	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
