BPC5333K: DescriptionFixed Resistor, Metal Glaze/thick Film, 5W, 33000ohm, 500V, 10% +/-Tol, 100ppm/Cel, Through Hole Mount, 5010, RADIAL LEADED, ROHS COMPLIANT; CategoryPassive components The resistor; File Size352KB，2 Pages; ManufacturerTT Electronics plc; Websitehttp://www.ttelectronics.com/; Environmental Compliance

Download Datasheet Parametric View All

BPC5333K Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	BPC5333K	-	-	View	Buy Now

BPC5333K Overview

Fixed Resistor, Metal Glaze/thick Film, 5W, 33000ohm, 500V, 10% +/-Tol, 100ppm/Cel, Through Hole Mount, 5010, RADIAL LEADED, ROHS COMPLIANT

BPC5333K Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	TT Electronics plc
package instruction	RADIAL LEADED, ROHS COMPLIANT
Reach Compliance Code	compliant
Other features	RATED AC VOLTAGE (V): 300
structure	Rectangular
JESD-609 code	e3
Lead length	3.175 mm
lead spacing	5.08 mm
Manufacturer's serial number	BPC
Installation features	THROUGH HOLE MOUNT
Number of terminals	2
Maximum operating temperature	155 °C
Minimum operating temperature	-55 °C
Package height	25.4 mm
Package length	12.7 mm
Package shape	RECTANGULAR PACKAGE
Package form	Radial
Package width	2.54 mm
Rated power dissipation(P)	5 W
Rated temperature	70 °C
resistance	33000 Ω
Resistor type	FIXED RESISTOR
size code	5010
surface mount	NO
technology	METAL GLAZE/THICK FILM
Temperature Coefficient	100 ppm/°C
Terminal surface	Matte Tin (Sn)
Terminal shape	FLAT
Tolerance	10%
Operating Voltage	500 V

Preview

Download Datasheet

View All

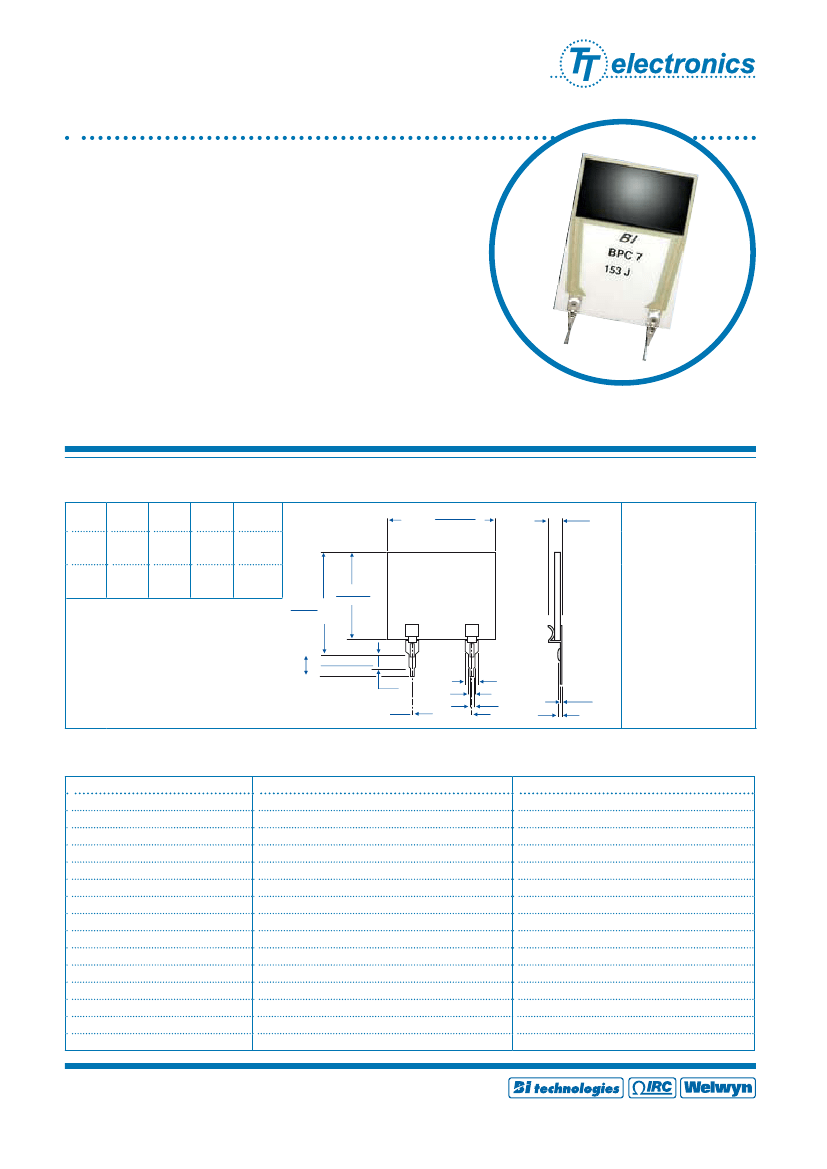

3W to 10W Planar High

Power Resistors

BPC Series

·

Non-Inductive planar package

High power density.

Thin package for high density PCB installation.

Power dissipated above the board.

RoHS compliant.Benefits

Applications

Power supply pre-load resistors.

UPS systems

Snubber and pulse handling circuits.

Pulse generator load resistors.

In-rush current protection

Bleeder Resistors

Specification (Dimensions)

Model

Dim A

Dim B

BPC3

0.40

10.16

0.20

5.08

BPC5

0.50

12.70

0.20

5.08

BPC7

0.75

19.05

0.50

12.70

BPC10

1.00

25.40

0.80

20.32

1.000±.015

25.4±.381

1.090 Max.

27.686

Materials

Dim. A

±.015

±.381

.100

2.54

Maximum

Overall

Thickness

Leads:

Tin Plated Copper Alloy

Substrate: 96% Alumina

Resistor: Thick Film

.125+.0.25/-.000

3.175+.635/-.000

.075

1.905

Dim.B ±.010

±.254

.026

.670

.050

1.27

.020±.002

.508±.050

.026

.660

.010±.002

.254±.050

Notes:

1. Contact factory for custom products, non-standard values and tolerances.

Items

Power Rating

Operating Voltage Max

Resistance Range

TCR

Tolerance

Operating Temp. Range

Dielectric Withstand Voltage

Mechanical Shock

Vibration

Load Life

Humidity

Temperature Cycle

Solder Heat (Max)

Solderability

Insulation Resistance

General Note

TT electronics reserves the right to make changes in product specification without notice or liability.

All information is subject to TT electronics’ own data and is considered accurate at time of going to print.

www.bitechnologies.com www.irctt.com www.welwyn-tt.com

Specification

3W, 5W, 7.5W & 10W

300Vac, 500VDC

0.1Ω to 200 KΩ

100 ppm/°C

10, optional +/-5% , 1%, 2%

-55 - +155 °C

5000 Volts minimum

ΔR

+/- 0.25 %

ΔR

+/- 0.25 %

ΔR

+/- 2.0 %

ΔR

+/- 0.5 %

ΔR

+/- 0.5%

ΔR

+/- 0.25 %

Min 95% coverage

Over 1000 MΩ

100G.

20G, 10 to 2KHz

Conditions

@ ambient temp < 70°C

Extended resistance range available.

For -55 to +155°C and above 1Ω.

70°C, 90 min. ON, 30 min.OFF, 1000 hours.

85°C, 85% RH, DC 0.1W, 1000 hours.

-55°C, 30 min.,+155°C 30min., 5cycles.

260+/-5°C, 10 seconds,

230+/-5°C, 5 seconds.

03. 12
