536606-1 datasheet, PDF - EEWORLD Datasheet

536606-1: Description8 CONTACT(S), MALE, STRAIGHT TWO PART BOARD CONNECTOR, PRESS FIT; CategoryThe connector The connector; File Size142KB，1 Pages; ManufacturerTE Connectivity; Websitehttp://www.te.com

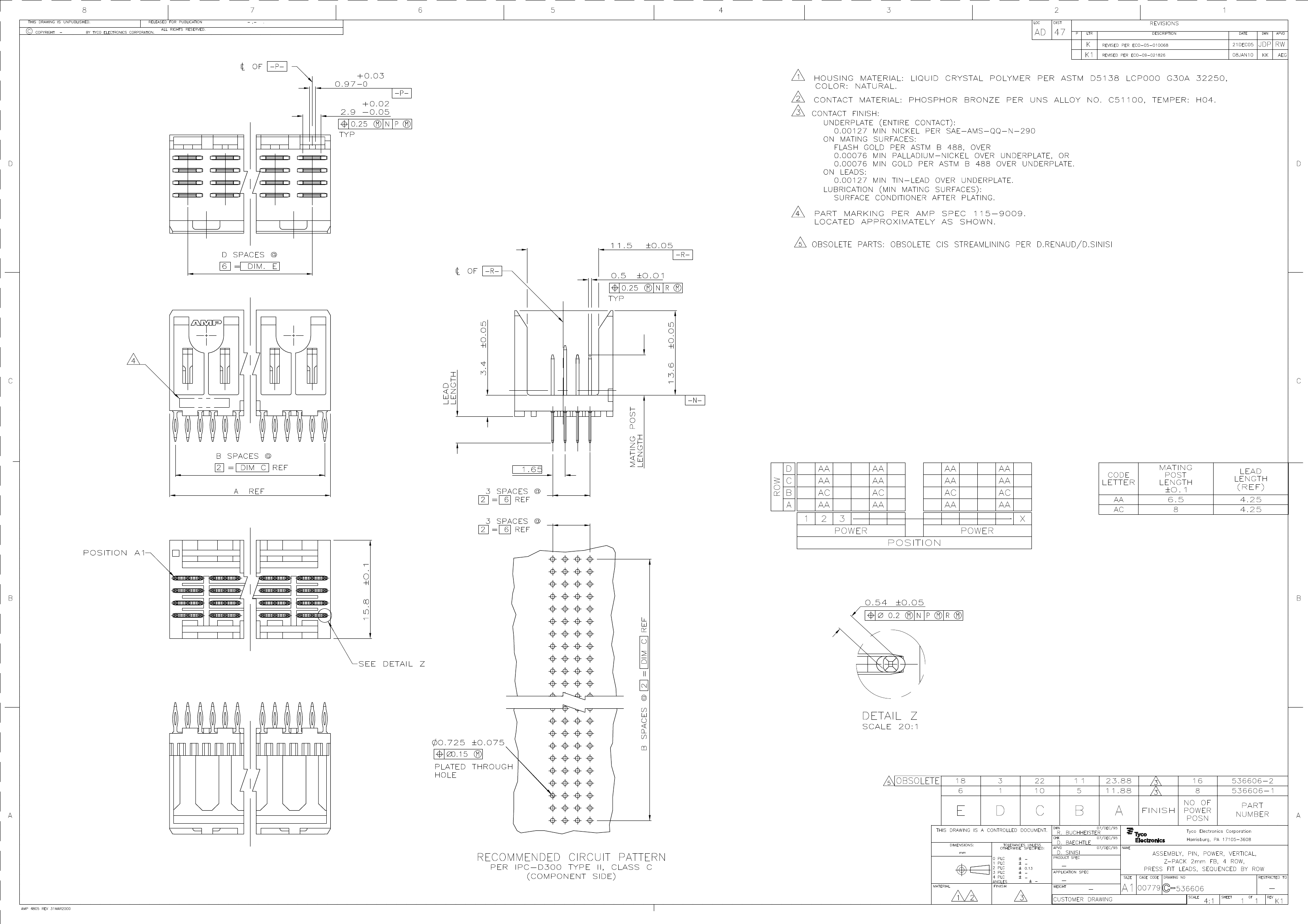

Download Datasheet Parametric View All

536606-1 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	536606-1	-	-	View	Buy Now

8 CONTACT(S), MALE, STRAIGHT TWO PART BOARD CONNECTOR, PRESS FIT

Parameter Name	Attribute value
Is it lead-free?	Contains lead
Is it Rohs certified?	incompatible
Maker	TE Connectivity
Reach Compliance Code	compliant
ECCN code	EAR99
Other features	Z-PACK
Board mount options	POLARIZATION POST
body width	0.466 inch
subject depth	0.67 inch
body length	0.622 inch
Body/casing type	RECEPTACLE
Connector type	BOARD CONNECTOR
Contact to complete cooperation	NOT SPECIFIED
Contact point gender	MALE
Contact material	PHOSPHOR BRONZE
contact mode	RECTANGULAR
Contact style	BLADE PIN-SKT
DIN compliance	NO
Durability	250 Cycles
Filter function	NO
IEC compliance	NO
maximum insertion force	1.4734 N
insulator material	LIQUID CRYSTAL POLYMER (LCP)
MIL compliance	NO
Plug contact pitch	0.079 inch
Match contact row spacing	0.079 inch
Mixed contacts	NO
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	4
Number of rows loaded	4
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Options	GENERAL PURPOSE
PCB contact pattern	RECTANGULAR
PCB contact row spacing	2.0066 mm
Plating thickness	FLASH inch
polarization key	POLARIZED HOUSING
Guideline	UL, CSA
reliability	COMMERCIAL
Terminal length	0.167 inch
Terminal pitch	2 mm
Termination type	PRESS FIT
Total number of contacts	8
Evacuation force-minimum value	.278 N
