M123A11BPB361JZ datasheet, PDF

Datasheet> All Categories > Passive components> capacitor> M123A11BPB361JZ

M123A11BPB361JZ: DescriptionCeramic Capacitor, Multilayer, Ceramic, 50V, 5% +Tol, 5% -Tol, BP, 30ppm/Cel TC, 0.00036uF, Surface Mount, 1210, CHIP; CategoryPassive components capacitor; File Size260KB，3 Pages; ManufacturerKEMET; Websitehttp://www.kemet.com

Download Datasheet Parametric View All

M123A11BPB361JZ Overview

Ceramic Capacitor, Multilayer, Ceramic, 50V, 5% +Tol, 5% -Tol, BP, 30ppm/Cel TC, 0.00036uF, Surface Mount, 1210, CHIP

M123A11BPB361JZ Parametric

Parameter Name	Attribute value
Is it lead-free?	Contains lead
Is it Rohs certified?	incompatible
Maker	KEMET
package instruction	, 1210
Reach Compliance Code	not_compliant
ECCN code	EAR99
capacitance	0.00036 µF
Capacitor type	CERAMIC CAPACITOR
dielectric materials	CERAMIC
high	1.651 mm
JESD-609 code	e0
length	3.048 mm
Installation features	SURFACE MOUNT
multi-layer	Yes
negative tolerance	5%
Number of terminals	2
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Package shape	RECTANGULAR PACKAGE
Package form	SMT
positive tolerance	5%
Rated (DC) voltage (URdc)	50 V
Guideline	MIL-PRF-123
size code	1210
surface mount	YES
Temperature characteristic code	BP
Temperature Coefficient	30ppm/Cel ppm/°C
Terminal surface	Tin/Lead (Sn70Pb30) - with Nickel (Ni) barrier
Terminal shape	WRAPAROUND
width	2.54 mm

Preview

Download Datasheet

View All

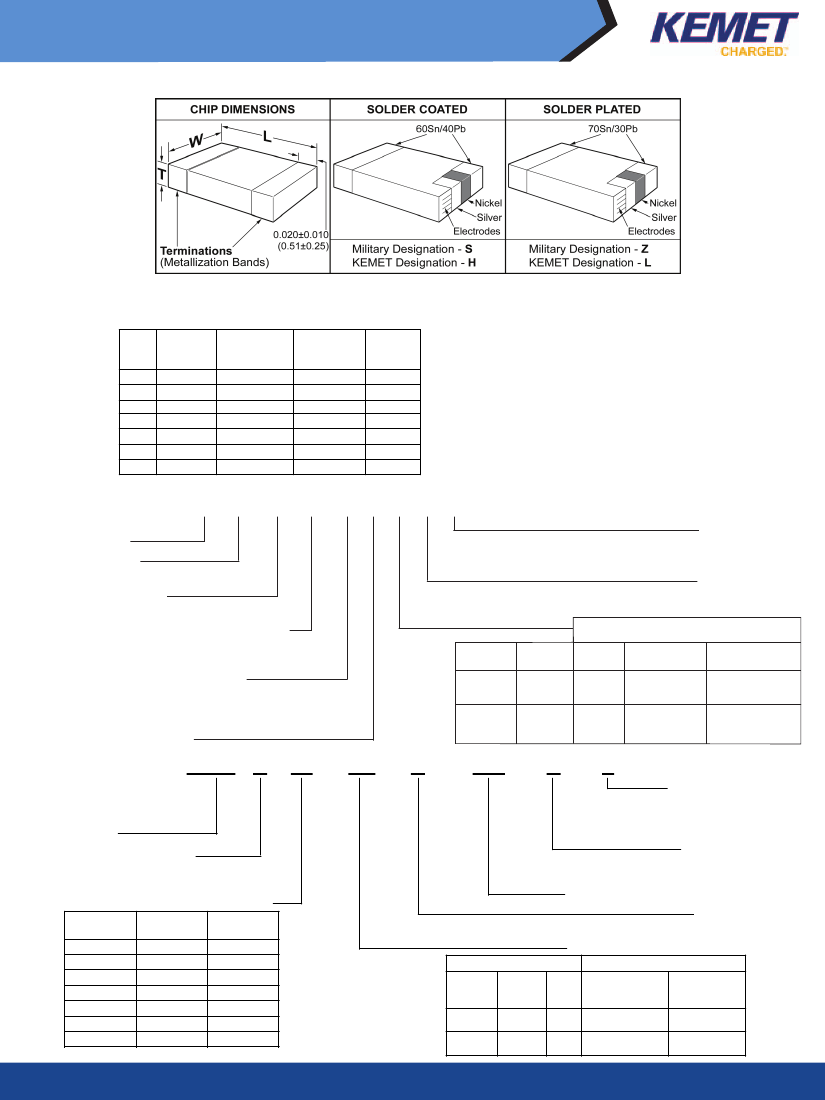

CERAMIC CHIP/MIL-PRF-123

CAPACITOR OUTLINE DRAWINGS

NOTE:

For solder coated termination, add 0.015” (0.38mm) to the positive width and thickness tolerances. Add the following to the positive

length tolerance:

CKS51

- 0.020” (0.51mm);

CKS52, CKS53 and CKS54

- 0.025 (0.64mm); add 0.012” (0.30mm) to the bandwidth tolerance.

DIMENSIONS — INCHES

Chip

Size

0805

1210

1808

2225

1206

1812

1825

Military

Equivalent

Styles

CKS51

CKS52

CKS53

CKS54

CKS55

CKS56

CKS57

Length

0.080 ± 0.015

0.120 ± 0.015

0.180 ± 0.015

0.220 ± 0.015

0.120 ± 0.015

0.180 ± 0.015

Width

0.050 ± 0.015

0.100 ± 0.015

0.080 ± 0.015

0.250 ± 0.015

0.060 ± 0.015

0.125 ± 0.015

0.250 ± 0.015

Thickness

Maximum

0.055

0.065

0.070

0.065

0.080

MARKING

Capacitors shall be legibly laser

marked in contrasting color with

the KEMET trademark and

2-digit capacitance symbol.

KEMET ORDERING INFORMATION

C 0805 Z 101 K 5 G A

Ceramic

Chip Size

0805, 1206, 1210, 1808, 1812, 1825, 2225

Termination

H = Nickel Guarded, Solder-Coated

(Sn60)

L = 70/30 Tin/Lead Plated

Specification

Z — Mil-PRF-123

Failure Rate

(%/1000 Hours)

A - Standard — Not Applicable

Capacitance Picofarad Code

First two digits represent significant figures.

Third digit specifies number of zeros to follow.

KEMET

Designator

(Ultra Stable)

Military

Equivalent

Temperature Characteristic

Temp.

Range, °C

-55 to

+125

Measured Without

DC BiasVoltage

±30

ppm °C

Measured With Bias

(Rated Voltage)

±30

ppm °C

Capacitance Tolerance

C— ±0.25pF

D— ±0.5 pF

F— ±1%

5 — 50; 1 — 100

J— ±5%

K— ±10%

Working Voltage

(Stable)

-55 to

+125

±15%

+15%

-25%

M123 A

Military Specification

Number

Modification Number

Indicates the latest characteristics of

the part in the specification sheet

MIL-PRF-123 Slash Sheet Number

Slash Sheet # KEMET Style

C0805

C1210

C1808

C2225

C1206

C1812

C1825

MIL-PRF-123

Style

CKS51

CKS52

CKS53

CKS54

CKS55

CKS56

CKS57

472

Termination

Z = 70/30 Tin Lead Plated

S = Nickel guarded Solder-

coated (Sn60)

Tolerance

C = ±0.25pF; D = ±0.5pF;

F = ±1%; J = ±5%; K = ± 10%

Capacitance Picofarad Code

Voltage

B = 50; C = 100

Temperature Characteristic

Capacitance Change with Temperature

Temp.

KEMET

Military

Range,

Designator Equivalent

°C

(UltraStable)

(Stable)

-55 to

125

-55 to

+125

Measured Without

DC Bias Voltage

±30

ppm°C

±15%

Measured With

Bias (Rated

Voltage)

±30

ppm°C

+15%

-25%
