SRN1-09S-TG-T datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> SRN1-09S-TG-T

SRN1-09S-TG-T: DescriptionD Nanominiature Connector, 9 Contact(s), Female, Surface Mount Terminal, Receptacle,; CategoryThe connector The connector; File Size367KB，4 Pages; ManufacturerCristek Interconnects Inc

Download Datasheet Parametric View All

SRN1-09S-TG-T Overview

D Nanominiature Connector, 9 Contact(s), Female, Surface Mount Terminal, Receptacle,

SRN1-09S-TG-T Parametric

Parameter Name	Attribute value
Maker	Cristek Interconnects Inc
Reach Compliance Code	compliant
ECCN code	EAR99
Body/casing type	RECEPTACLE
Connector type	D NANOMINIATURE CONNECTOR
Contact to complete cooperation	GOLD OVER NICKEL
Contact completed and terminated	GOLD OVER NICKEL
Contact point gender	FEMALE
DIN compliance	NO
empty shell	NO
Filter function	NO
IEC compliance	NO
insulator material	LIQUID CRYSTAL POLYMER/POLYPHENYLENE SULFIDE
JESD-609 code	e4
MIL compliance	NO
Manufacturer's serial number	SRN1
Plug information	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO
Installation type	BOARD AND PANEL
Options	GENERAL PURPOSE
Shell surface	GOLD
Shell material	ALUMINUM ALLOY
Termination type	SURFACE MOUNT
Total number of contacts	9

Preview

Download Datasheet

View All

SERIES

SRN1

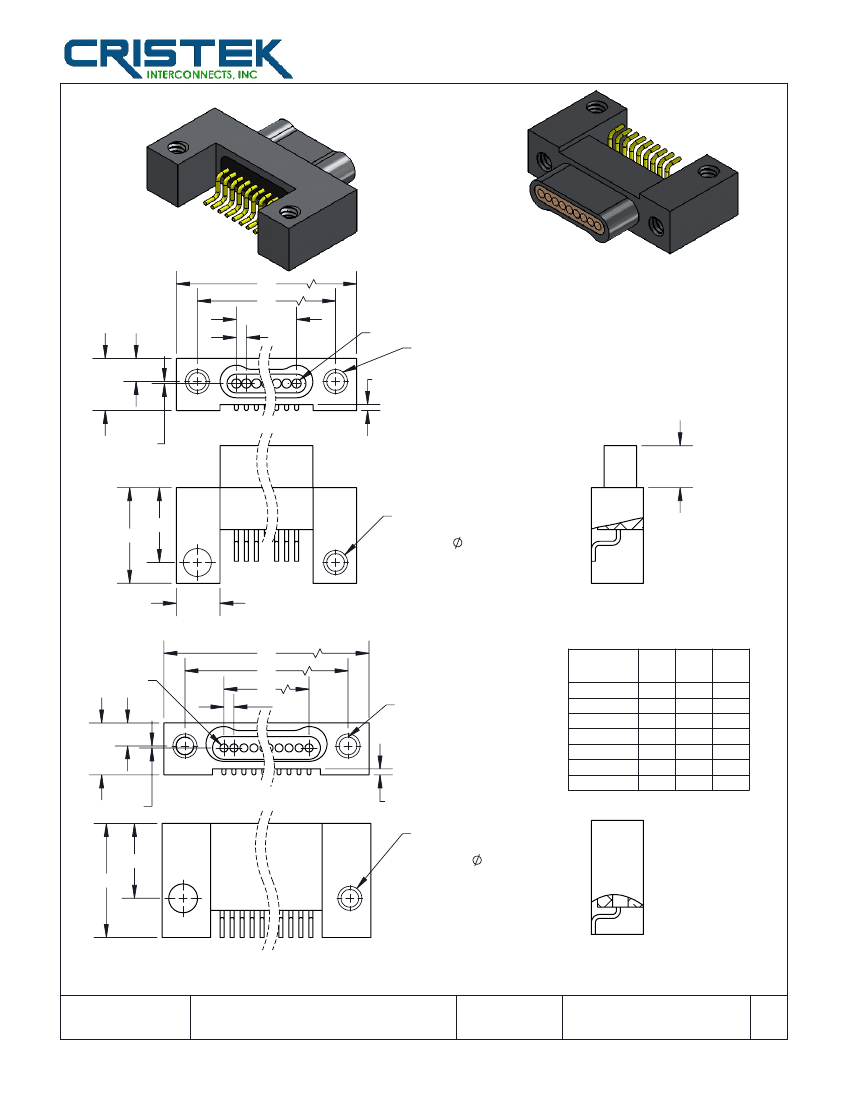

NANO METAL SHELL SINGLE ROW

RIGHT ANGLE SURFACE MOUNT

.025

.0575

.130

POS 1

2x #0-80 UNF-2B

THREADED HOLE

.015

.005

.105

.239

.187

2x #0-80 UNF-2B

THREADED HOLE

(OPTIONAL .070

THRU HOLE)

.109

PLUG

.025

2x #0-80 UNF-2B

THREADED HOLE

NO. OF

CONTACTS

POS 1

.500

.650

.800

.900

1.050

1.200

1.550

.395

.545

.695

.795

.945

1.095

1.445

.200

.350

.500

.600

.750

.900

1.250

.0575

.130

.005

.015

2x #0-80 UNF-2B

THREADED HOLE

(OPTIONAL .070

THRU HOLE)

.187

.285

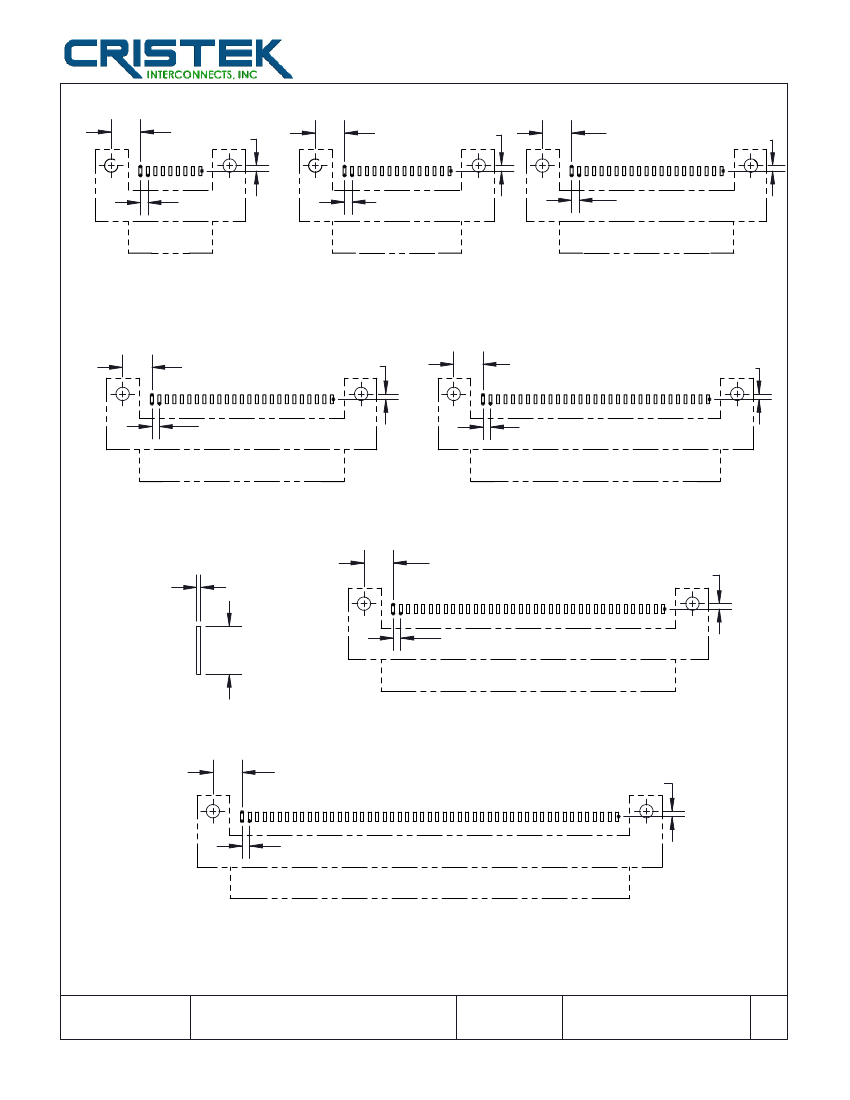

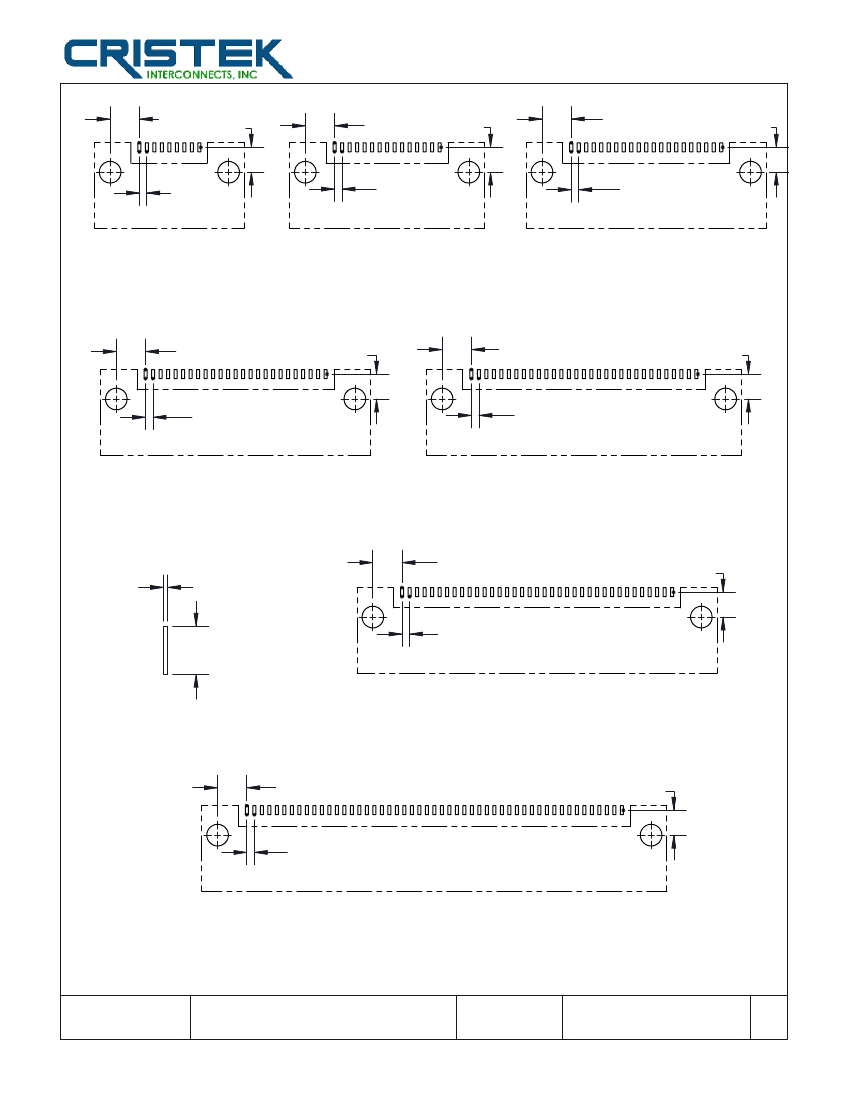

(FOR PLUG AND RECEPTACLE PCB CONTACT FOOTPRINTS, SEE SHEETS 3 AND 4)

TOLERANCE: .XXX ±.005

.XX ±.01

ANGLE ±1°

TITLE

RECEPTACLE

SHT

NANO METAL SHELL

SINGLE ROW RIGHT ANGLE

SURFACE MOUNT

DWG. NO.

REV

SRN1

CRISTEK.COM

888.265.9162
