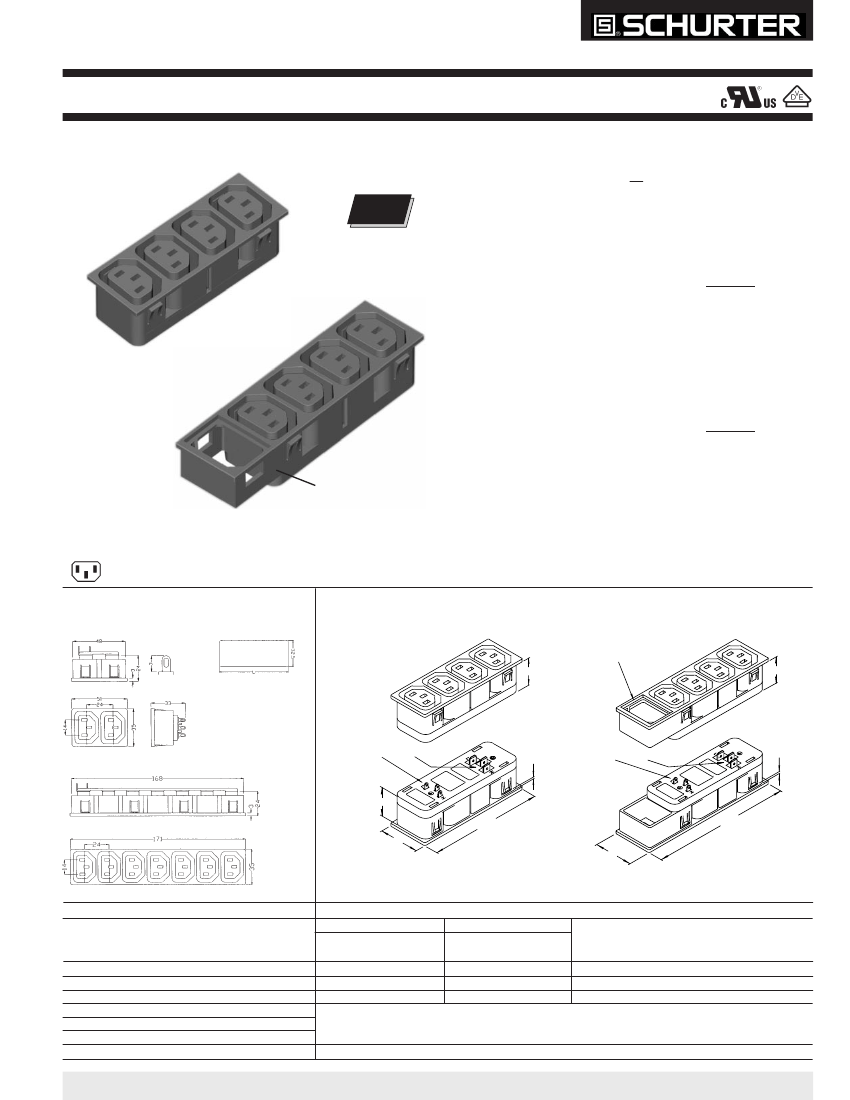

0909 / 4752-55
AC Outlets For Panel Mounting
•
For “cold” connections 70˚C, Protection Class I
•
Snap-in mount from front
0909 for panel mounting (uninsulated terminals)
NEW
With rear insulation
cover (series 475)
• Solder terminals 3.0 X 0.8mm
• Material: thermoplastic (UL 94V-0)
• Prongs and terminals: brass, nickel-plated
UL
C-UL
VDE
recognition
recognition
approval
15A/250V
15A/250V
10A/250V
File #E103791
File #E103791
File #112657
4752 / 4753 for snap-in panel mounting (insulated terminals)
• Solder terminals, quick-connect 6.3mm and solder, or quick-
connect 6.3mm only
• Material: PA6 (UL 94V-0)
• Contacts: brass, electro-tin plated
0909 / 4752 / 4753
UL
CSA
VDE
recognition
certification
approval
15A/250V *
15A/250V *
10A/250V *
File #E83589(M)
File #LR56242-11
File #95796
* approvals for types with both quick-connect 6.3mm and solder terminals. Solder only
or quick-connect only have approvals pending for 15A/250V (C-UL-US) and 10A/250V
(VDE).
4754 / 4755 for snap-in panel mounting (insulated terminals)
• Solder terminals, quick-connect 6.3mm and solder, or quick-
connect 6.3mm only
• Material: PA6 (UL 94V-0)
• Contacts: brass, electro-tin plated
Cut-out accepts snap-in inlet:
6100.4120, .4220 or .4320
(see page 11)
4754 / 4755
UL
CSA
VDE
recognition
certification
approval
15A/250V *
15A/250V *
10A/250V *
File #E83589(M)
File #LR56242-11
File #95796
* approvals for types with both quick-connect 6.3mm and solder terminals. Solder only
or quick-connect only have approvals pending for 15A/250V (C-UL-US) and 10A/250V
(VDE).
Standards: EN 60320; IEC 320/F/H
0909 Outlets (uninsulated terminals)
4752 / 4753 Outlets
(insulated terminals)
4754 / 4755 Outlets
(insulated terminals)
CUT-OUT FOR 2mm CLIP-
IN SCHURTER INLET
Cut-out for
1.5mm panel
25.
2
2
25.
L = 48.3 (2 pc. strip)
72.3 (3 pc. strip)
96.3 (4 pc. strip)
120.3 (5 pc. strip)
144.3 (6 pc. strip)
168.3 (7 pc. strip)
SOLDER & 6.3 TABS
SOLDER & 6.3 TABS
S
S
25.
2
10
0
PANEL CUT-OUT 96.2mm x 32.5mm
MAXIMUM CORNER RADII 1mm
PANEL CUT-OUT 122.1mm x 32.5mm
MAXIMUM CORNER RADII 1mm
Order Numbers – Uninsulated Terminals
0909
Pre-wired
Terminal
Snap-in
Configuration Type
0909.0001 2 outlets
solder, 3.0x0.8mm
0909.0011* 3 outlets
solder, 3.0x0.8mm
0909.0021 4 outlets
solder, 3.0x0.8mm
0909.0031* 5 outlets
solder, 3.0x0.8mm
0909.0041 6 outlets
solder, 3.0x0.8mm
0909.0051* 7 outlets
solder, 3.0x0.8mm
* Contact Schurter, Inc. for order minimum.
Order Numbers – Insulated Terminals (4 outlets only)
Quad Block
Quad Block +1
4752
4753
4754
4755
Panel
Terminal
Class I
Class II
Class I
Class II
Thickness Types
4752.4000 4753.4000 4754.4000 4755.4000 1.5mm
6.3mm quick-connect, and solder
4752.4200 4753.4200 4754.4200 4755.4200 1.5mm
6.3mm, quick-connect only
4752.4400 4753.4400 4754.4400 4755.4400 1.5mm
solder only
To order other panel thickness, *change the fifth digit in the part number: 2=0.8mm, 3=1.0mm,
5=2.0mm, 6=2.5mm, 7=3.0mm, 8=1.2mm (i.e.4752.5000=for 2mm panel thickness).
Contact Schurter, Inc. for order minimum. White plastic available on request.
Schurter, Inc. • Phone 707-778-6311 • Fax 707-778-6401 • E-mail info@schurterinc.com • Website http://www.schurterinc.com
