CT15-26S5K228 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> CT15-26S5K228

CT15-26S5K228: DescriptionD Type Connector, 26 Contact(s), Female, 0.09 inch Pitch, Solder Terminal, #4-40, Plug; CategoryThe connector The connector; File Size53KB，1 Pages; ManufacturerYamaichi Electronics Co., Ltd.; Websitehttp://www.yamaichi.com/

Download Datasheet Parametric View All

CT15-26S5K228 Overview

D Type Connector, 26 Contact(s), Female, 0.09 inch Pitch, Solder Terminal, #4-40, Plug

CT15-26S5K228 Parametric

Parameter Name	Attribute value
Maker	Yamaichi Electronics Co., Ltd.
Reach Compliance Code	unknown
Other features	SNAP-IN TYPE
body width	0.492 inch
subject depth	0.63 inch
body length	1.543 inch
Body/casing type	PLUG
Contact to complete cooperation	AU ON NI
Contact point gender	FEMALE
Contact material	COPPER ALLOY
contact mode	STAGGERED
Contact resistance	10 mΩ
Contact style	RND PIN-SKT
Dielectric withstand voltage	1000VAC V
Insulation resistance	5000000000 Ω
insulator material	GLASS FILLED POLYESTER
Manufacturer's serial number	CT
Plug contact pitch	0.09 inch
Match contact row spacing	0.1 inch
Installation option 1	#4-40
Installation option 2	CLINCH NUT
Installation method	RIGHT ANGLE
Installation type	BOARD
PCB row number	3
Number of rows loaded	3
Maximum operating temperature	105 °C
Minimum operating temperature	-55 °C
PCB contact pattern	STAGGERED
PCB contact row spacing	2.54 mm
Rated current (signal)	5 A
Guideline	UL
reliability	COMMERCIAL
Terminal length	0.13 inch
Terminal pitch	2.286 mm
Termination type	SOLDER
Total number of contacts	26

Preview

Download Datasheet

View All

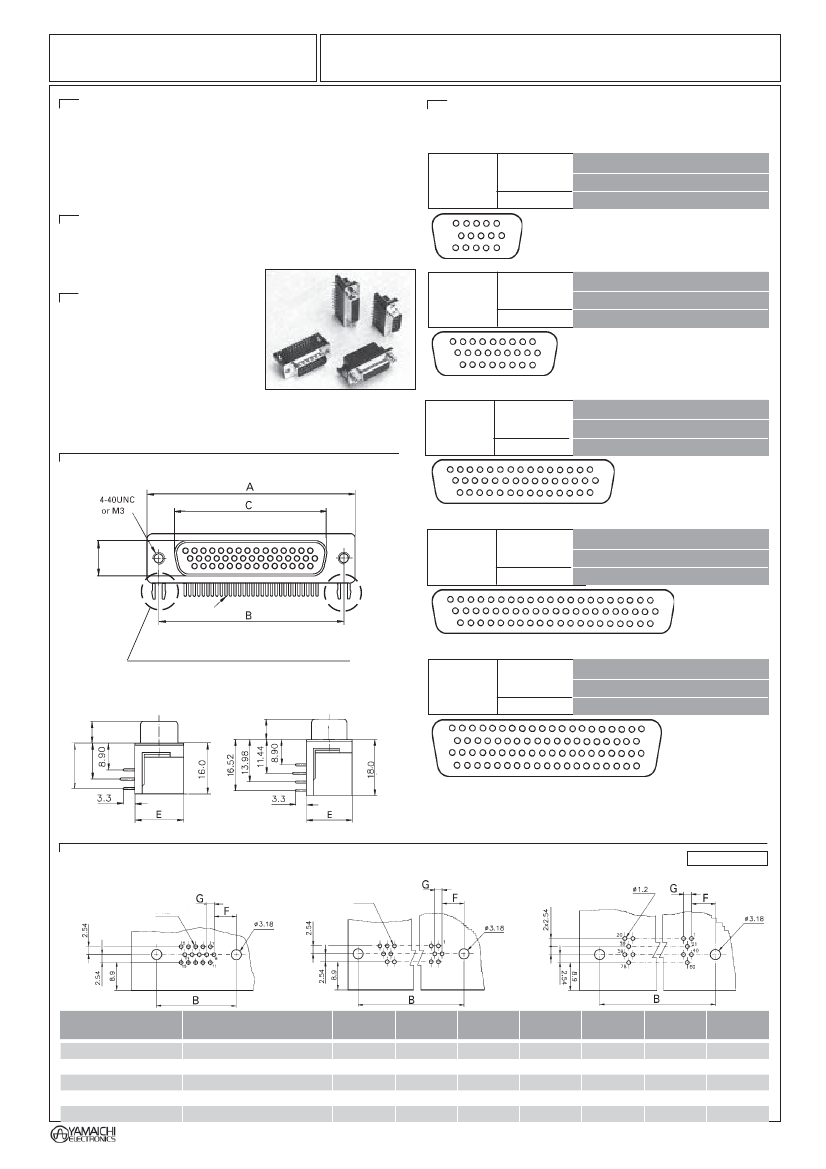

CT Series

(HD D-Sub)

Specifications

Insulation Resistance:

Withstanding Voltage:

Contact Resistance:

Current Rating:

Operating Temp. Range:

5,000MΩ min.

1,000V AC

10mΩ max.

–55°C to +105°C

90° Solder Dip

(Female, PCB-Snap-in)

Part Numbers

Contacts

With

Snap-in

4-40 = Part No. CT09-15S5K228

M3 = Part No. CT09-15S5K229

w/o Snap-in

4-40 = Part No. CT09-15S5K222

Materials and Finish

Insulator: Polyester Resin (glass filled) Fiber reinforced, UL94V-0

Contacts: Copper Alloy

Plating: Gold over Nickel

Features

➭

Stamped contacts

➭

Selective gold plating

➭

With snap-in latches for PCB lock,

or Through Hole to PCB with

M3 or 4-40UNC clinch nut

Contacts

M3 = Part No. CT15-26S5K229

w/o Snap-in

4-40 = Part No. CT15-26S5K222

With

Snap-in

4-40 = Part No. CT15-26S5K228

Outline Connector Dimensions

Contacts

With

Snap-in

w/o Snap-in

4-40 = Part No. CT25-44S5K228

M3 = Part No. CT25-44S5K229

4-40 = Part No. CT25-44S5K222

D ±0.1

Contacts

0.7±0.1

M3 = Part No. CT37-62S5K229

w/o Snap-in

4-40 = Part No. CT37-62S5K222

With

Snap-in

4-40 = Part No. CT37-62S5K228

Without Snap-in Type has a Through

Hole for Screw Fixing

5.9±0.15

For contacts:

15, 26, 44 and 62 pins

For contact: 78 pins

78*

Contacts

With

Snap-in

With Rivet

4-40 = Part No. CT50-78S5K228

M3 = Part No. CT50-78S5K229

4-40 = Part No. CT50-78S5L228

Recommended PCB Layout

Munich 089 / 45109-0

Top View

13.83

11.29

For 15 contacts

∅1.0

For 26, 44 and 62 contacts

∅1.0

For 78 contacts

YAMAICHI ELECTRONICS -

Part Number

CT09-15S5K22*

CT15-26S5K22*

CT25-44S5K22*

CT37-62S5K22*

CT50-78S5*22*

Trading Division

No. of Contacts

30.80

39.20

53.05

69.40

67.00

25.00

33.30

47.05

63.50

61.00

16.35

24.70

38.40

54.80

52.20

7.90

10.90

12.50

15.40

7.10

6.80

7.00

7.60

2.29

2.42

SPECIFICATIONS ARE SUBJECT TO ALTERATION WITHOUT PRIOR NOTICE - DIMENSIONS IN MILLIMETER AND FOR REFERENCE ONLY
