DTSU-63N-55Q datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Mechanical and electronic products> switch> DTSU-63N-55Q

DTSU-63N-55Q: DescriptionKeypad Switch; CategoryMechanical and electronic products switch; File Size2MB，1 Pages; ManufacturerAPEM; Environmental Compliance

Download Datasheet Parametric View All

DTSU-63N-55Q Overview

Keypad Switch

DTSU-63N-55Q Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	APEM
Reach Compliance Code	compliant
body width	7.2 mm
body height	6.45 mm
Body length or diameter	65.5 mm
Circuit configuration	1X5
Maximum contact current (DC)	0.05 A
Contact (DC) maximum rated R load	.05A@12VDC
Maximum contact voltage (DC)	12 V
Electrical life	200000 Cycle(s)
Installation features	THROUGH HOLE-RIGHT ANGLE
Number of switches	5
Maximum operating force	2.06 N
Maximum operating temperature	70 °C
Minimum operating temperature	-25 °C
surface mount	NO
Switch action	MOMENTARY-TACTILE
switch function	SPST
Switch type	KEYPAD SWITCH
Termination type	SOLDER

Preview

Download Datasheet

View All

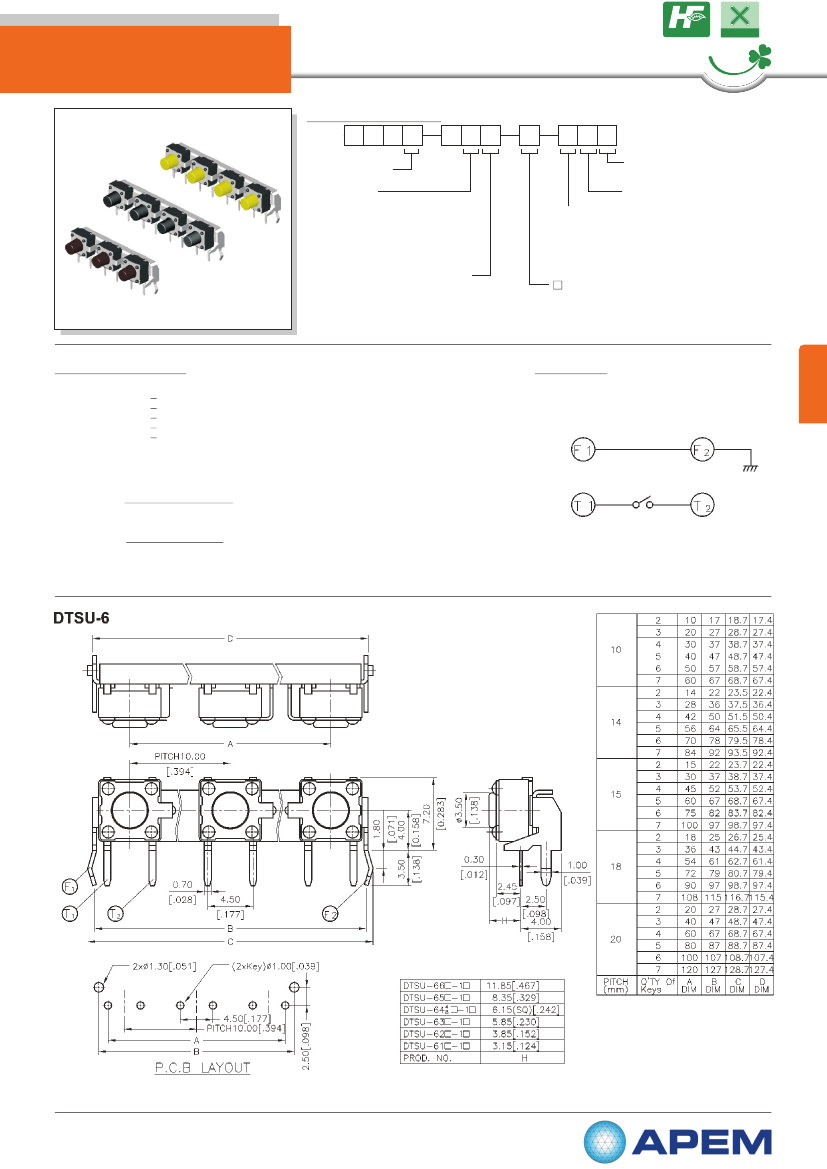

DTSU-6 SERIES

6x6

Multiple Type

HOW TO ORDER

Halogen Free

LEAD FREE

RoHS

Compliant

Multiple Type

Dimension H:

1=3.15mm

2=3.85mm

3=5.85mm

44=6.15mm (SQ.) x2.4mm

48=6.15mm (SQ.) x2.8mm

5=8.35mm

6=11.85mm

V=RoHS & Lead Free Solderable

Q=Halogen Free

Number Of Keys :

0=2 Keys

1=3 Keys

2=4 Keys

3=6 Keys

4=7 Keys

5=5 Keys

Pitch :

1=10mm

2=15mm

3=18mm

4=20mm

5=14mm

Operating Force :

=Phosphor Bronze Dome

K=Black,100gf

N=Brown,160gf

S=Stainless Steel Dome

R=Red, 260gf

S=Salmon, 320gf

Y=Yellow, 520gf >Not Available For Halogen Free

SPECIFICATION

MECHANICAL

Operation Force: 520+130gf Yellow (Y)

320+80gf

Salmon (S)

260+50gf

Red

(R)

160+50gf

Brown (N)

100+50gf

Black

(K)

Stroke : 0.25+0.2mm/-0.1mm

ENVIRONMENTAL

Operation Temperature Range : -25C to +70C

Storage Temperature Range : -30C to +80C

ELECTRICAL

Electrical Life: *Phosphor Bronze Dome

50,000 cycles for 320gf, 520gf

100,000 cycles for 260gf

200,000 cycles for 100gf, 160gf

*Stainless Steel Dome

300,000 cycles for 320gf, 520gf

500,000 cycles for 260gf

1,000,000 cycles for 100gf, 160gf

Rating: 50mA , 12VDC

PACKAGE

DTSU-62-10: 190 pcs/set

DTSU-62-11: 70 pcs/set

DTSU-62-12: 56 pcs/set

DTSU-62-13: 32 pcs/set

DTSU-62-14: 57 pcs/set

DTSU-62-15: 76 pcs/set

DTSU-62-20: 90 pcs/set

DTSU-62-21: 76 pcs/set

DTSU-62-22: 57 pcs/set

DTSU-62-23: 26 pcs/set

DTSU-62-31: 76 pcs/set

DTSU-62-32: 42 pcs/set

DTSU-62-33: 38 pcs/set

DTSU-62-42: 38 pcs/set

DTSU-62-52: 40 pcs/set

CIRCUIT

TACT SWITCH

www.dip.com.tw
