Mount Power Supply
Technical Information

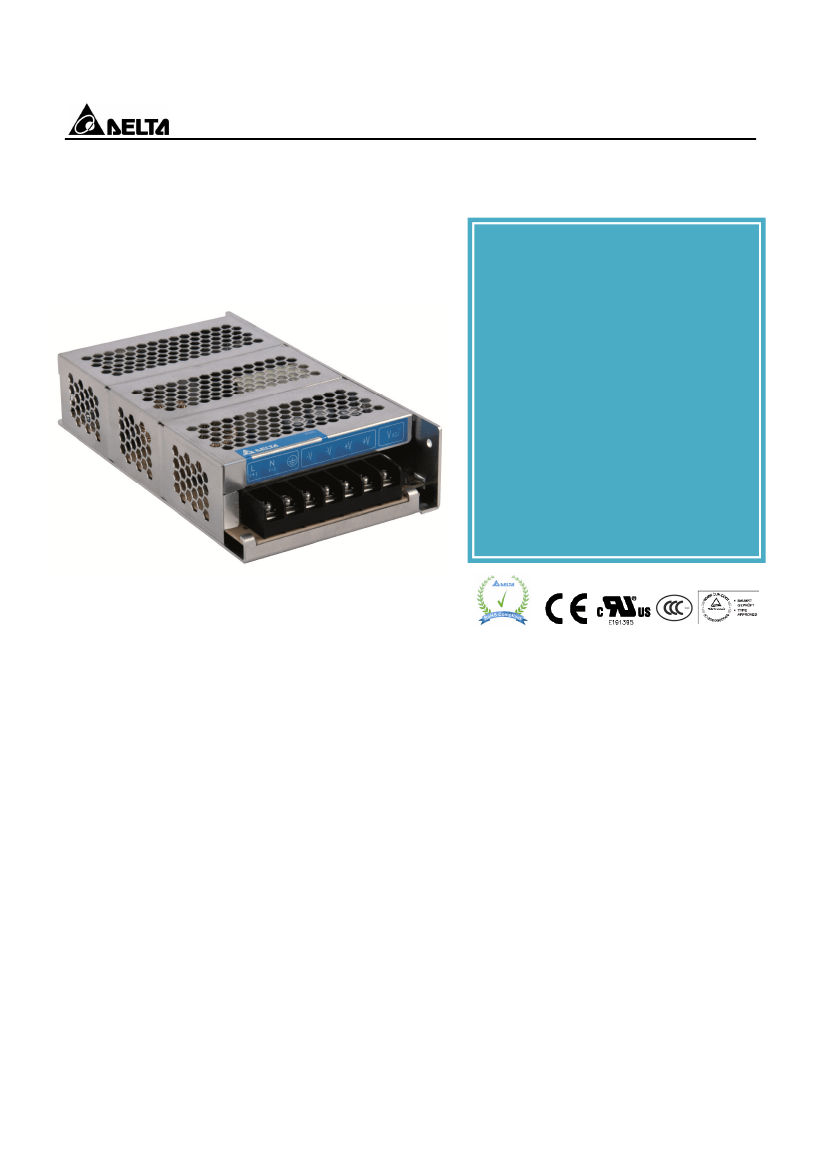

PMC-DSPV100W1A
Dual 24V/5V 100W 1 Phase
Features:
Full aluminium casing for
lightweight and corrosion
resistant handling
Ease of wire connection to
Terminals
Dual O/P 24V & 5V
Universal AC input
Overload protection
Over voltage protection
Thermal protection
MTBF:>700,000hrs
Efficiency> 86%typ.
Expected life time: 10 years
2 year warranty
RoHS compliant
PMC-DSPV100W1A
Summary
The new Hi-End series with Dual O/P voltage 24V &
5V Enclosed Power Supply is the latest offering from
one of the world’s largest power supply
manufacturers and solution providers - Delta.
The product range offers a nominal output voltage of
24V, a wide temperature range from -10°C to +70°C
and a highly dependable minimum holdup time.
The state-of-the-art design is made to withstand
harsh industrial environments. What makes the
product stands out from the crowd is its lightweight
full aluminum body design which can withstand shock
and vibration according to IEC60068-2.
Delta’s Panel Mount Power Supply also offers
overvoltage and overload protection. Using a wide
input voltage range design, it is compatible
worldwide. The input also includes DC operating
voltage from 120-375Vdc. Best of all, this excellent
design and quality does not come with a big price
tag.
1/13
3/14/2011
Rev: 01,
Panel Mount Power Supply
Technical Information
PMC-DSPV100W1A
Technical Data
PMC-DSPV100W1A
1.) Input Data
Nominal AC Input Voltage
100 - 240VAC
Input Voltage range
85 - 264VAC
Nominal AC Input Frequency
50Hz
AC Input Frequency
47 - 63Hz
DC Input Voltage Range
120 – 375VDC
Max. Input Current
3.2A Max.(2.0A @ 115VAC, 1.1A @ 230VAC)
Efficiency
> 86% @ 230VAC, > 84% @ 115VAC
Max. Inrush current limitation.(Cold Start)
< 50A @ 115VAC, < 100A @ 230VAC
Leakage Current
< 1.0mA @ 240VAC
Transient surge voltage protection
VARISTOR
Input fuse, internal (device protection)
T 3.15.AH / 250V
Recommended backup fuse: Power circuit-breaker characteristic
6A,10A,16A : B
2.) Output Data (24VDC)
Max. Output Power
Nominal Output Voltage
Tolerance
Output Voltage Adjust Range
Nominal Output Current
Line Regulation
Load Regulation
Startup with capacitive loads
Total PARD (Peak switching 20MHz BW @ nominal values)
Power Derating above +50°C ambient Temp.
Rise Time
Start-Up Time
Main Buffering (Hold-Up Time ,Power failure bypass)
Dynamic Response (Overshoot & Undershoot O/P Voltage)
Parallel connection (Redundancy)
Surge voltage protection against internal surge voltages
3.) Protection (24VDC)
Over Voltage Protection
Over load Protection
Over current Protection
Over Temperature Protection
Short Circuit Protection
4.) Output Data (5VDC)
Max. Output Power
Nominal Output Voltage
Tolerance
Output Voltage Adjust Range
Nominal Output Current
Line Regulation
Load Regulation
Total PARD (Peak switching 20MHz BW @ nominal values)
Power Derating above +50°C ambient Temp.
Rise Time
Start-Up Time
Main Buffering (Hold-Up Time ,Power failure bypass)
Dynamic Response (Overshoot & Undershoot O/P Voltage)
Surge voltage protection against internal surge voltages
5.) Protection (5VDC)
Over Voltage Protection
Over load Protection
Over current Protection
Over Temperature Protection
Short Circuit Protection
65W
24 VDC
+/- 2% (Initial Set Point tolerance)
22.8 – 26.4 VDC
2.7 A
+/- 0.5% Typical @ 85 to 264VAC input, 100% load
+/- 1.0% Typical @ rated input, 20% to 100% load
Max 4,000µF (@ Nominal Input Voltage & Nominal O/P Voltage,25°C)
< 200mVpp.
Derated Linearly 2.5% / °C
< 30 ms @ full load, 25°C
< 1.0 s @ full load, 25°C
> 15ms @ 115VAC & 230Vac, 25°C
+/-5% of 0% - 100% load.
YES ,with External Diode or Redundancy module (DRR-20A or DRR-40A)
YES
> 32.4V, SELV output, Non-Latching (Auto recovery).
> 150% of rated load current, Auto Recovery (Hicc-up Mode).
> 150% of rated load current, Auto Recovery (Hicc-up Mode).
> 50°C Ambient Temp @ Max Load. Non-Latching (Auto-recovery.
Bouncing mode and recovers automatically when the fault is removed.
35W
5 VDC
+/- 5% (Initial Set Point tolerance)
11.4 – 12.6 VDC
7.0 A
+/- 0.5% Typical @ 85 to 264VAC input, 100% load
+/- 1.0% Typical @ rated input, 20% to 100% load
< 80mVpp.
Derated Linearly 2.5% / °C
< 20 ms @ full load, 25°C
< 1.0 s @ full load, 25°C
> 15ms @ 115VAC & 230Vac, 25°C
+/-5% of 0% - 100% load.
YES
> 6.75V, SELV output, Non-Latching (Auto recovery).
> 150% of rated load current, Auto Recovery (Hicc-up Mode).
> 150% of rated load current, Auto Recovery (Hicc-up Mode).
> 50°C Ambient Temp @ Max Load. Non-Latching (Auto-recovery.
Bouncing mode and recovers automatically when the fault is removed.
2/13
3/14/2011
Rev: 00.1,
Panel Mount Power Supply
5.) Environmental
Ambient temperature (Operating)
Ambient temperature (Storage)
Humidity Operation
Shock Test (in all directions)
Vibration (in all X,Y,Z direction)
(Non-Operating)
Bump
MTBF
Expected Life Time
RoHS Compliant
Altitude (Operating)
Degree of protection
Class of protection
Pollution degree
Climatic class
5.) Mechanical Data
Dimension
Cooling System
Input Terminal & Output Terminal
Mounting Rail
Connection
Input wire size
Output wire size
Indicator
Type of housing
Weight
6.) Certification/Safety Standards
EMI : Immunity to interference according to EN 61000-6-2
1)
EN 61000-4-2
Discharge of static electricity (ESD):
Air Discharge/Contact discharge:
1)
EN 61000-4-3
Housing:
Radiate Field Immunity
Frequency/Field intensity:
1)
EN 61000-4-4
Fast transients (Burst Immunity):
1)
IEC 61000-4-5
Surge voltage Immunity:
Common Mode/Differential Mode:
1)
EN 61000-4-6
I/O:
Conducted Immunity
Frequency / U
o
:
1)
EN 61000-4-8
Power frequency magnetic field:
2)
EN 61000-4-11
Voltage dips:
EMC : Noise emission according to EN 61000-6-3
Emitted radio interface
Radio interference voltage
Galvanic Isolation :
Input / output
type test/routine test :
Input / PE
type test/routine test :
output / PE
type test/routine test :
Electrical equipment of machines
Electronic equipment for use in electrical power Installations
Safety entry low voltage
Electrical Safety for Information technology equipment
Electrical Safety for Industrial Control Equipment
Protection against electric shock
Conformance with EMC guideline 2004/108/EC
and for low voltage guideline 2006/95/EC :
Technical Information
PMC-DSPV100W1A
-20°C to +50°C, with operation to 70°C possible with a linear derating to
50% of nominal power from 50°C.
-25°C to 85°C
< 95% RH non-condensing
30G (300m/S2) according to IEC60068-2-27
2
10 to 150Hz @ 50m/S (5G peak) according to IEC 60068-2-6.
Note: all figures quoted are amplitudes (peak values).
IEC/EN 60068-2-29; 11ms/ 10gn
> 700,000 Hours.
10 years.
Yes,
RoHS directive, WEEE directive
@ 3,000 Meters
IPX0
Class I with PE connection
2
3K3 according to EN 60721
178 mm X 97 mm X 38 mm (L X W X H)
Convection
Terminal Block 7 pin (300VAC, 20A)
Standard T35 Mounting Rail (35mm) EN60715
Screw Terminal
AWG 18-14
AWG 18-14
Green LED “DC OK” LED (Same LED will Flicker upon fault)
Aluminium
0.480Kg
LEVEL 4
15 KV / 8 KV
LEVEL 3
80MHz - 1GHz / 10V/M with 1kHz tone / 80% modulation.
4)
LEVEL 3 / 2KV
LEVEL 3
3)
4)
2 KV / 1 KV
LEVEL 3
0.15MHz - 80MHz / 10Vrms.
LEVEL 3 : 10A/Meter
100% dip, Input: Main Buffering > 20ms.Self Recoverable
FCC Title 47, Class B / EN55022, CISPR22, CISPR11, CLASS B
5
FCC Title 47, Class B / EN55022, CISPR22, CISPR11, CLASS B
3KVAC
1.5KVAC
0.5KVAC
EN60950-1 and IEC60204-1(With overvoltage category III)
EN50178 and IEC62103
PELV (EN60204), SELV (EN60950)
UR/cUR recognize to UL60950-1 and CSA C22.2 No.60950-1,
CCC
CB test certificate and report to IEC60950-1/EN60950-1,
TUV
CE (EMC and Low Voltage directive)
DIN 57100-410
Compliant with following standards :
IEC60950-1/EN60950-1 : 2006/95/EC (Low Voltage Directive)
EN55011 Class B
: 2004/108/EC (EMC Directive)
EN55022 Class B
5
EN55011 corresponds to CISPR11 / EN55022 corresponds to CISPR22 / EN 61000 corresponds to IEC 61000
1) Criterion A:
Normal operating behavior within the defined limits.
2) Criterion B:
Temporary impairment to operational behavior that is corrected by the device itself.
3) Symmetrical: Conductor to conductor.
4) Asymmetrical: Conductor to ground.
5) Class B:
Area of application industry and residential.
3/13
3/14/2011
Rev: 00.1,
Panel Mount Power Supply
Technical Information
PMC-DSPV100W1A
Numbering for Panel Mount Power Supply
For example:
PMC-DSPV100W1A
XX
X XXXX XXXX X XX
XX………………….Product Type
PM
Panel Mount
XX X XXXX XXXX X XX
X……………Voltage
V
Volt
XX
X
XXXX XXXX X XX
X………………….Model
C
Enclose Power
Supply
XX X XXXX
XXXX
X XX
XXXX……………Watt
035W
050W
075W
100W
150W
35 Watt
50 Watt
75 Watt
100 Watt
150 Watt
XX X
XXXX
XXXX X XX
X………………….of Voltage
D
Dual O/P Voltage
XX X XXXX XXXX
X
XX
X………………….Phase
1
3
1 Phase
3 Phase
XX X
XXXX
XXXX X XX
X………………….of Voltage
S
24 Volt
XX X XXXX XXXX X XX
X………………….Voltage
P
5 Volt
XX X XXXX XXXX X
XX
XX………………….Variation (Eg,
Customer, material,Etc.)
A
Delta standard
4/13
3/14/2011
Rev: 01,
Panel Mount Power Supply
Technical Information
PMC-DSPV100W1A
Block Diagrams/Connections:

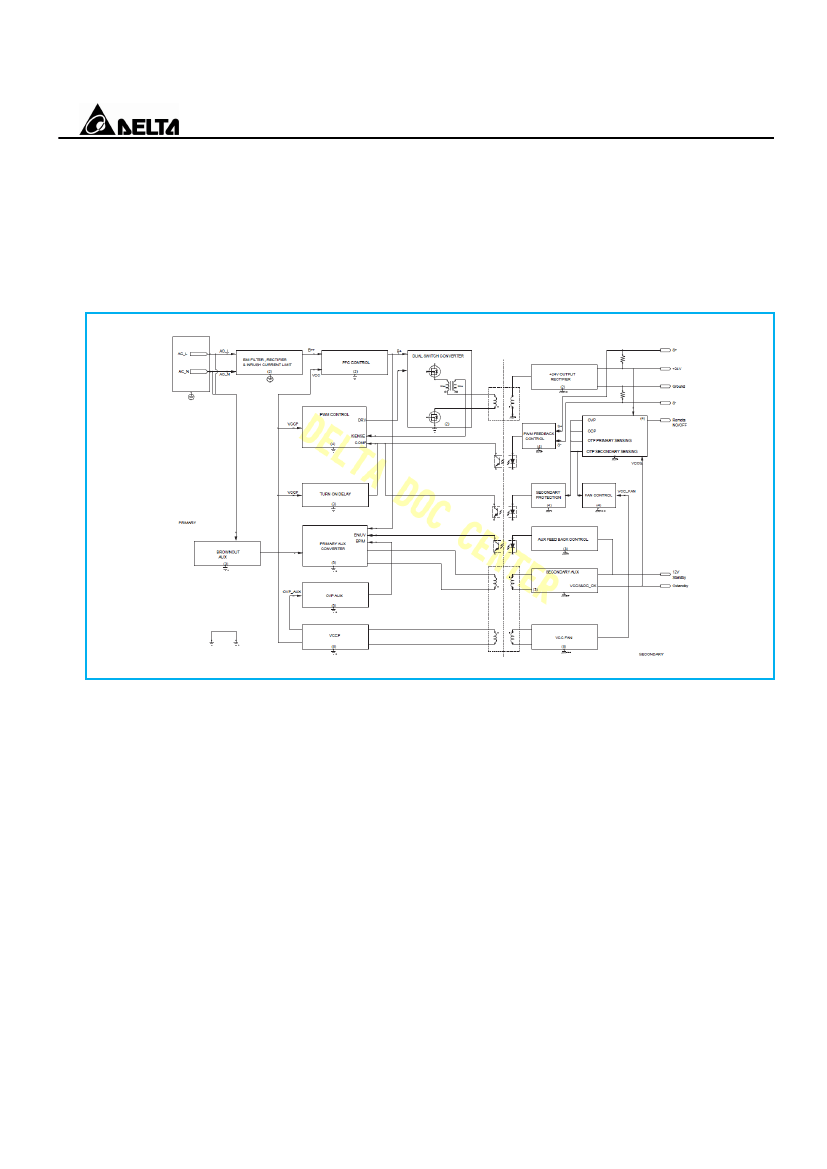

Block Diagram of Power Supply
PMC-DSPV100W1A
5/13
3/14/2011
Rev: 01,
