DZM265ACPM: DescriptionLinear Detector, 10MHz Min, 26500MHz Max, 23.01dBm Input Power-Max; CategoryWireless rf/communication Radio frequency and microwave; File Size118KB，2 Pages; ManufacturerHerotek Inc

Download Datasheet Parametric View All

DZM265ACPM Overview

Linear Detector, 10MHz Min, 26500MHz Max, 23.01dBm Input Power-Max

DZM265ACPM Parametric

Parameter Name	Attribute value
Maker	Herotek Inc
Reach Compliance Code	unknown
Other features	SMA-M; SMC-M
structure	COAXIAL
Maximum input power (CW)	23.01 dBm
Maximum operating frequency	26500 MHz
Minimum operating frequency	10 MHz
Maximum operating temperature	85 °C
Minimum operating temperature	-45 °C
Output polarity	POSITIVE
Minimum output voltage sensitivity	500 mV/mW
RF/Microwave Device Types	LINEAR DETECTOR
Maximum voltage standing wave ratio	1.8

Preview

Download Datasheet

View All

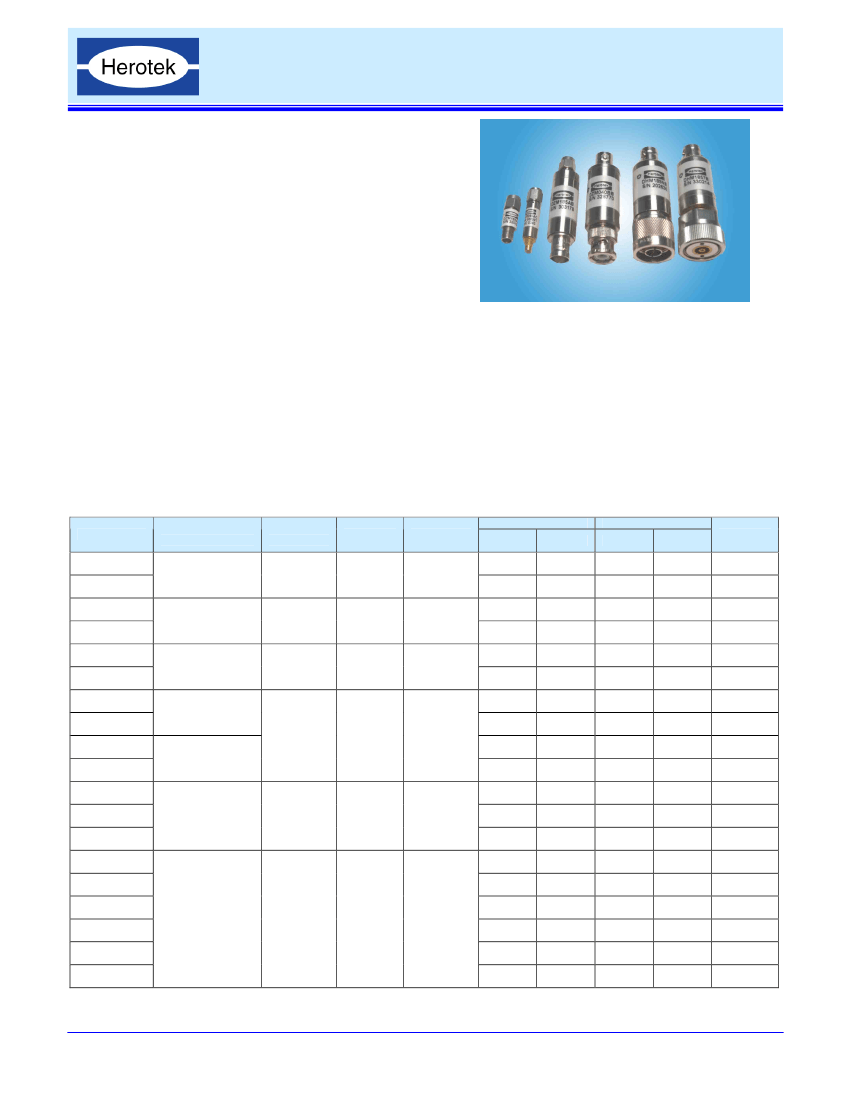

ZERO-BIAS SCHOTTKY DIODE DETECTORS

100 KHz - 50 GHz

FEATURES

•

No Bias Required

•

Matched Input for Excellent VSWR**

•

Extremely Flat Frequency Response**

•

Very High Sensitivity (DZ Series)

** (DZR & DZM Series)

APPLICATIONS

•

Precision Test Equipment

Transmitter Monitoring

Power and Signal Monitoring

Radar or Missile Guidance Systems

Lab Testing

ENVIRONMENTAL RATINGS

Max Input Power.…………. 200mW CW

(DZR & DZM Series)

100mW

(DZ Series)

Temperature Range………. -55°C to +100°C

(DZR Series)

-45°C to +85°C

(DZM & DZ Series)

Shock………………………….………… 50G, 11 msec

Vibration..………...…....……….. 20G, 100 to 2000 Hz

Specifications: (@ +25°C)

MODEL

1, 2

FREQUENCY

RANGE

MAXIMUM

VSWR

MAXIMUM

FLATNESS

(± dB)

0.3

LOW LEVEL

SENSITIVITY

(mV /

0.5

CONNECTOR

INPUT

SMA (M)

OUTPUT

SMA (F)

SMC (M)

SMA (F)

SMC (M)

SMA (F)

SMC (M)

SMA (F)

BNC (F)

SMA (F)

BNC (F)

SMA (F)

BNC (F)

SMA (F)

BNC (F)

SMC (M)

BNC (F)

SIZE (INCHES)

LENGTH

1.05

1.47

1.05

1.47

1.05

1.47

1.05

2.48

1.05

2.48

1.05

2.50

2.46

1.05

2.50

1.89

1.20

2.46

2.59

DIA

0.32

0.68

0.32

0.68

0.32

0.56

0.75

0.32

0.56

0.39

0.32

0.75

OUTLINE

AC2

AB1

AB2

AC1

DZR124AA

10 MHz – 12.4 GHz

DZR124AC

DZR185AA

10 MHz – 18.5 GHz

DZR185AC

DZR265AA

10 MHz – 26.5 GHz

DZR265AC

DZM020AA

100 KHz - 2.0 GHz

DZM020BB

1.3:1

DZM040AA

100 KHZ - 4.0 GHz

DZM040BB

DZM124AA

DZM124AB

DZM124NB

DZM185AA

DZM185AB

DZM185AB2

10 MHz – 18.5 GHz

DZM185AC

DZM185NB

DZM1857B

1.2:1(to 4

GHz)

1.5:1(to 18.5

GHz)

0.2 (per

octave to

8 GHz)

0.3 (for 10

MHz to

8 GHz)

0.5 (overall)

10 MHz – 12.4 GHz

1.2:1 (to 4.5

GHz)

1.3:1 (to 7

GHz)

1.4:1 (to 12.4

GHz)

0.1 (per

100 KHz)

0.3 (overall)

1.3:1 (to 18.5

GHz)

2.0:1 (to 26.5

GHz)

0.5 (to 18.5

GHz)

1.0 (to 26.5

GHz)

1.25:1

0.5

1.25:1

SMA (M)

0.5

SMA (M)

BNC (M)

0.5

SMA (M)

BNC (M)

SMA (M)

0.2 (per

octave)

0.5 (overall)

0.5

SMA (M)

Type N

(M)

SMA (M)

0.5

SMA (M)

Type N

(M)

APC-7

Note 1: Negative output polarity standard. Add “P” to end of model number for positive output polarity.

Note 2: Matched pairs available at extra change for frequency response within +/- 0.3 dB below 18.5 GHz and +/- 0.5 dB from 18.5 to 26.5 GHz. Add “M” to end of model number.

Note 3: Consult factory for more details.

1112-2-1A

HEROTEK, INC. 155 Baytech Drive, San Jose, California 95134

Phone: (408) 941-8399 Fax: (408) 941-8388 Email:info@herotek.com www.herotek.com
