Amphenol
MFM
Military Fibre Optic Miniature

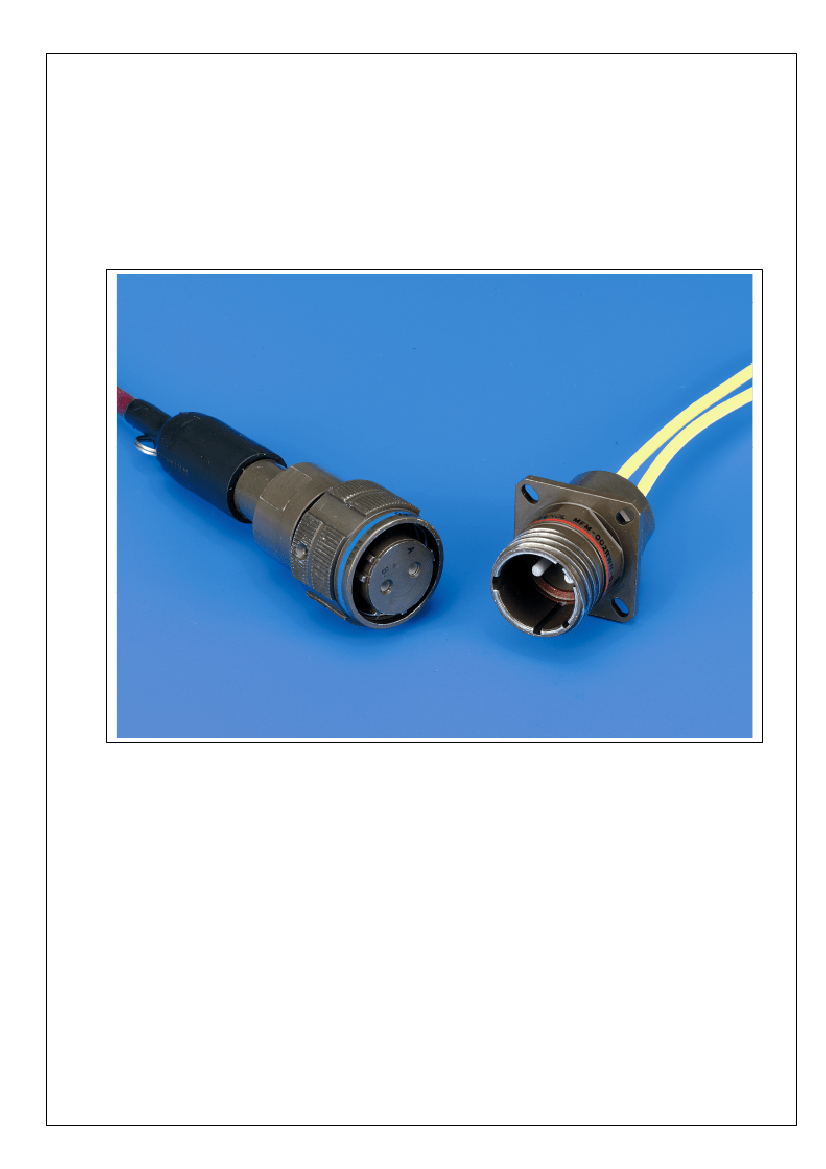

The Duplex MFM is a high performance, lightweight connector, designed and developed specifically for
the harsh environment.
n
n
n
n
n
n
n
The MFM uses ceramic ferrule technology, with a ceramic alignment sleeve to reduce
insertion loss
Based on a Size 13 38999 Series III connector with keyway polarisation
One piece monobloc termination construction for ease of cleaning
Both shells and ferrules are keyed for optimum repeatability
Environmentally sealed when mated
Simple termination procedure
Interchangeable cable sub assembly with other Amphenol product series
Amphenol
MFM Series – Military Fibre Optic Miniature
Performance
Attenuation
Repeatability
Fibre Types
Optical
Typically 0.3dB with 62.5/125 cable
>0.15dB
50/125
62.5/125
85/125
100/140
200/280
Epoxy / Polish
Environmental
-55
o
C to +125
o
C Cable dependent
Mechanical
>500 matings
Shell
: Electroless Nickel or Olive Drab plated
Ferrule
: Zirconia Ceramic
Alignment Sleeve : Zirconia Ceramic
Seals
: Silicone
Termination Method
Temperature Range
Durability
Materials
Basic Kit
Duplex MFM Add on Kit
Consumable Pack
Termination Tooling
927 – 100 – 3000
927 – 100 – 3200
927 – 100 – 6000
Other items of tooling may be ordered separately – please consult factory.
Plug Protective Cap
Receptacle Protective Cap
Protective Caps
10 – 553998 – 139 (860)
10 – 553970 – 139 (860)

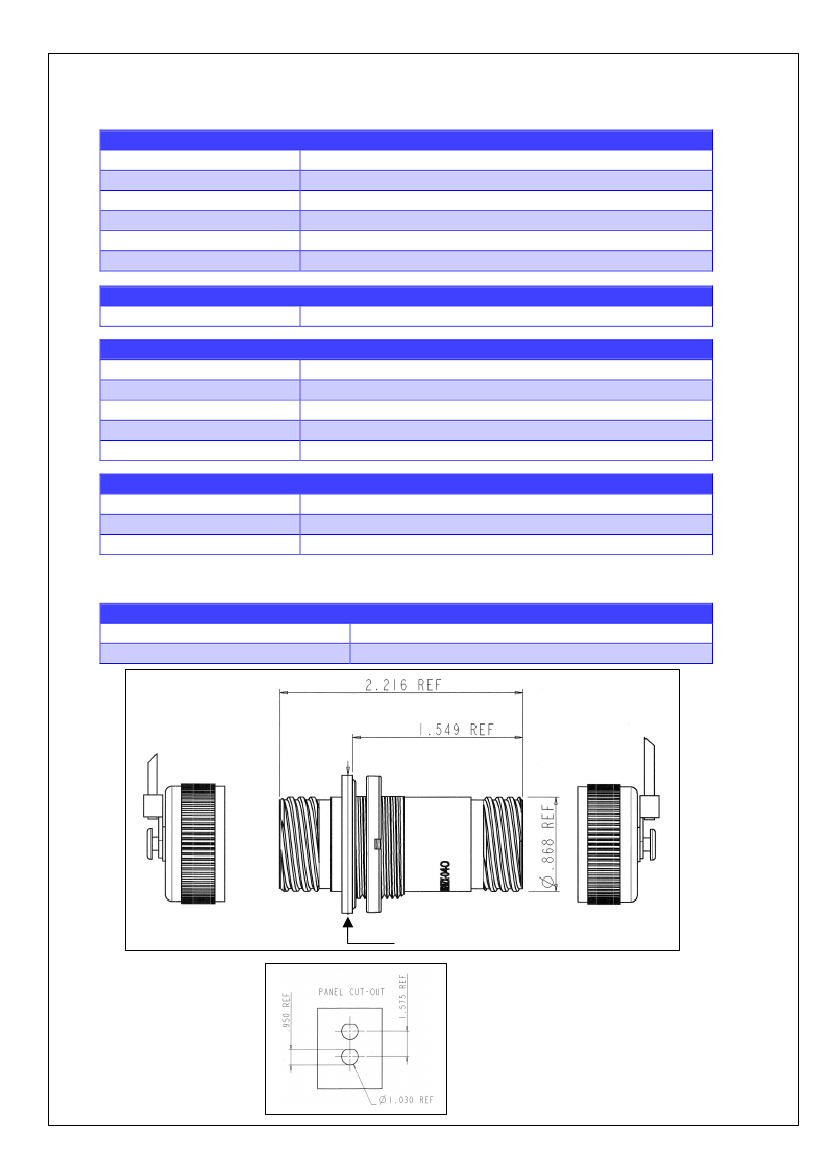

Ø1.263 REF
Adapter Part No: MFM-072BZN-040

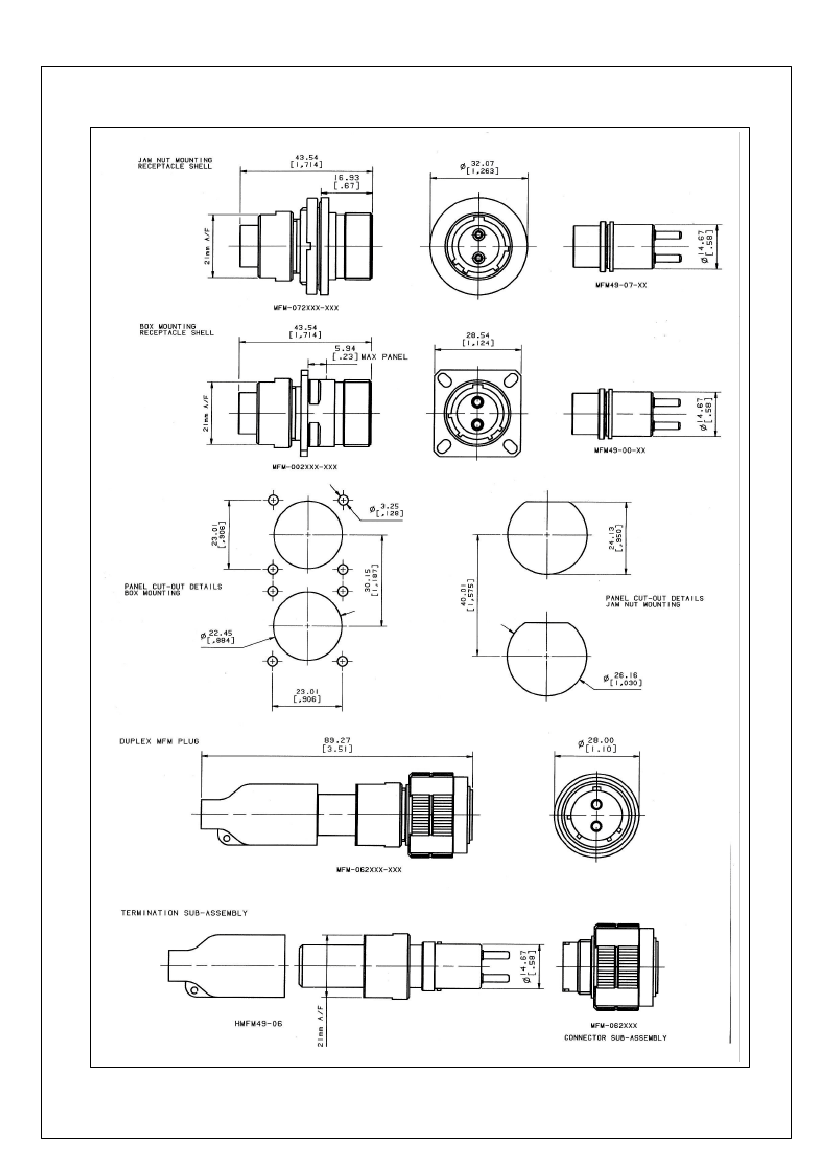

Amphenol
MFM Series – Military Fibre Optic Miniature
Part Number Information
MFM - XXX XX X
Series
XXX
Cable Variant
009 – Duplex 5.5mm OD Multimode
011 – Single Ruggedised 3mm OD
Multimode OD (Receptacle only)
018 – Loop back version
(Other cable options available on request)
Orientation
N, A, B, C, D, E
Style
062 – Plug
002 – Square Flange Receptacle
072 – Jam Nut Receptacle
Finish
RF – Electroless Nickel
RW – Olive Drab Cadmium
Sub-Assemblies
MFM - 49 XX - XXX
Series
Style
06 – Plug
00 – Receptacle
07 – Jam Nut Receptacle
MFM - XXX XX X
Series
Style
062 – Plug
002 – Receptacle
072 – Jam Nut Receptacle
Cable Variant
009 – Duplex 5.5mm OD Multimode
011 – Single Ruggedised 3mm OD
Multimode OD (Receptacle only)
018 – Loop back version
(Other cable options available on request)
Orientation
N, A, B, C, D, E
Finish
RF – Electroless Nickel
RW – Olive Drab Cadmium
Notice:
Products are sold subject to Amphenol’s conditions of sale (“the standard conditions”). All specifications and statements contained herein
are believed to be correct at the time of printing but no representation or warranty, express or implied, is given as to any specification or statement
contained herein. Product specifications including performance characteristics are typical only and subject to deviation. Specifications are also
subject to change without notice. Users should not assume that all safety measures are indicated or that other measures may not be required. No
representation or warranty, express or implied, is given that any use of products (including any stated or suggested use) does not infringe any
patent, registered design or other third party rights and no stated or suggested use of products can be taken to recommend any such infringement.
