HM2P65PMH3A1GC: DescriptionBoard Connector, 169 Contact(s), 7 Row(s), Male, Straight, Press Fit Terminal; CategoryThe connector The connector; File Size72KB，1 Pages; ManufacturerAmphenol; Websitehttp://www.amphenol.com/

Download Datasheet Parametric Compare View All

HM2P65PMH3A1GC Overview

Board Connector, 169 Contact(s), 7 Row(s), Male, Straight, Press Fit Terminal

HM2P65PMH3A1GC Parametric

Parameter Name	Attribute value
Maker	Amphenol
Reach Compliance Code	compliant
Connector type	BOARD CONNECTOR
Contact to complete cooperation	NOT SPECIFIED
Contact point gender	MALE
DIN compliance	NO
Filter function	NO
IEC compliance	NO
MIL compliance	NO
Manufacturer's serial number	HM2
Mixed contacts	NO
Installation method	STRAIGHT
Installation type	BOARD
Number of rows loaded	7
Options	GENERAL PURPOSE
Terminal pitch	2 mm
Termination type	PRESS FIT
Total number of contacts	169

Preview

Download Datasheet

View All

P

O

S

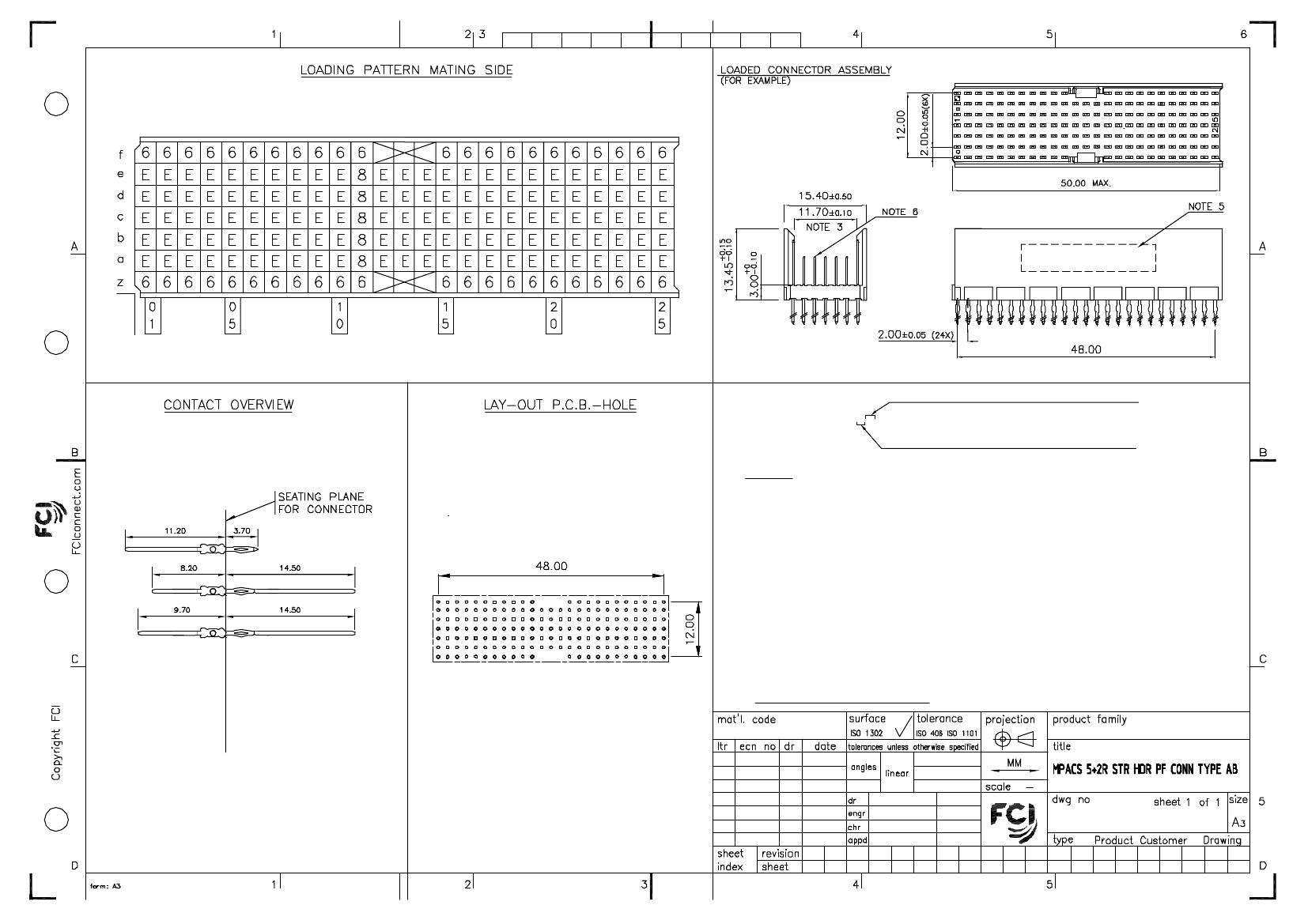

HM2P65PMH3A1----

NOTES

LEAD FREE INDICATOR : LF = LEAD FREE

(DIGIT 15 & 16)

PLATING CODE (DIGIT 13 AND 14)

(REF DRW NO. BS,C , 201844 , 003)

1. THIS PRODUCT IS CSA APPROVED.

2. THIS PRODUCT IS UL RECOGNIZED.

3. MEASURED AT THE BOTTOM.

6

4. MATERIAL CONTACT: PHOSPHORBRONZE

HOUSING: CREAM WHITE GLASS FILLED POLYESTER UL-94V0

5. CONNECTOR PRINTED WITH P/N AND DATE CODE.

6. FOR ACTUAL CONTACT LOADINGS, SEE LOADING PATTERN MATING SIDE.

7. SHAPE OF CONNECTOR HOUSING CAN ALTER DEPENDING ON

PRODUCTION LOCATION

8. THE PRODUCT (LF) MEETS EUROPEAN UNION DIRECTIVES AND OTHER COUNTRY

REGULATIONS AS DESCRIBED IN GS-22-008

9. FOR RECOMMENDED PTH DIMENSIONS REFER DRAWING : BS, A , 201572 , 001

8

E

CATALOG NO: HM2P65PMH3A1----

SEE NOTE 4

A

B

I06-0001

I06-0141

MINI

2006-01-04

2006-08-08

0°±1°

MINI K VANDANATH 2006-01-04

BIJU K PAUL

B

1

2006-01-04

2006-08-08

.0±0.2

.00±0.1

MILLIPACS

BS, C ,203028, 668

6

PDM: Rev:B

STATUS:

Released

Printed: Dec 04, 2007

.

HM2P65PMH3A1GC Related Products

	HM2P65PMH3A1GC	HM2P65PMH3A1GF	HM2P65PMH3A1GFLF	HM2P65PMH3A1GCLF	HM2P65PMH3A1GLLF	HM2P65PMH3A1GL
Description	Board Connector, 169 Contact(s), 7 Row(s), Male, Straight, Press Fit Terminal	MPAC 5R ST PF HDR	MPAC 5R ST PF HDR	Board Connector, 169 Contact(s), 7 Row(s), Male, Straight, Press Fit Terminal, LEAD FREE	Board Connector, 169 Contact(s), 7 Row(s), Male, Straight, Press Fit Terminal, LEAD FREE	Board Connector, 169 Contact(s), 7 Row(s), Male, Straight, Press Fit Terminal
Connector type	BOARD CONNECTOR	Connector, male pin	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR
Installation type	BOARD	Through hole	BOARD	BOARD	BOARD	BOARD
Maker	Amphenol	-	Amphenol	Amphenol	Amphenol	Amphenol
Reach Compliance Code	compliant	-	compliant	compliant	compliant	compliant
Contact to complete cooperation	NOT SPECIFIED	-	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
Contact point gender	MALE	-	MALE	MALE	MALE	MALE
DIN compliance	NO	-	NO	NO	NO	NO
Filter function	NO	-	NO	NO	NO	NO
IEC compliance	NO	-	NO	NO	NO	NO
MIL compliance	NO	-	NO	NO	NO	NO
Manufacturer's serial number	HM2	-	-	HM2	HM2	HM2
Mixed contacts	NO	-	NO	NO	NO	NO
Installation method	STRAIGHT	-	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT
Number of rows loaded	7	-	7	7	7	7
Options	GENERAL PURPOSE	-	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE
Terminal pitch	2 mm	-	2 mm	2 mm	2 mm	2 mm
Termination type	PRESS FIT	-	PRESS FIT	PRESS FIT	PRESS FIT	PRESS FIT
Total number of contacts	169	-	169	169	169	169
