593202B03500G

Description
AAVID THERMALLOY - 593202B03500G - HEAT SINK
CategoryThermal management products    Heat resisting bracing
File Size201KB,1 Pages
ManufacturerAavid Thermalloy
Environmental Compliance
Download Datasheet Parametric View All

593202B03500G Online Shopping

Suppliers Part Number Price MOQ In stock
593202B03500G - - View Buy Now

593202B03500G Overview

AAVID THERMALLOY - 593202B03500G - HEAT SINK

593202B03500G Parametric

Parameter NameAttribute value
Is it lead-free?Lead free
Is it Rohs certified?conform to
MakerAavid Thermalloy
package instructionROHS COMPLIANT
Reach Compliance Codecompliant
Factory Lead Time8 weeks
Main materialALUMINUM
colorBLACK
structureFIN
fin directionSTAGGERED
Surface layerANODIZED
high50.8 mm
length35.05 mm
Thermal resistance10.4 Ω
Heat Resistant Support Device TypeHEAT SINK
width12.2 mm
Base Number Matches1
DATASHEET

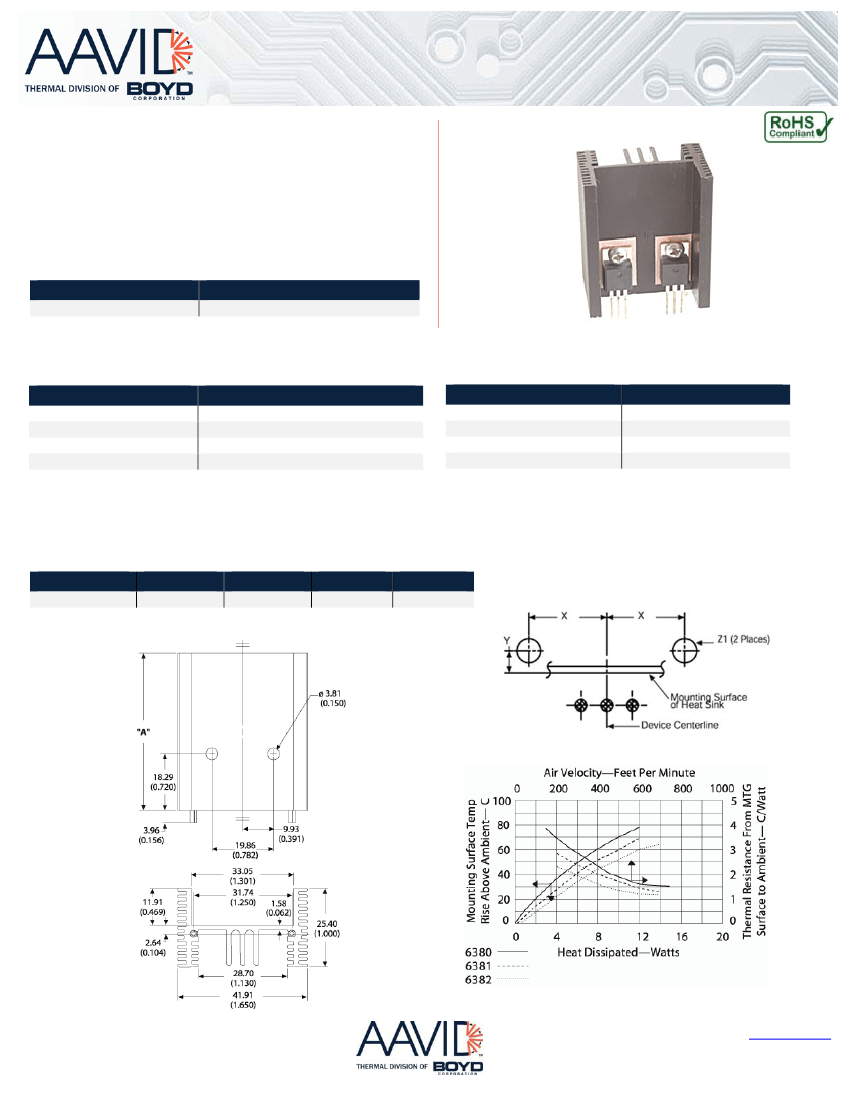

Board Level Cooling – High Power Extruded 6380


BOARD LEVEL COOLING ‐ High Power Extruded 6380
High Power Extruded 6380 is a board level heat sink designed to cool TO‐218,
TO‐220, TO‐220‐single gauge, and SIP devices. Representative image only.



ORDERING INFORMATION

Part Number
6380BG

Device Type
TO‐218, TO‐220, TO‐220‐single gauge, SIP




HEAT SINK DETAILS
Property
 Material
Finish
Device Attachment Options
Thermal Interface Material
Details
Aluminum
Black Anodize
Requires Mounting Kit
‐
Property
Heat Sink Width (mm)
Heat Sink Length (mm)
Heat Sink Height (mm)
Heat Sink Mounting Direction
Details
41.91
25.4
25.4
Vertical


MECHANICAL & PERFORMANCE
Drawing dimensions are shown in mm, (in)

“X” Dim
15.88 (0.625)
Part Number
6380BG
“A” Dim
25.4 (1.00)
“Y” Dim
2.64 (0.104)
“Z” Dim
2.67 (0.105)
Mounting Details:
USA: 1.855.322.2843
EUROPE: 39.051.764002
ASIA: 86.21.6115.2000 x8122










    Board Level Cooling
    www.aavid.com
