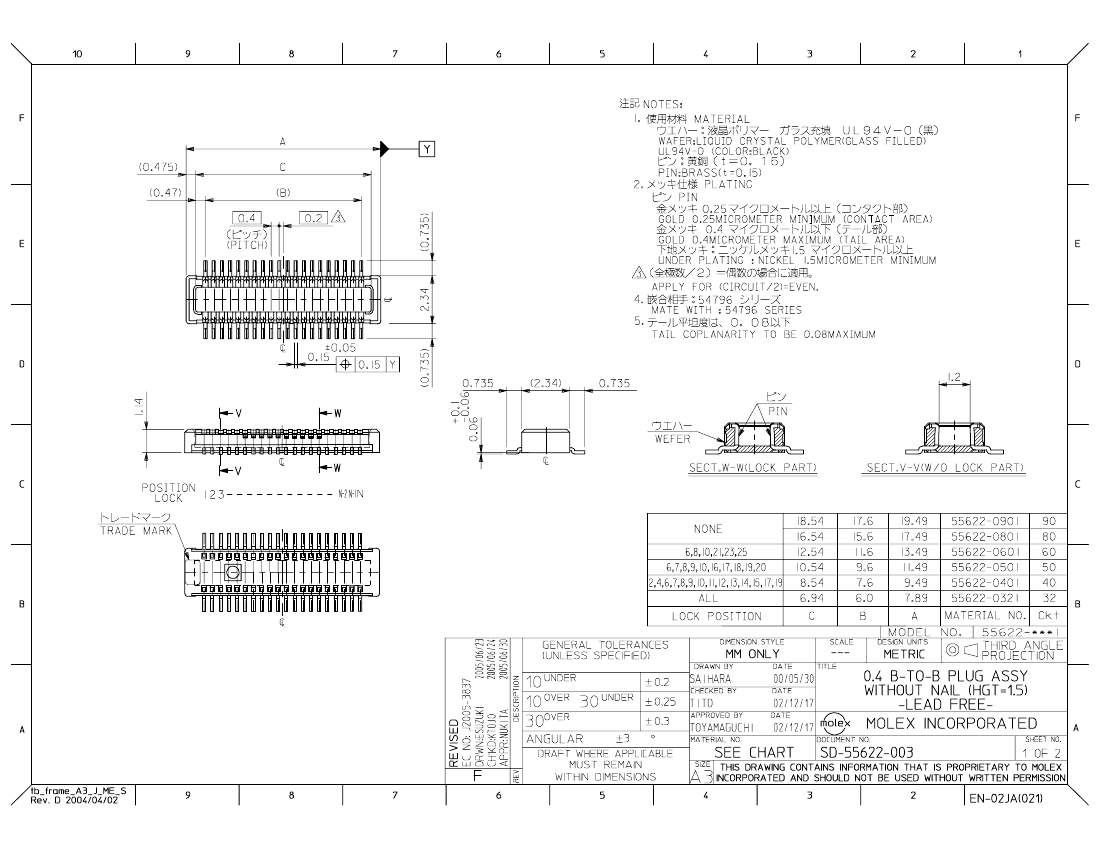

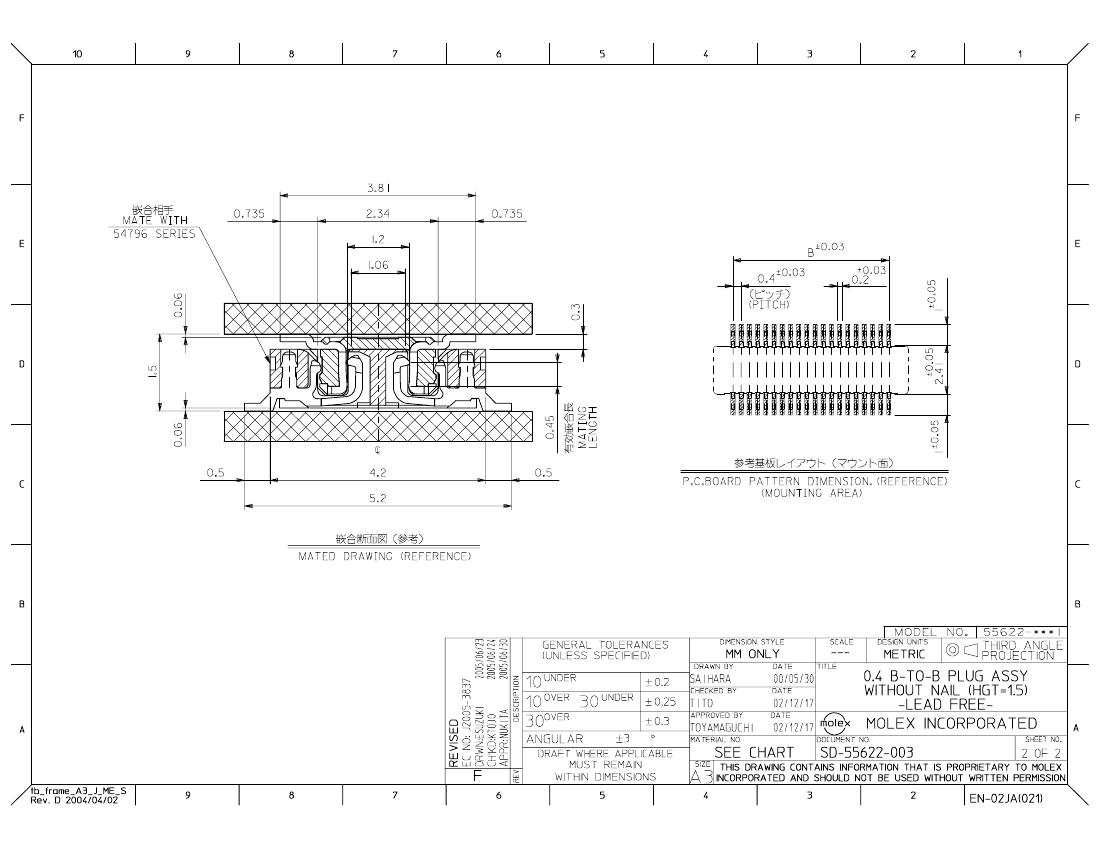

55622-0401: DescriptionBoard Stacking Connector, 40 Contact(s), 2 Row(s), Male, Straight, 0.016 inch Pitch, Surface Mount Terminal, Locking Mech, Black Insulator, Plug, LEAD FREE; CategoryThe connector The connector; File Size132KB，2 Pages; ManufacturerMolex; Websitehttps://www.molex.com/molex/home

Download Datasheet Parametric Compare View All

55622-0401 Overview

Board Stacking Connector, 40 Contact(s), 2 Row(s), Male, Straight, 0.016 inch Pitch, Surface Mount Terminal, Locking Mech, Black Insulator, Plug, LEAD FREE

55622-0401 Parametric

Parameter Name	Attribute value
Maker	Molex
package instruction	LEAD FREE
Reach Compliance Code	unknown
ECCN code	EAR99
Other features	SLIMSTACK, BLADE ON BEAM CONTACT, SHROUDED
body width	0.092 inch
subject depth	0.045 inch
body length	0.374 inch
Body/casing type	PLUG
Connector type	BOARD STACKING CONNECTOR
Contact to complete cooperation	GOLD (10) OVER NICKEL (59)
Contact completed and terminated	GOLD (16) OVER NICKEL (59)
Contact point gender	MALE
Contact material	BRASS
contact mode	RECTANGULAR
Contact resistance	40 mΩ
DIN compliance	NO
Dielectric withstand voltage	250VAC V
Durability	30 Cycles
Filter function	NO
IEC compliance	NO
maximum insertion force	1.2232 N
Insulation resistance	100000000 Ω
Insulator color	BLACK
insulator material	GLASS FILLED LIQUID CRYSTAL POLYMER
JESD-609 code	e4
MIL compliance	NO
Manufacturer's serial number	55622
Plug contact pitch	0.016 inch
Plug information	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO
Installation option 1	LOCKING MECH
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	2
Number of rows loaded	2
Maximum operating temperature	85 °C
Minimum operating temperature	-25 °C
Options	GENERAL PURPOSE
PCB contact pattern	RECTANGULAR
PCB contact row spacing	3.4036 mm
Plating thickness	10u inch
polarization key	POLARIZED HOUSING
Rated current (signal)	0.3 A
Guideline	UL
reliability	COMMERCIAL
Terminal length
Terminal pitch	0.4 mm
Termination type	SURFACE MOUNT
Total number of contacts	40
UL Flammability Code	94V-0
Evacuation force-minimum value	.1112 N

Preview

Download Datasheet

View All

55622-0401 Related Products

	55622-0401	55622-0321	55622-0501	55622-0801	55622-0901	55622-0601
Description	Board Stacking Connector, 40 Contact(s), 2 Row(s), Male, Straight, 0.016 inch Pitch, Surface Mount Terminal, Locking Mech, Black Insulator, Plug, LEAD FREE	Board Stacking Connector, 32 Contact(s), 2 Row(s), Male, Straight, 0.016 inch Pitch, Surface Mount Terminal, Locking Mech, Black Insulator, Plug, LEAD FREE	Board Stacking Connector, 50 Contact(s), 2 Row(s), Male, Straight, 0.016 inch Pitch, Surface Mount Terminal, Locking Mech, Black Insulator, Plug, LEAD FREE	Board Stacking Connector, 80 Contact(s), 2 Row(s), Male, Straight, 0.016 inch Pitch, Surface Mount Terminal, Locking Mech, Black Insulator, Plug, LEAD FREE	Board Stacking Connector, 90 Contact(s), 2 Row(s), Male, Straight, 0.016 inch Pitch, Surface Mount Terminal, Locking Mech, Black Insulator, Plug, LEAD FREE	Board Stacking Connector, 60 Contact(s), 2 Row(s), Male, Straight, 0.016 inch Pitch, Surface Mount Terminal, Locking Mech, Black Insulator, Plug, LEAD FREE
Maker	Molex	Molex	Molex	Molex	Molex	Molex
package instruction	LEAD FREE	LEAD FREE	LEAD FREE	LEAD FREE	LEAD FREE	LEAD FREE
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99
Other features	SLIMSTACK, BLADE ON BEAM CONTACT, SHROUDED	SLIMSTACK, BLADE ON BEAM CONTACT, SHROUDED	SLIMSTACK, BLADE ON BEAM CONTACT, SHROUDED	SLIMSTACK, BLADE ON BEAM CONTACT, SHROUDED	SLIMSTACK, BLADE ON BEAM CONTACT, SHROUDED	SLIMSTACK, BLADE ON BEAM CONTACT, SHROUDED
body width	0.092 inch	0.092 inch	0.092 inch	0.092 inch	0.092 inch	0.092 inch
subject depth	0.045 inch	0.045 inch	0.045 inch	0.045 inch	0.045 inch	0.045 inch
body length	0.374 inch	0.311 inch	0.452 inch	0.689 inch	0.767 inch	0.531 inch
Body/casing type	PLUG	PLUG	PLUG	PLUG	PLUG	PLUG
Connector type	BOARD STACKING CONNECTOR	BOARD STACKING CONNECTOR	BOARD STACKING CONNECTOR	BOARD STACKING CONNECTOR	BOARD STACKING CONNECTOR	BOARD STACKING CONNECTOR
Contact to complete cooperation	GOLD (10) OVER NICKEL (59)	GOLD (10) OVER NICKEL (59)	GOLD (10) OVER NICKEL (59)	GOLD (10) OVER NICKEL (59)	GOLD (10) OVER NICKEL (59)	GOLD (10) OVER NICKEL (59)
Contact completed and terminated	GOLD (16) OVER NICKEL (59)	GOLD (16) OVER NICKEL (59)	GOLD (16) OVER NICKEL (59)	GOLD (16) OVER NICKEL (59)	GOLD (16) OVER NICKEL (59)	GOLD (16) OVER NICKEL (59)
Contact point gender	MALE	MALE	MALE	MALE	MALE	MALE
Contact material	BRASS	BRASS	BRASS	BRASS	BRASS	BRASS
contact mode	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Contact resistance	40 mΩ	40 mΩ	40 mΩ	40 mΩ	40 mΩ	40 mΩ
DIN compliance	NO	NO	NO	NO	NO	NO
Dielectric withstand voltage	250VAC V	250VAC V	250VAC V	250VAC V	250VAC V	250VAC V
Durability	30 Cycles	30 Cycles	30 Cycles	30 Cycles	30 Cycles	30 Cycles
Filter function	NO	NO	NO	NO	NO	NO
IEC compliance	NO	NO	NO	NO	NO	NO
Insulation resistance	100000000 Ω	100000000 Ω	100000000 Ω	100000000 Ω	100000000 Ω	100000000 Ω
Insulator color	BLACK	BLACK	BLACK	BLACK	BLACK	BLACK
insulator material	GLASS FILLED LIQUID CRYSTAL POLYMER	GLASS FILLED LIQUID CRYSTAL POLYMER	GLASS FILLED LIQUID CRYSTAL POLYMER	GLASS FILLED LIQUID CRYSTAL POLYMER	GLASS FILLED LIQUID CRYSTAL POLYMER	GLASS FILLED LIQUID CRYSTAL POLYMER
JESD-609 code	e4	e4	e4	e4	e4	e4
MIL compliance	NO	NO	NO	NO	NO	NO
Plug contact pitch	0.016 inch	0.016 inch	0.016 inch	0.016 inch	0.016 inch	0.016 inch
Plug information	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO	NO	NO	NO	NO	NO
Installation option 1	LOCKING MECH	LOCKING MECH	LOCKING MECH	LOCKING MECH	LOCKING MECH	LOCKING MECH
Installation method	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT
Installation type	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD
Number of connectors	ONE	ONE	ONE	ONE	ONE	ONE
PCB row number	2	2	2	2	2	2
Number of rows loaded	2	2	2	2	2	2
Maximum operating temperature	85 °C	85 °C	85 °C	85 °C	85 °C	85 °C
Minimum operating temperature	-25 °C	-25 °C	-25 °C	-25 °C	-25 °C	-25 °C
Options	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE
PCB contact pattern	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
PCB contact row spacing	3.4036 mm	3.4036 mm	3.4036 mm	3.4036 mm	3.4036 mm	3.4036 mm
Plating thickness	10u inch	10u inch	10u inch	10u inch	10u inch	10u inch
polarization key	POLARIZED HOUSING	POLARIZED HOUSING	POLARIZED HOUSING	POLARIZED HOUSING	POLARIZED HOUSING	POLARIZED HOUSING
Rated current (signal)	0.3 A	0.3 A	0.3 A	0.3 A	0.3 A	0.3 A
Guideline	UL	UL	UL	UL	UL	UL
reliability	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL
Terminal pitch	0.4 mm	0.4 mm	0.4 mm	0.4 mm	0.4 mm	0.4 mm
Termination type	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT
Total number of contacts	40	32	50	80	90	60
UL Flammability Code	94V-0	94V-0	94V-0	94V-0	94V-0	94V-0
maximum insertion force	1.2232 N	-	.973 N	.6116 N	.6672 N	.8062 N
Evacuation force-minimum value	.1112 N	-	.1112 N	.0556 N	.0556 N	.0834 N
Base Number Matches	-	1	1	1	1	1
