PBYR16-45X datasheet, PDF - EEWORLD Datasheet

PBYR16-45X: DescriptionDIODE 20 A, 45 V, SILICON, RECTIFIER DIODE, Rectifier Diode; CategoryDiscrete semiconductor diode; File Size93KB，3 Pages; ManufacturerNXP; Websitehttps://www.nxp.com

Download Datasheet Parametric Compare View All

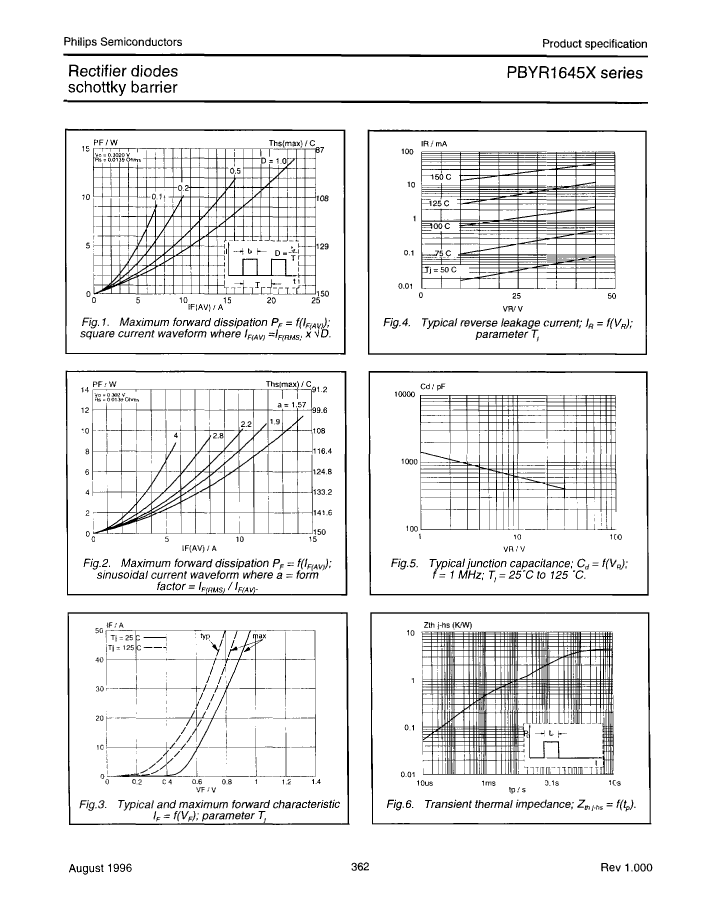

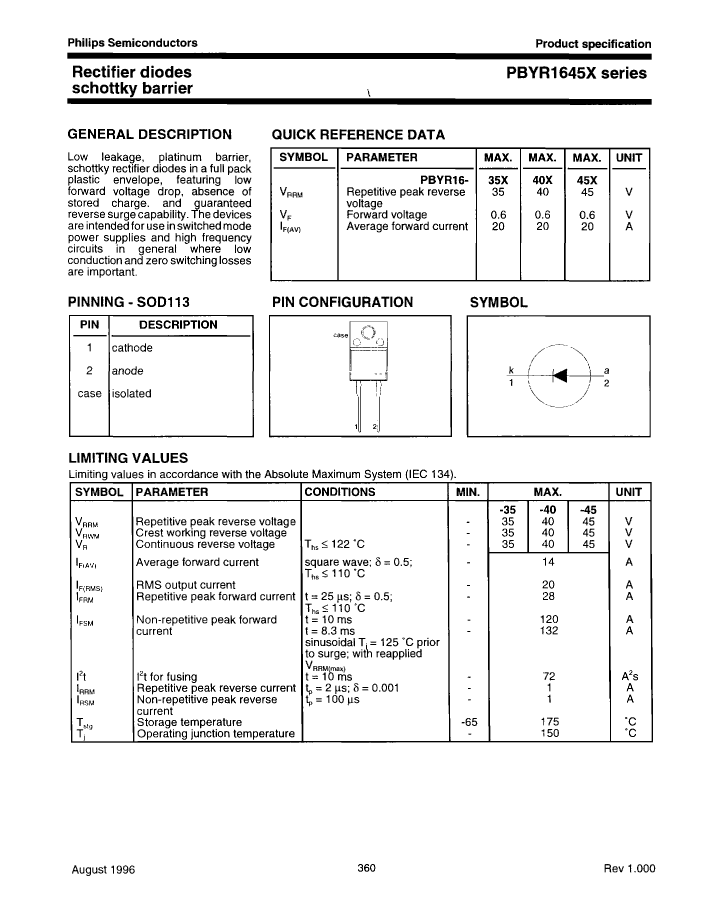

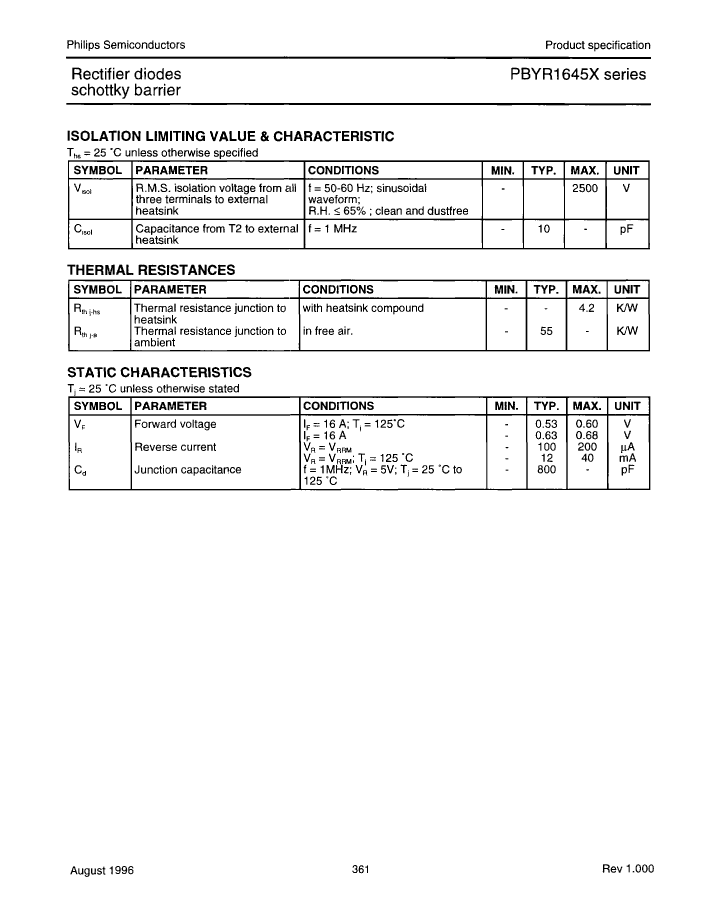

PBYR16-45X Overview

DIODE 20 A, 45 V, SILICON, RECTIFIER DIODE, Rectifier Diode

Parameter Name	Attribute value
Maker	NXP
package instruction	R-PSFM-T2
Reach Compliance Code	unknown
Other features	SURGE CAPABILITY
application	GENERAL PURPOSE
Shell connection	ISOLATED
Configuration	SINGLE
Diode component materials	SILICON
Diode type	RECTIFIER DIODE
JESD-30 code	R-PSFM-T2
Maximum non-repetitive peak forward current	132 A
Number of components	1
Phase	1
Number of terminals	2
Maximum output current	20 A
Package body material	PLASTIC/EPOXY
Package shape	RECTANGULAR
Package form	FLANGE MOUNT
Certification status	Not Qualified
Maximum repetitive peak reverse voltage	45 V
surface mount	NO
technology	SCHOTTKY
Terminal form	THROUGH-HOLE
Terminal location	SINGLE

	PBYR16-45X	PBYR16-35X	PBYR16-40X
Description	DIODE 20 A, 45 V, SILICON, RECTIFIER DIODE, Rectifier Diode	20A, 35V, SILICON, RECTIFIER DIODE	DIODE 20 A, 40 V, SILICON, RECTIFIER DIODE, Rectifier Diode
Maker	NXP	NXP	NXP
package instruction	R-PSFM-T2	R-PSFM-T2	R-PSFM-T2
Reach Compliance Code	unknown	unknown	unknown
Other features	SURGE CAPABILITY	SURGE CAPABILITY	SURGE CAPABILITY
application	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE
Shell connection	ISOLATED	ISOLATED	ISOLATED
Configuration	SINGLE	SINGLE	SINGLE
Diode component materials	SILICON	SILICON	SILICON
Diode type	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE
JESD-30 code	R-PSFM-T2	R-PSFM-T2	R-PSFM-T2
Maximum non-repetitive peak forward current	132 A	132 A	132 A
Number of components	1	1	1
Phase	1	1	1
Number of terminals	2	2	2
Maximum output current	20 A	20 A	20 A
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	FLANGE MOUNT	FLANGE MOUNT	FLANGE MOUNT
Certification status	Not Qualified	Not Qualified	Not Qualified
Maximum repetitive peak reverse voltage	45 V	35 V	40 V
surface mount	NO	NO	NO
technology	SCHOTTKY	SCHOTTKY	SCHOTTKY
Terminal form	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE
Terminal location	SINGLE	SINGLE	SINGLE
