MCP1206FMTE190 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Analog mixed-signal IC> filter> MCP1206FMTE190

MCP1206FMTE190: DescriptionFerrite Chip, 1 Function(s), 3A, EIA STD PACKAGE SIZE 1206, 2 PIN; CategoryAnalog mixed-signal IC filter; File Size57KB，1 Pages; ManufacturerKOA Speer; Websitehttp://www.koaspeer.com/

Download Datasheet Parametric View All

MCP1206FMTE190 Overview

Ferrite Chip, 1 Function(s), 3A, EIA STD PACKAGE SIZE 1206, 2 PIN

MCP1206FMTE190 Parametric

Parameter Name	Attribute value
Maker	KOA Speer
Reach Compliance Code	compliant
ECCN code	EAR99
Maximum DC resistance	0.02 Ω
filter type	FERRITE CHIP
high	1.1 mm
JESD-609 code	e0
length	3.2 mm
Manufacturer's serial number	MCP
Installation type	SURFACE MOUNT
Number of functions	1
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Output impedance	19 OHM Ω
method of packing	TAPE AND REEL
physical size	L3.2XB1.6XH1.1 (mm)
Rated current	3 A
Terminal surface	TIN LEAD
width	1.6 mm

Preview

Download Datasheet

View All

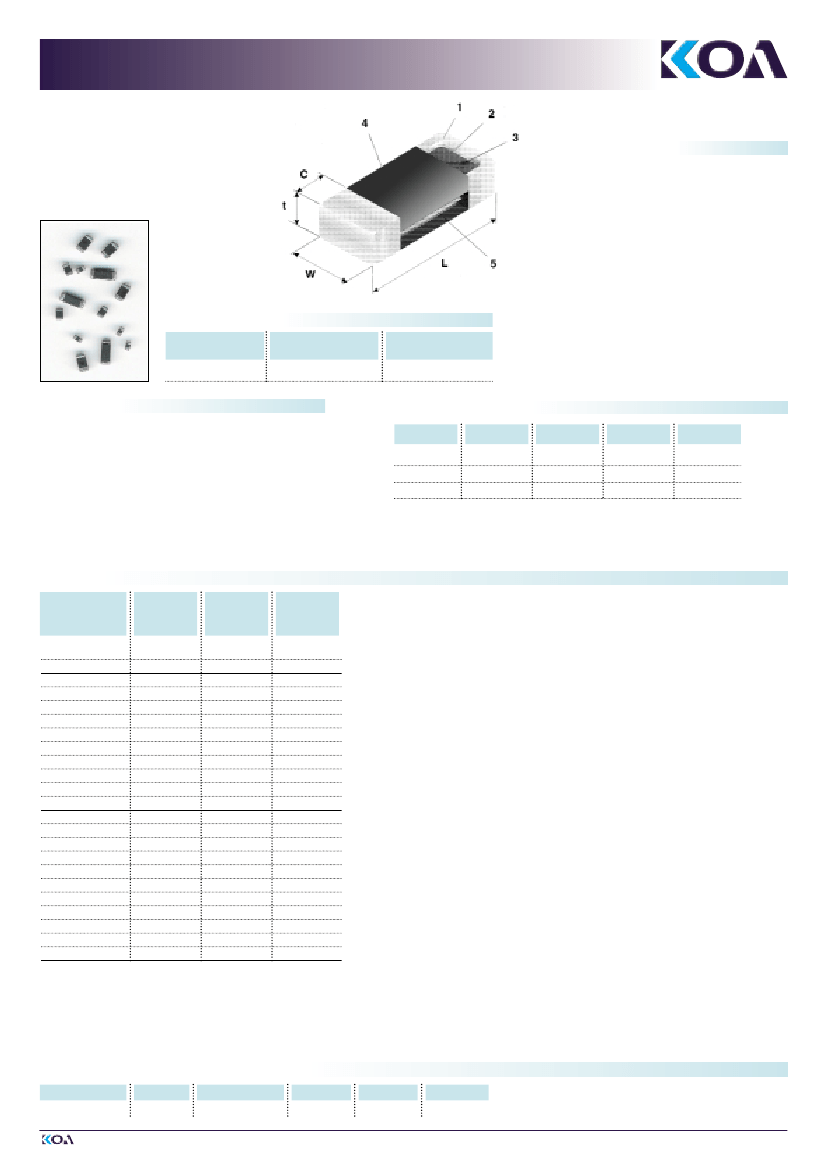

INDUCTORS

TECHNOLOGY OF TOMORROW

MULTILAYER

FERRITE POWER BEADS

MCP

STRUCTURE

Solder plating

Diffusion barrier (Ni)

Silver metallisation

Ferrite

Electrode

IDENTIFICATION

TYPE

MCP

COATING COLOR

Black

MARKING

None

FEATURES

Monolithic structure for closed magnetic path

and high reliability

Large permissible DC current

Anti-leaching nickel barrier terminations

90/10 solder plated terminations

Wide range of electrical properties

Suitable as noise suppressor in computers and

peripherals, telecommunication, data communication

and in consumer electronics

Operating temperature range: –55° C … +125° C

Suitable for reflow and wave soldering

DIMENSIONS (mm)

SIZE

0603

0805

1206

1.60 ± 0.15

2.00 ± 0.20

3.20 ± 0.20

0.80 ± 0.15

1.25 ± 0.20

1.60 ± 0.20

0.80 ± 0.15

0.90 ± 0.20

1.10 ± 0.20

0.36 ± 0.15

0.51 ± 0.25

RATING

TYPE

IMPEDANCE

at 100 MHz

300

600

070

100

110

150

300

450

800

201

301

601

190

260

300

310

500

700

800

900

121

601

Ω

200

Ω

300

Ω

600

Ω

120

Ω

600

Ω

600

Ω

RESISTANCE

(MAX.)

0.06

Ω

0.1

Ω

0.02

Ω

0.02

Ω

0.025

Ω

0.025

Ω

0.025

Ω

0.03

Ω

0.1

Ω

0.15

Ω

0.15

Ω

0.2

Ω

0.02

Ω

0.02

Ω

0.02

Ω

0.02

Ω

0.025

Ω

0.03

Ω

0.03

Ω

0.1

Ω

0.1

Ω

0.2

Ω

0.1

Ω

ALLOWABLE

DC CURRENT

(MAX.)

1.000 mA

500 mA

3.000 mA

2.000 mA

1.000 mA

3.000 mA

2.000 mA

1.000 mA

1.500 mA

MCP 0603 F

MCP 0805 F

MCP 1206 F

MCP 1206 P

TYPE DESIGNATION (HOW TO ORDER)

MCP

PRODUCT CODE

0603

SIZE

PERMEAB. CODE

P, F

TOLERANCE

TAPING*

300

IMPEDANCE

M (±20%), P (±25%) *Please see pages 82/83
