EB52E8C6N-14.400MTR datasheet, PDF

Datasheet> All Categories > Passive components> oscillator> EB52E8C6N-14.400MTR

EB52E8C6N-14.400MTR: DescriptionTCXO, CLOCK, 14.4MHz, HCMOS OUTPUT, ROHS COMPLIANT, CERAMIC, SMD, 10 PIN; CategoryPassive components oscillator; File Size100KB，2 Pages; ManufacturerECLIPTEK; Websitehttp://www.ecliptek.com; Environmental Compliance

Download Datasheet Parametric View All

EB52E8C6N-14.400MTR Overview

TCXO, CLOCK, 14.4MHz, HCMOS OUTPUT, ROHS COMPLIANT, CERAMIC, SMD, 10 PIN

EB52E8C6N-14.400MTR Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	ECLIPTEK
Reach Compliance Code	compliant
Other features	TAPE AND REEL; TRI-STATE ENABLE/DISABLE FUNCTION
Ageing	1 PPM/YEAR
maximum descent time	5 ns
Frequency Adjustment - Mechanical	NO
frequency stability	2.5%
JESD-609 code	e4
Manufacturer's serial number	EB52E8
Installation features	SURFACE MOUNT
Nominal operating frequency	14.4 MHz
Maximum operating temperature	70 °C
Minimum operating temperature	-20 °C
Oscillator type	HCMOS
Output load	15 pF
physical size	7.0mm x 5.0mm x 2.0mm
longest rise time	5 ns
Maximum supply voltage	3.465 V
Minimum supply voltage	3.135 V
Nominal supply voltage	3.3 V
surface mount	YES
maximum symmetry	55/45 %
Terminal surface	Nickel/Gold (Ni/Au)

Preview

Download Datasheet

View All

EB52E8

Series

• Temperature Compensated Crystal Oscillators (TCXO)

• LVCMOS Output

• +3.3V Supply Voltage

• External Voltage Control Option

• 10 Pad Ceramic SMD Package

• RoHS Compliant (Pb-Free)

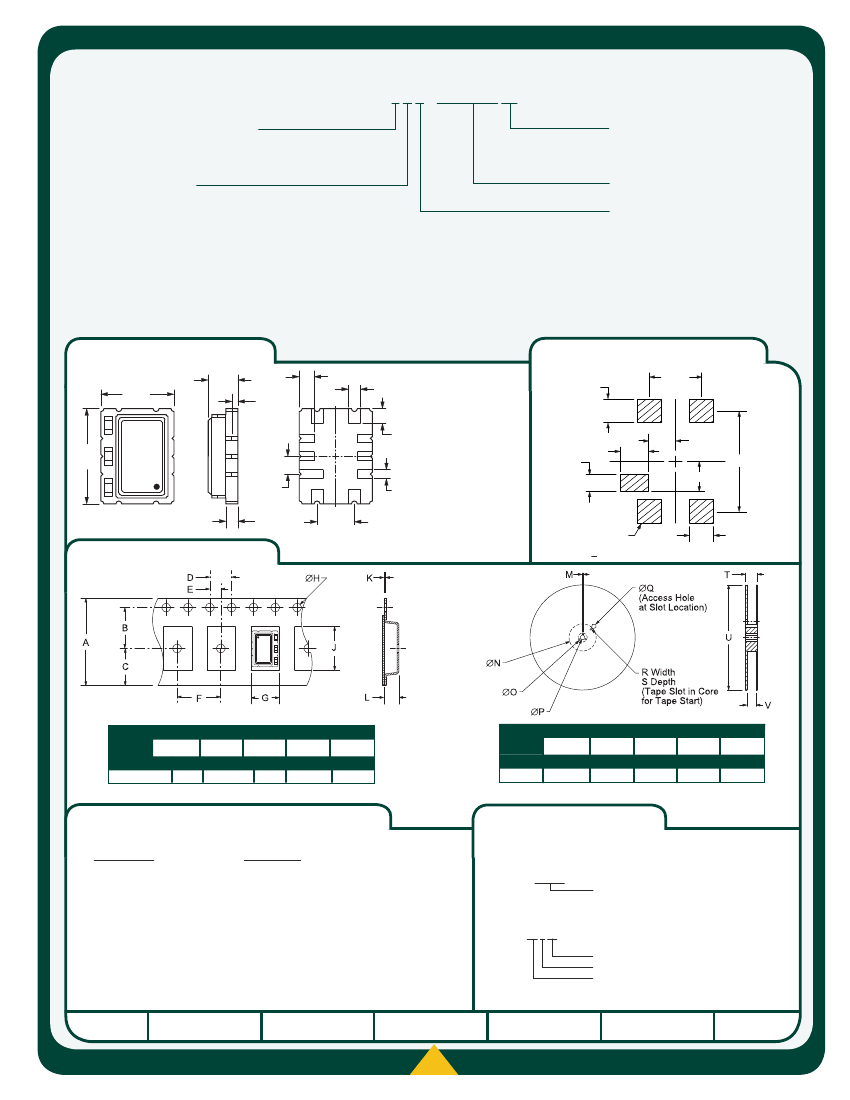

EB52E8

H 2.0

L 7.0

W 5.0

OSCILLATOR

ELECTRICAL SPECIFICATIONS

6.000, 6.144, 6.400, 6.500, 8.000, 8.192, 9.216, 9.600, 9.720, 10.000, 12.000, 12.288, 12.800, 13.000,

14.400

vs. Operating Temperature Range (V

= 3.3V

, V

= 1.65V

)

See Part Numbering Guide

Frequency Stability

vs. Frequency Tolerance (25°C ±2°C, V

= 3.3V

, V

= 1.65V

)

±1.0ppm Maximum

vs. Input Voltage (±5%)

±0.3ppm Maximum

vs. Load (±10%)

±0.3ppm Maximum

vs. Aging (at 25°C)

±1ppm / Year Maximum

See Part Numbering Guide

Operating Temperature Range

3.3V

±5%

Supply Voltage (V

)

10mA Maximum

Input Current

= -4mA

90% of V

Minimum

Output Voltage Logic High (V

)

= +4mA

10% of V

Maximum

Output Voltage Logic Low (V

)

Measured at 20% to 80% of Waveform

5nSec Maximum

Rise/Fall Time

Measured at 50% of Waveform

50 ±5(%) Maximum

Duty Cycle

15pF Maximum

Load Drive Capability

±5ppm Minimum

External Trim (Control Voltage Option)

1.65V

±1.65V

; Positive Transfer Characteristic

0.0V

to V

Control Voltage Range

5% Maximum

Linearity

100kOhms Minimum

Input Impedance

-80dBc/Hz

At offset of 10Hz

Typical Phase Noise (at

At offset of 100Hz

-115dBc/Hz

12.800MHz)

At offset of 1kHz

-135dBc/Hz

At offset of >10kHz

-145dBc/Hz

Enables Output

Tri-State Input Voltage (V

and V

)

No Connect

Enables Output

+0.9V

Minimum

+0.1V

Maximum

Disables Output: High Impedance

1pSec Maximum

= 12kHz to 20MHz

RMS Phase Jitter

5mSec Maximum

Start Up Time

-40°C to 125°C

Storage Temperature Range

Nominal Frequency (MHz)

MANUFACTURER
