MJEEHT-88AW: DescriptionTelecom and Datacom Connector, 8 Contact(s), Male, 45 Degree, Solder Terminal, Locking, Jack; CategoryThe connector The connector; File Size204KB，1 Pages; ManufacturerRatioplast Electronics

Download Datasheet Parametric Compare View All

MJEEHT-88AW Overview

Telecom and Datacom Connector, 8 Contact(s), Male, 45 Degree, Solder Terminal, Locking, Jack

MJEEHT-88AW Parametric

Parameter Name	Attribute value
Maker	Ratioplast Electronics
Reach Compliance Code	compliant
body width	0.839 inch
subject depth	0.646 inch
body length	0.598 inch
Body/casing type	JACK
Connector type	TELECOM AND DATACOM CONNECTOR
Contact to complete cooperation	AU ON NI
Contact point gender	MALE
Contact material	PHOSPHOR BRONZE
Contact resistance	20 mΩ
Contact style	TELCOM, MODULAR
Dielectric withstand voltage	1400VAC V
Durability	500 Cycles
Insulation resistance	500000000 Ω
Insulator color	WHITE
insulator material	GLASS FILLED POLYBUTYLENE TEREPHTHALATE
Manufacturer's serial number	MJEEHT
Installation option 1	LOCKING
Installation method	45 DEGREE
Installation type	BOARD
Number of ports	1
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
PCB contact pattern	STAGGERED
Plating thickness	6u inch
Rated current (signal)	1.5 A
Guideline	UL
reliability	COMMERCIAL
Shell surface	NICKEL
Shell material	BRASS
Terminal length	0.137 inch
Terminal pitch	2.54 mm
Termination type	SOLDER
Total number of contacts	8

Preview

Download Datasheet

View All

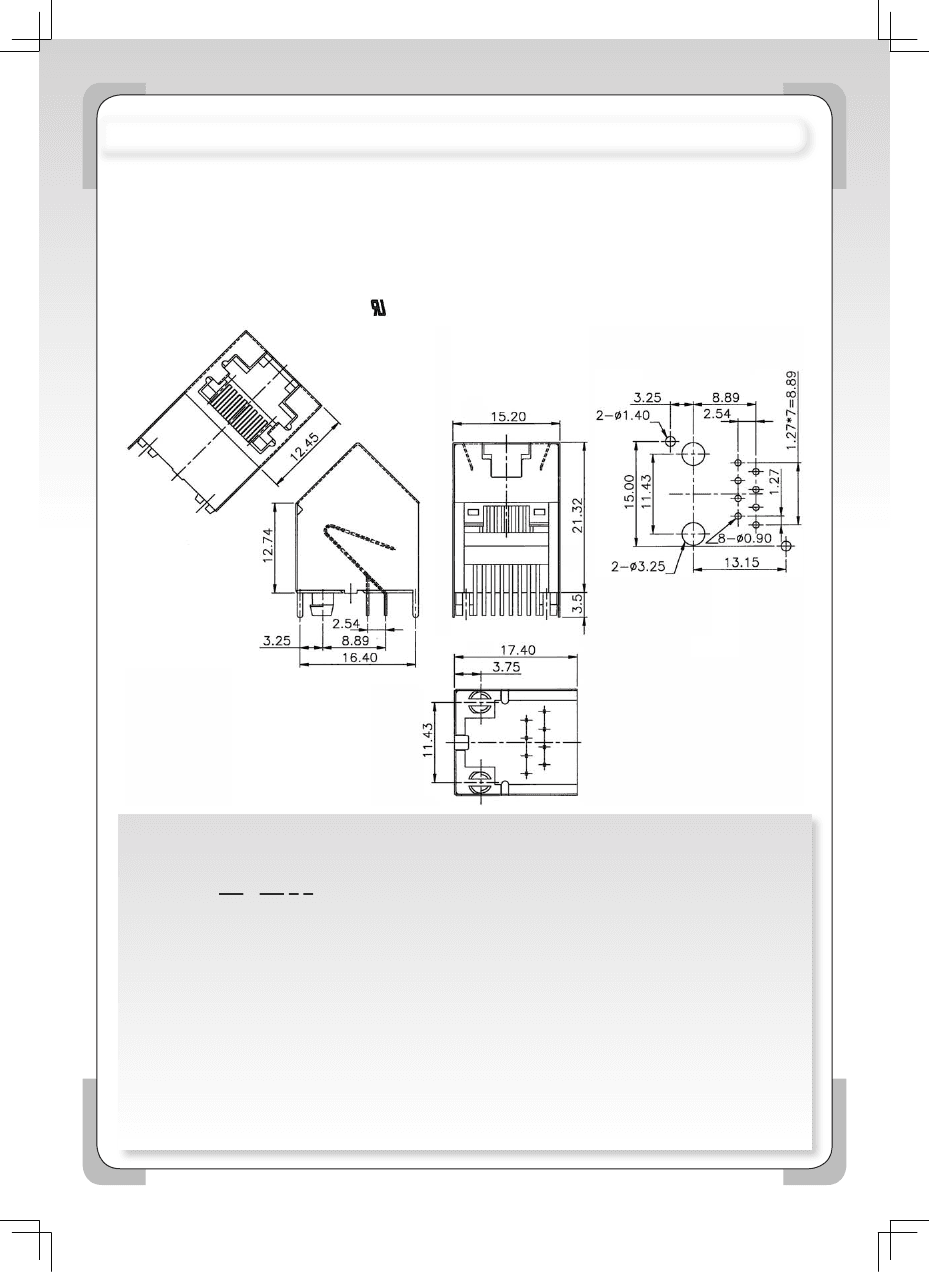

45 DEGREE ENTRY CAT. 3 & CAT. 5 MODULAR PCB JACK 8P (FULLY SHIELDED)

SPECIFICATIONS

MATERIALS

Insulation Resistance:

500MΩ

Min.

Contact Resistance:

20mΩ

Max.

Rating Current:

1.5A Max.

Rating Voltage:

120V AC.

Dielectric Voltage:

1000 Vrms 60 Sec. Min.

Temperature Range:

-40ºc / +85ºc

Durability:

500 Mating cycles Min.

Housing:

PBT Glass Filled (UL 94V-0)

Soldering Temperature:

235ºc

Color:

White

Spring Wire:

Phosphor Bronze

Gold plating Over Nickel

Shield:

Brass plating Nickel Alloy

All materials must be RoHS compliant.

Recommended P.C.Board Layout

(TOP VIEW)

ORDERING INFORMATION:

P/N M J x x - x x x x

1

2 34

1. CATEGORY TYPE:

"72" CAT. 3

"EE" CAT.5

2. NO. OF POSITIONS & CONTACTS:

"88" 8P8C

"84" 8P4C

3. CONTACT FINISH:

"A" 6 MICROINCH GOLD

"B" 15 MICROINCH GOLD

"C" 30 MICROINCH GOLD

"D" 50 MICROINCH GOLD

NOTE: P/N MJ72HT-xxxW for High Temp. Version

4. INSULATOR COLOR:

"W" WHITE (STANDARD)

"B" BLACK

J465

MJEEHT-88AW Related Products

	MJEEHT-88AW	MJ72-88CW	MJEEHT-88BW	MJ72-88AB
Description	Telecom and Datacom Connector, 8 Contact(s), Male, 45 Degree, Solder Terminal, Locking, Jack	Telecom and Datacom Connector, 8 Contact(s), Male, 45 Degree, Solder Terminal, Locking, Jack	Telecom and Datacom Connector, 8 Contact(s), Male, 45 Degree, Solder Terminal, Locking, Jack	Telecom and Datacom Connector, 8 Contact(s), Male, 45 Degree, Solder Terminal, Locking, Jack
Maker	Ratioplast Electronics	Ratioplast Electronics	Ratioplast Electronics	Ratioplast Electronics
Reach Compliance Code	compliant	compliant	compliant	compli
body width	0.839 inch	0.839 inch	0.839 inch	0.839 inch
subject depth	0.646 inch	0.646 inch	0.646 inch	0.646 inch
body length	0.598 inch	0.598 inch	0.598 inch	0.598 inch
Body/casing type	JACK	JACK	JACK	JACK
Connector type	TELECOM AND DATACOM CONNECTOR	TELECOM AND DATACOM CONNECTOR	TELECOM AND DATACOM CONNECTOR	TELECOM AND DATACOM CONNECTOR
Contact to complete cooperation	AU ON NI	AU ON NI	AU ON NI	AU ON NI
Contact point gender	MALE	MALE	MALE	MALE
Contact material	PHOSPHOR BRONZE	PHOSPHOR BRONZE	PHOSPHOR BRONZE	PHOSPHOR BRONZE
Contact resistance	20 mΩ	20 mΩ	20 mΩ	20 mΩ
Contact style	TELCOM, MODULAR	TELCOM, MODULAR	TELCOM, MODULAR	TELCOM, MODULAR
Dielectric withstand voltage	1400VAC V	1400VAC V	1400VAC V	1400VAC V
Durability	500 Cycles	500 Cycles	500 Cycles	500 Cycles
Insulation resistance	500000000 Ω	500000000 Ω	500000000 Ω	500000000 Ω
Insulator color	WHITE	WHITE	WHITE	BLACK
insulator material	GLASS FILLED POLYBUTYLENE TEREPHTHALATE	GLASS FILLED POLYBUTYLENE TEREPHTHALATE	GLASS FILLED POLYBUTYLENE TEREPHTHALATE	GLASS FILLED POLYBUTYLENE TEREPHTHALATE
Manufacturer's serial number	MJEEHT	MJ72	MJEEHT	MJ72
Installation option 1	LOCKING	LOCKING	LOCKING	LOCKING
Installation method	45 DEGREE	45 DEGREE	45 DEGREE	45 DEGREE
Installation type	BOARD	BOARD	BOARD	BOARD
Number of ports	1	1	1	1
Maximum operating temperature	85 °C	85 °C	85 °C	85 °C
Minimum operating temperature	-40 °C	-40 °C	-40 °C	-40 °C
PCB contact pattern	STAGGERED	STAGGERED	STAGGERED	STAGGERED
Plating thickness	6u inch	30u inch	15u inch	6u inch
Rated current (signal)	1.5 A	1.5 A	1.5 A	1.5 A
Guideline	UL	UL	UL	UL
reliability	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL
Shell surface	NICKEL	NICKEL	NICKEL	NICKEL
Shell material	BRASS	BRASS	BRASS	BRASS
Terminal length	0.137 inch	0.137 inch	0.137 inch	0.137 inch
Terminal pitch	2.54 mm	2.54 mm	2.54 mm	2.54 mm
Termination type	SOLDER	SOLDER	SOLDER	SOLDER
Total number of contacts	8	8	8	8
