2N6426D75Z datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Discrete semiconductor> The transistor> 2N6426D75Z

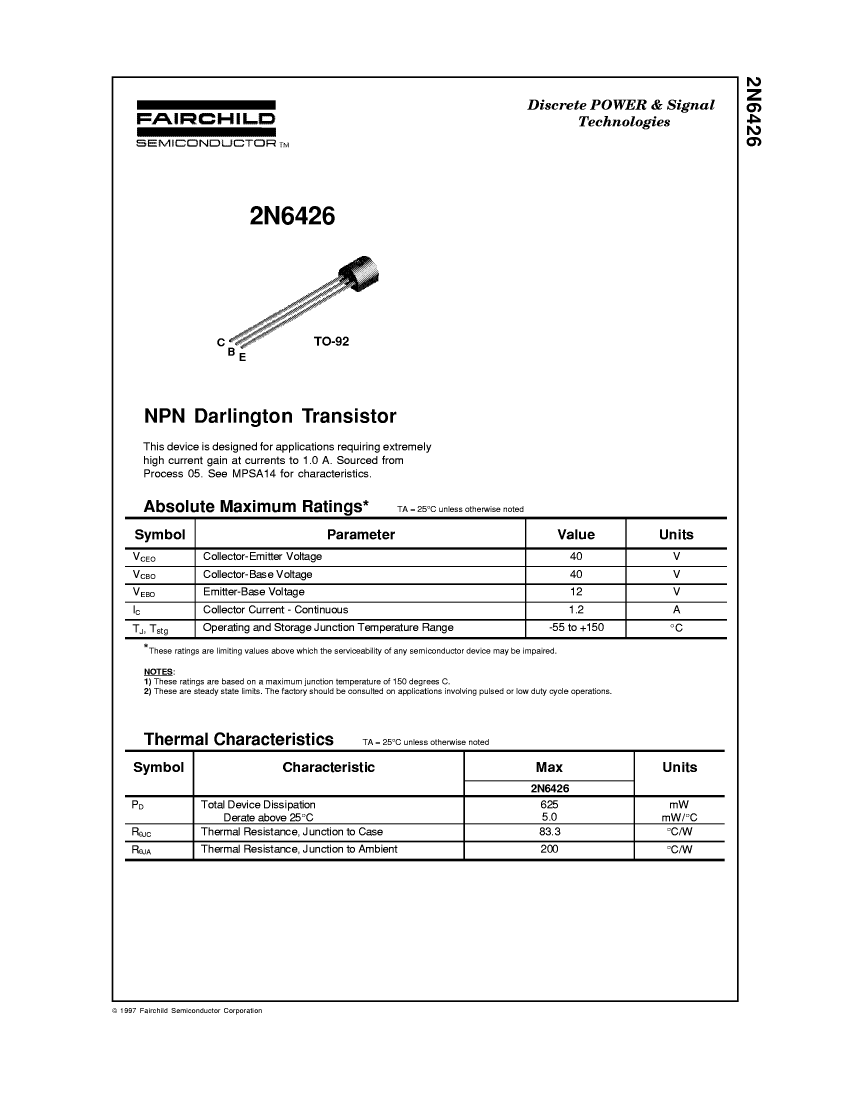

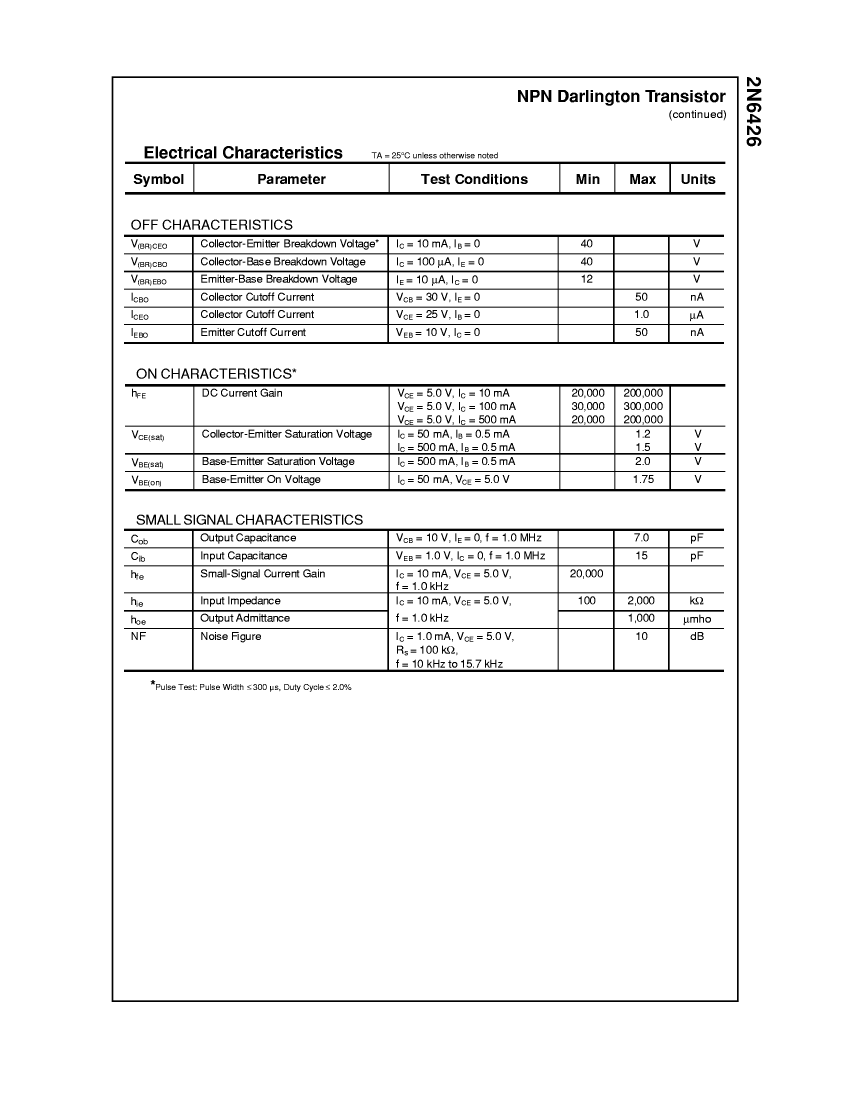

2N6426D75Z: DescriptionSmall Signal Bipolar Transistor, 1.2A I(C), 40V V(BR)CEO, 1-Element, NPN, Silicon, TO-92; CategoryDiscrete semiconductor The transistor; File Size48KB，2 Pages; ManufacturerFairchild; Websitehttp://www.fairchildsemi.com/

Download Datasheet Parametric Compare View All

2N6426D75Z Overview

Small Signal Bipolar Transistor, 1.2A I(C), 40V V(BR)CEO, 1-Element, NPN, Silicon, TO-92

2N6426D75Z Parametric

Parameter Name	Attribute value
package instruction	CYLINDRICAL, O-PBCY-T3
Reach Compliance Code	unknow
ECCN code	EAR99
Maximum collector current (IC)	1.2 A
Collector-emitter maximum voltage	40 V
Configuration	DARLINGTON
Minimum DC current gain (hFE)	20000
JEDEC-95 code	TO-92
JESD-30 code	O-PBCY-T3
Number of components	1
Number of terminals	3
Maximum operating temperature	150 °C
Package body material	PLASTIC/EPOXY
Package shape	ROUND
Package form	CYLINDRICAL
Polarity/channel type	NPN
Certification status	Not Qualified
surface mount	NO
Terminal form	THROUGH-HOLE
Terminal location	BOTTOM
Transistor component materials	SILICON
Base Number Matches	1

Preview

Download Datasheet

View All

2N6426D75Z Related Products

	2N6426D75Z	2N6426D26Z	2N6426D74Z	2N6426D27Z	2N6426J05Z	2N6426J18Z
Description	Small Signal Bipolar Transistor, 1.2A I(C), 40V V(BR)CEO, 1-Element, NPN, Silicon, TO-92	Small Signal Bipolar Transistor, 1.2A I(C), 40V V(BR)CEO, 1-Element, NPN, Silicon, TO-92,	Small Signal Bipolar Transistor, 1.2A I(C), 40V V(BR)CEO, 1-Element, NPN, Silicon, TO-92	Small Signal Bipolar Transistor, 1.2A I(C), 40V V(BR)CEO, 1-Element, NPN, Silicon, TO-92	Small Signal Bipolar Transistor, 1.2A I(C), 40V V(BR)CEO, 1-Element, NPN, Silicon, TO-92, 3 PIN	Small Signal Bipolar Transistor, 1.2A I(C), 40V V(BR)CEO, 1-Element, NPN, Silicon, TO-92, 3 PIN
package instruction	CYLINDRICAL, O-PBCY-T3	CYLINDRICAL, O-PBCY-T3	CYLINDRICAL, O-PBCY-T3	CYLINDRICAL, O-PBCY-T3	CYLINDRICAL, O-PBCY-T3	CYLINDRICAL, O-PBCY-T3
Reach Compliance Code	unknow	compli	compli	unknow	unknow	unknow
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99
Maximum collector current (IC)	1.2 A	1.2 A	1.2 A	1.2 A	1.2 A	1.2 A
Collector-emitter maximum voltage	40 V	40 V	40 V	40 V	40 V	40 V
Configuration	DARLINGTON	DARLINGTON	DARLINGTON	DARLINGTON	DARLINGTON	DARLINGTON
Minimum DC current gain (hFE)	20000	20000	20000	20000	20000	20000
JESD-30 code	O-PBCY-T3	O-PBCY-T3	O-PBCY-T3	O-PBCY-T3	O-PBCY-T3	O-PBCY-T3
Number of components	1	1	1	1	1	1
Number of terminals	3	3	3	3	3	3
Maximum operating temperature	150 °C	150 °C	150 °C	150 °C	150 °C	150 °C
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
Package shape	ROUND	ROUND	ROUND	ROUND	ROUND	ROUND
Package form	CYLINDRICAL	CYLINDRICAL	CYLINDRICAL	CYLINDRICAL	CYLINDRICAL	CYLINDRICAL
Polarity/channel type	NPN	NPN	NPN	NPN	NPN	NPN
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
surface mount	NO	NO	NO	NO	NO	NO
Terminal form	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE
Terminal location	BOTTOM	BOTTOM	BOTTOM	BOTTOM	BOTTOM	BOTTOM
Transistor component materials	SILICON	SILICON	SILICON	SILICON	SILICON	SILICON
Base Number Matches	1	1	1	1	1	1
JEDEC-95 code	TO-92	TO-92	TO-92	TO-92	-	-
