GS8180QV18/36D-200/167/133/100
165-Bump BGA
Commercial Temp
Industrial Temp
Features
• Simultaneous Read and Write SigmaQuad™ Interface
• JEDEC-standard pinout and package
• Dual DoubleData Rate interface
• Byte Write controls sampled at data-in time
• Burst of 2 Read and Write
• 2.5 V +100/–100 mV core power supply
• 1.5 V or 1.8 V HSTL Interface
• Pipelined read operation
• Fully coherent read and write pipelines
• ZQ mode pin for programmable output drive strength
• IEEE 1149.1 JTAG-compliant Boundary Scan
• 165-bump, 13 mm x 15 mm, 1 mm bump pitch BGA package
• Pin-compatible with future 36Mb, 72Mb, and 144Mb devices
• RoHS-compliant 165-bump BGA package available
18Mb Burst of 2
SigmaQuad
TM
SRAM
200 MHz–100 MHz
2.5 V V
DD
1.8 V or 1.5 V I/O
various combinations of address bursting, output data
registering, and write cueing. Along with the Common I/O
family of SigmaRAMs, the SigmaQuad family of SRAMs
allows a user to implement the interface protocol best suited to
the task at hand.
Clocking and Addressing Schemes
A Burst of 2 SigmaQuad SRAM is a synchronous device. It
employs two input register clock inputs, K and K. K and K are
independent single-ended clock inputs, not differential inputs
to a single differential clock input buffer. The device also
allows the user to manipulate the output register clock inputs
quasi independently with the C and C clock inputs. C and C are
also independent single-ended clock inputs, not differential
inputs. If the C clocks are tied high, the K clocks are routed
internally to fire the output registers instead.
Because Separate I/O Burst of 2 RAMs always transfer data in
two packets, A0 is internally set to 0 for the first read or write
transfer, and automatically incremented by 1 for the next
transfer. Because the LSB is tied off internally, the address
field of a Burst of 2 RAM is always one address pin less than
the advertised index depth (e.g., the 1M x 18 has a 512K
addressable index).
SigmaRAM™ Family Overview
GS8180QV18 are built in compliance with the SigmaQuad
SRAM pinout standard for Separate I/O synchronous SRAMs.
They are18,874,368-bit (18Mb) SRAMs. These are the first in
a family of wide, very low voltage HSTL I/O SRAMs designed
to operate at the speeds needed to implement economical high
performance networking systems.
SigmaQuad SRAMs are offered in a number of configurations.
Some emulate and enhance other synchronous separate I/O
SRAMs. A higher performance SDR (Single Data Rate) Burst
of 2 version is also offered. The logical differences between
the protocols employed by these RAMs hinge mainly on
Parameter Synopsis*
-167
6.0 ns
2.5 ns
-133
7.5 ns
3.0 ns
-100
10.0 ns
3.0 ns
-200
tKHKH
tKHQV
5.0 ns
2.3 ns
Rev: 2.07 3/2010
1/30
© 2002, GSI Technology
Specifications cited are subject to change without notice. For latest documentation see http://www.gsitechnology.com.
GS8180QV18/36D-200/167/133/100
1M x 18 SigmaQuad SRAM—Top View (Package D)
1
A
B
C
D
E
F
G
H
J
K
L
M
N
P
R
NC
NC
NC
NC
NC
NC
NC
NC
NC
NC
NC
NC
NC
NC
TDO
2
MCL/SA
(144Mb)
Q9
NC
D11
NC
Q12
D13
V
REF
NC
NC
Q15
NC
D17
NC
TCK
3
NC/SA
(36Mb)
D9
D10
Q10
Q11
D12
Q13
V
DDQ
D14
Q14
D15
D16
Q16
Q17
SA
4
W
SA
V
SS
V
SS
V
DDQ
V
DDQ
V
DDQ
V
DDQ
V
DDQ
V
DDQ
V
DDQ
V
SS
V
SS
SA
SA
5
BW1
NC
SA
V
SS
V
SS
V
DD
V
DD
V
DD
V
DD
V
DD
V
SS
V
SS
SA
SA
SA
6
K
K
SA
V
SS
V
SS
V
SS
V
SS
V
SS
V
SS
V
SS
V
SS
V
SS
SA
C
C
7
NC
BW0
SA
V
SS
V
SS
V
DD
V
DD
V
DD
V
DD
V
DD
V
SS
V
SS
SA
SA
SA
8
R
SA
V
SS
V
SS
V
DDQ
V
DDQ
V
DDQ
V
DDQ
V
DDQ
V
DDQ
V
DDQ
V
SS
V
SS
SA
SA
9
SA
NC
NC
NC
NC
NC
NC
V
DDQ
NC
NC
NC
NC
NC
NC
SA
10
MCL/SA
(72Mb)
NC
Q7
NC
D6
NC
NC
V
REF
Q4
D3
NC
Q1
NC
D0
TMS
11
NC
Q8
D8
D7
Q6
Q5
D5
ZQ
D4
Q3
Q2
D2
D1
Q0
TDI
11 x 15 Bump BGA—13 x 15 mm
2
Body—1 mm Bump Pitch
Notes:
1. Expansion addresses: A3 for 36Mb, A10 for 72Mb, A2 for 144Mb
2. BW0 controls writes to D0:D8. BW1 controls writes to D9:D17.
3. MCL = Must Connect Low
4. It is recommended that H1 be tied low for compatibility with future devices.
Rev: 2.07 3/2010
2/30
© 2002, GSI Technology
Specifications cited are subject to change without notice. For latest documentation see http://www.gsitechnology.com.
GS8180QV18/36D-200/167/133/100
512K x 36 SigmaQuad SRAM—Top View (Package D)
1
A
B
C
D
E
F
G
H
J
K
L
M
N
P
R
NC
Q27
D27
D28
Q29
Q30
D30
NC
D31
Q32
Q33
D33
D34
Q35
TDO
2
MCL/SA
(288Mb)
Q18
Q28
D20
D29
Q21
D22
V
REF
Q31
D32
Q24
Q34
D26
D35
TCK
3
NC/SA
(72Mb)
D18
D19
Q19
Q20
D21
Q22
V
DDQ
D23
Q23
D24
D25
Q25
Q26
SA
4
W
SA
V
SS
V
SS
V
DDQ
V
DDQ
V
DDQ
V
DDQ
V
DDQ
V
DDQ
V
DDQ
V
SS
V
SS
SA
SA
5
BW2
BW3
SA
V
SS
V
SS
V
DD
V
DD
V
DD
V
DD
V
DD
V
SS
V
SS
SA
SA
SA
6
K
K
SA
V
SS
V
SS
V
SS
V
SS
V
SS
V
SS
V
SS
V
SS
V
SS
SA
C
C
7
BW1
BW0
SA
V
SS
V
SS
V
DD
V
DD
V
DD
V
DD
V
DD
V
SS
V
SS
SA
SA
SA
8
R
SA
V
SS
V
SS
V
DDQ
V
DDQ
V
DDQ
V
DDQ
V
DDQ
V
DDQ
V
DDQ
V
SS
V
SS
SA
SA
9
NC/SA
(36Mb)
D17
D16
Q16
Q15
D14
Q13
V
DDQ
D12
Q12
D11
D10
Q10
Q9
SA
10
MCL/SA
(144Mb)
Q17
Q7
D15
D6
Q14
D13
V
REF
Q4
D3
Q11
Q1
D9
D0
TMS
11
NC
Q8
D8
D7
Q6
Q5
D5
ZQ
D4
Q3
Q2
D2
D1
Q0
TDI
11 x 15 Bump BGA—13 x 15 mm
2
Body—1 mm Bump Pitch
Notes:
1. Expansion addresses: A9 for 36Mb, A3 for 72Mb, A10 for 144Mb, A2 for 288Mb
2. BW0 controls writes to D0:D8. BW1 controls writes to D9:D17.
3. BW2 controls writes to D18:D26. BW3 controls writes to D27:D35.
4. MCL = Must Connect Low
5. It is recommended that H1 be tied low for compatibility with future devices.
Rev: 2.07 3/2010
3/30
© 2002, GSI Technology
Specifications cited are subject to change without notice. For latest documentation see http://www.gsitechnology.com.
GS8180QV18/36D-200/167/133/100
Pin Description Table
Symbol
SA
NC
R
W
BW0–BW1
BW2–BW3
K
K
C
C
TMS
TDI
TCK
TDO
V
REF
ZQ
MCL
D0–D17
D18–D35
Q0–Q17
Q18–Q35
V
DD
V
DDQ
V
SS
Note:
NC = Not Connected to die or any other pin
Description
Synchronous Address Inputs
No Connect
Synchronous Read
Synchronous Write
Synchronous Byte Writes
Synchronous Byte Writes
Input Clock
Input Clock
Output Clock
Output Clock
Test Mode Select
Test Data Input
Test Clock Input
Test Data Output
HSTL Input Reference Voltage
Output Impedance Matching Input
Must Connect Low
Synchronous Data Inputs
Synchronous Data Inputs
Synchronous Data Outputs
Synchronous Data Outputs
Power Supply
Isolated Output Buffer Supply
Power Supply: Ground
Type
Input
—
Input
Input
Input
Input
Input
Input
Input
Input
Input
Input
Input
Output
Input
Input
—
Input
Input
Output
Output
Supply
Supply
Supply
Comments
—
—
Active Low
Active Low
Active Low
Active Low (x36 only)
Active High
Active Low
Active High
Active Low
—
—
—
—
—
—
—
2.5 V Nominal
1.8 or 1.5 V Nominal
—
Background
Separate I/O SRAMs, from a system architecture point of view, are attractive in applications where alternating reads and writes are
needed. Therefore, the SigmaQuad SRAM interface and truth table are optimized for alternating reads and writes. Separate I/O
SRAMs are unpopular in applications where multiple reads or multiple writes are needed because burst read or write transfers from
Separate I/O SRAMs can cut the RAM’s bandwidth in half.
A SigmaQuad SRAM can begin an alternating sequence of reads and writes with either a read or a write. In order for any separate
I/O SRAM that shares a common address between its two ports to keep both ports running all the time, the RAM must implement
some sort of burst transfer protocol. The burst must be at least long enough to cover the time the opposite port is receiving
Rev: 2.07 3/2010
4/30
© 2002, GSI Technology
Specifications cited are subject to change without notice. For latest documentation see http://www.gsitechnology.com.
GS8180QV18/36D-200/167/133/100
instructions on what to do next. The rate at which a RAM can accept a new random address is the most fundamental performance
metric for the RAM. Each of the three SigmaQuad SRAMs support similar address rates because random address rate is
determined by the internal performance of the RAM and they are all based on the same internal circuits. Differences between the
truth tables of the different SigmaQuad SRAMs, or any other Separate I/O SRAMs, follow from differences in how the RAM’s
interface is contrived to interact with the rest of the system. Each mode of operation has its own advantages and disadvantages. The
user should consider the nature of the work to be done by the RAM to evaluate which version is best suited to the application at
hand.
Alternating Read-Write Operations
SigmaQuad SRAMs follow a few simple rules of operation.
- Read or Write commands issued on one port are never allowed to interrupt an operation in progress on the other port.
- Read or Write data transfers in progress may not be interrupted and re-started.
- R and W high always deselects the RAM.
- All address, data, and control inputs are sampled on clock edges.
In order to enforce these rules, each RAM combines present state information with command inputs. See the Truth Table for
details.

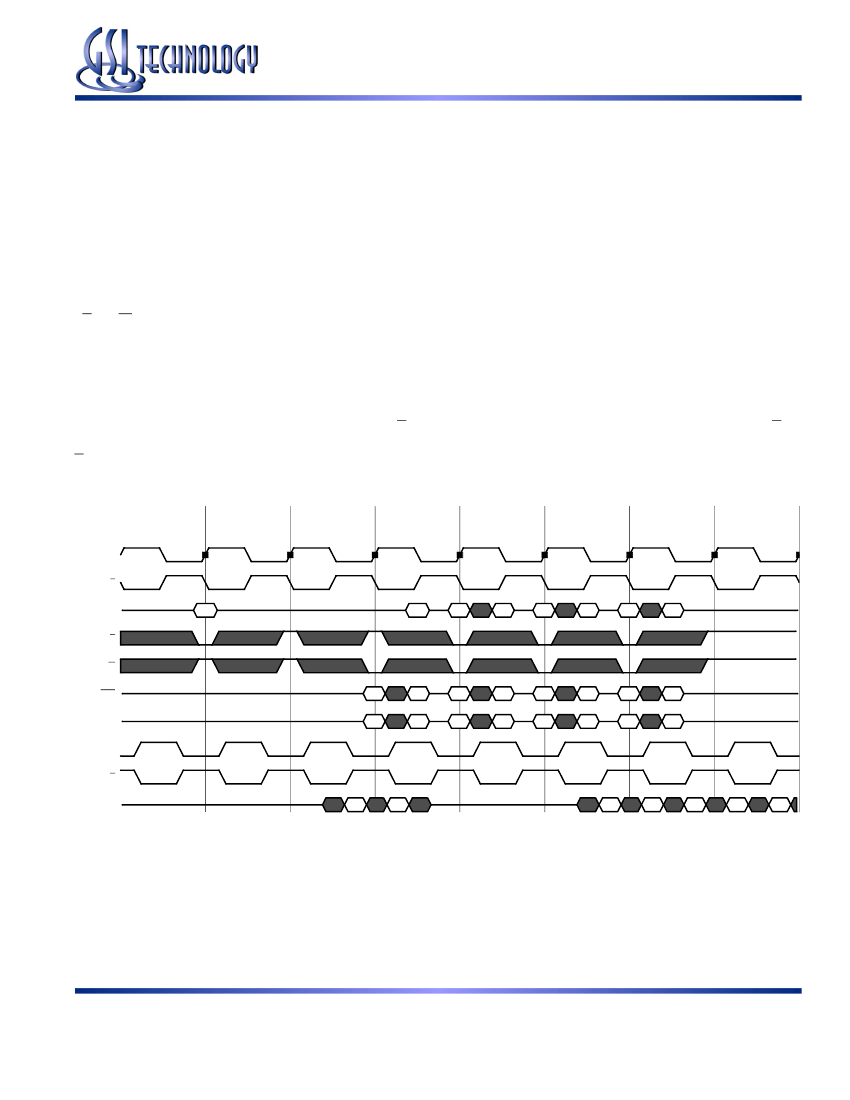

Burst of 2 SigmaQuad SRAM DDR Read
The read port samples the status of the Address Input and R pins at each rising edge of K. A low on the Read Enable-bar pin, R,
begins a read cycle. Data can be clocked out one cycle later and again one half cycle after that. A high on the Read Enable-bar pin,
R, begins a read port deselect cycle.
Burst of 2 Double Data Rate SigmaQuad SRAM Read First
Read A
NOP
Write B
Read C Write D
Read E Write F
Read G Write H
NOP
K
K
Address
R
W
BWx
D
C
C
Q
A
A+1
C
C+1
E
E+1
G
B
B
B+1
B+1
D
D
D+1
D+1
F
F
F+1
F+1
H
H
H+1
H+1
A
B
C
D
E
F
G
H
Rev: 2.07 3/2010
5/30
© 2002, GSI Technology
Specifications cited are subject to change without notice. For latest documentation see http://www.gsitechnology.com.
