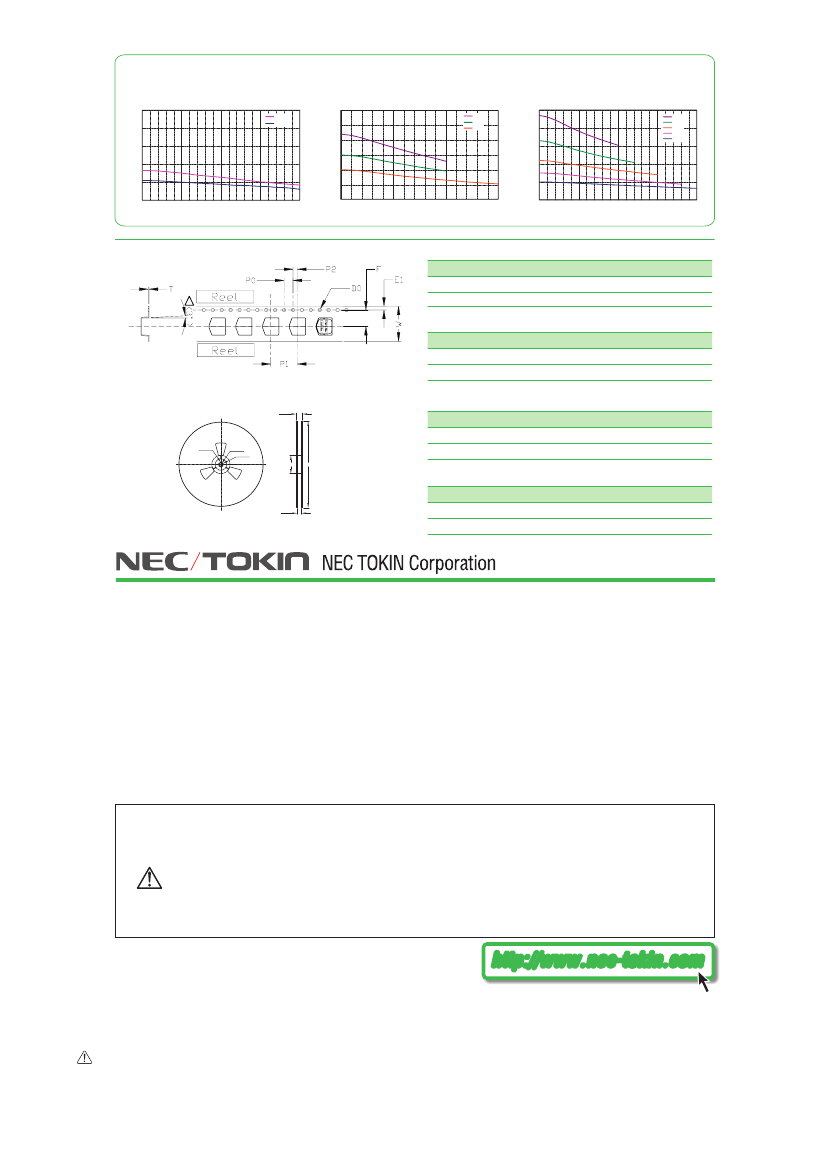

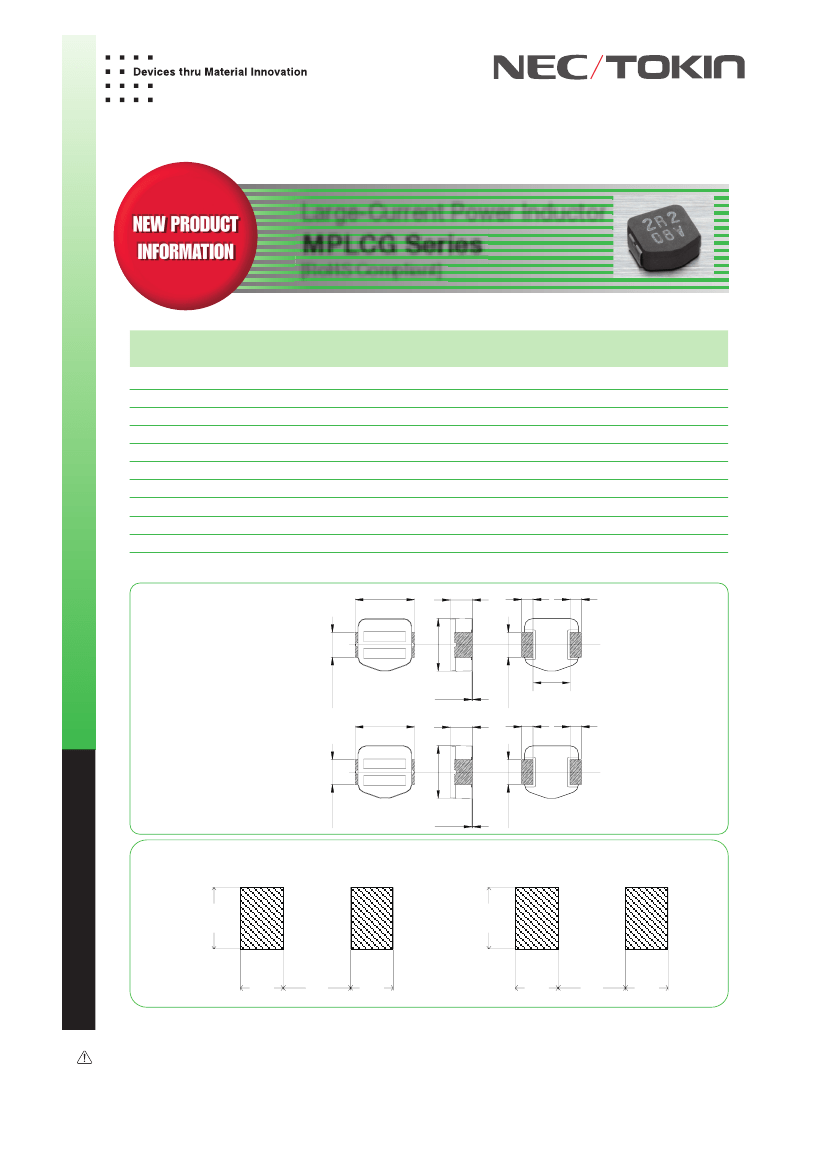

DC-Superposed Characteristics
MPLCG0530Series
LR22,LR33
】
【
1.0
Inductanceat 20deg.C[uH]
0.8
0.6
0.4
0.2
0.0
0
5
10
DC Current[A]
15
20
Inductance at 20deg.C[uH]
R33
R22
3.0
2.5
2.0
1.5
1.0
0.5
0.0
0
5
10
15
MPLCG0530Series
L1R0,L1R5,L2R2
】
【
Inductance at 20deg.C[uH]
2R2
1R5
1R0
5.0
4.0
3.0
2.0
1.0
0.0
MPLCG0630Series
4R7
3R3
2R2
1R5
1R0
DC Current[A]
0
5
10
DC Current[A]
15
Dimensions of indented square hole plastic tape
MPLCG0530 Series 3500pcs./reel）
（
[mm]
1
W
±0.3
12.0
F
±0.1
5.5
E1
±0.1
1.75
P1
±0.1
8.0
P2
±0.1
2.0
P0
±0.1
4.0
φD0
±0.05
1.55
T
±0.05
0.4
[mm]
MPLCG0630 Series 2000pcs./reel）
（
W
±0.3
16.0
Reel dimensions
F
±0.1
7.5
E1
±0.1
1.75
P1
±0.1
12.0
P2
±0.1
2.0
P0
±0.1
4.0
φD0
±0.05
1.55
T
±0.05
0.4
[mm]
W2
MPLCG0530 Series
A0
C
D
B
A
A
±5.0
φ380
B
±10
φ95
C
±1.0
φ13.5
D
±0.8
φ21.0
A0
±0.5
2.0
r
R1.0
W1
±1.5
14.5
W2
±2.0
18.5
[mm]
MPLCG0630 Series
W1
A
±5.0
φ380
B
±10
φ95
C
±1.0
φ13.5
D
±0.8
φ21.0
A0
±0.5
2.0
r
R1.0
W1
±1.0
18.0
W2
±1.5
21.6
