CONTENTS
Thermal Reed Switch TRS
®
…………………………………………………………………………………………………
TRS Series Approved by UL, CSA, and VDE ……………………………………………………………………………
Thermal Guard OHD
®
…………………………………………………………………………………………………………
4
8
9
Current Transformer Low Current Type ……………………………………………………………………………………
12
Zero-Phase Current Transformer ZCT ……………………………………………………………………………………
●All specifications in this catalog and production status of products are subject to change without notice. Prior to the purchase, please contact NEC TOKIN for updated product data.
●Please request for a specification sheet for detailed product data prior to the purchase.
●Before using the product in this catalog, please read "Precautions" and other safety precautions listed in the printed version catalog.
2012.06.04 0000SENVOL11E1206H0
INTRODUCTION
Advances in LSls, microcomputers and power devices enable ever more efficient use of energy, finer control and greater ease
of use. In this way industry is promoting consumer appliances with increasingly sophisticated
“intelligent”
functions. And with these
developments there is a burgeoning need for advanced, highly reliable sensors with capabilities corresponding to the human’ five
senses.
NEC TOKIN seeks to commercialize creative products fusing new material technologies with new applications, developing
and commercializing a broad range of sensor devices based on outstanding materials technologies covering properties such as
magnetism, piezoelectronics and optics.
This catalog introduces different kinds of sensors, including thermosensors, current sensors and magnetic sensors. Besides the
items shown here we also offer an extensive line of sensor-related products and are continually developing new sensors, so please
feel free to ask us about anything you might need. We look forward to being able to serve you.
NEC TOKIN Sensors Vol.11 3
●All specifications in this catalog and production status of products are subject to change without notice. Prior to the purchase, please contact NEC TOKIN for updated product data.
●Please request for a specification sheet for detailed product data prior to the purchase.
●Before using the product in this catalog, please read "Precautions" and other safety precautions listed in the printed version catalog.
2012.06.04 0000SENVOL11E1206H0

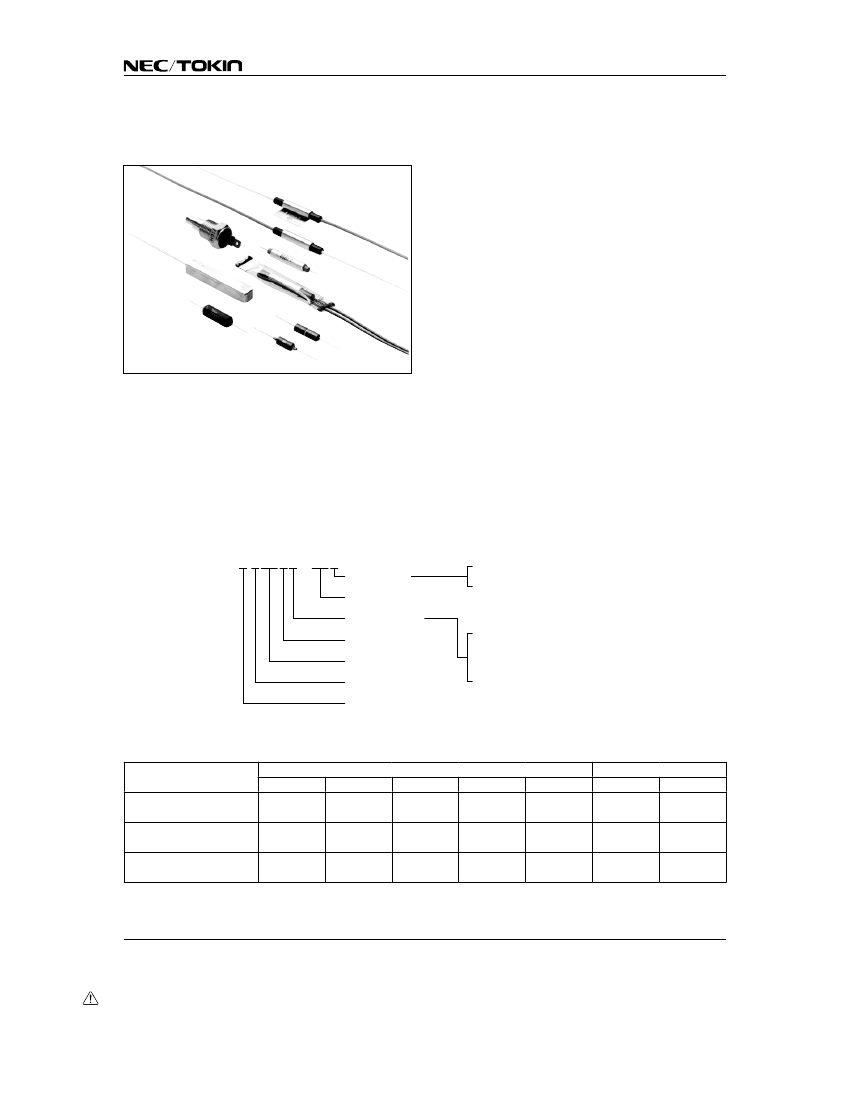

Thermal Reed Switch TRS
®
Features
• High reliability (long product lifetime)
• Excellent temperature accuracy (±2.5°C, ±1°C)
• Wide range of operating temperature available (–10°C
to +130°C)
• Excellent environmental resistance
(contacts are encased in a glass tube)
Markings
TRS○-△○○□□ R ＊＊◇
Voltage marking
Part number
Shape classification
Contact type
Operating temperature
Minus(M) Marking
Reed switch type
Outline
NEC TOKIN led the world in recognizing and realizing
the potential of ferrite's Curie temperature. The result is
Thermorite
®
, a temperature-sensing magnetic material.
Ever since the introduction of this product, NEC TOKIN
has reigned as the top manufacturer of Curie-temperature-
utilizing control devices, developing many products with
new functions. Among these, the Thermal Reed Switch
(TRS
®
) is the chief product, with patents in the United
States and Japan. Its superiority as a highly reliable,
precise temperature-sensitive switch ideal for promoting
energy conservation has been attested to by the
International Relay Association. There are already more
than 300 million in use, and with the addition of TRS
®
varieties approved by UL, CSA and other safety
standards, the lineup just keeps getting better.
No marking : for 100V
V
: for 200V
C
L
S
T
:
:
:
:
Casing
L type with fin
Sealing
Tube sealing
Electrical Characteristics
Reed switch type
Maximum opening/closing
voltage (V)
Maximum opening/closing
current (A)
Maximum opening/closing
power (W)
For 100 V
TRS06-
110
AC½DC
0.3
AC½DC
6
AC½DC
TRS1
140 AC
200 DC
0.5
AC½DC
10
AC½DC
TRS3-
140 AC
200 DC
0.5
AC½DC
35 AC
10 DC
TRS5-
140 AC
200 DC
0.55
AC½DC
60.5 AC
10 DC
TRS6-
140
AC
0.65
AC
72
AC
TRS5-
264
AC
0.275
AC
60.5
AC
For 200 V
TRS1-
220
AC
0.045
AC
10
AC
* Please refer to pages 6 to 7 as rated values vary depending on product types (shape classification).
4 NEC TOKIN Sensors Vol.11
●All specifications in this catalog and production status of products are subject to change without notice. Prior to the purchase, please contact NEC TOKIN for updated product data.
●Please request for a specification sheet for detailed product data prior to the purchase.
●Before using the product in this catalog, please read "Precautions" and other safety precautions listed in the printed version catalog.
2012.06.04 0000SENVOL11E1206H0
Structures and Principles of Operation
Thermal Reed Switches (TRS
®
) are temperature-
sensing switches composed of a magnet and a
temperature-sensing soft ferromagnetic substance
called Thermorite
®
. This material's saturation magnetic
flux density decreases as the temperature increases, and
it turns into a paramagnetic substance at the Curie
temperature.
(a) Normally closed type
Permanent magnet
NS
Thermorite
NS
Low temperature
Φ2
NS
High temperature
NS
Φ1
NS
Reed switch
Φ1
NS
(b)Normally open type
Permanent magnet
Thermorite
Reed switch
Spacer (gap)
NS
Low temperature
Φ2
NS
High temperature
Φ2
Permanent magnet
NS
Φ1
NS
Φ1
Before Using Thermal Reed Switch (TRS
®
)
• Please ask for a copy of specification and check the contents thoroughly before the actual use.
• Please contact us before deciding your specifications.
• Do not use in close proximity to strongly magnetized parts.
• Do not use if dropped or strongly shocked.
• Do NOT use with greater load than specified.
When installing these switches in circuits prone to producing surge voltage (inductive load) or rush current
(in lamps and motors), an appropriate switch type should be used, or a contact point protection circuit added.
• Avoid stress (especially torsion) in case of additional processing.
• Each reed switch has a specific resonance frequency. Please contact us when an oscillation is added.
NEC TOKIN Sensors Vol.11 5
