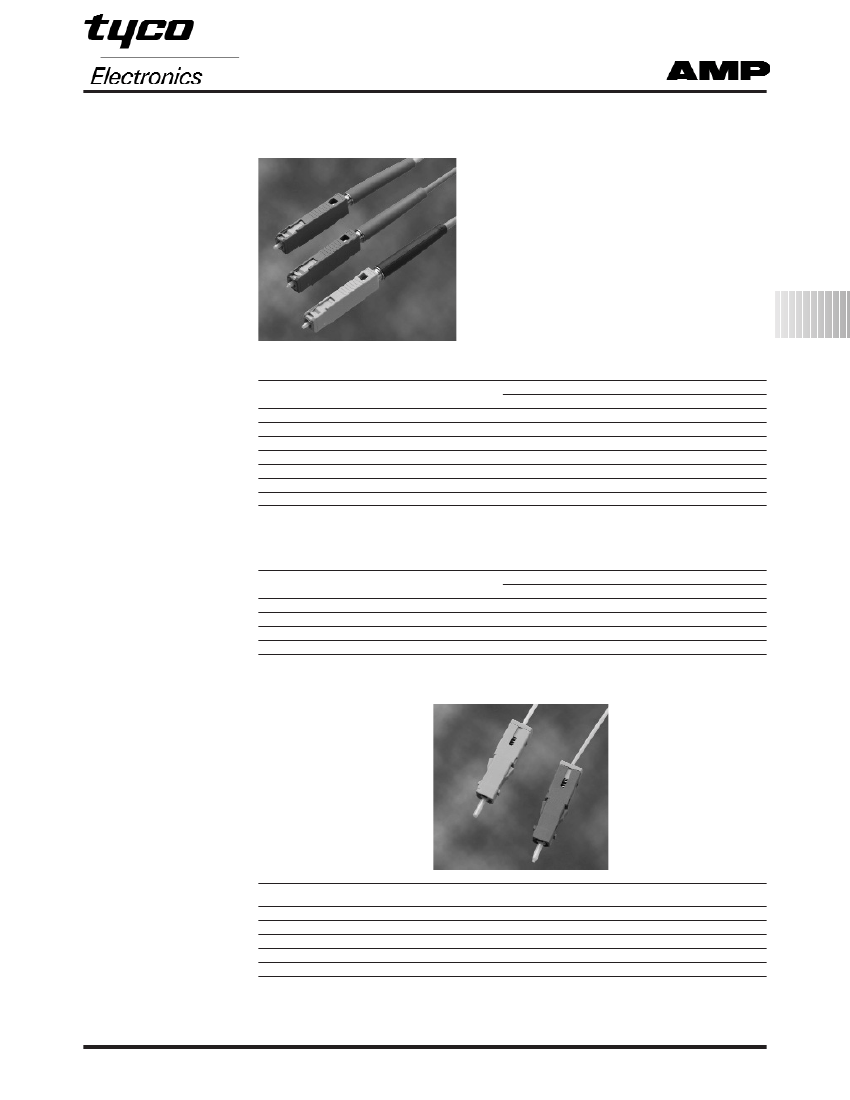

Catalog 1307895

Revised 9-04

Fiber Optic Products Catalog

MU Cable Assemblies

Cable Assemblies &

Backplane Interconnects

Product Facts

■

Can be used with MU

backplane connectors

(Z-PACK 2mm HM type L

connector housings) for

complete backplane or

board to board solution

1.25 mm ferrule design

Polarized to ensure precise

insertion

High density (up to 8 lines

per module)

“Push Pull” (SC style)

latching mechanism

Fully compliant with:

■

1.25mm ferrule design

IEC60917 and

IEC 61076-4-101

■

IEC 60874-1

■

CECC 86 305 801

(MU-APC)

■

JIS C-5970

■

I-ETS 300 671

■

IEC 61300

■

MU Cable Assemblies

Description

LC to MU Board Plug Singlemode 900µm

LC to MU 62.5/125 900µm

MU to SC Singlemode 900µm

MU to SC 62.5/125 900µm

MU to MU Singlemode Buffered

MU to MU Singlemode 2mm

MU to SC Singlemode 2.0mm

Other lengths available upon request.

1 Meter

1457327-1

1457328-1

1457329-1

1457330-1

1457482-1

1457523-1

1588145-1

Part Numbers

2 Meters

—

1457329-2

1457330-2

1457482-2

1457523-2

1588145-2

3 Meters

—

1457329-3

1457330-3

1457482-3

1457523-3

—

Performance Characteristics

Insertion Loss —

Singlemode: 0.3 dB Max

<0.1dB Typical

Multimode: 01.dB Typical

Return Loss —

Singlemode: 55 dB - PC endface

Typical

>65 dB - APC endface

Multimode: 20dB

MU Lead Assemblies with Riser Cable

Description

1 Meter

2 Meters

MU/PC-MU/PC Simplex SM 2.0 mm

106781-1 106781-2

MU/APC-MU/APC Simplex SM 2.0mm

106888-1 106888-2

MU/PC-MU-PC Simplex MM 2.0 mm 50/125µm 1206073-1 1206073-2

MU/PC-MU/PC Simplex MM 2.0mm 62.5/125µm 1206075-1 1206075-2

Part Numbers

3 Meters

5 Meters

10 Meters

106781-3

106781-5 1-106781-0

106888-3

106888-5 1-106888-0

1206073-3 1206073-5 1-1206073-0

1206075-3 1206075-5 1-1206075-0

MU Boardplug Pigtails

with Riser Cable

MU boardplug pigtails

are designed for use with

female Z-PACK 2mm HM

housings on the daughter-

card. Available with 900µm

buffered fiber and in

lengths of 1 meter as

standard, custom lengths

are available upon request.

Fiber Size

(µm)

9/125

50/125

62.5/125

Endface

APC

Cable Type

900µm pigtail

Length

(meter)

Part Number

106751-1

106752-1

106752-2

1206077-1

1206078-1

specified. Dimensions are shown for reference purposes only.

For drawings, technical data or samples, contact your Tyco Electronics sales engineer, call 1-800-522-6752, or visit our Website at:

http://www.tycoelectronics.com/fiberoptics. Specifications subject to change. Consult Tyco Electronics for latest specifications.
