893D
www.vishay.com
Vishay Sprague
Solid Tantalum Chip Capacitors
T
ANTAMOUNT®
, Molded Case, Built-In-Fuse Miniature
FEATURES
• Terminations: 100 % matte tin standard,
tin/lead available
• Molded package available in three case
codes
• Compatible with “High Volume” automatic
pick and place
• Electrically activated internal fuse
• Meets
EIA
535BAAC
and
IEC
specification
QC300801/US0001
• Fuse activation at 25 °C: 0.1 s max. with 5 A min. applied
current
• 100 % surge current tested (D and E case codes)
• Compliant to RoHS Directive 2002/95/EC
• Moisture sensitivity level 1
Note
*
Pb containing terminations are not RoHS compliant, exemptions
may apply
PERFORMANCE CHARACTERISTICS
www.vishay.com/doc?40088
Operating Temperature:
- 55 °C to + 125 °C
(Above 85 °C voltage derating is required)
Capacitance Range:
0.47 μF to 470 μF
Capacitance Tolerance:
± 10 %, ± 20 %
100 % Surge Current Tested
(D and E case codes)
Voltage Rating:
4 V
DC
to 50 V
DC
ORDERING INFORMATION
893D
TYPE
106
CAPACITANCE
X0
CAPACITANCE
TOLERANCE
X9 = ± 10 %
X0 = ± 20 %
010
DC VOLTAGE RATING
AT + 85 °C
This is expressed in V. To
complete the three-digit
block, zeros precede the
voltage rating. A decimal
point is indicated by an “R”
(6R3 = 6.3 V)
B
CASE CODE
2WE3
TERMINATION AND PACKAGING
This is expressed in
picofarads. The first
two digits are the
significant figures. The
third is the number of
zeros to follow
See Ratings and
Case Codes table
2TE3: Matte tin, 7" (178 mm) reel
2WE3: Matte tin, 13" (330 mm) reel
8T: Tin/lead, 7" (178 mm) reel
8W: Tin/lead, 13" (330 mm) reel
Note
• We reserve the right to supply higher voltage ratings and tighter capacitance tolerance capacitors in the same case size.
Voltage substitutions will be marked with the higher voltage rating.
Effective July 15, 2008, part numbers with solderable termination codes “2T” and “2W” may have either matte tin or tin/lead terminations.
Codes 2TE3 and 2WE3 specify only matte tin terminations. Codes 8T and 8W specify only tin/lead terminations.

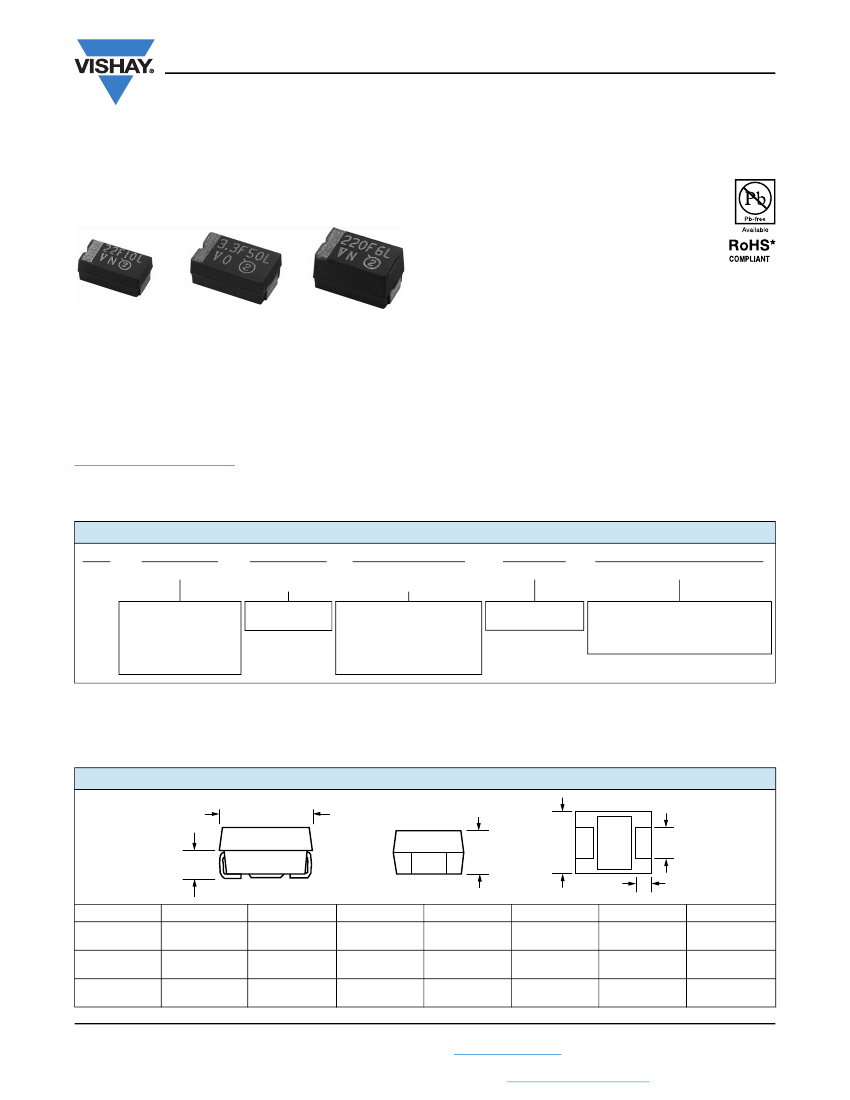

DIMENSIONS
in inches [millimeters]
L
W
H
T
H
(MIN.)
P
T
W
CASE CODE
C
D
E
EIA SIZE
6032-28
7343-31
7343-43
L
0.236 ± 0.012
[6.0 ± 0.30]
0.287 ± 0.012
[7.3 ± 0.30]
0.287 ± 0.012
[7.3 ± 0.30]
W
0.126 ± 0.012
[3.2 ± 0.30]
0.169 ± 0.012
[4.3 ± 0.30]
0.169 ± 0.012
[4.3 ± 0.30]
H
0.098 ± 0.012
[2.5 ± 0.30]
0.110 ± 0.012
[2.8 ± 0.30]
0.157 ± 0.012
[4.0 ± 0.30]
P
0.051 ± 0.012
[1.3 ± 0.30]
0.051 ± 0.012
[1.3 ± 0.30]
0.051 ± 0.012
[1.3 ± 0.30]
T
W
0.087 ± 0.004
[2.2 ± 0.10]
0.094 ± 0.004
[2.4 ± 0.10]
0.094 ± 0.004
[2.4 ± 0.10]
T
H
(MIN.)
0.039
[1.0]
0.039
[1.0]
0.039
[1.0]
Revision: 09-Jan-12
Document Number: 40008
102
For technical questions, contact:
tantalum@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT
www.vishay.com/doc?91000
893D
www.vishay.com
Vishay Sprague
10 V
16 V
20 V
25 V
35 V
50 V
C
C
C
C
C/D
C/D
D/E
D/E
RATINGS AND CASE CODES
μF
0.47
0.68
1.0
1.5
2.2
3.3
4.7
6.8
10
15
22
33
47
68
100
150
220
330
470
4V
6.3 V
C
C
D
D
D/E
E
C
C
C
C/D
C/D
D/E
D
D/E
E
C
C
C
C/D
C/D
D/E
D
D/E
E
C
C
C
C/D
C/D
D/E
D
E
E
C
C
C
C/D
D
D/E
E
E
C/D
C
C
C
C/D
D
D/E
E
C
C
C
C/D
D
D/E
D/E
E

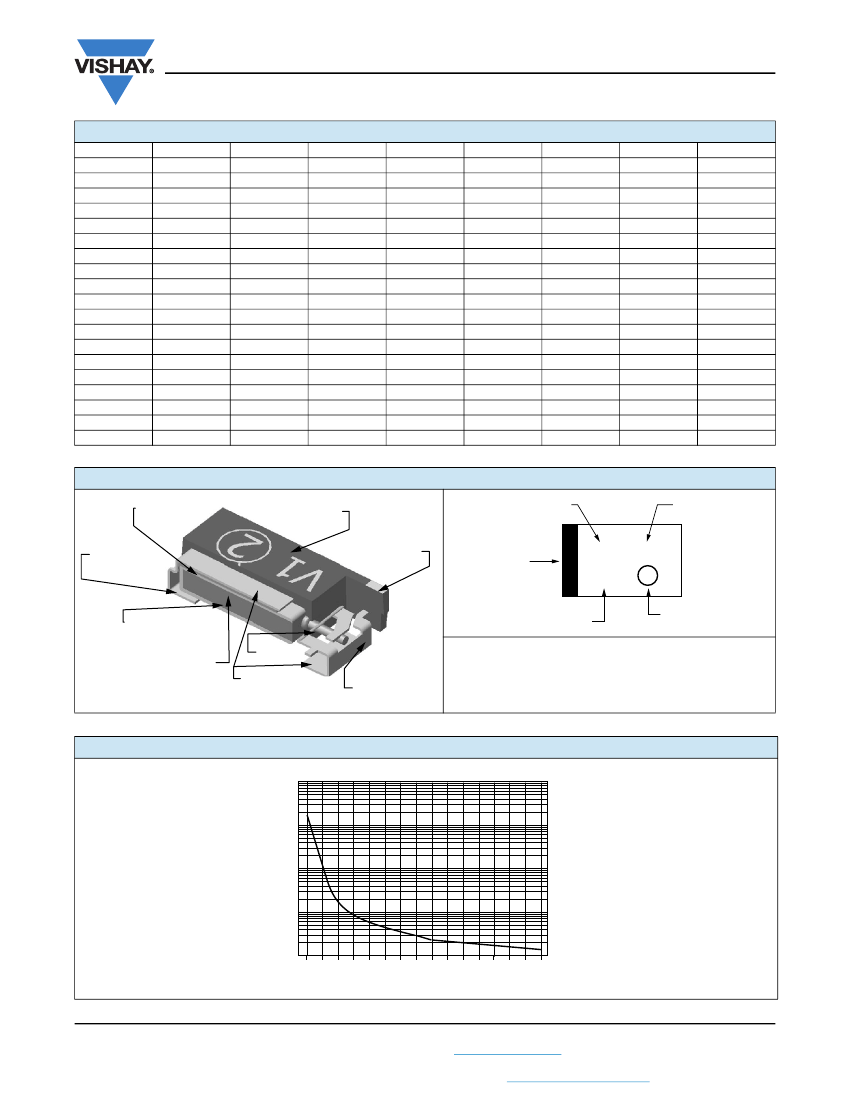

CONSTRUCTION AND MARKING
Silver
Adhesive
Epoxy Encapsulation
Capacitance
Voltage
Solderable
Cathode
Termination
Anode Polarity Bar
Polarity
Band
22
F 10
2
XX
Vishay
Sprague Logo
MnO
2
/Carbon/Silver
Coating
Sintered
Tantalum
Pellet
Fusible
Wire
Lead Frame
Solderable
Anode
Termination
Date Code
Marking:
Capacitors shall be marked with an anode polarity band,
capacitance (in microfarads) and the rated DC working voltage
85 °C. The capacitance voltage will be separated by the letter
“F” indicating a fused capacitor. Units rated at 6.3 V shall be
marked as 6 V.
FUSE ACTIVATION
TYPICAL CURVE
10
+
1
TIME (s)
0.1
+
+
0.01
+
+
+
+
+
+
+
+
0.001
+
+
+
+
+
2.5 3 3.5 4 4.5 5 5.5 6 6.5 7 7.5 8 8.5 9 9.5 10
CURRENT (A)
Revision: 09-Jan-12
Document Number: 40008
103
For technical questions, contact:
tantalum@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT
www.vishay.com/doc?91000
893D
www.vishay.com
Vishay Sprague
MAX. DC
LEAKAGE
AT + 25 °C
(μA)
MAX. DF
AT + 25 °C
120 Hz
(%)
6
8
8
8
15
8
16
6
6
6
6
6
6
6
8
8
8
8
8
8
6
6
6
6
6
6
6
6
6
8
8
8
8
6
6
6
6
6
6
6
6
6
6
8
10
MAX. ESR
AT + 25 °C
100 kHz
()
1.4
0.8
0.6
0.6
0.6
0.5
0.5
1.8
1.8
1.4
1.3
0.9
0.8
0.7
0.7
0.7
0.6
0.6
0.5
0.5
1.8
1.8
1.4
1.3
0.9
1.0
0.7
0.7
0.7
0.6
0.6
0.5
0.5
2.0
1.8
1.4
1.3
0.9
1.0
0.7
0.7
0.7
0.6
0.6
0.4
MAX. RIPPLE
100 kHz
I
RMS
(A)
0.28
0.37
0.50
0.50
0.50
0.57
0.57
0.25
0.25
0.28
0.29
0.41
0.37
0.46
0.46
0.49
0.50
0.50
0.57
0.57
0.25
0.25
0.28
0.29
0.41
0.33
0.46
0.46
0.49
0.50
0.50
0.57
0.57
0.23
0.25
0.28
0.29
0.41
0.33
0.46
0.46
0.49
0.50
0.52
0.64
STANDARD RATINGS
CAPACITANCE
(μF)
CASE CODE
PART NUMBER
68
100
150
220
330
330
470
15
22
33
47
47
68
68
100
100
150
220
220
330
10
15
22
33
33
47
47
68
68
100
150
150
220
6.8
10
15
22
22
33
33
47
47
68
100
150
C
C
D
D
D
E
E
C
C
C
C
D
C
D
D
E
D
D
E
E
C
C
C
C
D
C
D
D
E
D
D
E
E
C
C
C
C
D
C
D
D
E
D
E
E
4 V
DC
AT + 85 °C; 2.7 V
DC
AT + 125 °C
893D686(1)004C(2)
2.7
893D107(1)004C(2)
4.0
893D157(1)004D(2)
6.0
893D227(1)004D(2)
8.8
893D337(1)004D(2)
13.2
893D337(1)004E(2)
13.2
893D477(1)004E(2)
18.8
6.3 V
DC
AT + 85 °C; 4 V
DC
AT + 125 °C
893D156(1)6R3C(2)
0.9
893D226(1)6R3C(2)
1.1
893D336(1)6R3C(2)
1.6
893D476(1)6R3C(2)
2.3
893D476(1)6R3D(2)
2.3
893D686(1)6R3C(2)
3.3
893D686(1)6R3D(2)
3.3
893D107(1)6R3D(2)
6.0
893D107(1)6R3E(2)
6.0
893D157(1)6R3D(2)
9.0
893D227(1)6R3D(2)
13.2
893D227(1)6R3E(2)
13.2
893D337(1)6R3E(2)
19.8
10 V
DC
AT + 85 °C; 7 V
DC
AT + 125 °C
893D106(1)010C(2)
1.0
893D156(1)010C(2)
1.5
893D226(1)010C(2)
2.2
893D336(1)010C(2)
3.3
893D336(1)010D(2)
3.3
893D476(1)010C(2)
4.7
893D476(1)010D(2)
4.7
893D686(1)010D(2)
6.8
893D686(1)010E(2)
6.8
893D107(1)010D(2)
10.0
893D157(1)010D(2)
15.0
893D157(1)010D(2)
15.0
893D227(1)010E(2)
22.0
16 V
DC
AT + 85 °C; 10 V
DC
AT + 125 °C
893D685(1)016C(2)
1.1
893D106(1)016C(2)
1.6
893D156(1)016C(2)
2.4
893D226(1)016C(2)
3.5
893D226(1)016D(2)
3.5
893D336(1)016C(2)
5.3
893D336(1)016D(2)
5.3
893D476(1)016D(2)
7.5
893D476(1)016E(2)
7.5
893D686(1)016D(2)
10.9
893D107(1)016E(2)
16.0
893D157(1)016E(2)
24.0
Note
• Part number definitions:
(1) Tolerance: X0, X9
(2) Terminations and packaging: 2TE3, 2WE3, 8T, 8W
Revision: 09-Jan-12
Document Number: 40008
104
For technical questions, contact:
tantalum@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT
www.vishay.com/doc?91000
893D
www.vishay.com
Vishay Sprague
MAX. DC
LEAKAGE
AT + 25 °C
(μA)
MAX. DF
AT + 25 °C
120 Hz
(%)
6
6
6
6
6
6
6
6
6
6
6
6
6
6
6
6
6
6
6
6
6
6
6
6
6
6
6
6
6
6
6
6
4
4
4
6
6
6
6
6
6
6
6
6
MAX. ESR
AT + 25 °C
100 kHz
()
2.0
1.9
1.6
1.4
0.9
0.7
0.7
0.7
0.6
0.6
2.8
2.0
2.3
1.9
1.6
1.4
1.0
0.8
0.7
0.7
0.6
3.8
2.9
2.0
1.8
1.2
1.0
0.8
0.8
0.7
0.7
0.6
6.7
5.9
4.4
3.2
2.8
2.1
2.4
1.6
1.1
1.4
0.9
0.9
MAX. RIPPLE
100 kHz
I
RMS
(A)
0.22
0.24
0.26
0.28
0.41
0.46
0.46
0.49
0.52
0.52
0.21
0.21
0.22
0.24
0.26
0.28
0.39
0.43
0.46
0.49
0.52
0.17
0.20
0.23
0.25
0.35
0.39
0.43
0.43
0.46
0.49
0.52
0.13
0.14
0.16
0.19
0.20
0.27
0.21
0.31
0.37
0.34
0.41
0.43
STANDARD RATINGS
CAPACITANCE
(μF)
CASE CODE
PART NUMBER
20 V
DC
AT + 85 °C; 13 V
DC
AT + 125 °C
4.7
6.8
10
15
15
22
33
33
47
68
2.2
2.2
3.3
4.7
6.8
10
10
15
22
22
33
1.5
2.2
3.3
4.7
4.7
6.8
10
10
15
15
22
0.47
0.68
1.0
1.5
2.2
2.2
3.3
3.3
4.7
4.7
6.8
6.8
C
C
C
C
D
D
D
E
E
E
C
D
C
C
C
C
D
D
D
E
E
C
C
C
C
D
D
D
E
D
E
E
C
C
C
C
C
D
C
D
D
E
D
E
893D475(1)020C(2)
0.9
893D685(1)020C(2)
1.4
893D106(1)020C(2)
2.0
893D156(1)020C(2)
3.0
893D156(1)020D(2)
3.0
893D226(1)020D(2)
4.4
893D336(1)020D(2)
6.6
893D336(1)020E(2)
6.6
893D476(1)020E(2)
9.4
893D686(1)020E(2)
13.6
25 V
DC
AT + 85 °C; 17 V
DC
AT + 125 °C
893D225(1)025C(2)
0.6
893D225(1)025D(2)
0.6
893D335(1)025C(2)
0.8
893D475(1)025C(2)
1.2
893D685(1)025C(2)
1.7
893D106(1)025C(2)
2.5
893D106(1)025D(2)
2.5
893D156(1)025D(2)
3.8
893D226(1)025D(2)
5.5
893D226(1)025E(2)
5.5
893D336(1)025E(2)
8.3
35 V
DC
AT + 85 °C; 23 V
DC
AT + 125 °C
893D155(1)035C(2)
0.5
893D225(1)035C(2)
0.8
893D335(1)035C(2)
1.2
893D475(1)035C(2)
1.6
893D475(1)035D(2)
1.6
893D685(1)035D(2)
2.4
893D106(1)035D(2)
3.5
893D106(1)035E(2)
3.5
893D156(1)035D(2)
5.3
893D156(1)035E(2)
5.3
893D226(1)035E(2)
7.7
50 V
DC
AT + 85 °C; 33 V
DC
AT + 125 °C
893D474(1)050C(2)
0.5
893D684(1)050C(2)
0.5
893D105(1)050C(2)
0.5
893D155(1)050C(2)
0.8
893D225(1)050C(2)
1.1
893D225(1)050D(2)
1.1
893D335(1)050C(2)
1.7
893D335(1)050D(2)
1.7
893D475(1)050D(2)
2.4
893D475(1)050E(2)
2.4
893D685(1)050D(2)
3.4
893D685(1)050E(2)
3.4
Note
• Part number definitions:
(1) Tolerance: X0, X9
(2) Terminations and packaging: 2TE3, 2WE3, 8T, 8W
Revision: 09-Jan-12
Document Number: 40008
105
For technical questions, contact:
tantalum@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT
www.vishay.com/doc?91000
893D
www.vishay.com
Vishay Sprague
RECOMMENDED VOLTAGE DERATING GUIDELINES
(for temperatures below + 85 °C)
STANDARD CONDITIONS. FOR EXAMPLE: OUTPUT FILTERS
Capacitor Voltage Rating
4.0
6.3
10
16
20
25
35
50
SEVERE CONDITIONS. FOR EXAMPLE: INPUT FILTERS
Capacitor Voltage Rating
4.0
6.3
10
16
20
25
35
50
Operating Voltage
2.5
3.3
5.0
8.0
10
12
15
24
Operating Voltage
2.5
3.6
6.0
10
12
15
24
28
POWER DISSIPATION
CASE CODE
C
D
E
MAXIMUM PERMISSIBLE POWER DISSIPATION AT + 25 °C (W) IN FREE AIR
0.110
0.150
0.165
STANDARD PACKAGING QUANTITY
CASE CODE
C
D
E
UNITS PER REEL
7" REEL
500
500
400
13" REEL
3000
2500
1500
PRODUCT INFORMATION
Molded Guide
• Pad Dimensions
• Package Dimensions
Moisture Sensitivity
SELECTOR GUIDES
Solid Tantalum Selector Guide
Solid Tantalum Chip Capacitors
FAQ
Frequently Asked Questions
www.vishay.com/doc?40110
www.vishay.com/doc?49053
www.vishay.com/doc?40091
www.vishay.com/doc?40074
www.vishay.com/doc?40135
Revision: 09-Jan-12
Document Number: 40008
106
For technical questions, contact:
tantalum@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT
www.vishay.com/doc?91000
京公网安备 11010802033920号
EEWORLD
