SA5V0(C)A-SA170(C)A
500W Transient Voltage Suppressor
DO-15
Features
Constructed with Glass Passivated Die
Excellent Clamping Capability
500W Peak Pulse Power Dissipation
Fast Response Time
100% Tested at Rated Peak Pulse Power
Voltage Range 5.0 - 170 Volts
Unidirectional and Bi-directional Versions
Available (Note 1)
Mechanical Data
Case: Transfer Molded Epoxy
Plastic Case Material has UL Flammability
Classification Rating 94V-0
Moisture sensitivity: Level 1 per J-STD-020A
Leads: Plated Leads, Solderable per
MIL-STD-202, Method 208
Marking: Unidirectional: Type Number and
Cathode Band
Marking Bi-directional: Type Number Only
Approx. Weight: 0.4 grams
Dimensions in inches and (millimeters)
Maximum Ratings
@ T
A
= 25°C unless otherwise specified
Symbol
P
pk
P
d
I
FSM
V
F
T
J
, T
STG
Value
500
1.0
70
3.5
-65 to +175
Unit
W
W
A
V
°C
Characteristic
Peak Power Dissipation, T
p
= 1.0ms
(Non repetitive current pulse, derated above T
A
= 25°C)
Steady State Power Dissipation at T
L
= 75°C
Lead Lengths 9.5 mm (Board mounted)
Peak Forward Surge Current, 8.3 Single Half Sine Wave
Superimposed on Rated Load
Duty Cycle = 4 pulses per minute maximum
Forward Voltage @ I
F
= 35A 300µs Square Wave Pulse,
Unidirectional Only
Operating and Storage Temperature Range
Notes:
1. Suffix “A” denotes unidirectional, suffix “CA” denotes bi-directional device.
2. For bi-directional devices having V
R
of 10 volts and under, the I
R
limit is doubled.
http://www.luguang.cn
mail:lge@luguang.cn
SA5V0(C)A-SA170(C)A
500W Transient Voltage Suppressor
Type Number
(Suffix C =
Bidirectional)
(Note 1)
SA5V0(C)A
SA6V0(C)A
SA6V5(C)A
SA7V0(C)A
SA7V5(C)A
SA8V0(C)A
SA8V5(C)A
SA9V0(C)A
SA10(C)A
SA11(C)A
SA12(C)A
SA13(C)A
SA14(C)A
SA15(C)A
SA16(C)A
SA17(C)A
SA18(C)A
SA20(C)A
SA22(C)A
SA24(C)A
SA26(C)A
SA28(C)A
SA30(C)A
SA33(C)A
SA36(C)A
SA40(C)A
SA43(C)A
SA45(C)A
SA48(C)A
SA51(C)A
SA54(C)A
SA58(C)A
SA60(C)A
SA64(C)A
SA70(C)A
SA75(C)A
SA78(C)A
SA85(C)A
SA90(C)A
SA100(C)A
SA110(C)A
SA120(C)A
SA130(C)A
SA150(C)A
SA160(C)A
SA170(C)A
Notes:
Reverse
Standoff
Voltage
V
R
(V)
5.0
6.0
6.5
7.0
7.5
8.0
8.5
9.0
10
11
12
13
14
15
16
17
18
20
22
24
26
28
30
33
36
40
43
45
48
51
54
58
60
64
70
75
78
85
90
100
110
120
130
150
160
170
Breakdown Voltage
V
BR
@
I
t
Min (V)
6.40
6.67
7.22
7.78
8.33
8.89
9.44
10.0
11.1
12.2
13.3
14.4
15.6
16.7
17.8
18.9
20.0
22.2
24.4
26.7
28.9
31.1
33.3
36.7
40.0
44.4
47.8
50.0
53.3
56.7
60.0
64.4
66.7
71.1
77.8
83.3
86.7
94.4
100
111
122
133
144
167
178
189
Max (V)
7.00
7.37
7.98
8.60
9.21
9.83
10.4
11.1
12.3
13.5
14.7
15.9
17.2
18.5
19.7
20.9
22.1
24.5
26.9
29.5
31.9
34.4
36.8
40.6
44.2
49.1
52.8
55.3
58.9
62.7
66.3
71.2
73.7
78.6
86.0
92.1
95.8
104.0
111.0
123.0
135.0
147.0
159.0
185.0
197.0
209.0
Test
Current
I
t
(mA)
10
10
10
10
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
Max.
Clamping
Voltage
@I
PP
V
C
(V)
9.2
10.3
11.2
12.0
12.9
13.6
14.4
15.4
17.0
18.2
19.9
21.5
23.2
24.4
26.0
27.6
29.2
32.4
35.5
38.9
42.1
45.4
48.4
53.3
58.1
64.5
69.4
72.7
77.4
82.4
87.1
93.6
96.8
103.0
113.0
121.0
126.0
137.0
146.0
162.0
177.0
193.0
209.0
243.0
259.0
275.0
Max.
Reverse
Max.
Leakage
Peak
@V
R
Pulse Current
(Note 2)
I
PP
(A)
54.3
48.5
44.7
41.7
38.8
36.7
34.7
32.5
29.4
27.4
25.1
23.2
21.5
20.6
19.2
18.1
17.2
15.4
14.1
12.8
11.9
11.0
10.3
9.4
8.6
7.8
7.2
6.9
6.5
6.1
5.7
5.3
5.2
4.9
4.4
4.1
4.0
3.6
3.4
3.1
2.8
2.6
2.4
2.1
1.9
1.8
I
R
(mA)
600
600
400
150
50
25
10
5.0
3.0
3.0
3.0
3.0
3.0
3.0
3.0
3.0
3.0
3.0
3.0
3.0
3.0
3.0
3.0
3.0
3.0
3.0
3.0
3.0
3.0
3.0
3.0
3.0
3.0
3.0
3.0
3.0
3.0
3.0
3.0
3.0
3.0
3.0
3.0
3.0
3.0
3.0
Max. Voltage
Temp.
Variation
of V
BR
mV/°C
5.0
5.0
5.0
6.0
7.0
7.0
8.0
9.0
10
11
12
13
14
16
17
19
20
23
25
28
30
31
36
39
41
46
50
52
56
61
65
70
71
76
85
91
95
103
110
123
133
146
158
184
196
208
1. Suffix “A” denotes unidirectional, suffix “CA” denotes bi-directional device.
2. For bi-directional devices having V
R
of 10 volts and under, the I
R
limit is doubled.
SA5V0(C)A-SA170(C)A
500W Transient Voltage Suppressor
10,000
PEAK PULSE CURRENT - % I
pp
100
t
r
= 10
m
sec
Peak Value I
pp
5,000
Unidirectional
Bidirectional
C
T
, CAPACITANCE (pF)
1000
500
V
R
= 0
Half Value I pp/2
50
100
50
V
R
= Rated
Stand-off Voltage
t
p
0
as defined by R.E.A.
10 x 1000 Wave form
10
0
1
2
3
5
10
20
50
100
20
50
t, TIME (ms)

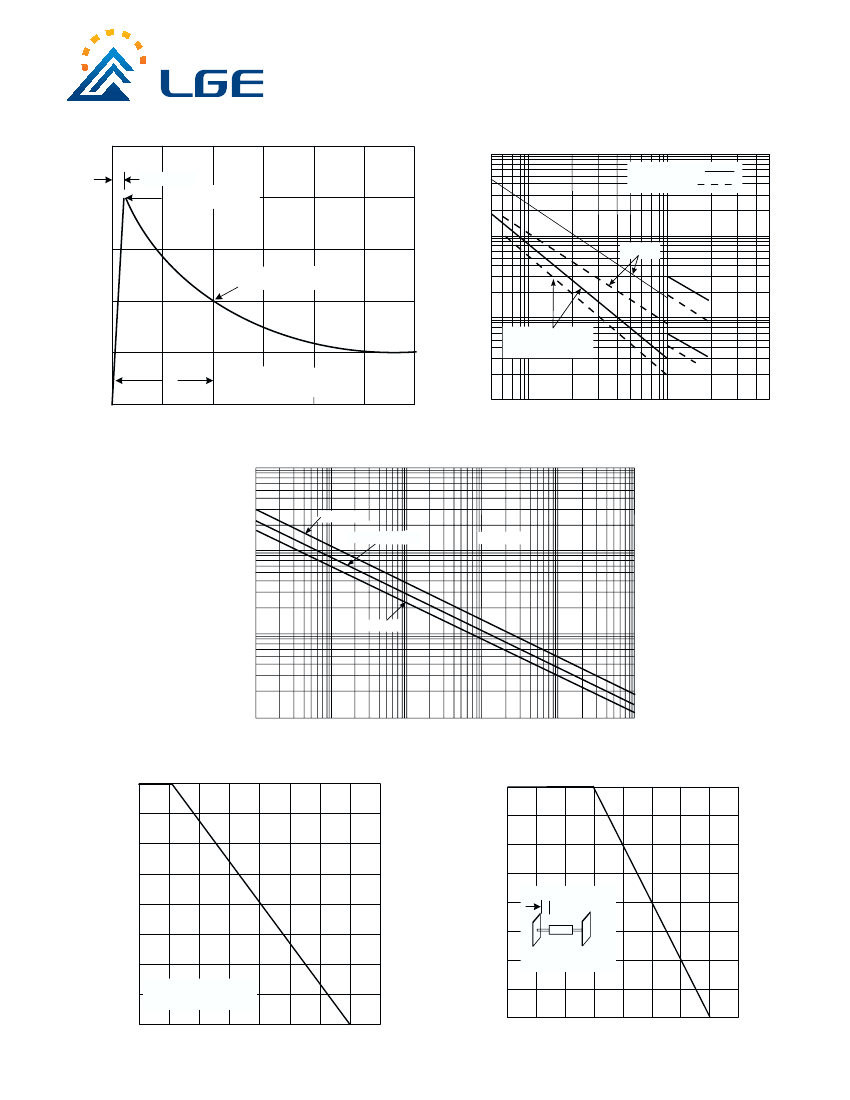

Fig. 1, Pulse Waveform
100
V
R
, RATED STANDOFF VOLTAGE (V)
Fig. 2, Typical Total Capacitance
P
RSM
, NON-REPETITIVE PEAK
PULSE POWER (kW)
IMPULSE
HALF SINE WAVE
Tc = 25°C
10
1.0
SQ. WAVE
0.1
0.1
1.0
10
100
1000
10000
T
p
- PULSE WIDTH (
m
S)
Fig. 3, Peak Pulse Power Derating
100
1.0
PEAK PULSE DERATING IN % OF
PEAK POWER OR CURRENT
75
P
d
, AVERAGE POWER DISSIPATION (W)
0.75
50
0.5
L = 9.5 mm
25
10 X 1000 Waveform
as defined by REA
0
0
25
50
75
100
125
150
175
200
0.25
0
0
25
50
75
100
125
150
175
200
T
A
, AMBIENT TEMPERATURE (°C)
Fig. 4, Derating Curve
T
L
, LEAD TEMPERATURE (°C)
Fig. 5, Power Derating
