Printview: Male connector; with straight solder pins; 8-pole; Pin spacing 7.5 mm / 0.295 in; Solder pin
length 2.4 mm; with closed end; Reflow soldering; Vertical PCB mounting - Item No.: 231-268/001-000/105-
604
.
Male connector; with straight solder pins; 8-pole; Pin spacing 7.5
mm / 0.295 in; Solder pin length 2.4 mm; with closed end; Reflow
soldering; Vertical PCB mounting
Item No.: 231-268/001-000/105-604
.
Male connector; with straight solder pins; 8-pole; Pin spacing 7.5 mm / 0.295 in; Solder pin length 2.4 mm; with
closed end; Reflow soldering; Vertical PCB mounting
.
Marking
.
Business data
Supplier
Item no.
GTIN / EAN
Content
Order amount
Customer item number
.
Notes
WAGO
231-268/001-000/105-604
4045454901066
1
50
Item description: THR male headers for Reflow soldering in SMT applicationsAvailable in tape-and-reel packaging for
automated pick-and-place assemblyAlso available in bulk packaging for manual placementMale headers may be
mounted horizontally or verticallyCoding option available
Technical data
Miscellaneous
No. of poles
Pin spacing
Color
Ratings according to 1
Rated voltage (III / 3) [V]
8
7.5 mm (0.295 in %)
black
IEC/EN 60664-1
500 [V]
WAGO Kontakttechnik GmbH & Co. KG
1
Printview: Male connector; with straight solder pins; 8-pole; Pin spacing 7.5 mm / 0.295 in; Solder pin
length 2.4 mm; with closed end; Reflow soldering; Vertical PCB mounting - Item No.: 231-268/001-000/105-
604
Technical data
Rated surge voltage (III / 3) [kV]
Rated voltage (III / 2) [V]
Rated surge voltage (III / 2) [kV]
Rated voltage (II / 2) [V]
Rated surge voltage (II / 2) [kV]
Nominal current [A]
Number of levels
Solder pin length [mm]
Drilled hole diameter (tolerance) [mm]
Material group
Insulating material
Flammability rating per UL 94
Limit temperature range
Contact material
Contact plating
Fire load [MJ]
Weight [g]
Width
Height
Height from the surface
Length
6 [kV]
630 [V]
6 [kV]
1000 [V]
6 [kV]
16 [A]
1
2.4 [mm]
1.7(+ 0.1) [mm]
I
Polyphthalamide (PPA GF)
V0
-60 … 100 C
Electrolytic copper (Ecu)
tin-plated
0.076 [MJ]
3.312 [g]
60.5 mm / 2.382 in
14.4 mm / 0.567 in
12 mm / 0.472 in
8.4 mm / 0.331 in
WAGO Kontakttechnik GmbH & Co. KG
2
Printview: Male connector; with straight solder pins; 8-pole; Pin spacing 7.5 mm / 0.295 in; Solder pin
length 2.4 mm; with closed end; Reflow soldering; Vertical PCB mounting - Item No.: 231-268/001-000/105-
604

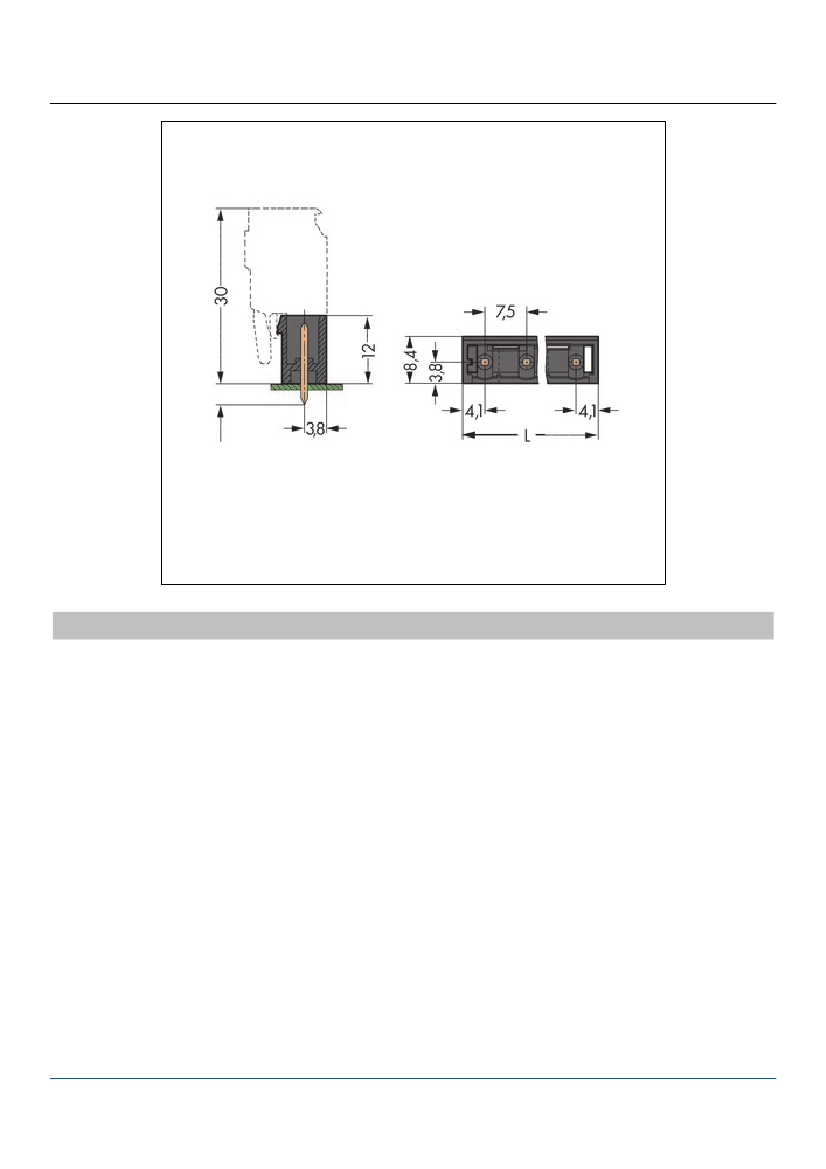

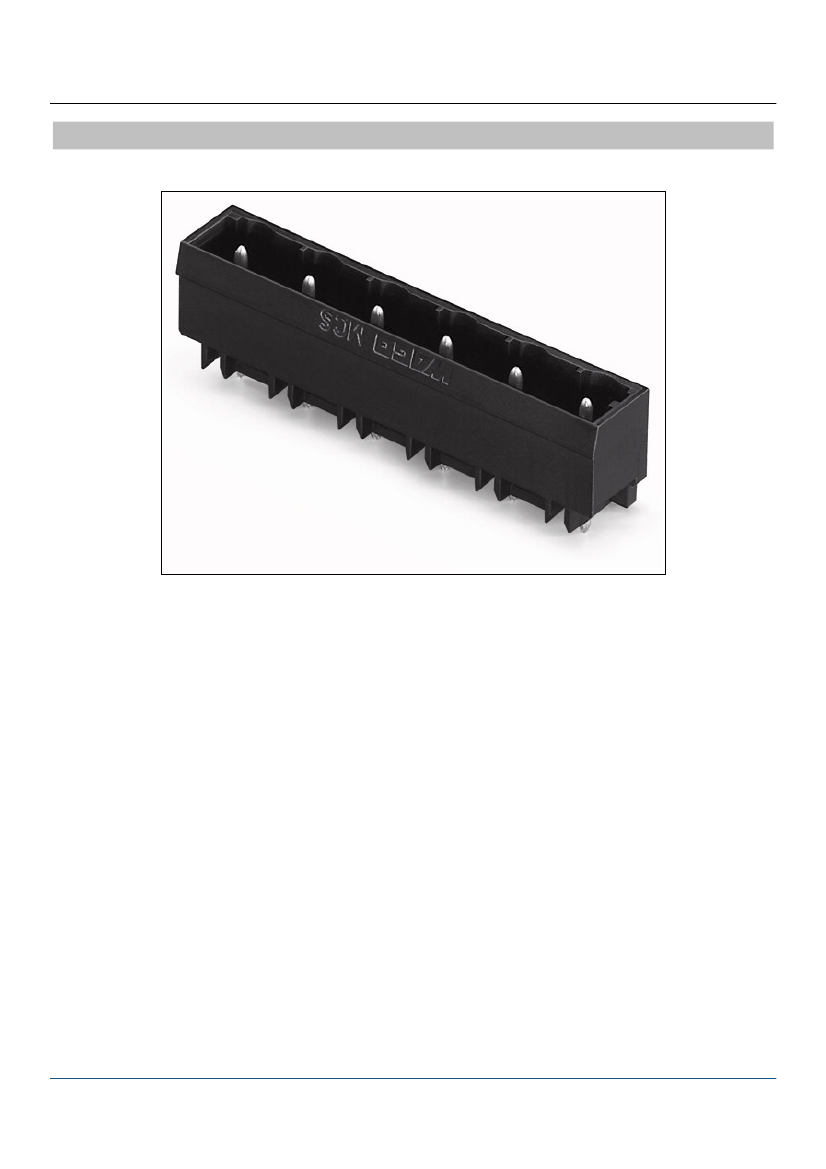

Images & drawings
WAGO Kontakttechnik GmbH & Co. KG
3
Printview: Male connector; with straight solder pins; 8-pole; Pin spacing 7.5 mm / 0.295 in; Solder pin
length 2.4 mm; with closed end; Reflow soldering; Vertical PCB mounting - Item No.: 231-268/001-000/105-
604
.
Address
WAGO Kontakttechnik GmbH & Co. KG
Hansastr. 27
32423 Minden
Telefon: 0571/887-0
Fax: 0571/887-169
http://www.wago.com
© WAGO Kontakttechnik GmbH & Co. KG
Technische Änderungen und Irrtümer vorbehalten.
WAGO Kontakttechnik GmbH & Co. KG
