CMSD2004
Surface Mount Switching Diode
SOT-23
Features
The central semiconductor cmsd2004
stype is a silicon switching dual in series diode
manufactured by the epitaxial planar, designed for
applications requiring high voltage capability. power
dissipation.
Applications
High speed switching application.
Dimensions in inches and (millimeters)
Ordering Information
Type No.
CMSD2004
Marking
B6D
Package Code
SOT-23
MAXIMUM RATING
@ Ta=25℃ unless otherwise specified
Characteristic
Non-Repetitive Peak Reverse Voltage
DC Reverse Voltage
Peak Repetitive Current
Forward Continuous Current
Peak Repetitive Forward Current
Peak forward surge current
@=1.0μs
@=1.0s
Symbol
V
RM
V
R
I
F
I
o
I
FRM
I
FSM
P
d
T
j
T
STG
Limits
300
240
225
200
625
4.0
A
1.0
250
150
-65 to +150
mW
℃
℃
Unit
V
V
mA
mA
mA
Power Dissipation
Operating Junction Temperature Range
Storage Temperature Range
http://www.luguang.cn
mail:lge@luguang.cn
CMSD2004
Surface Mount Switching Diode
ELECTRICAL CHARACTERISTICS
@ Ta=25℃ unless otherwise specified
Characteristic
Reverse Breakdown Voltage
Forward Voltage
Reverse Leakage Current
Diode Capacitance
Reverse Recovery Time
Symbol
V
(BR)R
V
F
I
R
C
D
t
rr
Min
240
1
0.1
5
4.0
MAX
UNIT
V
V
mA
pF
ns
Test Condition
I
R
= 100μA
I
F
=100mA
V
R
=240V
V
R
=0V,f=1MHz
I
F
=I
R
=10mA
R
L
=100Ω

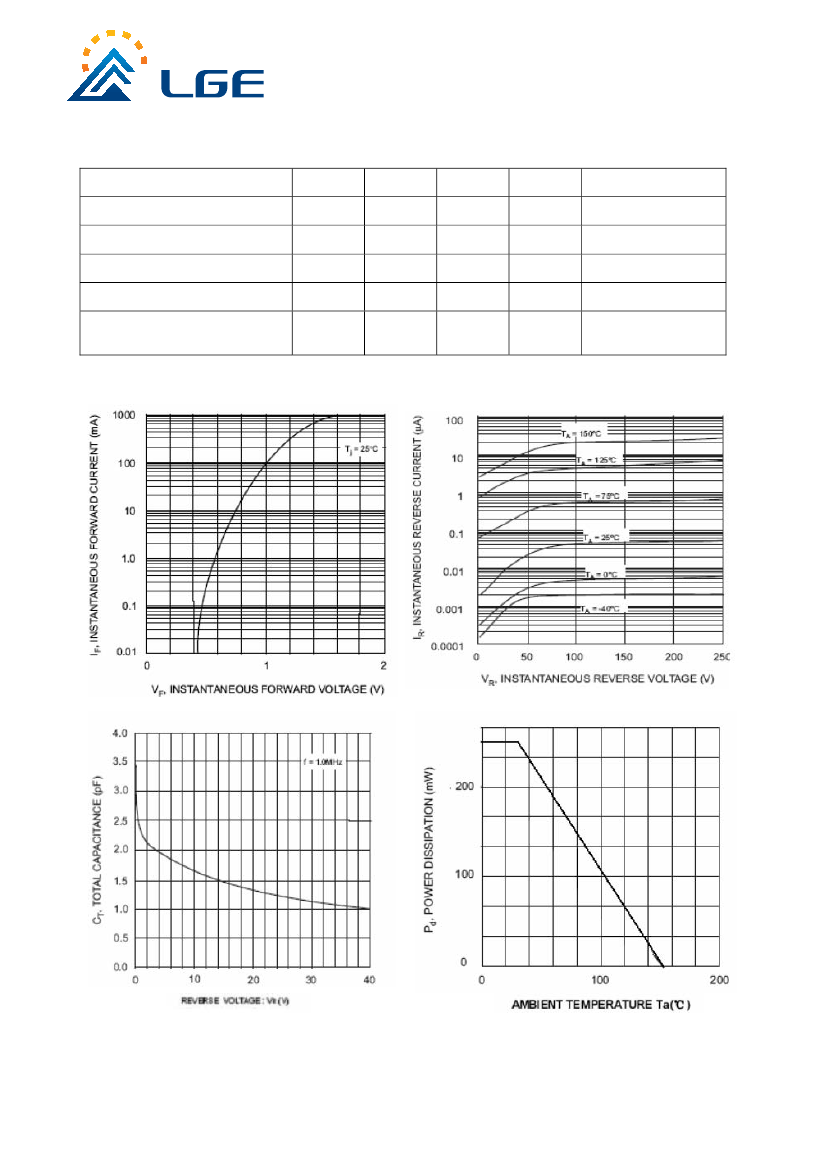

TYPICAL CHARACTERISTICS
@ Ta=25℃ unless otherwise specified
