DAN217U: Description0.1 A, 2 ELEMENT, SILICON, SIGNAL DIODE; CategoryDiscrete semiconductor Small signal switching diode; File Size275KB，2 Pages; ManufacturerLGE; Websitehttp://www.luguang.cn/web_en/index.html

Download Datasheet Parametric View All

DAN217U Overview

0.1 A, 2 ELEMENT, SILICON, SIGNAL DIODE

DAN217U Parametric

Parameter Name	Attribute value
Case Style	SOT-323
IF（mA）	100
Maximum recurrent peak reverse voltage	80
TRR（nS)	4.0
Maximum instantaneous forward voltage	1.2
@IF（uA）	100
Maximum reverse curre	0.1
@VR	70
class	Diodes

Preview

Download Datasheet

View All

DAN217U

Dual Series Switching Diodes

SOT-323

Features

Fast switching speed.

Small surface mounting type.

Two diode elements are connected in series.

Surface mount package ideally suited

for automatic insertion

Applications

For general purpose switching appilication.

Dimensions in inches and (millimeters)

Ordering Information

Type No.

DAN217U

Marking

A7

Package Code

SOT-323

MAXIMUM RATING

@ Ta=25℃ unless otherwise specified

Parameter

Non repetitive peak reverse voltage

Repetitive peak reverse voltage

Working peak reverse voltage

DC Reverse voltage

Symbol

V

RM

V

RRM

V

RWM

V

R

Value

80

Unit

V

80

V

Peak forward surge current @t=10ms

I

FSM

1

A

Forward continuous current

Average rectified output current

Power dissipation

Operating and storage temperature range

I

FM

I

O

P

d

T

j

,T

STG

300

100

200

-55-125

mA

mW

℃

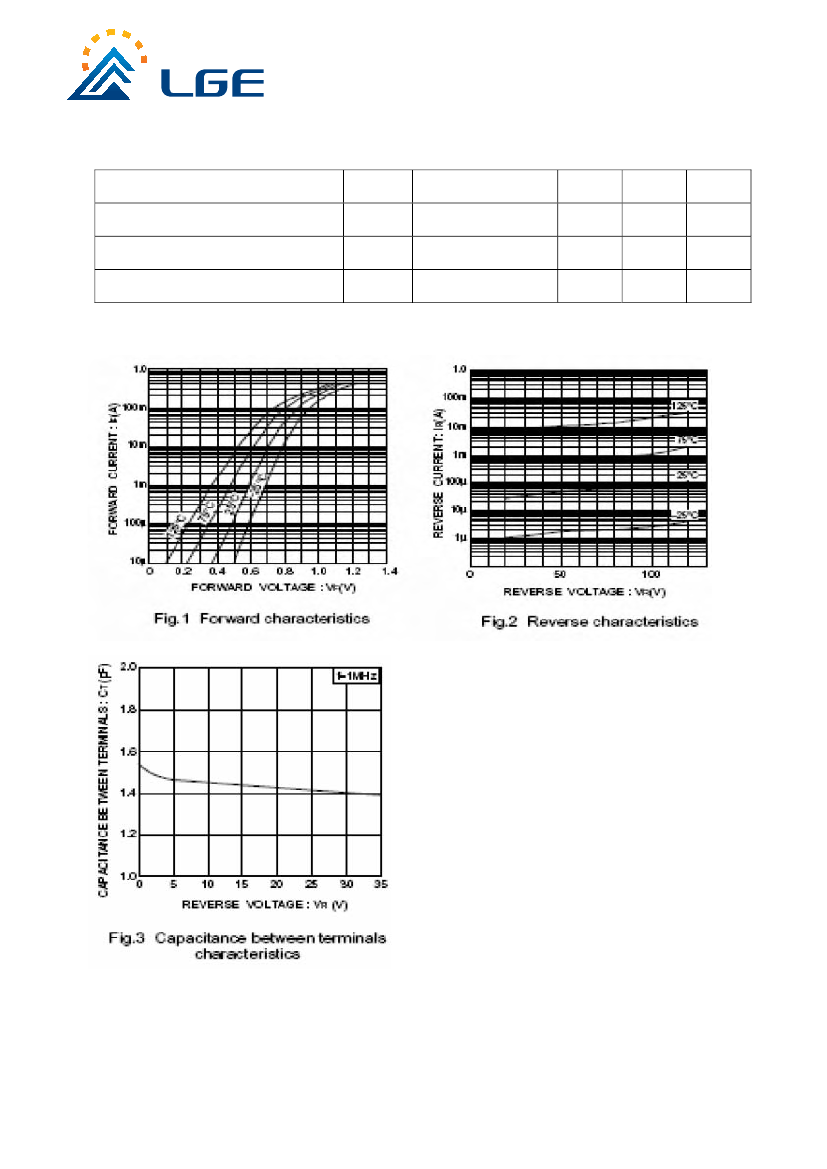

http://www.luguang.cn

mail:lge@luguang.cn
