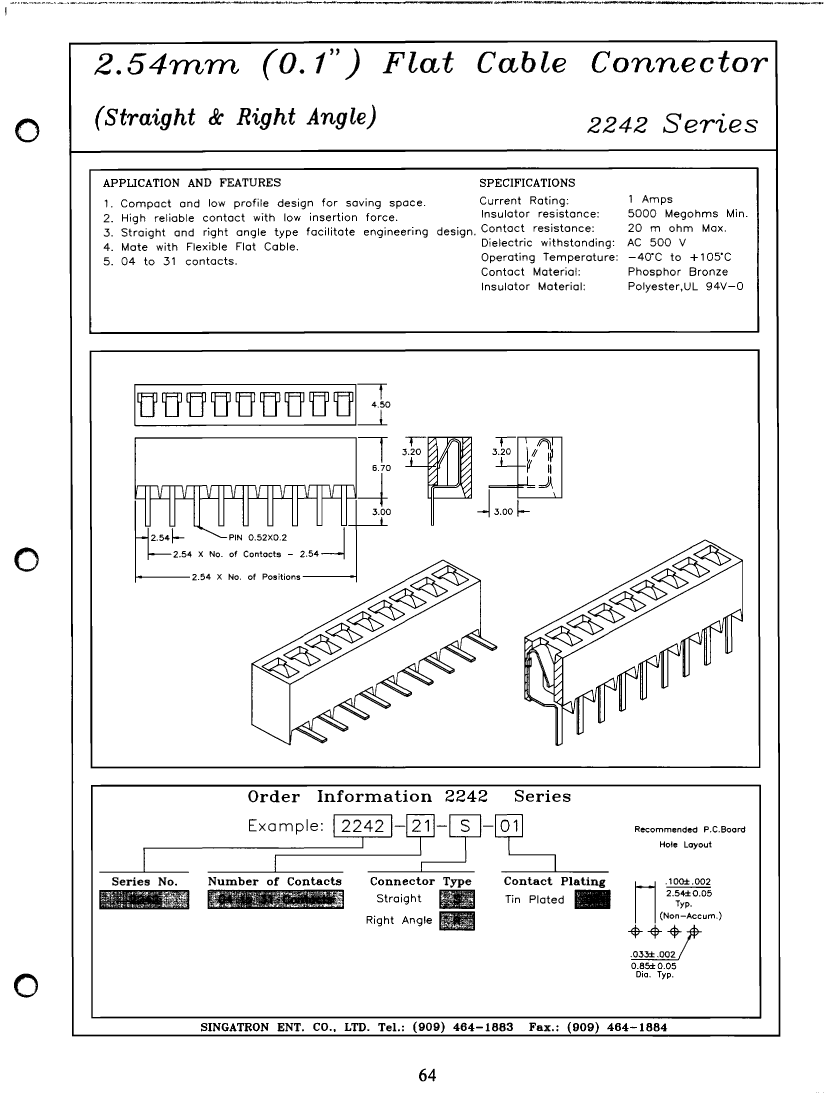

2242-04-R-01: DescriptionCard Edge Connector, 4 Contact(s), 1 Row(s), Female, Right Angle, 0.1 inch Pitch, Solder Terminal, Plug; CategoryThe connector The connector; File Size47KB，1 Pages; ManufacturerSingatron Enterprises Co

Download Datasheet Parametric View All

2242-04-R-01 Overview

Card Edge Connector, 4 Contact(s), 1 Row(s), Female, Right Angle, 0.1 inch Pitch, Solder Terminal, Plug

Parameter Name	Attribute value
Maker	Singatron Enterprises Co
Reach Compliance Code	compliant
ECCN code	EAR99
Other features	LOW PROFILE
body width	0.181 inch
subject depth	0.263 inch
Body/casing type	PLUG
Connector type	FFC/FPC CONNECTOR
Contact to complete cooperation	SN
Contact point gender	FEMALE
Contact material	PHOSPHOR BRONZE
contact mode	RECTANGULAR
Contact resistance	20 mΩ
Contact style	BELLOWED TYPE
DIN compliance	NO
Dielectric withstand voltage	500VAC V
Filter function	NO
IEC compliance	NO
maximum insertion force	LIF N
Insulation resistance	5000000000 Ω
insulator material	POLYESTER
MIL compliance	NO
Plug contact pitch	0.1 inch
Mixed contacts	NO
Installation method	RIGHT ANGLE
Installation type	BOARD
Number of connectors	ONE
PCB row number	1
Number of rows loaded	1
Maximum operating temperature	105 °C
Minimum operating temperature	-40 °C
Options	GENERAL PURPOSE
PCB contact pattern	RECTANGULAR
Guideline	UL
reliability	COMMERCIAL
Terminal pitch	2.54 mm
Termination type	SOLDER
Total number of contacts	4
