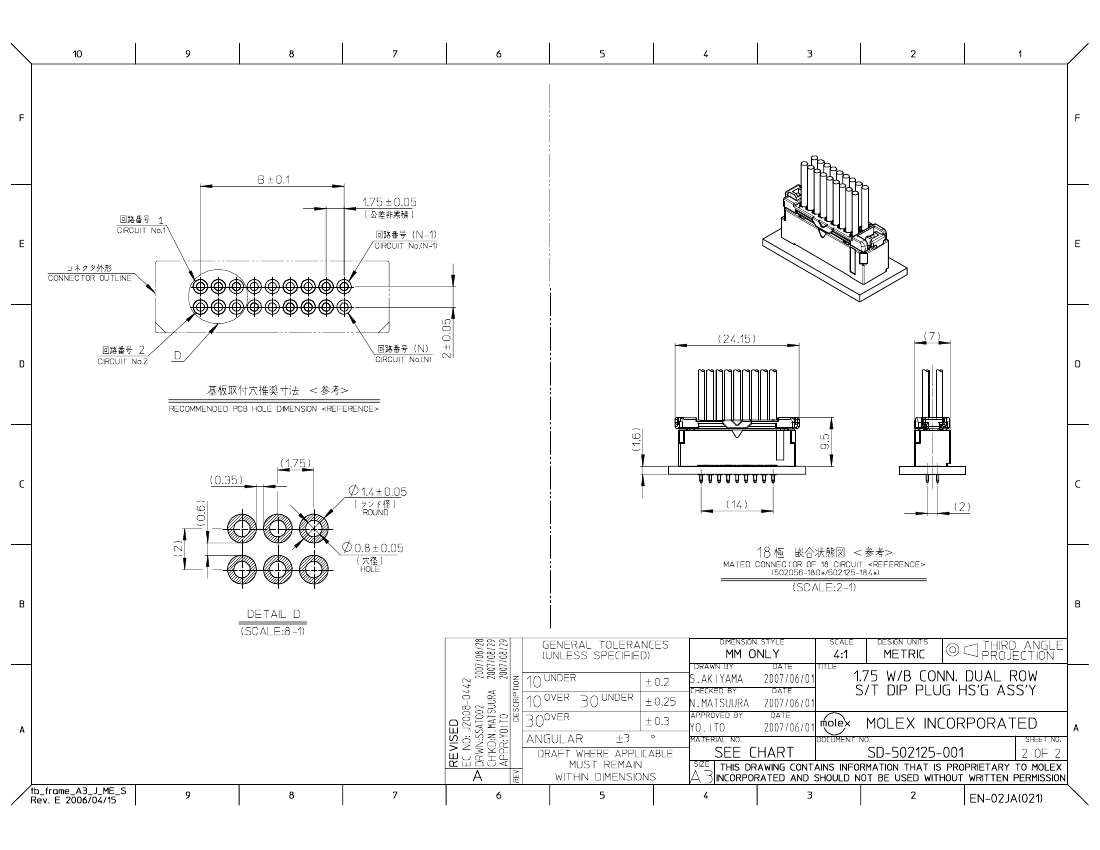

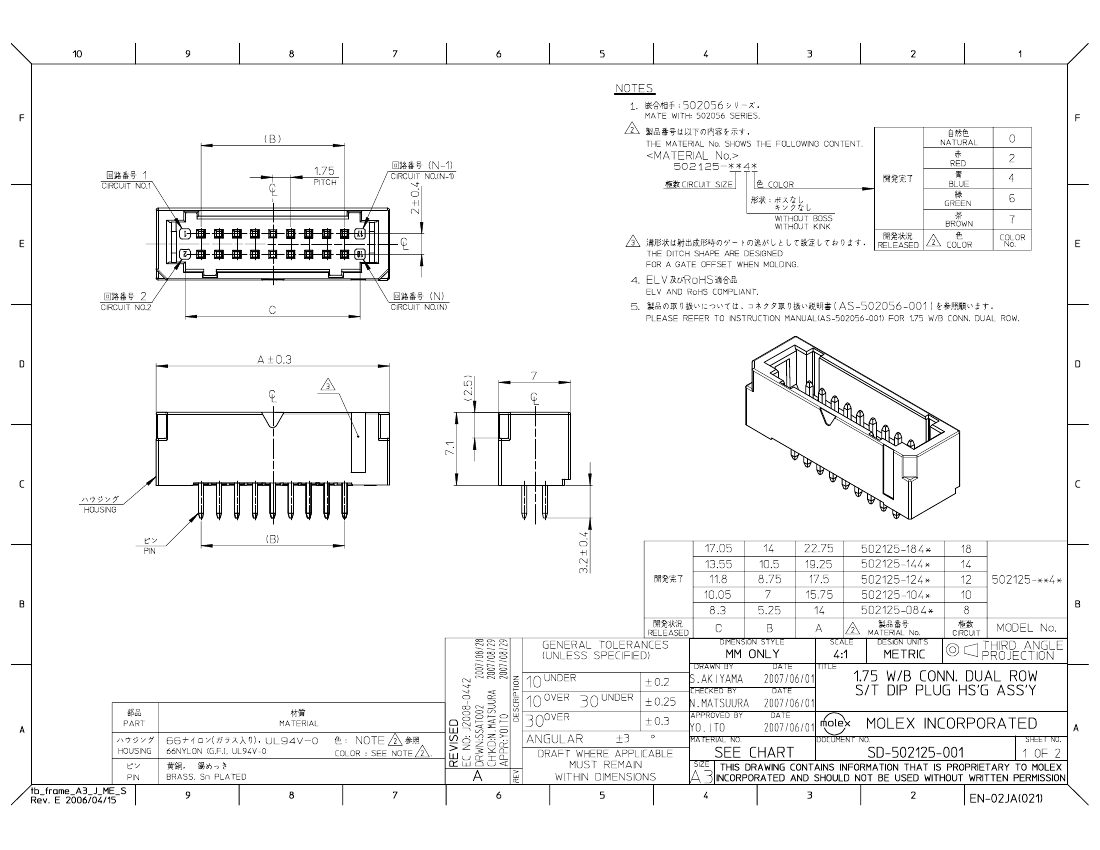

502125-1046: DescriptionBoard Connector, 10 Contact(s), 2 Row(s), Male, Straight, 0.07 inch Pitch, Solder Terminal, Green Insulator, Receptacle; CategoryThe connector The connector; File Size144KB，2 Pages; ManufacturerMolex; Websitehttps://www.molex.com/molex/home; Environmental Compliance

Download Datasheet Parametric View All

502125-1046 Overview

Board Connector, 10 Contact(s), 2 Row(s), Male, Straight, 0.07 inch Pitch, Solder Terminal, Green Insulator, Receptacle

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	Molex
Reach Compliance Code	unknown
body width	0.276 inch
subject depth	0.28 inch
body length	0.62 inch
Body/casing type	RECEPTACLE
Connector type	BOARD CONNECTOR
Contact to complete cooperation	SN
Contact completed and terminated	TIN
Contact point gender	MALE
Contact material	BRASS
contact mode	RECTANGULAR
Contact resistance	20 mΩ
Contact style	RND PIN-SKT
Dielectric withstand voltage	500VAC V
Durability	30 Cycles
Insulation resistance	1000000000 Ω
Insulator color	GREEN
insulator material	NYLON
Manufacturer's serial number	502125
Plug contact pitch	0.07 inch
Match contact row spacing	0.079 inch
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	2
Number of rows loaded	2
Maximum operating temperature	85 °C
Minimum operating temperature	-25 °C
PCB contact pattern	RECTANGULAR
PCB contact row spacing	2.0066 mm
Rated current (signal)	2 A
Guideline	UL
reliability	COMMERCIAL
Terminal length	0.126 inch
Terminal pitch	1.778 mm
Termination type	SOLDER
Total number of contacts	10
