5U3

Description
Board Connector, 3 Contact(s), 1 Row(s), Female, Straight, 0.197 inch Pitch, Solder Terminal, Locking
CategoryThe connector    The connector
File Size279KB,1 Pages
ManufacturerLumberg
Websitehttp://www.lumberg.com/zh/
Download Datasheet Parametric Compare View All

5U3 Overview

Board Connector, 3 Contact(s), 1 Row(s), Female, Straight, 0.197 inch Pitch, Solder Terminal, Locking

5U3 Parametric

Parameter NameAttribute value
MakerLumberg
Reach Compliance Codecompliant
body width0.315 inch
subject depth0.512 inch
Connector typeBOARD CONNECTOR
Contact to complete cooperationSN ON NI
Contact completed and terminatedTIN OVER NICKEL
Contact point genderFEMALE
Contact materialBRONZE
contact modeRECTANGULAR
Contact resistance3 mΩ
Contact styleDUAL PRONG
insulator materialPOLYPHENYLENE OXIDE
Manufacturer's serial number5U
Plug contact pitch0.197 inch
Installation option 1LOCKING
Installation methodSTRAIGHT
Installation typeBOARD
Number of connectorsONE
PCB row number1
Number of rows loaded1
Maximum operating temperature100 °C
Minimum operating temperature-25 °C
PCB contact patternRECTANGULAR
polarization keyPOLARIZED HOUSING
Rated current (signal)5 A
reliabilityCOMMERCIAL
Terminal length0.236 inch
Terminal pitch5.0038 mm
Termination typeSOLDER
Total number of contacts3
Dieses Bauteil wird für ein Design-in bei Neuprojekten nicht mehr empfohlen. Sprechen Sie uns an, wir beraten Sie gerne zu Alternativen.
This component is no longer recommended for design-in of new projects. Please contact us, we will be pleased to provide alternatives.
Ce composant n’est plus recommandé pour de nouvelles implantations. Nous restons à votre disposition pour vous proposer des solutions alternatives. 02/2013

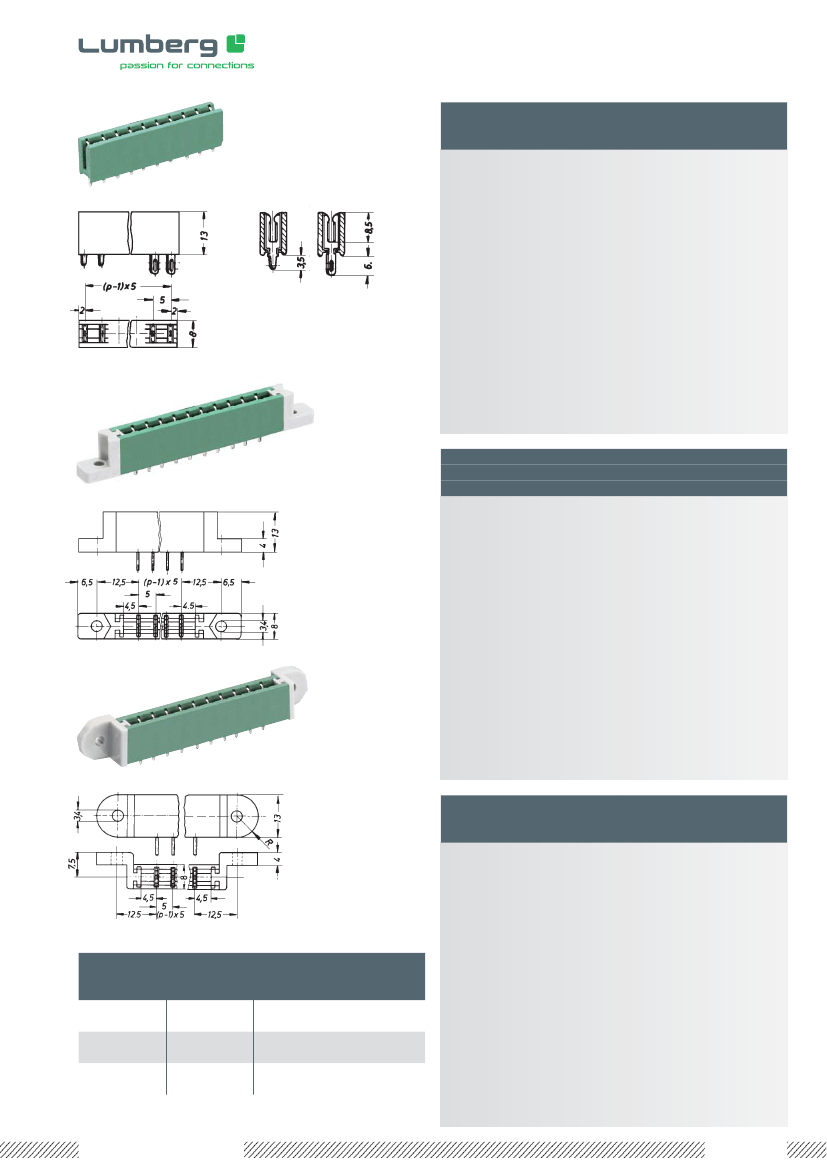

Leiterplatten-Direktsteckverbinder, Raster 3,96/5,0 mm
Direct connectors for printed circuit boards, pitch 3.96/5.0 mm
Connecteurs directs our cartes imprimées, pas 3,96/5,0 mm
5R
5R
5 RF
5 RFL
5U
5 UF
5 UFL
5R
5U
Buchsenleiste für direktes Stecken, mit und ohne vormon-
tiertem Flanschpaar F/FL
5 R(...): mit Lötstiften
5 U(...): mit Lötösen
1. Temperaturbereich
2. Werkstoffe
Kontaktträger
Flansch
Kontaktfeder
3. Mechanische Daten
Kontaktierung mit
4. Elektrische Daten
Durchgangswiderstand
Bemessungsstrom
Bemessungsspannung
1
Prüfspannung
nach DIN EN 60664/IEC 60664
3 mΩ
5A
250 V AC
3,0 kV eff.
Leiterplatte 1,5 ± 0,14 mm
-25 °C/+100 °C
PPO
PC
CuSn, vernickelt und verzinnt
5 RF
1
5R
5 RF
5 RFL
5U
5 UF
5 UFL
Socket board for direct mating, with and without mount-
ed pair of flanges F/FL
5 R(...): with solder pins
5 U(...): with solder eyes
1. Temperature range
2. Materials
Insulating body
Flange
Contact spring
3. Mechanical data
-25 °C/+100 °C
PPO
PC
CuSn, nickeled and tinned
5 RFL
Mating with
4. Electrical data
printed circuit board 1.5 ± 0.14 mm
1
Contact resistance
3 mΩ
Rated current
5A
250 V AC
Rated voltage
1
Test voltage
3.0 kV eff.
according to DIN EN 60664/IEC 60664
5R
5 RF
5 RFL
5U
5 UF
5 UFL
Réglette à prises femelles pour enfichage direct, avec et
sans collets F/FL attachés
5 R(...): avec plots à souder
5 U(...): avec cosses à souder
1. Température d’utilisation
Bestellbezeichnung
Designation
Désignation
Polzahl
poles
pôles
Verpackungseinheit
Package unit
Unité d’emballage
2. Matériaux
Corps isolant
Collet
Ressort de contact
3. Caractéristiques mécaniques
Raccordement avec
4. Caractéristiques électriques
Résistance de contact
Courant assigné
Tension assignée
1
Tension d’essai
suivant DIN EN 60664/CEI 60664
3 mΩ
5A
250 V AC
3,0 kV eff.
carte imprimée 1,5 ± 0,14 mm
-25 °C/+100 °C
PPO
PC
CuSn, nickelé et étamé
5
5
5
5
5
5
R
U
RF
UF
RFL
UFL
3–33
3–33
3–31
3–31
3–31
3–31
200
200
200
200
200
200
Verpackung: lose im Karton
Packaging: in bulk, in a cardboard box
Emballage: en vrac, dans un carton
1
www.lumberg.com
11/2012

5U3 Related Products

5U3 5UFL8 5UFL6 5UFL9 5UFL3
Description Board Connector, 3 Contact(s), 1 Row(s), Female, Straight, 0.197 inch Pitch, Solder Terminal, Locking Board Connector, 8 Contact(s), 1 Row(s), Female, Straight, 0.197 inch Pitch, Solder Terminal, Locking Board Connector, 6 Contact(s), 1 Row(s), Female, Straight, 0.197 inch Pitch, Solder Terminal, Locking Board Connector, 9 Contact(s), 1 Row(s), Female, Straight, 0.197 inch Pitch, Solder Terminal, Locking Board Connector, 3 Contact(s), 1 Row(s), Female, Straight, 0.197 inch Pitch, Solder Terminal, Locking
Maker Lumberg Lumberg Lumberg Lumberg Lumberg
Reach Compliance Code compliant compliant compliant compliant compliant
body width 0.315 inch 0.315 inch 0.315 inch 0.315 inch 0.315 inch
subject depth 0.512 inch 0.512 inch 0.512 inch 0.512 inch 0.512 inch
Connector type BOARD CONNECTOR BOARD CONNECTOR BOARD CONNECTOR BOARD CONNECTOR BOARD CONNECTOR
Contact to complete cooperation SN ON NI SN ON NI SN ON NI SN ON NI SN ON NI
Contact completed and terminated TIN OVER NICKEL TIN OVER NICKEL TIN OVER NICKEL TIN OVER NICKEL TIN OVER NICKEL
Contact point gender FEMALE FEMALE FEMALE FEMALE FEMALE
Contact material BRONZE BRONZE BRONZE BRONZE BRONZE
contact mode RECTANGULAR RECTANGULAR RECTANGULAR RECTANGULAR RECTANGULAR
Contact resistance 3 mΩ 3 mΩ 3 mΩ 3 mΩ 3 mΩ
Contact style DUAL PRONG DUAL PRONG DUAL PRONG DUAL PRONG DUAL PRONG
insulator material POLYPHENYLENE OXIDE POLYPHENYLENE OXIDE POLYPHENYLENE OXIDE POLYPHENYLENE OXIDE POLYPHENYLENE OXIDE
Manufacturer's serial number 5U 5U 5U 5U 5U
Plug contact pitch 0.197 inch 0.197 inch 0.197 inch 0.197 inch 0.197 inch
Installation option 1 LOCKING LOCKING LOCKING LOCKING LOCKING
Installation method STRAIGHT STRAIGHT STRAIGHT STRAIGHT STRAIGHT
Installation type BOARD BOARD BOARD BOARD BOARD
Number of connectors ONE ONE ONE ONE ONE
PCB row number 1 1 1 1 1
Number of rows loaded 1 1 1 1 1
Maximum operating temperature 100 °C 100 °C 100 °C 100 °C 100 °C
Minimum operating temperature -25 °C -25 °C -25 °C -25 °C -25 °C
PCB contact pattern RECTANGULAR RECTANGULAR RECTANGULAR RECTANGULAR RECTANGULAR
polarization key POLARIZED HOUSING POLARIZED HOUSING POLARIZED HOUSING POLARIZED HOUSING POLARIZED HOUSING
Rated current (signal) 5 A 5 A 5 A 5 A 5 A
reliability COMMERCIAL COMMERCIAL COMMERCIAL COMMERCIAL COMMERCIAL
Terminal length 0.236 inch 0.236 inch 0.236 inch 0.236 inch 0.236 inch
Terminal pitch 5.0038 mm 5.0038 mm 5.0038 mm 5.0038 mm 5.0038 mm
Termination type SOLDER SOLDER SOLDER SOLDER SOLDER
Total number of contacts 3 8 6 9 3
