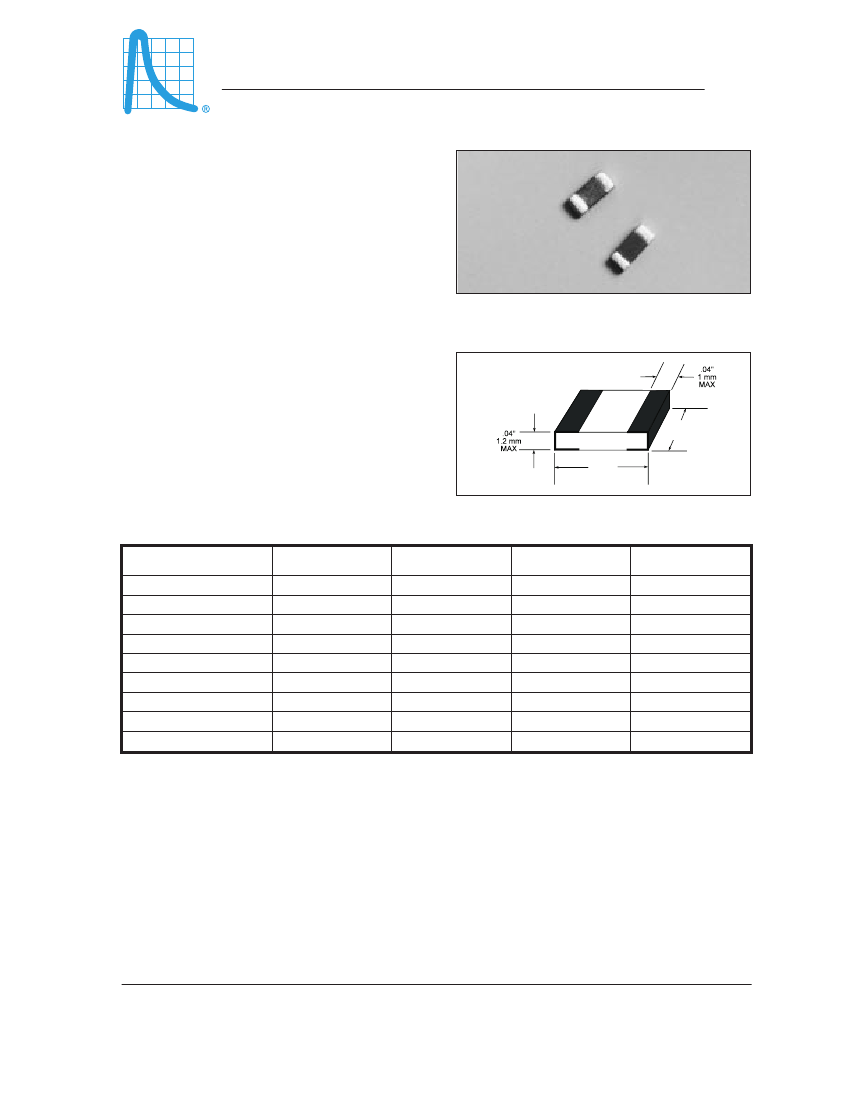

NTC THERMISTORS:
TYPE NC08
SMD CHIP THERMISTOR 0805 SIZE
DESCRIPTION:
0805 size surface mount ceramic chip thermistor
FEATURES:
•
Cost effective thermistor for automatic
placement
•
Standard resistance tolerances down to ±3%
•
High sensitivity to changes in temperature
•
Suitable for temperature measurement,
control and compensation
•
Suitable for wave and reflow soldering
•
Wide operating temperature range:
-50°C to 125°C
•
Rugged construction
•
Available in other material systems
•
Palladium Silver terminations
•
Other termination systems available
•
Available pocket taped to EIA RS-481
DIMENSIONS:
.05”
1.25mm
.08”
2.0mm
TYPE NUMBER
R@25C
(Ohms)
MATERIAL
SYSTEM
tc
(%/C)
Beta
(25/85)
NC0805KA502KB
NC0805KH103KB
NC0805KB223KB
NC0805KB303KB
NC0805KC503KB
NC0805KD104KB
NC0805KE154KB
NC0805KE204KB
NC0805KS304KB
5K
10K
22K
30K
50K
100K
150K
200K
300K
D8.5
C9.7
D9.5
D9.5
D9.7A
D10.3
D12.2
D12.2
GE9.7B
-4.23
-4.61
-4.43
-4.43
-4.39
-4.49
-4.78
-4.78
-4.32
3770K
4040K
3970K
3970K
3970K
4070K
4350K
4350K
3950K
OPTIONS:
•
Other resistances in the range 1kΩ - 750k
•
Tolerances at other temperatures
•
Alternative contact materials
•
For reel taping Replace 'B' with 'R'.
•
Other tolerances, 5% (J) and 3% (H) available
DATA:
Standard resistance tolerance:
..±10% @ 25°C
Dissipation constant:
........................3.5 mW/°C
Time Constant:.......................................10
sec.
Operating Range
........................-50°C to 150°C
BOWTHORPE THERMOMETRICS
Crown Industrial Estate, Priorswood Road
Taunton, Somerset TA2 8QY UK
Tel +44 (0) 1823 335200
Fax +44 (0) 1823 332637
THERMOMETRICS, INC.
808 US Highway 1
Edison, New Jersey 08817-4695 USA
Tel +1 (732) 287 2870
Fax +1 (732) 287 8847
KEYSTONE THERMOMETRICS CORPORATION
967 Windfall Road
St. Marys, Pennsylvania 15857-3397 USA
Tel +1 (814) 834 9140
Fax +1 (814) 781 7969
