32186 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Power management> transformer> 32186

32186: DescriptionSMPS Transformer, 3W,; CategoryPower management transformer; File Size263KB，10 Pages; ManufacturerPico Electronics Inc.

Download Datasheet Parametric View All

32186 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	32186	-	-	View	Buy Now

32186 Overview

SMPS Transformer, 3W,

32186 Parametric

Parameter Name	Attribute value
Is it lead-free?	Contains lead
Is it Rohs certified?	incompatible
Maker	Pico Electronics Inc.
Reach Compliance Code	compliant
ECCN code	EAR99
diameter	12.7 mm
high	8.64 mm
Maximum input voltage	5 V
JESD-609 code	e0
Installation features	THROUGH HOLE MOUNTED
Number of primary windings	2
Number of secondary windings	2
Maximum operating frequency	60 kHz
Minimum operating frequency	40 kHz
Maximum operating temperature	105 °C
Minimum operating temperature	-55 °C
Output voltage 1	50 V
physical size	D12.7XH8.64 (mm)
rated power	3 W
surface mount	NO
Terminal surface	Tin/Lead (Sn/Pb)
Transformer type	SMPS TRANSFORMER

Preview

Download Datasheet

View All

Ultra Miniature DCDC Converter Transformers

Input Voltages of 5V, 12V, 24V, and 48V

Power Levels up to 40 Watts. All units are magnetically shielded.

All units are magnetically shielded. All units can be supplied with higher or lower output

voltages. Deliverystock to one week for sample orders.

All dimensions are in inches (mm)

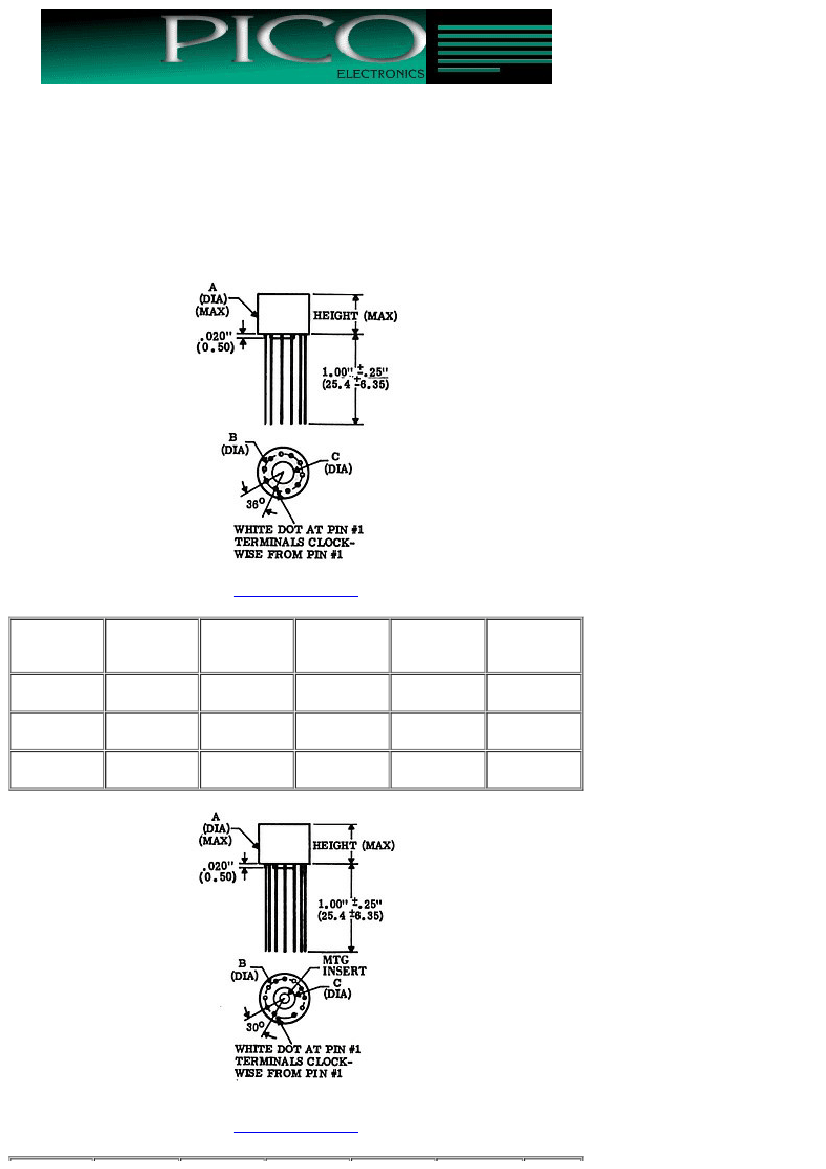

Larger size drawing

Max.

Height

.280

(7.11)

.340

(8.63)

.415

(10.54)

Max.

Dia.

.410

(10.41)

.500

(12.7)

.630

(16.0)

Bolt

Circle

.260

(6.6)

.350

(8.89)

.440

(11.17)

Stand

Off

.160

(4.06)

.250

(6.35)

.340

(8.64)

Terminal

Dia.

.012

(.31)

.012

(.31)

.016

(.41)

Size

All dimensions are in inches (mm)

Note: Sizes 5 and 6 pins 5, 8, and 9 are omitted.

Larger size drawing
