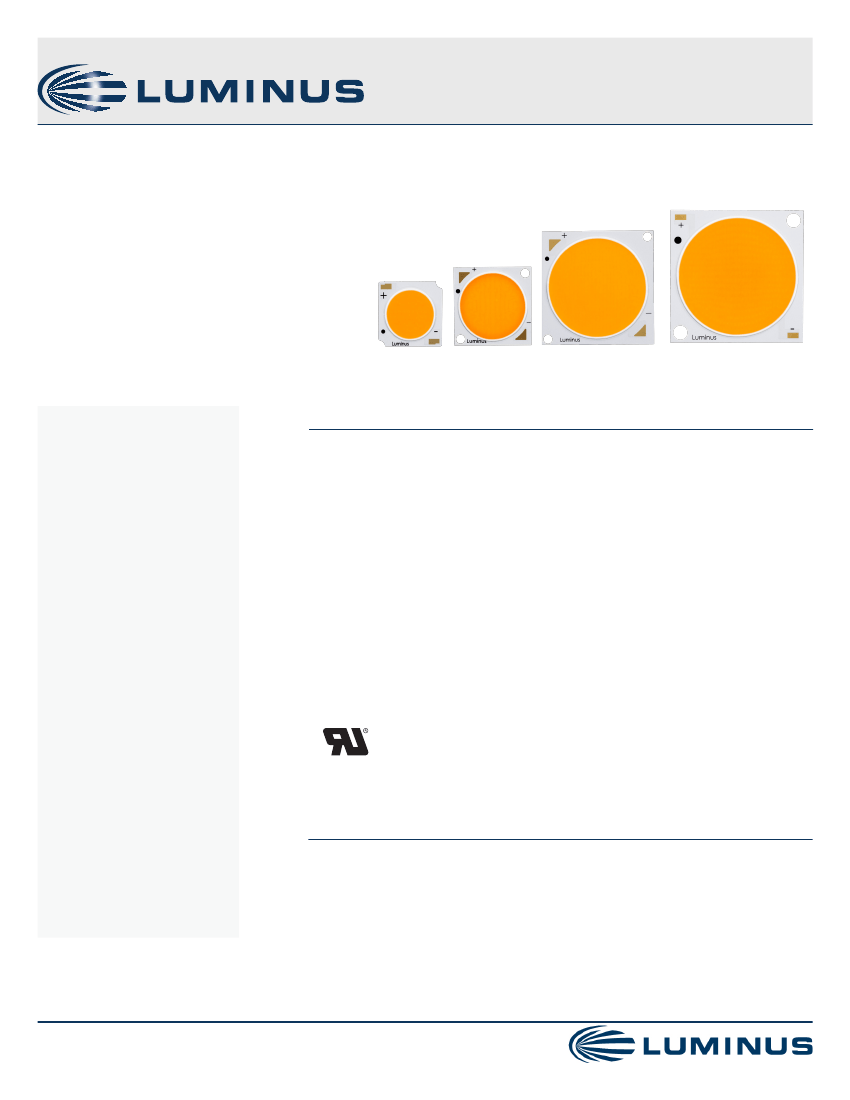

CVM Product Datasheet
CVM Studio COB Arrays
LED Entertainment Lighting
Features:
Table of Contents
Technology Overview . . . . . .2
Test Specifications . . . . . . . . .2
Chromaticity Bins . . . . . . . . . .3
Product Ordering & Shipping
Part Numbers . . . . . . . . . . . . . .4
Product Typical Flux Range 5
Operating Characteristics . .5
Optical and Electrical Character-
istics . . . . . . . . . . . . . . . . . . . . . . .7
Spectra . . . . . . . . . . . . . . . . . . 11
Mechanical Dimensions . . 12
Packaging Information . . . 12
Handling Notes . . . . . . . . . . 17
•
High lumen output
•
Over 25,000 lm @ 3150K, 25ºC
•
Over 27,000 lm @ 5600K, 25ºC
•
3150K and 5600K CCT
•
95 CRI minimum
•
90 TLCI minimum
•
2 SDCM color binning accuracy
•
Excellent optical emission uniformity and color over angle consistency
•
Exceptional long term color stability
•
Superior thermal conductivity for uniform heat spreading
•
Environmentally friendly: RoHS and REACH compliant
•
UL certified, file # E465703
•
Applications
•
TV Studio
•
Film Production
•
Still Photography
•
Stage/Set Lights
•
Architectural/Hospitality
1
PDS-002321 Rev 10
© 2017 Luminus Devices, Inc. - All Rights Reserved
CVM Product Datasheet
Technology Overview
Luminus Chip-on-Board (COB) LED series offers a complete lighting class solution designed for high performance illumination
applications . The selection covers a wide lumen range from less than 400lm to over 10,000lm, all major color temperatures and can
deliver color rendering greater than 97 at 2700K and 3000K and R9 equal to 95 . These breakthroughs allow illumination engineers and
designers to develop lighting solutions with maximum efficacy, brightness and overall quality .
Reliability
Designed from the ground up, the Luminus COB LED is one of
the most reliable light sources in the world today . Having
passed a rigorous suite of environmental and mechanical stress
tests, including mechanical shock, vibration, temperature
cycling and humidity . Only then are the devices qualified for
use in a wide range of lighting application including some of the
most demanding commercial applications .
UL Recognized Compliance
Luminus COB arrays are tested in accordance with ANSI/UL 8750
to ensure safe operation for their intended applications .
REACH & RoHS Compliance
All LED products manufactured by Luminus are REACH and
RoHS compliant and free of hazardous materials, including lead
and mercury .
Understanding Luminus COB LED Test Specifications
Every Luminus LED is fully tested to ensure it meets the high quality standards customers have come to expect from Luminus’ products .
Traceability
Each Luminus COB LED is marked with a 2D bar code that
contains a unique serial number . With this serial number,
Luminus has the ability to provide customers with actual test
data measurements for a specific LED . In addition, the 2D bar
code is linked to manufacturing date codes that enables
traceability of production processes and materials .
Chromaticity Bin Range
Chromaticity binning delivers color consistency for every order .
Studio products are delivered with a 2-step MacAdam ellipse .
This ensures color performance matching in the application .
These tightly controlled, small distribution bins provide
customers predictable, repeatable colors .
Testing Temperature
Luminus Studio products are measured at temperatures typical
for the LED operating in the fixture . Each device is tested at 85ºC
junction temperature eliminating the need to scale datasheet
specifications to real world situations .
2
PDS-002321 Rev 10
© 2017 Luminus Devices, Inc. - All Rights Reserved
CVM Product Datasheet

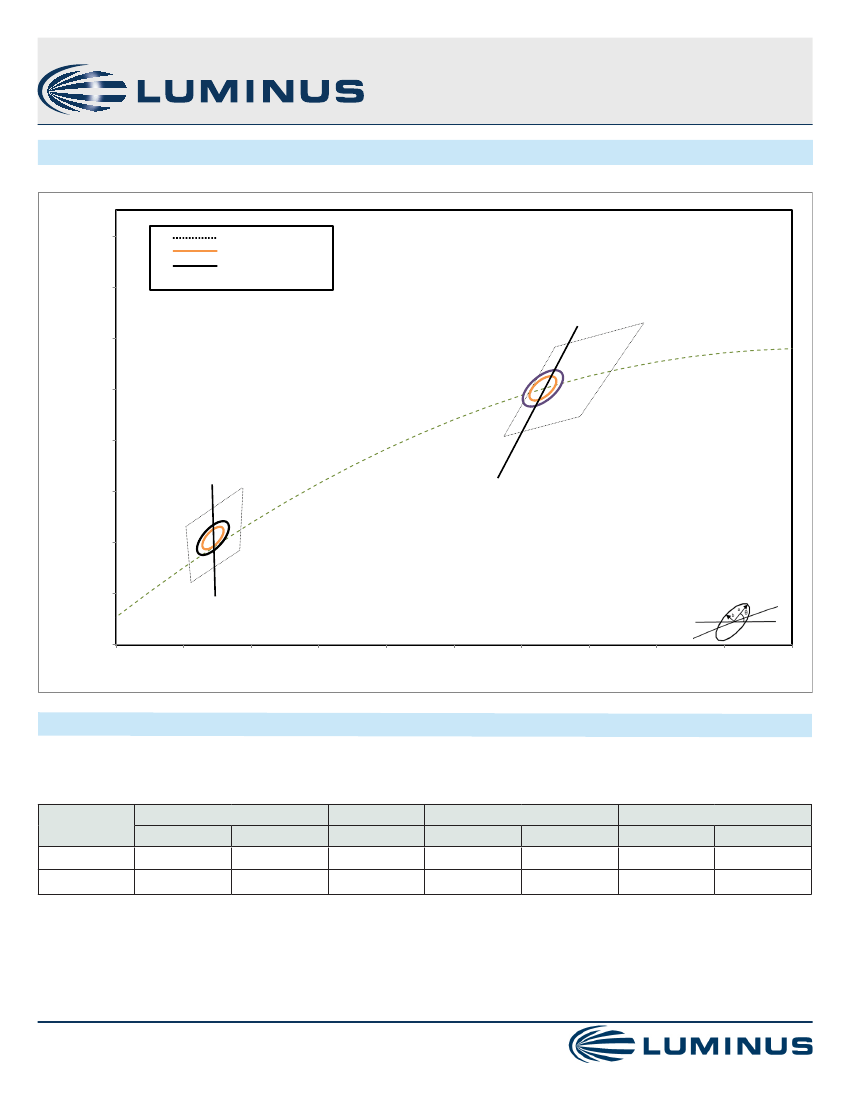

Chromaticity Bin Structure
Chromaticity Bins: 1931 CIE Curve
0.4600
ANSI C78.377-2008
2-step Ellipse
3-step Ellipse
0.4400
3150K
0.4200
Black Body
0.4000
CIE y
0.3800
5600K
0.3600
0.3400
0.3200
0.3000
0.3000
0.3200
0.3400
0.3600
0.3800
0.4000
0.4200
0.4400
0.4600
0.4800
0.5000
CIE x
CVM White Chromaticity Bins
The following tables describe the ANSI bin center points, the orientation angle for the MacAdam ellipse (θ
°),
and the maximum radii for
the ellipses . The ANSI Bin is provided for reference .
CCT
3150K
5600K
Center Point
CIEx
0 .4263
0 .3287
CIEy
0 .4003
0 .3417
Angle
θ (°)
53 .2
59 .1
a
0 .00556
0 .00497
2-step Bin
b
0 .00272
0 .00213
a
0 .00834
0 .00746
3-step Bin
b
0 .00408
0 .0032
*Note:
3
Luminus maintains a +/- 0 .005 tolerance on chromaticity (CIEx and CIEy) measurements .
PDS-002321 Rev 10
© 2017 Luminus Devices, Inc. - All Rights Reserved
CVM Product Datasheet
Product Ordering and Shipping Part Number Nomenclature
All CVM products are packaged and labeled with part numbers as outlined in the table on page 5 . When shipped, each package will
contain only a single flux and chromaticity bin . The part number designation is as follows:
CVM
Product Family
CVM: Chip on
Board, Studio
XX
Light Emitting
Surface Diameter
Approx . LES
Diameter (mm)
NN
Color
Temperature
Color
See Note 1
below
95
Color Render-
ing Index (CRI)
CRI See Note 2
below
VV
Voltage
(typical)
Volts
QQPP
Package
Configurator
See Note 3
below
FG
Flux Bin
Lumens
W
Chromaticity
Bin
See page 3 for
bins
Note 1:
NN nomenclature corresponds to the following:
31 = 3150K
56 = 5600K
Note 2:
XX CRI is specified as minimum value
95 CRI is 95 minimum
Note 3:
AA00 - Standard Package Configurator
AC00 /AB00- Alternative Package Configurator
Example 1:
The ordered part number CVM-27-56-95-36-AA00-F2-2 which refers to a 26 .5 millimeter diameter emitter, at color temperature 5600K, a minimum CRI
of 95, a typical voltage of 36V, a standard package, a typical flux of 10,500 lumens and a 2-step MacAdam ellipse chromaticity range .
Note:
Luminus part numbers may be accompanied by prefixes or suffixes . The most common is the “Rev01” suffix indicating a part is fully released
and carries a full warranty . These additional characters may appear on shipping labels, packing slips and invoices . In all cases the basic part
number described above will always be included .
4
PDS-002321 Rev 10
© 2017 Luminus Devices, Inc. - All Rights Reserved
CVM Product Datasheet
CVM Part Numbers
The following tables describe products with typical flux and minimum flux measured at the maximum rated current and specified at
junction temperature, T
j
= 85ºC . The values at 25ºC are calculated and shown for reference only .
Test
Currant
(A)
1 .0
1 .8
4 .2
4 .2
5 .0
1 .0
1 .8
4 .2
4 .2
5 .0
Output Flux (lm) Reference
Typ.
(85ºC)
2,575
5,140
11,500
11,500
22,800
2,800
5,625
12,500
12,500
24,800
Min.
(85ºC)
2,395
4,880
10,750
10,750
21,250
2,600
5,345
11,500
11,500
23,110
(calculated)
CCT
LES
(mm)
13 .5
17 .5
Typ.
2-step MacAdam Ellipse
CVM-14-31-95-36-AC00-F2-2
CVM-18-31-95-36-AA00-F2-2
CVM-27-31-95-36-AA00-F2-2
CVM-27-31-95-36-AB00-F2-2
CVM-32-31-95-54-AC00-F2-2
CVM-14-56-95-36-AC00-F2-2
CVM-18-56-95-36-AA00-F2-2
CVM-27-56-95-36-AA00-F2-2
CVM-27-56-95-36-AB00-F2-2
CVM-32-56-95-54-AC00-F2-2
3-step MacAdam Ellipse
CVM-14-31-95-36-AC00-F2-3
CVM-18-31-95-36-AA00-F2-3
CVM-27-31-95-36-AA00-F2-3
CVM-27-31-95-36-AB00-F2-3
CVM-32-31-95-54-AC00-F2-3
CVM-14-56-95-36-AC00-F2-3
CVM-18-56-95-36-AA00-F2-3
CVM-27-56-95-36-AA00-F2-3
CVM-27-56-95-36-AB00-F2-3
CVM-32-56-95-54-AC00-F2-3
(25ºC)
3,085
5,655
13,800
13,800
25,150
3,350
6,190
15,000
15,000
27,350
3150K
26 .5
26 .5
32
13 .5
17 .5
5600K
26 .5
26 .5
32
CVM Operating Characteristics
1
CVM-14
Parameter
Forward Current
2
Forward Voltage
Power
Operating Case Temperature
3
Light Emitting Surface Diameter
Thermal Resisitance (junction-to-case)
Viewing Angle
T
c
LES
Qjc
13 .5
0 .46
120
Symbol
I
f
V
f
Typical
1
36
36
Maximum
1
40
40
100
Unit
A
V
W
ºC
mm
ºC/W
Degree
*Note:
Luminus maintains a +/- 6% tolerance on flux measurements .
Luminus maintains a +/- 2% tolerance on CRI measurements .
5
PDS-002321 Rev 10
© 2017 Luminus Devices, Inc. - All Rights Reserved
