LFXTAL036889REEL datasheet, PDF

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > Passive components> Crystal/resonator> LFXTAL036889REEL

Preview

LFXTAL036889REEL: DescriptionParallel - Fundamental Quartz Crystal, 16.384MHz Nom; CategoryPassive components Crystal/resonator; File Size666KB，1 Pages; ManufacturerIQD Frequency Products; Environmental Compliance

Download Datasheet Parametric View All

LFXTAL036889REEL Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	LFXTAL036889REEL	-	-	View	Buy Now

LFXTAL036889REEL Overview

Parallel - Fundamental Quartz Crystal, 16.384MHz Nom

LFXTAL036889REEL Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	IQD Frequency Products
package instruction	SMD, 4 PIN
Reach Compliance Code	compliant
Other features	TR
Ageing	5 PPM/YEAR
Crystal/Resonator Type	PARALLEL - FUNDAMENTAL
Drive level	100 µW
frequency stability	0.0025%
frequency tolerance	20 ppm
load capacitance	18 pF
Installation features	SURFACE MOUNT
Nominal operating frequency	16.384 MHz
Maximum operating temperature	70 °C
Minimum operating temperature	-20 °C
physical size	L7.5XB5.2XH1.4 (mm)/L0.295XB0.205XH0.055 (inch)
Series resistance	40 Ω
surface mount	YES

Preview

Download Datasheet

View All

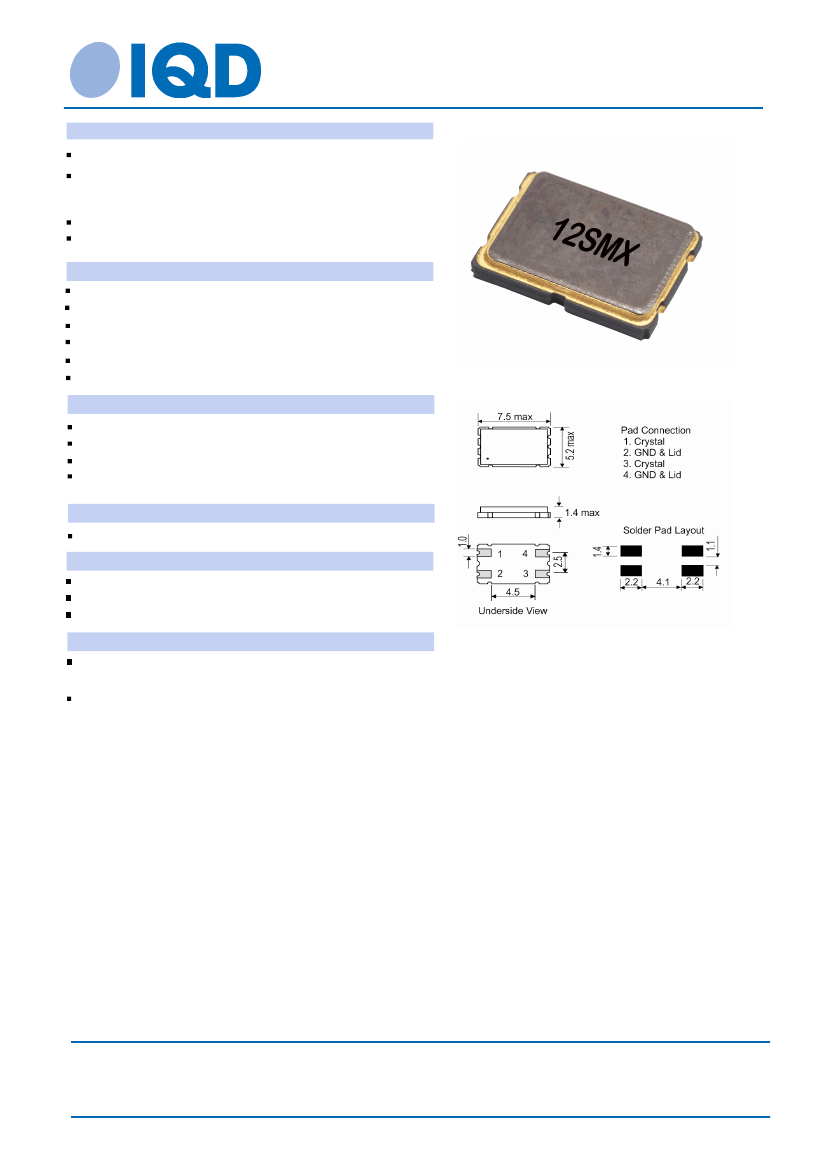

Quartz Crystal Specification

Part No. + Packaging:

LFXTAL036889Reel

Description

Standard 7 x 5mm SMD crystal

4 pad (metal lid)

A ceramic package with a seam sealed metal lid, hermetically

sealed. 4 pad device metal lid.

Model

12SMX-B

Model Issue number

13

Frequency Parameters

Frequency

Frequency Tolerance

Frequency Stability

Operating Temperature Range

Overtone Order

Ageing

Electrical Parameters

16.3840MHz

±20.00ppm

±25.00ppm

-20.00 to 70.00°C

Fundamental

±5ppm per year max

Outline (mm)

Load Capacitance

Shunt Capacitance

Drive Level

ESR

Environmental Parameters

18.00pF

7pF max

100µW max

40.00Ω max

Storage Temperature Range: -40 to 125°C

Compliance

RoHS Status (2011/65/EU)

REACh Status

MSL Rating (JDEC-STD-033):

Packaging Details

Compliant

Not Applicable

Pack Style: Reel

Pack Size: 1,000

Tape & reel in accordance with EIA-481-D

Alternative packing option available

Sales Office Contact Details:

UK: +44 (0)1460 270200

Germany: 0800 1808 443

France: 0800 901 383

USA: +1.760.318.2824

Email: info@iqdfrequencyproducts.com

Web: www.iqdfrequencyproducts.com

Page 1 of 1

Printed on 3 Oct 16 19:17 using Part Data Sheet V1.00014
