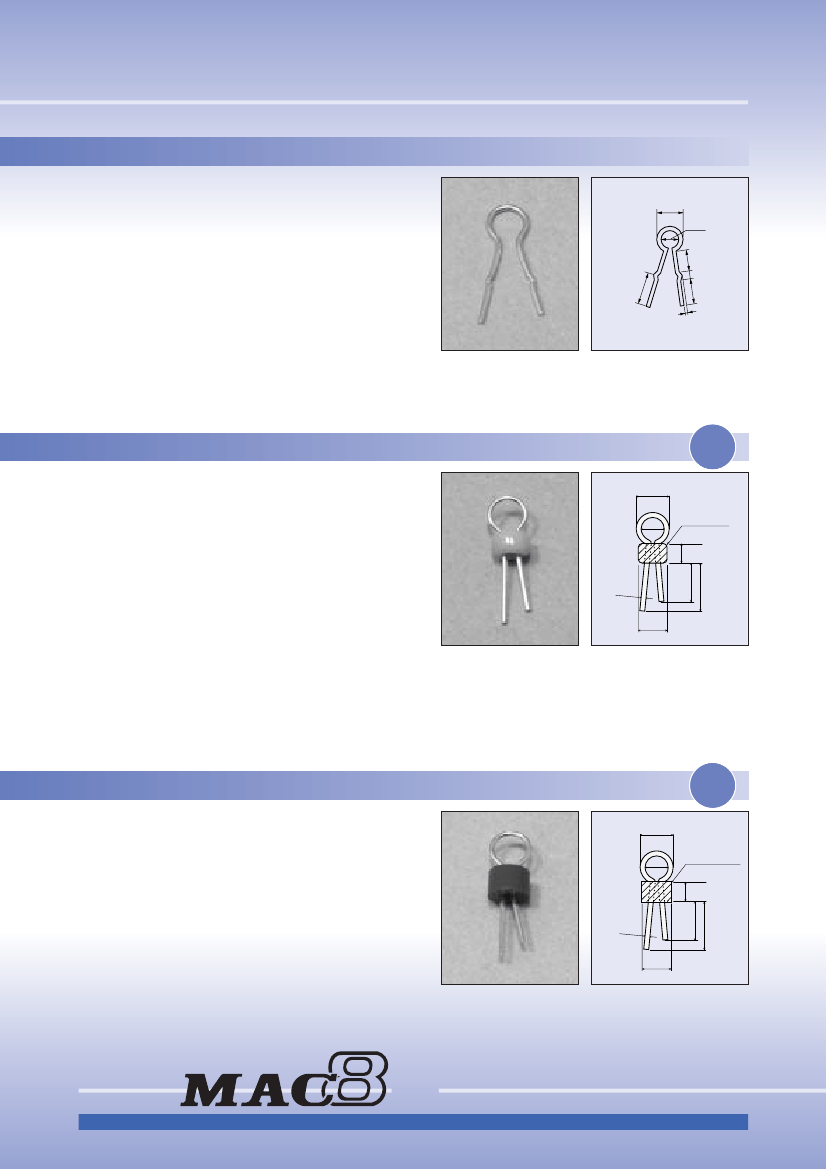

LC Series / Test Pin for Oscilloscope
Test Pin for Oscilloscope［LC-1-G・LC-1-S½
（1000/pack）
■Can
hook oscilloscope probe
■Can
be fixed at protrusion level.
■To
make the height lower, the PCB TH should
be at least 1.4φ
■Material……Phosphor
Bronze 0.5φ
■Finish……LC-1-G
……Plated
Au over Ni base
LC-1-S
……Plated
Sn over Ni base
■PCB
TH Diameter……1.2φ
■Operating
Temperature……−40∼＋150˚C
3.5
φ
2.5
φ
3.0
3.6
0.15
Test Point for Oscilloscope［LC-2-G・LC-2-S½
（1000/pack）
■Can
hook oscilloscope probe
■Can
distinguish each signal line by using
different colors
■Material……Phosphor
Bronze 0.4φ& Glass
Beads
■Finish……LC-2-G
……Plated
Au over Ni base
LC-2-S
……Plated
Sn over Ni base
■PCB
TH Diameter……1.0φ
■Operating
Temperature……−40∼＋150˚C
■Color……Black,
Lightgreen, Green, Skyblue,
Purple, White
3.3
φ
2.5
φ
2.0
Glass Beads
0.4
φ
3.0
φ
Test Point for Oscilloscope［LC-22-G・LC-22-S½
（1000/pack）
■Material…Metal…Phosphor
Bronze 0.4φ
Plastic Part…Fluorine Resin
（UL94V-0）
■Finish……
LC-22-G……Plated Au over Ni base
LC-22-S
……Plated
Sn over Ni base
■PCB
TH Diameter……1.0φ
■Operating
Temperature……−40∼＋150˚C
■Color……Brown,
Red, Orange, Yellow
3.3
φ
2.5
φ
2.0
0.4
φ
3.0
φ
No.1 distributor of MAC8
SHINDENKIZAI Co., LTD.
Contact
e-mail : sdk@mac8sdk.co.jp FAX :+81-3-3253-5965
http://www.mac8sdk.co.jp/index_e.html
4.0
5.0
4.0
5.0
3.0
PAT
PAT
Fluorine Resin
0.5

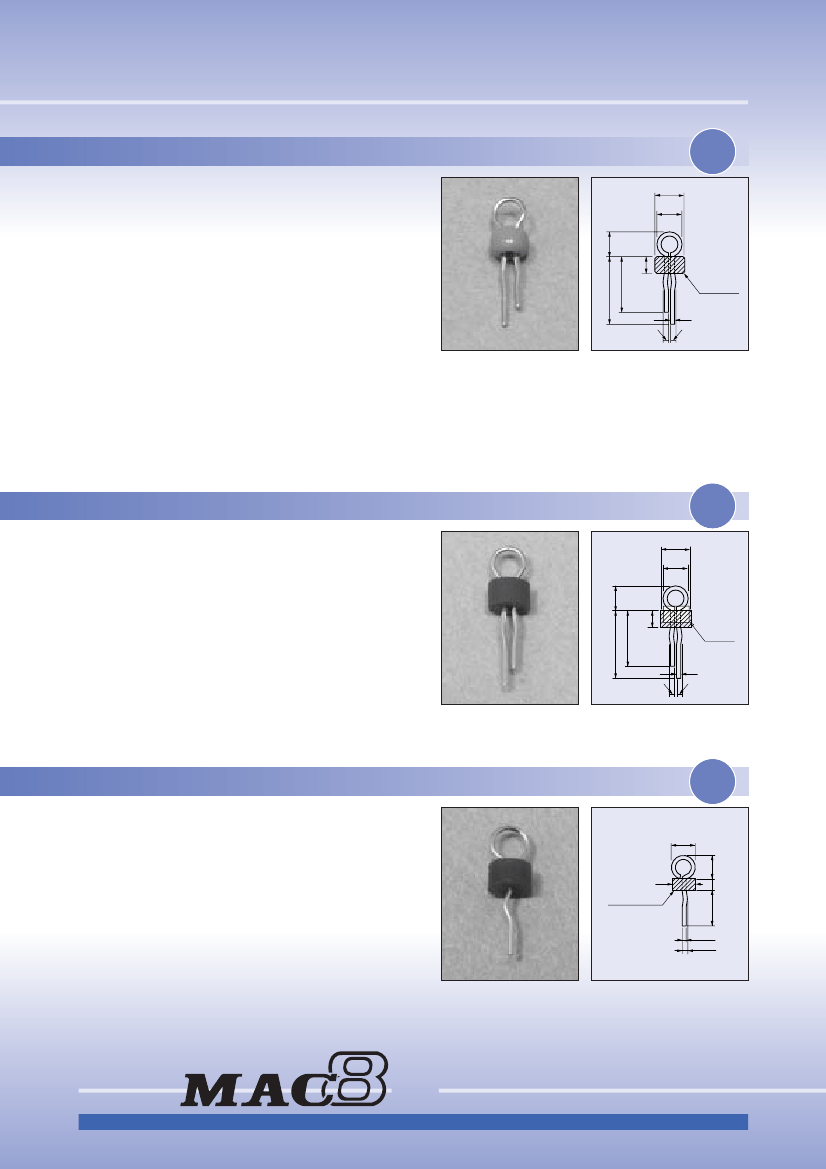

LC Series / Test Pin for Oscilloscope
Test Pin for Oscilloscope［LC-3-G・LC-3-S½
（1000/pack）
■Can
hook oscilloscope probe
■Pitch
Distance: 2.54mm
■Can
distinguish each signal line by using
different colors
■Material……Phosphor
Bronze 0.3φ and Glass
Beads
■Finish……LC-3-G
……Plated
Au over Ni base
LC-3-S
……Plated
Sn over Ni base
■PCB
TH Diameter……0.8φ
■Operating
Temperature…−40∼＋150˚C
■Color……Black,
Light Green, Green, Sky Blue,
Purple, White
2.2
φ
2.0
φ
PAT
2.0
5.7
4.7
1.4
Glass Beads
0.3
φ
0.4
0.4
Test Pin for Oscilloscope［LC-33-G・LC-33-S½
（1000/pack）
■Can
hook oscilloscope probe
■Material…Metal
part…Phosphor Bronze 0.3φ
Plastic part…Fluorine Resin
（UL94V-0）
■Finish……
LC-33-G……Plated Au over Ni base
LC-33-S
……Plated
Sn over Ni base
■PCB
TH Diameter……0.8φ
■Operating
Temperature……−40∼＋150˚C
■Color…Brown,
Red, Orange, Yellow
2.2
φ
2.0
φ
PAT
2.0
1.4
5.7
4.7
Fluorine
Resin
0.3
φ
0.4
0.4
Test Pin for Oscilloscope［LC-4-G・LC-4-S½
（1000/pack）
■Can
hook oscilloscope probe
■Material…Metal
part…Phosphor Bronze 0.25φ
Plastic part…Fluorine Resin
（UL94V-0）
■Finish……
LC-4-G……Plated Au over Ni base
LC-4-S
……Plated
Sn over Ni base
■PCB
TH Diameter……0.3∼0.4φ
■Operating
Temperature……−40∼＋150˚C
■Color……Red,
Yellow, Blue, White, Black
2
φ
PAT
2
φ
Fluorine Resin
0.25
φ
0.4
φ
No.1 distributor of MAC8
SHINDENKIZAI Co., LTD.
Contact
e-mail : sdk@mac8sdk.co.jp FAX :+81-3-3253-5965
http://www.mac8sdk.co.jp/index_e.html
3.3
1.0 2.0
