1-1623809-7: DescriptionFixed Resistor, Thin Film, 20W, 33ohm, 5% +/-Tol, 50ppm/Cel, Through Hole Mount, TO-220, ROHS COMPLIANT; CategoryPassive components The resistor; File Size120KB，2 Pages; ManufacturerTE Connectivity; Websitehttp://www.te.com; Environmental Compliance

Download Datasheet Parametric Compare View All

1-1623809-7 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	1-1623809-7	-	-	View	Buy Now

1-1623809-7 Overview

Fixed Resistor, Thin Film, 20W, 33ohm, 5% +/-Tol, 50ppm/Cel, Through Hole Mount, TO-220, ROHS COMPLIANT

1-1623809-7 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Objectid	1645682522
package instruction	TO-220, ROHS COMPLIANT
Reach Compliance Code	compliant
ECCN code	EAR99
YTEOL	0
Installation features	THROUGH HOLE MOUNT
Number of terminals	2
Package shape	RECTANGULAR PACKAGE
method of packing	BULK
Rated power dissipation(P)	20 W
resistance	33 Ω
Resistor type	FIXED RESISTOR
surface mount	NO
technology	THIN FILM
Temperature Coefficient	50 ppm/°C
Terminal shape	FLAT
Tolerance	5%

Preview

Download Datasheet

View All

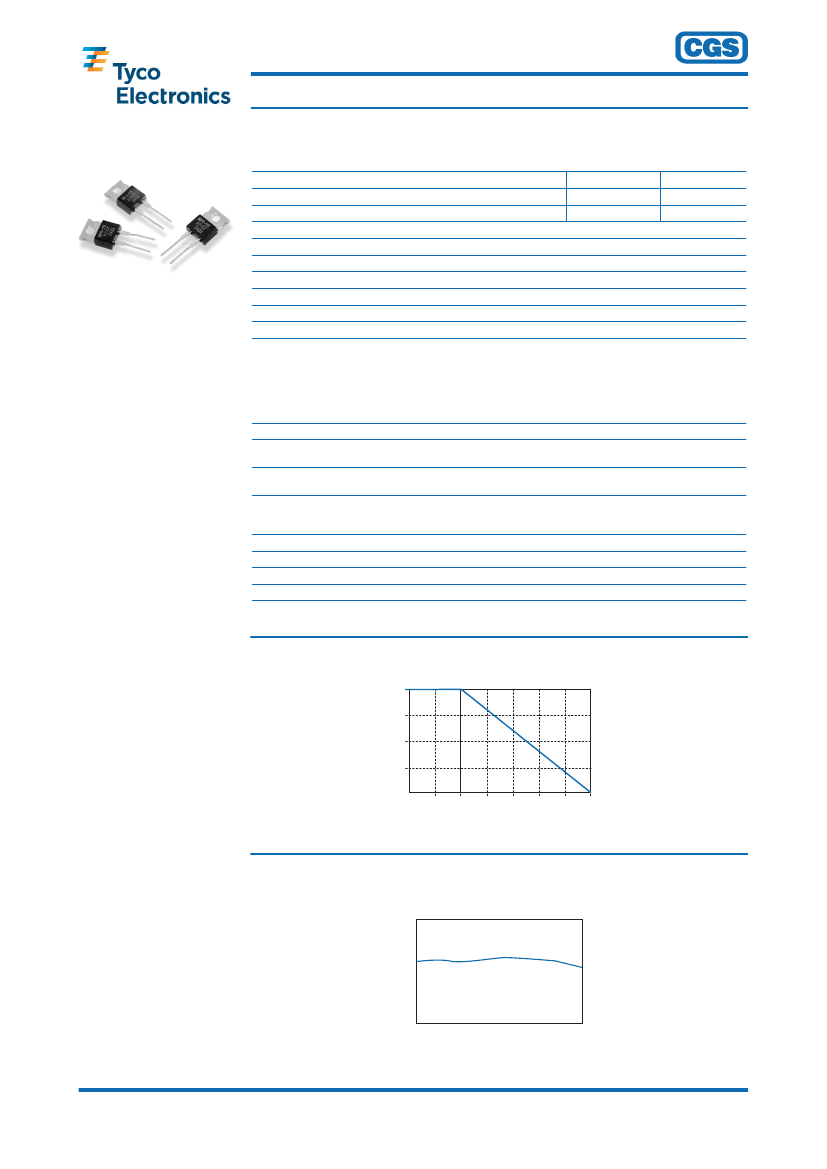

Radial Leaded High Power Resistors

Type MPR Series

Characteristics -

Electrical

Resistance Range:

Resistance Tolerance:

Temp. Coefficient of Resistance (TCR):

Rated Power (on Suitable Heatsink):

Rated Power (W/O Heatsink):

Equivalent Parallel Capacitance:

Maximum Operating Voltage:

Withstand Voltage:

This small size non-inductive, high

power resistor is an innovative and

significant first for Tyco Electronics.

Occupying

positions

tolerance

standard

high

key

T0220

power

design

package it is ideally suited to

where

are

dissipation, small size and tight

requirements.

This series is an ideal solution for

the output side of high speed pulse

generators, a surge absorption

resistor in switch mode power

supplies and for monitors, display

terminals, scientific workstations

and other brown and white goods.

R22 - R91

250ppm/°C

1R0 - 9R1

100ppm/°C

20 Watts

2 Watts * (See note below)

1.0 pF

500V dc

10R - 51K

1% / 5%

50ppm/°C

2000 V dc (Between terminals and heatsink)

-55°C to +155°C

-25°C to +40°C

Operating Temperature Range:

Rated Ambient Temperature:

* With a 5.8°C watt heatsink or better at a 25°C ambient temperature, 20 watts can be dissipated

A larger heatsink will allow the resistor to run at a lower temperature.

Characteristics -

Mechanical

Test Condition

Life (Rated Power):

Life (Moisture Load):

Temperature Cycling:

40°C, rated power, 90 min-on,

30 min off, 1000 hours

60°C, 90 - 95% RH, rated power,

90 min ON 30 min OFF, 1000 hours

Room temp > -55°C 30 min >

RT, 10 min ± 120°C 30 min >

RT 10 min, 5 cycles

Rated voltage x 2.5, 5sec

350°C solder pot, 3sec

DC 100 V, 1 min

10 - 50 Hz, 1 min, 20G, X-Y-Z 1 hour

Specification

ΔR ± (1.0% + 0.05 ohm)

ΔR ± (0.25% + 0.05 ohm)

Short Time Overload:

Soldering Heat:

Insulation Resistance:

Vibration:

ΔR ± (0.25% + 0.05 ohm)

ΔR ± (1.0% + 0.05 ohm)

Over 1000M ohm

ΔR ± (0.5% + 0.05 ohm)

Key Features

■

Small Size (T0220

Package)

Easy to Mount

Non Inductive

High Frequency Range

up to 300MHz

Power Derating Curve

100

Power Rating %

-50

100

125

155

Case Temp. (Metal Tab. Temp. °C)

Temperature Range

-55°C to +155°C

High Power 20W with

Suitable Heatsink

Voltage Proof 2000V dc

Non Flammable

Load Life in High Temperature & Humidity

(70°C 95% DC Rated Power x 0.1) Continuous

0.21

Resistance Change (%)

0.01

-0.01

-0.02

500

1000

1500

Time (Hrs)

2000

Literature No. 1773251

Issued: 10-08

Dimensions are shown for

reference purposes only.

Dimensions are in

millimetres unless

otherwise specified.

Specifications subject to

change.

tycoelectronics.com

passives.tycoelectronics.com
