DMC1,5/3-G1-3,5P20THRR24-2 datasheet, PDF

Datasheet> All Categories > The connector> DMC1,5/3-G1-3,5P20THRR24-2

DMC1,5/3-G1-3,5P20THRR24-2: DescriptionBarrier Strip Terminal Block; CategoryThe connector; File Size168KB，5 Pages; ManufacturerPHOENIX CONTACT; Websitehttps://www.phoenixcontact.com; Environmental Compliance

Download Datasheet Parametric View All

DMC1,5/3-G1-3,5P20THRR24-2 Overview

Barrier Strip Terminal Block

DMC1,5/3-G1-3,5P20THRR24-2 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	PHOENIX CONTACT
Reach Compliance Code	compliant
Manufacturer's serial number	DMC1,5/3-G1-3,5P20THRR24-2
Terminal and terminal strip types	BARRIER STRIP TERMINAL BLOCK

Preview

Download Datasheet

View All

https://www.phoenixcontact.com/us/products/1816140

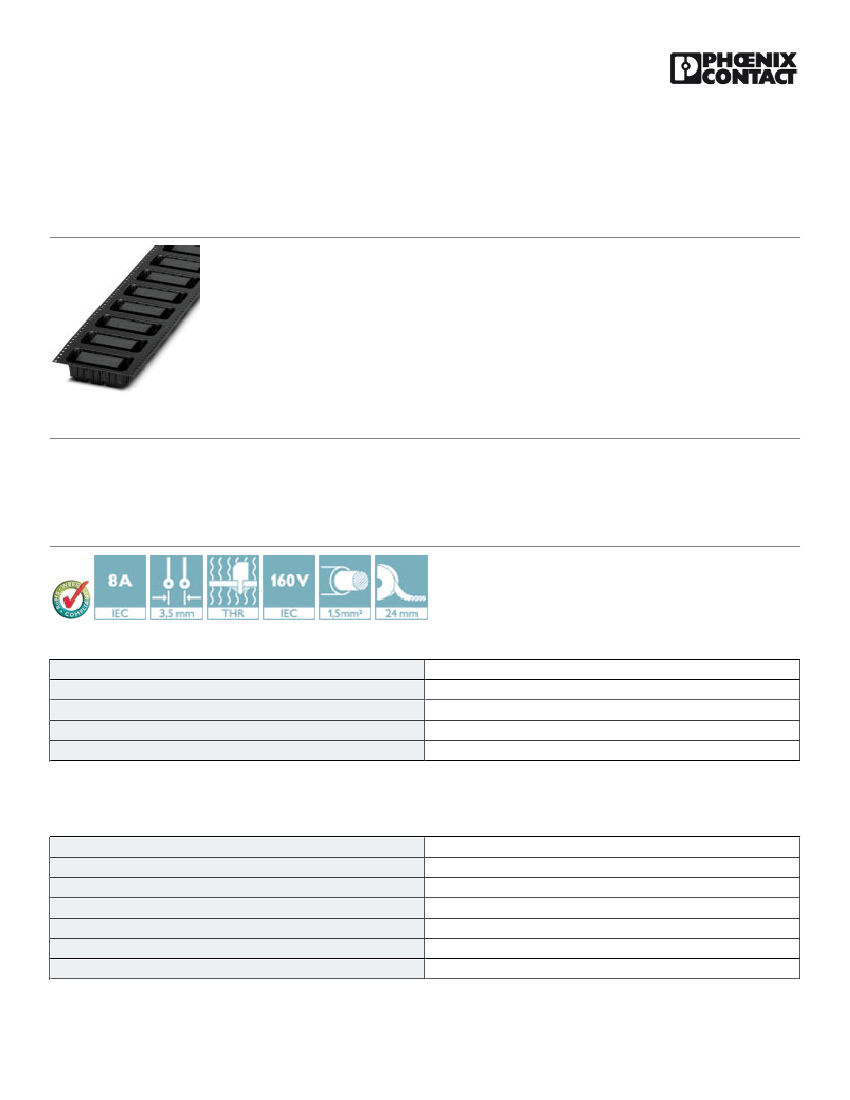

Printed-circuit board connector - DMC 1,5/ 3-G1-3,5 P20THR

R24-2 - 1816140

Please be informed that the data shown in this PDF Document is generated from our Online Catalog. Please find the complete data in the user's

documentation. Our General Terms of Use for Downloads are valid

(http://phoenixcontact.com/download)

Header, Nominal current: 8 A, Rated voltage (III/2): 160 V, Number of positions: 3, Pitch: 3.5 mm, Color: black,

Contact surface: Tin, Mounting: THR soldering

The figure shows a 10-pos. version

with 20 contacts

Product Features

■

Headers with flange can be combined with plugs with screw flange or with Lock & Release levers

At 8 mm, the distance from the edge of the PCB to the first row of holes is compatible with MC headers

Extremely small THR double-level headers for SMT and wave soldering processes

Key Commercial Data

Packing unit

Minimum order quantity

Weight per Piece (excluding packing)

Custom tariff number

Country of origin

1 pc

180 pc

3.666 g

85366990

Germany

Technical data

Dimensions

Length

Pitch

Dimension a

Constructional height

Height

Length of the solder pin

Pin dimensions

11.6 mm

3.50 mm

7 mm

10.8 mm

12.8 mm

2 mm

0,8 x 0,8 mm

05/19/2016 Page 1 / 5
