3-1617559-8

Description
POWER/SIGNAL RELAY, 4PDT, MOMENTARY, 0.068A (COIL), 26.5VDC (COIL), 1801mW (COIL), 2A (CONTACT), THROUGH HOLE-STRAIGHT MOUNT
CategoryMechanical and electronic products    relay
File Size112KB,1 Pages
ManufacturerTE Connectivity
Websitehttp://www.te.com
Download Datasheet Parametric View All

3-1617559-8 Online Shopping

Suppliers Part Number Price MOQ In stock
3-1617559-8 - - View Buy Now

3-1617559-8 Overview

POWER/SIGNAL RELAY, 4PDT, MOMENTARY, 0.068A (COIL), 26.5VDC (COIL), 1801mW (COIL), 2A (CONTACT), THROUGH HOLE-STRAIGHT MOUNT

3-1617559-8 Parametric

Parameter NameAttribute value
Is it lead-free?Contains lead
Is it Rohs certified?incompatible
MakerTE Connectivity
Reach Compliance Codecompliant
ECCN codeEAR99
Samacsys DescriptionSR-7607=M39016/40-007
Maximum coil current (DC)0.068 A
Coil power1801 mW
Coil resistance390 Ω
Maximum coil voltage (DC)26.5 V
Coil/Input Power TypeDC
Maximum contact current (AC)2 A
Maximum contact current (DC)2 A
Contact/Output Power TypeAC/DC
Manufacturer's serial number1617559
Installation featuresTHROUGH HOLE-STRAIGHT MOUNT
Maximum operating temperature125 °C
Minimum operating temperature-65 °C
Relay actionMOMENTARY
Relay function4PDT
Relay typePOWER/SIGNAL RELAY
sealHERMETICALLY SEALED
surface mountNO
Termination typeSOLDER
My Account
Tyco Electronics
(C hange)
Se a rch by Ke yword or Pa rt #
Products
Documentation
Resources
My Account
Customer Support
Home
>
Products
>
By Type
>
Relays
>
Product Feature Selector
> Product Details

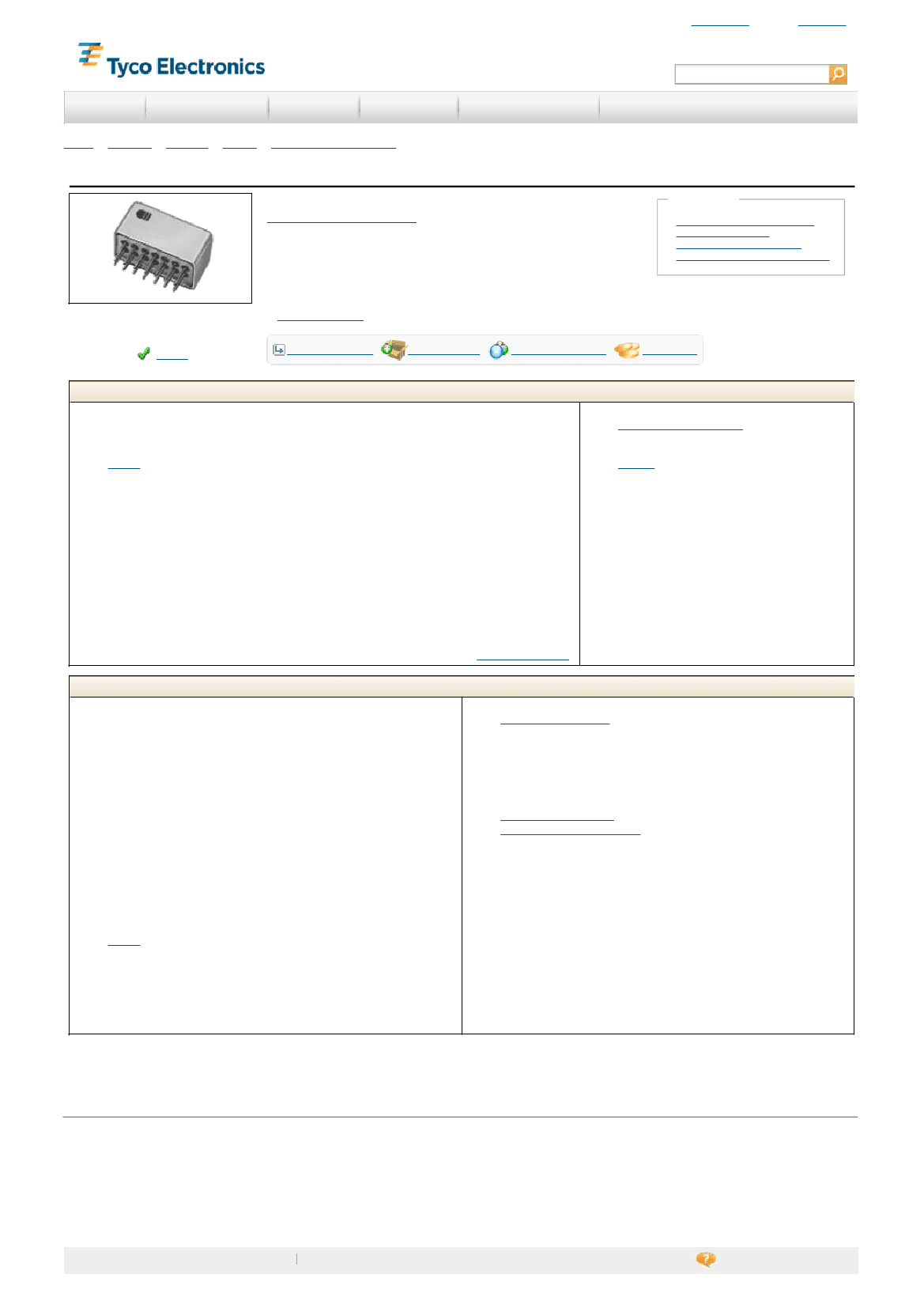

SR-7607 Product Details
Military/Aerospace High Performance Relays
Not EU R oHS or ELV C om plia nt
Quick Links
C heck Pricing & Availability
Search for Tooling
Product Feature Selector
C ontact Us About This Product
SR-7607
(3-1617559-8)
T E I nternal N umber: 3 - 1 6 1 7 5 5 9 - 8
Product Highlights:
l
SR Half-size Relay Series
l
Input Voltage = 26.5 VDC
l
C ontact Arrangement = 4 Form C , 4PDT, 4 C /O
l
C ontact C urrent Rating = 2 Amps.
l
Non Polarized, Monostable C oil Magnetic System
View all Features
A dd to M y P art L is t
Reques t Sample
Find Similar P roduc ts
Active
Buy P roduc t
Documentation & Additional Information
Product Drawings:
l
None Available
Catalog Pages/Data Sheets:
l
RELAY
(PDF, English)
Product Specifications:
l
None Available
Application Specifications:
l
None Available
Instruction Sheets:
l
None Available
CAD Files:
l
None Available
List all Documents
Product Features
(Please use the Product Drawing for all design activity)
Product Type Features:
l
Termination Type = PC Pins
Electrical Characteristics:
l
Input Voltage (VDC ) = 26.5
l
C ontact C urrent Rating (Amps.) = 2
l
C oil Polarity Protection Diode = Without
l
Transistor Driver = Without
l
C oil Resistance (?) = 390
l
MOSFET Driver = Without
l
C oil Power Measurement = Milliwatts
l
C oil Power, Nominal (mW) = 1801
l
Actuating System = DC
l
Shock = 100G's, 6ms
l
Vibration = 15G's, 10 to 2000Hz
Body Related Features:
l
Series
= SR Half-size Relay
Contact Related Features:
l
Mounting Options = C hassis Mount
l
Enclosure = Hermetically Sealed
l
Approved Standards = M39016 Qualified
Configuration Related Features:
l
C ontact Arrangement
= 4 Form C , 4PDT, 4 C /O
l
C oil Magnetic System = Non Polarized, Monostable
l
C oil Suppression Diode = Without
Industry Standards:
l
Government/Industry Qualification = Yes
l
Government/Industry Part Number = M39016/40-007
l
RoHS/ELV C ompliance
= Not ELV/RoHS compliant
l
Lead Free Solder Processes
= Not suitable for lead free processing
Conditions for Usage:
l
Temperature Range (?C ) = -65 – +125
Other:
l
Brand = C II
Additional Information:
l
Product Line Information
Related Products:
l
Tooling
Corporate Information
Who We Are
Investors
News Room
Supplier Portal
C areers
Quick Links
C heck Distributor Inventory
C ross Reference
Find Documents & Drawings
Product C ompliance Support C enter
Site Map
Priva cy Policy
Customer Support
Email or C hat with Us
Find a Phone Number
Search Knowledge Base
Manage Your Account
© 2009 Tyco Ele ctronics All R ights R e se rve d
