3016AC: DescriptionRF/Microwave Termination, 0MHz Min, 18000MHz Max, 50ohm, ROHS COMPLIANT PACKAGE; CategoryWireless rf/communication Radio frequency and microwave; File Size35KB，1 Pages; ManufacturerCobham PLC

Download Datasheet Parametric Compare View All

3016AC Overview

RF/Microwave Termination, 0MHz Min, 18000MHz Max, 50ohm, ROHS COMPLIANT PACKAGE

3016AC Parametric

Parameter Name	Attribute value
Maker	Cobham PLC
Reach Compliance Code	unknown
Other features	SMA-M, I/P POWER-MAX(PEAK)=250W
Characteristic impedance	50 Ω
structure	COAXIAL
Maximum input power (CW)	30 dBm
JESD-609 code	e4
Maximum operating frequency	18000 MHz
Minimum operating frequency
Maximum operating temperature	125 °C
Minimum operating temperature	-65 °C
RF/Microwave Device Types	RF/MICROWAVE TERMINATION
Terminal surface	GOLD
Maximum voltage standing wave ratio	1.2

Preview

Download Datasheet

View All

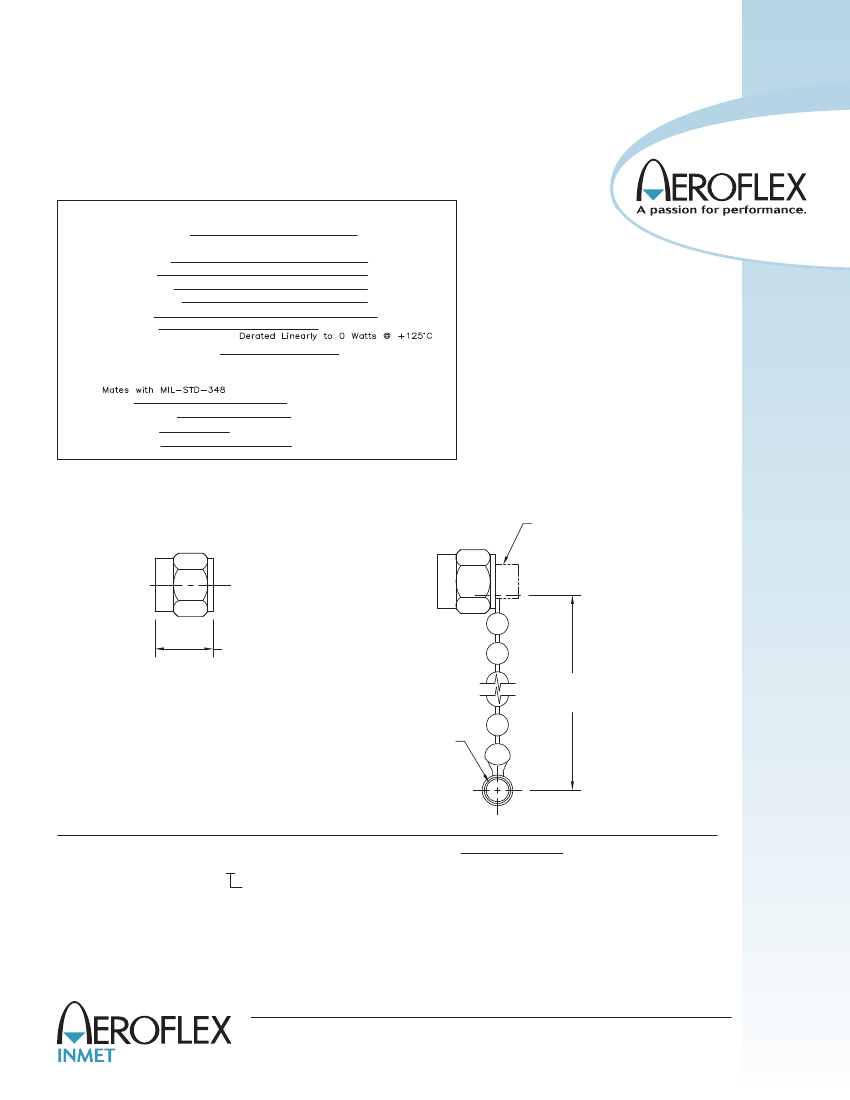

Terminations

SMA, up to 18 GHz, 1 Watt

SPECIFICATIONS:

Models: 3016A, 3016AC

Electrical:

Frequency Range

VSWR

DC - 4 GHz

4 - 8 GHz

8 - 12.4 GHz

12.4 - 18 GHz

Impedance

Input Power

Operating Temp Range

DC - 18 GHz

1.06:1 Max.

1.10:1 Max.

1.15:1 Max.

1.20:1 Max.

50 Ohms

1 Watt Avg. @ +25°C

-55°C to +125°C

Mechanical:

SMA Connectors

Body

Coupling Nut

Conductors

Bead Chain

Gold Plated Stainless Steel

Passivated Stainless Steel

Gold Plated Beryllium Copper or Brass

Passivated Stainless Steel

Model Number:

3016A

SMA Male Connector

Model Number:

3016AC

SMA Male Connector

CHAIN ATTACHMENT

WILL VARY

.33 ±.05

[8.4 ±1.3]

3.5 [89] Long

Bead Chain

Ø.13[3.3]

Thru

CHAIN DETAIL

HOW TO ORDER:

Model Number:

3016AX

Style

= No Chain

C = Chain Included

Ordering Examples:

Model Number:

3016AC

DC - 18 GHz; SMA Male; Chain Included

Model Number:

3016A

DC - 18 GHz; SMA Male: No Chain

Note: Dimensions in Brackets are Expressed in Millimeters and are for Reference Only.

Design specifications are subject to change without notice.

Contact factory for technical specifications before purchasing or use.

3016A: REV C

Aeroflex / Inmet, Inc.

• 300 Dino Drive, Ann Arbor, MI 48103 • U.S.A.

888-244-6638 or 734-426-5553 • FAX: 734-426-5557

www.aeroflex-inmet.com • inmetsales@aeroflex.com
