Part Number

Search

30434R

Description
SMPS Transformer, 15W
CategoryPower management    transformer

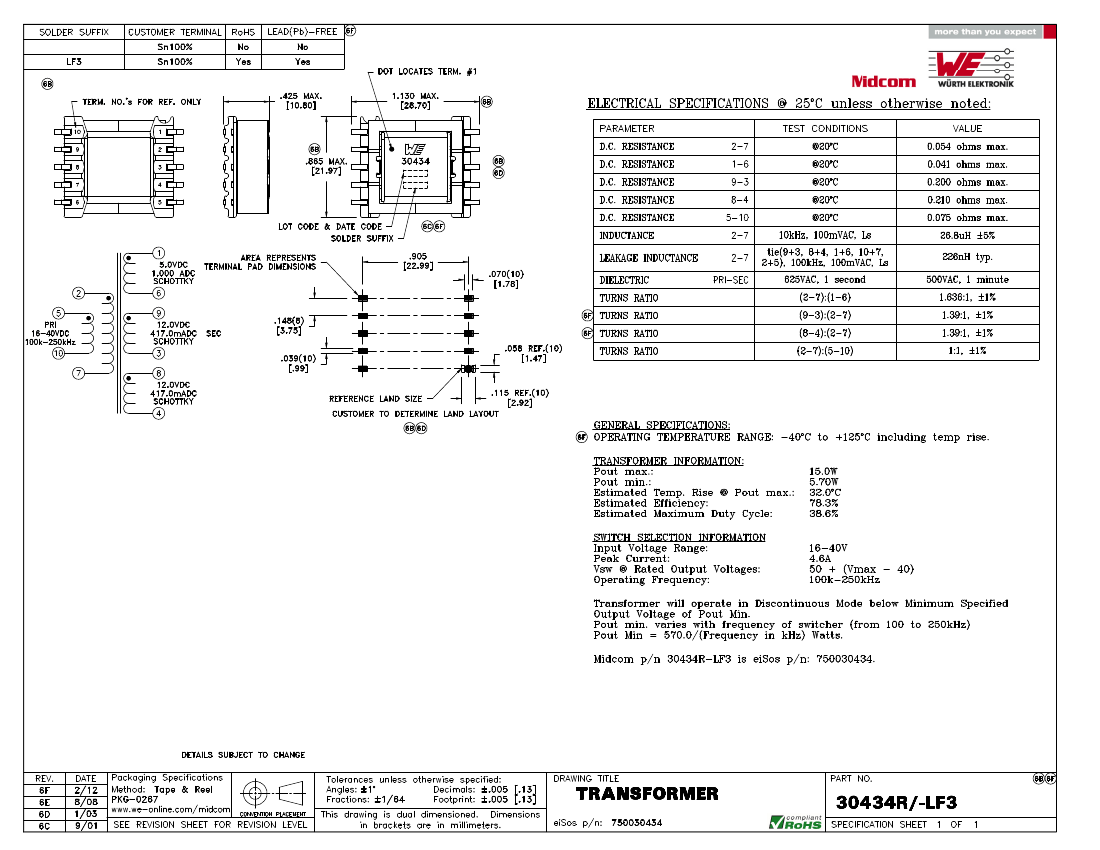

File Size259KB,1 Pages
ManufacturerWurth Elektronik
Download Datasheet Parametric Compare View All

30434R Overview

SMPS Transformer, 15W

30434R Parametric

Parameter NameAttribute value
Is it lead-free?Contains lead
Is it Rohs certified?incompatible
MakerWurth Elektronik
Reach Compliance Codecompliant
ECCN codeEAR99
Other featuresLG DIM INCLUDES TERM ALSO; TURNS RATIO: 1.636:1; 0.72:1; 0.72:1; 1:1, ADDL 12 OUTPUT V ALSO AVAIL
high10.8 mm
Maximum input voltage40 V
Minimum input voltage16 V
length28.7 mm
Manufacturer's serial number30434R
Installation featuresSURFACE MOUNT
Number of primary windings2
Number of secondary windings3
Maximum operating frequency250 kHz
Minimum operating frequency100 kHz
Output voltage 112 V
Output voltage 25 V
method of packingTAPE & REEL
physical size28.7mm X 21.97mm X 10.8mm
rated power15 W
Primary inductance26.8 µH
surface mountYES
Transformer typeSMPS TRANSFORMER
width21.97 mm

30434R Related Products

30434R 30434R-LF3
Description SMPS Transformer, 15W SMPS Transformer
Maker Wurth Elektronik Wurth Elektronik
Reach Compliance Code compliant compliant
ECCN code EAR99 EAR99
Manufacturer's serial number 30434R 30434R-LF3
Transformer type SMPS TRANSFORMER SMPS TRANSFORMER
