349XBXP-85-135VAC: DescriptionPower/Signal Relay, DPDT, Momentary, 5000mW (Coil), 10A (Contact), 28VDC (Contact), AC Input, AC/DC Output, Through Hole-Straight Mount; CategoryMechanical and electronic products relay; File Size177KB，3 Pages; ManufacturerStruthers-Dunn

Download Datasheet Parametric View All

349XBXP-85-135VAC Overview

Power/Signal Relay, DPDT, Momentary, 5000mW (Coil), 10A (Contact), 28VDC (Contact), AC Input, AC/DC Output, Through Hole-Straight Mount

349XBXP-85-135VAC Parametric

Parameter Name	Attribute value
Maker	Struthers-Dunn
Reach Compliance Code	unknown
ECCN code	EAR99
body width	39.4 mm
body height	94.5 mm
Body length or diameter	62.3 mm
Coil current (AC) maximum value	0.037 A
Coil power	5000 mW
Maximum coil voltage (AC)	135 V
Coil/Input Power Type	AC
Contact (AC) maximum rated R load	10A@240VAC
Maximum contact current (AC)	10 A
Maximum contact current (DC)	10 A
Contact (DC) maximum rated R load	10A@28VDC
Maximum contact voltage (AC)	240 V
Maximum contact voltage (DC)	28 V
Contact/Output Power Type	AC/DC
Electrical life	100000 Cycle(s)
Manufacturer's serial number	349
Installation features	THROUGH HOLE-STRAIGHT MOUNT
Maximum operating temperature	60 °C
Minimum operating temperature	-20 °C
physical size	62.3mm x 39.4mm x 94.5mm
Relay action	MOMENTARY
Relay function	DPDT
Relay type	POWER/SIGNAL RELAY
surface mount	NO
Termination type	SOLDER

Preview

Download Datasheet

View All

Struthers-Dunn

407 East Smith Street - Suite B

Timmonsville, SC 29161 US

Phone:

(843) 346-4427 •

Fax:

(843) 346-4465

E-Mail:

info@struthers-dunn.com •

Web site:www.struthers-dunn.com

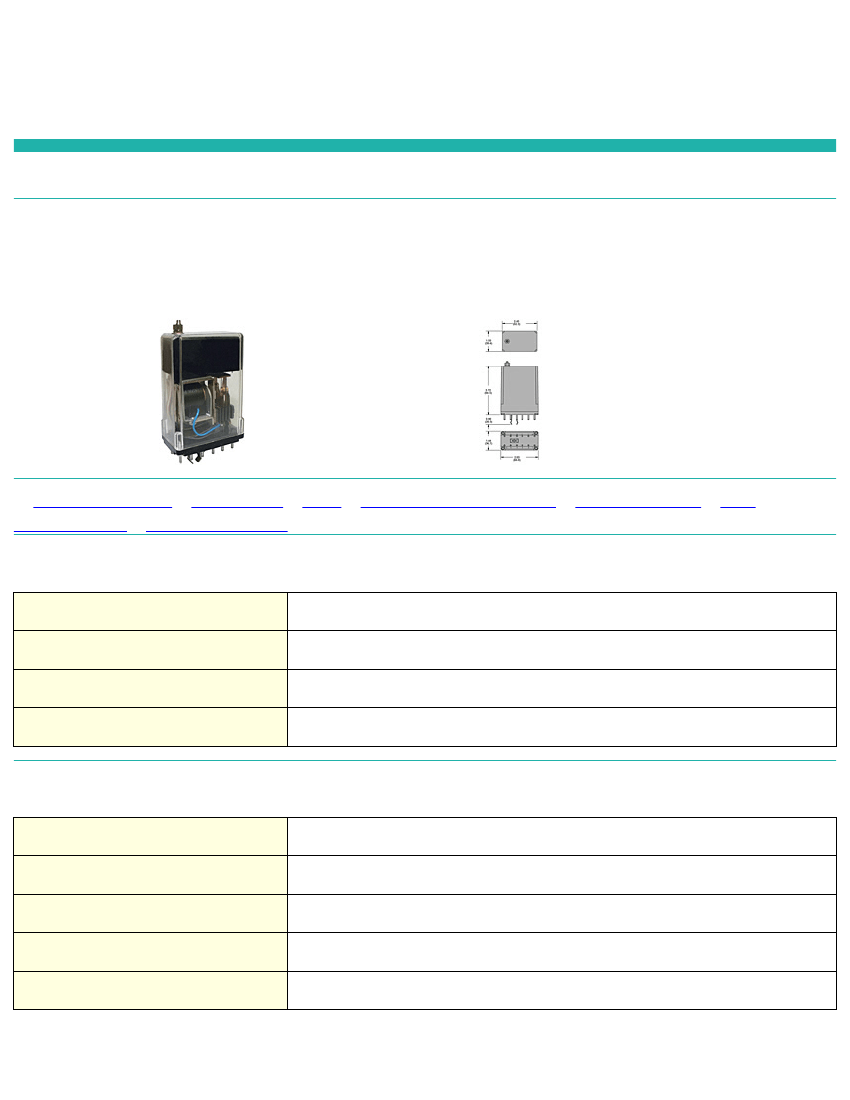

Item # 349XBXP-85-135VAC, 349 Series - Over/Under Voltage Sensor Relays

Under / Over voltage sensing relay incorporating 219 series internal components coupled with an electronic module. Pull-in voltage is adjustable from 85 to 135VAC for

frequencies ranging from 50 to 400 hertz. Hysteresis is typically set for a 4 volt differential but can be user adjustable from 3 to 14 volts when external connections are

available.

For Additional Configuration please contact the manufacturer.

·

SPECIFICATIONS

·

CONTACTS

·

COIL

·

DIELECTRIC STRENGTH

·

TEMPERATURE

·

LIFE

EXPECTANCY

·

MISCELLANEOUS

SPECIFICATIONS

Series

349

Contact Arrangement

XBX (DPDT)

Standard Features

Plug-in with polycarbonate cover

Coil Voltage

85-135 VAC

CONTACTS

Contact Configuration

Up to 4 pole

Contact Material

Silver Alloy Gold Diffused

Contact Rating

10 A

Contact Rating 120 / 240VAC Resistive

10 A / 10 A

Contact Rating 28VDC Resistive

10 A

7/31/2013 | Page 1 of 3
