Current Sense Transformer, 10A, 1:75

31027 Parametric

Parameter Name	Attribute value
Is it lead-free?	Contains lead
Is it Rohs certified?	incompatible
Maker	Wurth Elektronik
Reach Compliance Code	compliant
ECCN code	EAR99
high	10 mm
length	10.92 mm
Load Resistance	75 Ω
Manufacturer's serial number	31027
Installation features	THROUGH HOLE MOUNTED
Minimum operating frequency	10 kHz
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
method of packing	TRAY
Peak primary current	10 A
physical size	L10.92XB9.53XH10 (mm)
primary type	WOUND PRIMARY
secondary inductance	20.5 µH
surface mount	NO
Transformer type	CURRENT SENSE TRANSFORMER
Turns ratio (Np:Ns)	1:75
width	9.53 mm

Preview

Download Datasheet

View All

more than you expect

Current Sense

SwitchmodePower

Features



SMD Design



Pick and place compatible



250kHz and above operating frequency



Small footprint



Custom designs available



Designed for switching power supply



applications

Industrial equipment

Applications



Isolated current feedback in switching



applications

Load drop detection

Circuit overload detection

Motor operation monitoring

Industrial equipment

Environmental Specifications



Operating Temp: -40°C to +85°C



Storage Temp: -40°C to +125°C

Packaging



Parts are packaged in 24/32mm em-



bossed carrier tape per EIA‑481‑3

800 parts per 13” reel

Part Inductance Peak Sense Cur‐

Number

(mH)

rent (A)

31027

20.5

10

31028

36.4

10

31029

145.6

10

Turns Ratio

1:75

1:100

1:200

Package

Pin Style

Style

EP7

TH

EP7

TH

EP7

TH

RoHS

NO

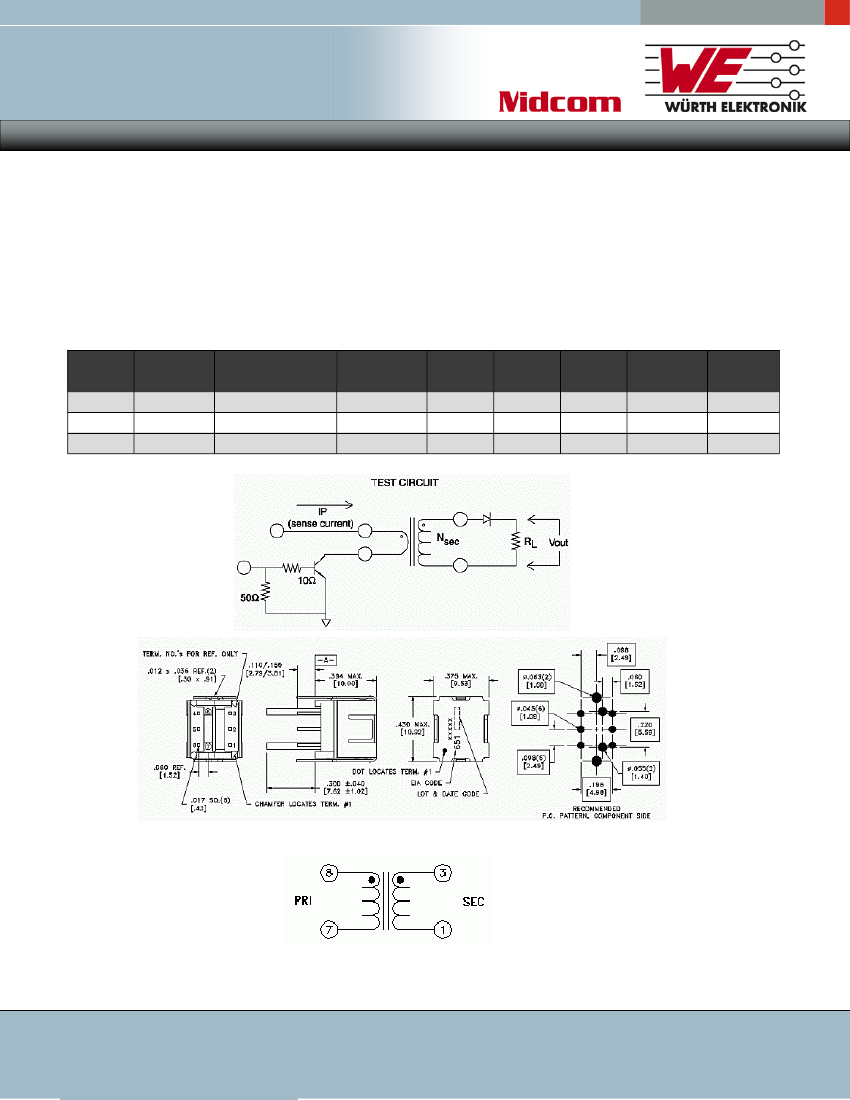

Mechanical Schematic

1

Mechanical 1

Schematic 1

Wurth Electronics Midcom, Inc.

121 Airport Drive—PO Box 1330

Watertown, SD 57201

T: 605.886.4385 ~ 605.886.4486

www.we-online.com ~ email: sales@midcom-inc.com

F: 605.886.4486

www.we-online.com/midcom

midcom@we-online.com

26-Apr-10

1/1
