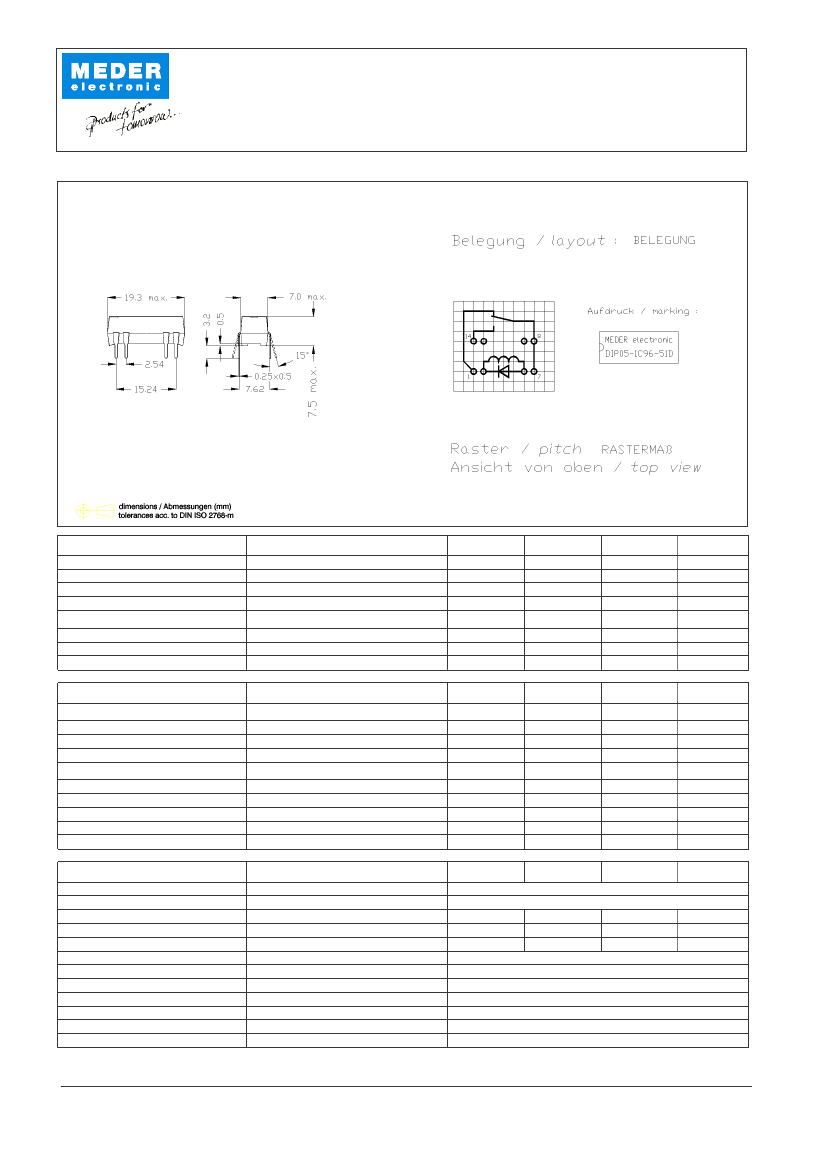

3205196151: DescriptionDry Reed Relay, SPDT, Momentary, 0.025A (Coil), 5VDC (Coil), 125mW (Coil), 0.5A (Contact), 175VDC (Contact), DC Input, AC/DC Output, Through Hole-Straight Mount, ROHS COMPLIANT; CategoryMechanical and electronic products relay; File Size109KB，2 Pages; ManufacturerStandex

Download Datasheet Parametric Compare View All

3205196151 Overview

Dry Reed Relay, SPDT, Momentary, 0.025A (Coil), 5VDC (Coil), 125mW (Coil), 0.5A (Contact), 175VDC (Contact), DC Input, AC/DC Output, Through Hole-Straight Mount, ROHS COMPLIANT

3205196151 Parametric

Parameter Name	Attribute value
Maker	Standex
package instruction	ROHS COMPLIANT
Reach Compliance Code	unknown
ECCN code	EAR99
body width	7 mm
body height	7.5 mm
Body length or diameter	19.3 mm
Maximum coil current (DC)	0.025 A
Coil operating voltage (DC)	3.5 V
Coil power	125 mW
Coil release voltage (DC)	0.75 V
Coil resistance	220 Ω
Maximum coil voltage (DC)	5 V
Coil/Input Power Type	DC
Contact (AC) maximum rated R load	.5A@175VAC
Maximum contact current (AC)	0.5 A
Maximum contact current (DC)	0.5 A
Contact (DC) maximum rated R load	.5A@175VDC
Maximum contact voltage (AC)	175 V
Maximum contact voltage (DC)	175 V
Contact/Output Power Type	AC/DC
JESD-609 code	e3
Manufacturer's serial number	3205196151
Installation features	THROUGH HOLE-STRAIGHT MOUNT
operating hours	2.6 ms
Maximum operating temperature	70 °C
Minimum operating temperature	-20 °C
method of packing	TUBE
physical size	19.3mm x 7mm x 7.5mm
Guideline	UL
Relay action	MOMENTARY
Relay function	SPDT
Relay type	DRY REED RELAY
release time	1.5 ms
seal	WATER PROOF
surface mount	NO
Terminal surface	TIN
Termination type	SOLDER
