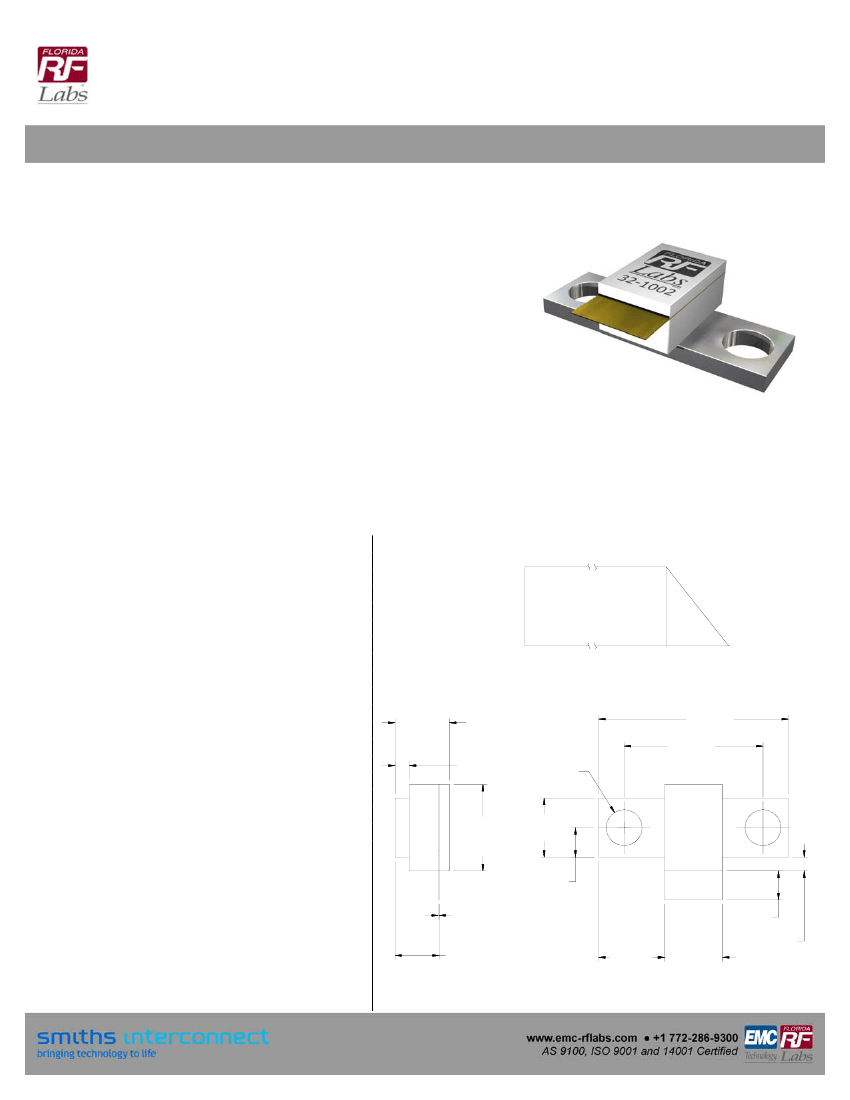

TERMINATION
FLANGE MOUNT 75 WATT
DATA SHEET
FEATURES
Tab Launch
High Power
Integrated Heat Sink
Low VSWR
PART NUMBER: 32-1002
APPLICATIONS
Mobile Networks
Broadcast
High Power Amplifiers
Instrumentation
Isolators
Military
Satellite Communications
SHEET 1 OF 1
EN 11-0656
07/11/2011
GENERAL DESCRIPTION
Florida RF Labs offers the widest selection of flange mount terminations worldwide. High power flange mount components offer excellent
performance and the convenience of bolt-in installation. The flanged mounted devices deliver power ratings up to 1000 watts and
frequency ranges from DC to 18 GHz. The packages are available in single hole, double hole and four hole flange configurations.
SPECIFICATIONS
1.0 ELECTRICAL
Nominal Impedance:
Frequency Range:
VSWR:
Temperature Coefficient:
Power Rating:
Operating Temperature:
DC Resistance:
50
Ω
DC – 1.5 GHz
DC – 1.0 GHz 1.25:1 Max
1.0 – 1.5 GHz 1.40:1 Max
±200 PPM/°C Max
75 Watts
-55 °C To +150 °C
50
Ω
±5%
POWER RATING AND DERATING
100%
RATED
POWER
50%
SAFE OPERATING AREA
0%
-55
0
75
100
125
150
TEMPERATURE IN °C
MECHANICAL OUTLINE
2.0 MECHANICAL
Flange:
Substrate
Cover:
Tab:
Resistive Element:
Copper, Nickel Plated
Beryllium Oxide
Alumina
Beryllium Copper, Gold
Plated
Thin Film
0.235
[5.97 mm]
MAX
0.820
[20.83 mm]
0.600
[15.24 mm]
0.062
[1.57 mm]
2X Ø0.156
[3.96 mm]
THRU
3.0 UNIT MARKING
Logo And Part Number
0.375+0.015
-0.010
[9.53 +0.38 mm]
-0.25
0.255
[6.48 mm]
0.128
[3.24 mm]
0.0035
0.0025
[ 0.09 mm]
0.06
0.190+0.020
-0.010
[4.83+0.51 mm]
-0.25
0.285
[7.24 mm]
0.252
0.248
6.40 mm]
[
6.30
0.125
[3.17 mm]
MIN
0.060
[1.52 mm]
4.0 PACKAGING
Standard:
Optional:
Tray Packaging
Available Upon Request
5.0 PART NUMBERING
Part Identifier:
32-1002
Note: Specifications are subject to change without notice.
TOLERANCE:
± .010
