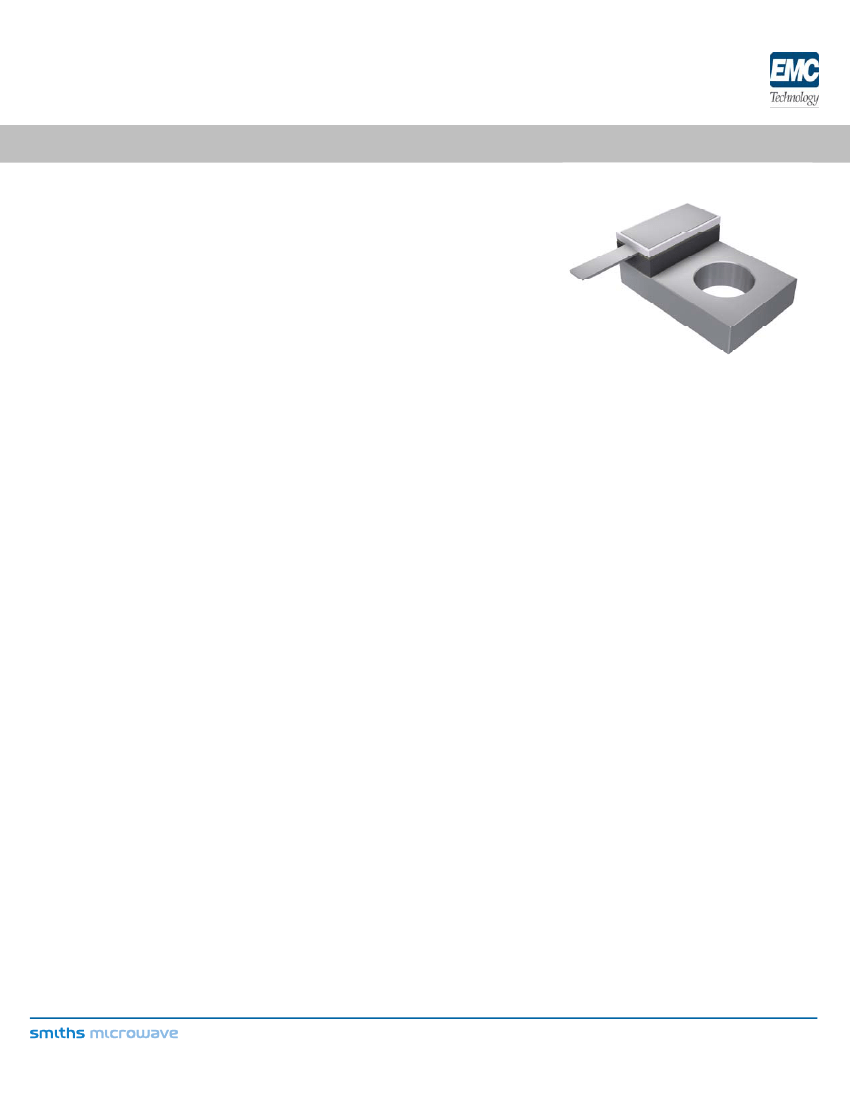

TERMINATION

FLANGE MOUNT 10 WATT

DATA SHEET

FEATURES

Tab Launch

High Power

Integrated Heat Sink

Low VSWR

Easy Installation

PART SERIES: 32-1111

APPLICATIONS

Mobile Networks

Broadcast

High Power Amplifiers

Isolators

Military

Instrumentation

SHEET 1 OF 2

Dwg 32-1111

EN 14-1298

Revision A

GENERAL DESCRIPTION

EMC Technology offers the widest selection of flange mount terminations worldwide.

High power flange components offer excellent performance and the convenience of

bolt on installation.

ORDERING INFORMATION

Part Identifier:

32-1111

SPECIFICATIONS

1.0 ELECTRICAL

Nominal Impedance:

Frequency Range:

VSWR:

Input Power CW:

Peak Power:

DC Resistance:

50 ohms

DC 10.0 GHz

DC - 4.0 GHz 1.12:1 Max

4.0 - 10.0 GHz 1.40:1 Max

10 Watts @ 100°C heat sink, derated linearly to zero power and 150°C

100 Watts (based on 10us pulse width and 1% duty cycle)

Ω

±5%

2.0 ENVIRONMENTAL

Operating Temperature:

Non-operating Temperature:

Temperature Coefficient:

-55˚C to +150˚C

-65˚C to +150˚C

+/-200 PPM /

˚C

max

3.0 MARKING

None

4.0 QUALITY ASSURANCE

Visual and Mechanical Inspection:

DC Resistance Check:

Data Retention:

Per 824W107

100% DC Resistance Check

Standard

5.0 PACKAGING

Standard Packaging:

Tray Packaging

Form 423F101

Rev-

Cage Codes: 24602 / 2Y194

Specifications are Subject to Change Without Notice

www.emc-rflabs.com • +1 772-286-9300

AS 9100, ISO 9001 and 14001 Certified
