322710B01 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Mechanical and electronic products> switch> 322710B01

322710B01: DescriptionTHUMB/PUSHWHEEL SWITCH-2SWITCHES, BINARY CODED DECIMAL, 0.1A, 28VDC, PANEL MOUNT; CategoryMechanical and electronic products switch; File Size854KB，10 Pages; ManufacturerC&K

Download Datasheet Parametric Compare View All

322710B01 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	322710B01	-	-	View	Buy Now

322710B01 Overview

THUMB/PUSHWHEEL SWITCH-2SWITCHES, BINARY CODED DECIMAL, 0.1A, 28VDC, PANEL MOUNT

322710B01 Parametric

Parameter Name	Attribute value
Is it lead-free?	Contains lead
Is it Rohs certified?	incompatible
Maker	C&K
Reach Compliance Code	compliant
ECCN code	EAR99
body width	25.91 mm
body height	25.4 mm
Body length or diameter	29.06 mm
Contact (AC) maximum rated R load	.1A@120VAC
Maximum contact current (AC)	0.1 A
Maximum contact current (DC)	0.1 A
Contact (DC) maximum rated R load	.1A@28VDC
Maximum contact voltage (AC)	120 V
Maximum contact voltage (DC)	28 V
Electrical life	100000 Cycle(s)
Manufacturer's serial number	3
Installation features	PANEL MOUNT
Number of positions	10
Number of switching segments	2
Maximum operating temperature	65 °C
Minimum operating temperature	-10 °C
seal	SEALED CONTACT
surface mount	NO
switch function	BINARY CODED DECIMAL
Switch type	THUMB/PUSHWHEEL SWITCH
Termination type	SOLDER

Preview

Download Datasheet

View All

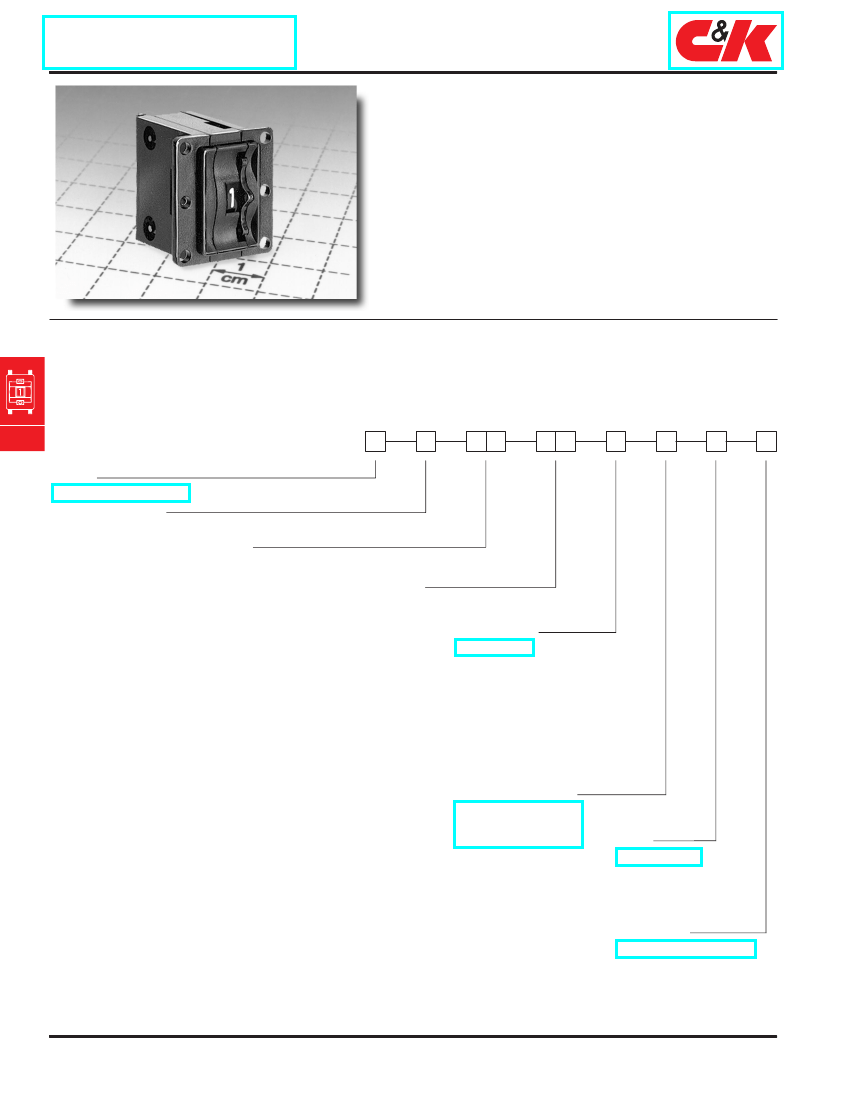

3 Series

Thumbwheel Switches

Features/Benefits

Most complete product offering in the industry

Spacers available to fit most panel cutouts

Front or rear mounting options

Illuminated models available

Typical Applications

Test & measurement equipment

Industrial equipment

Computer devices

Build-A-Switch

Our easy Build-A-Switch concept allows you to mix and match options to create the switch you need. Below is a complete

listing of options shown in catalog. To order, simply select desired option from each category and place in the appropriate box.

Available options are shown and described on pages J-9 thru J-16. For additional options not shown in catalog, consult

Customer Service Center.

Thumbwheel & Pushwheel

Series

(STD.) Thumbwheel switch

Number of Sections

Switch section

1 Switch section

2 Switch sections

3 Switch sections

4 Switch sections

5 Switch sections

6 Switch sections

7 Switch sections

8 Switch sections

More than 8

switch sections

Typical Example:

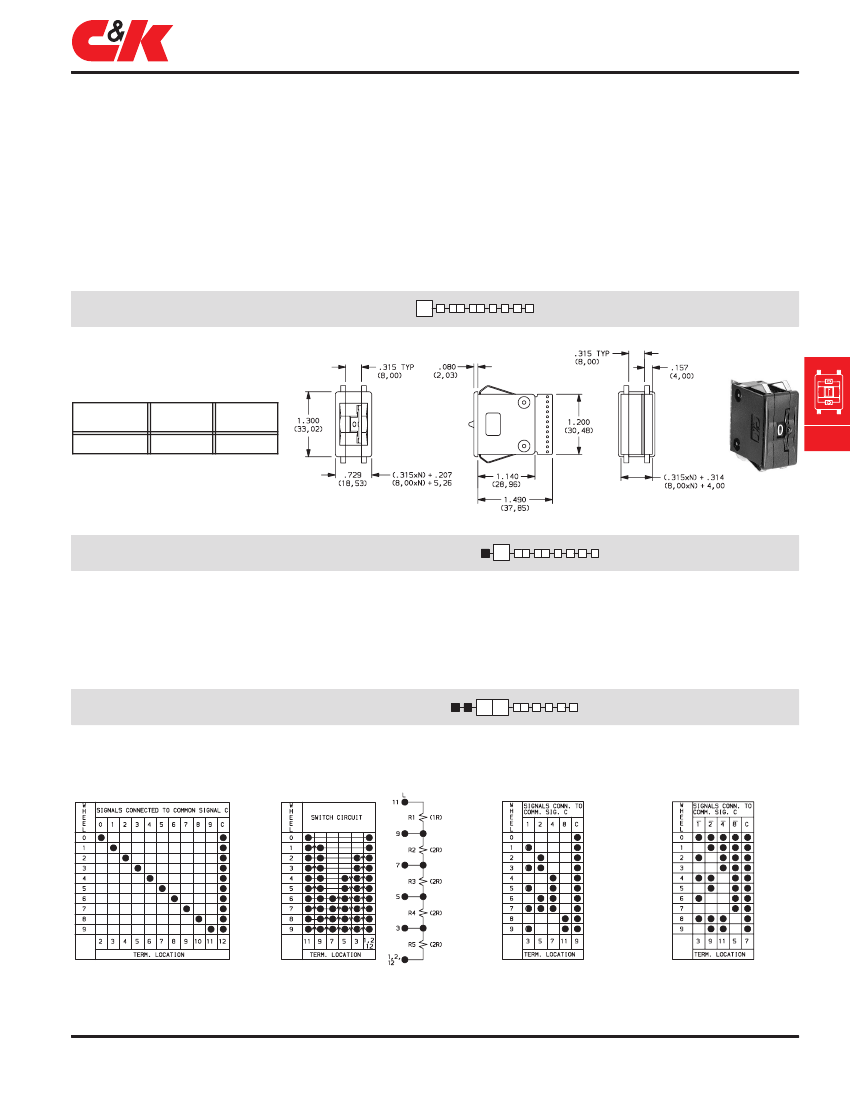

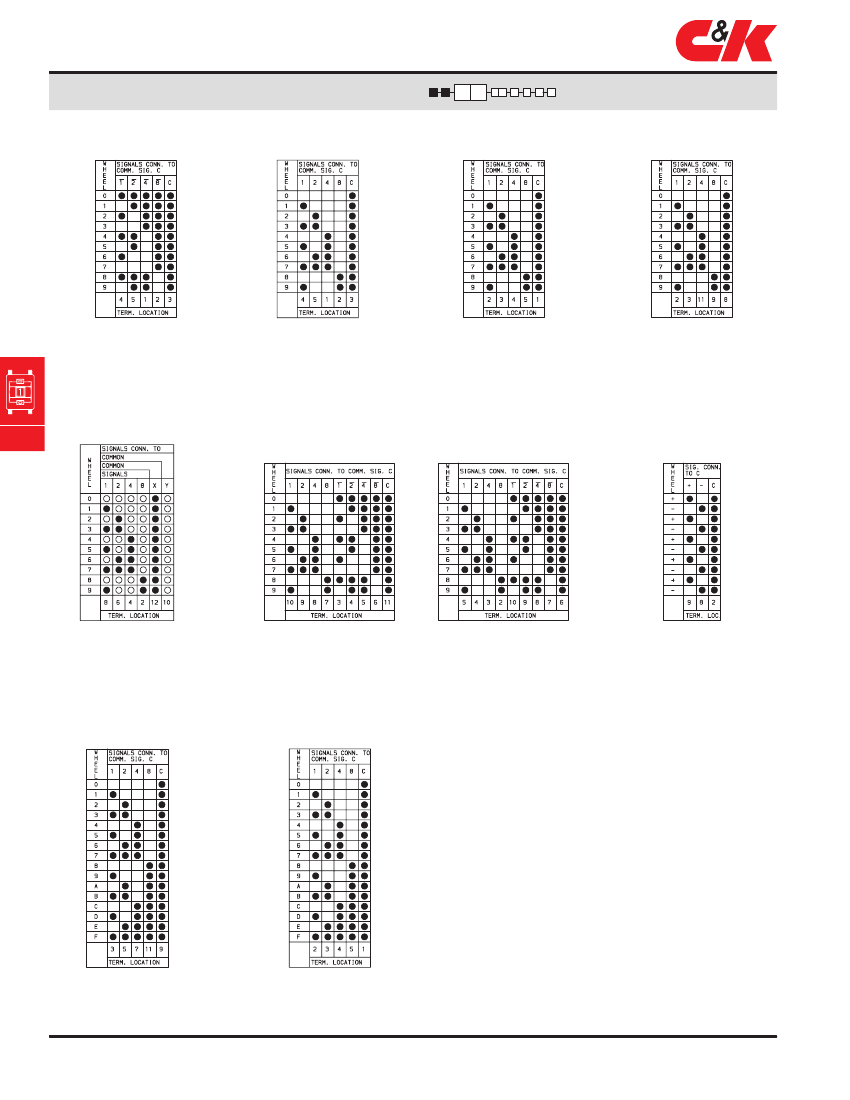

Function Code

Decimal, SP, 10 position

Resistor decade

BCD, 10 position

Octal, 8 position

Complement of BCD, 10 position

BCD, 10 position

BCD with separate common to

not true bits, 10 position

BCD with complement, 10 position

SPDT repeating, 10 position

BCH, 16 position

Mixed sections

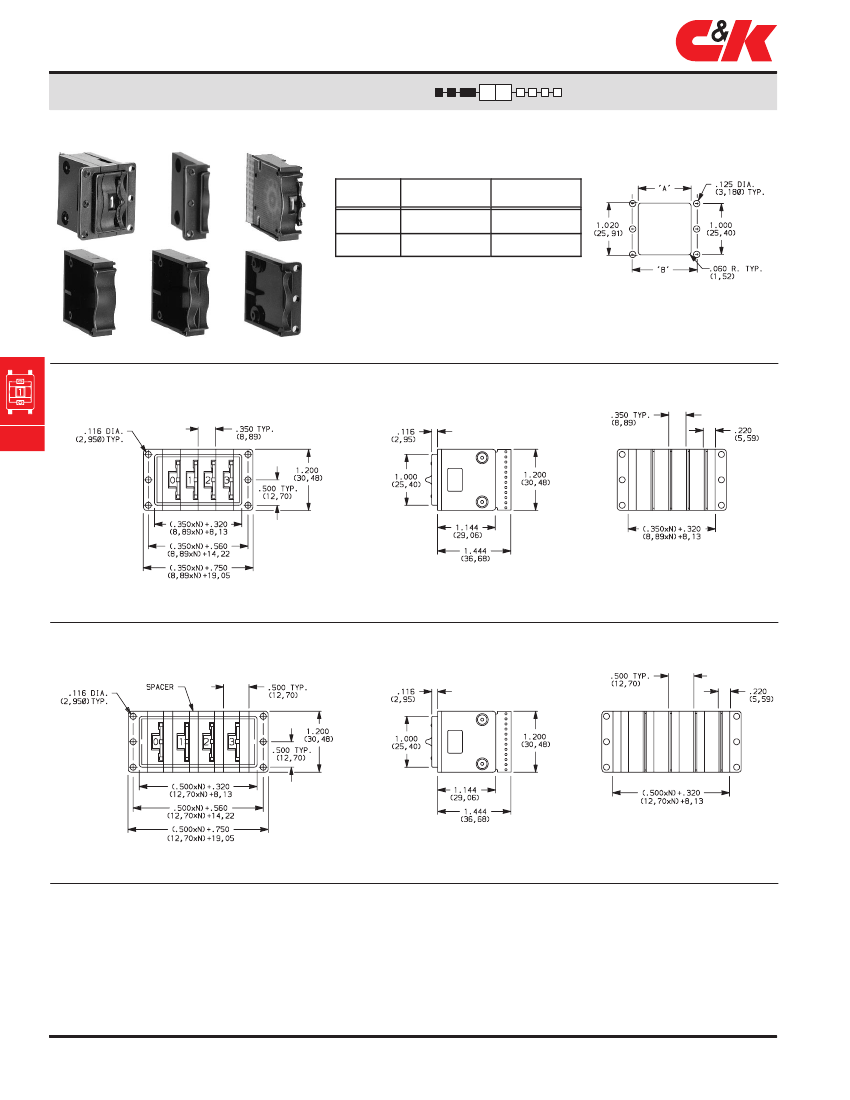

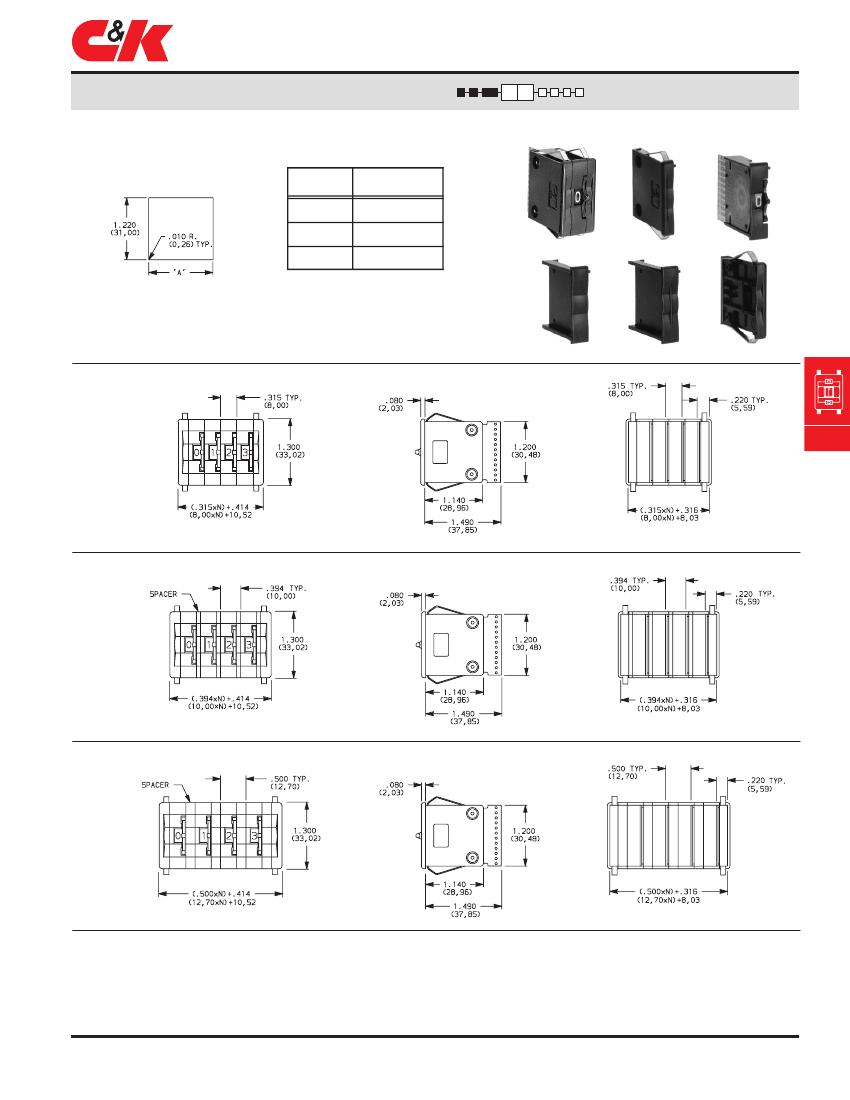

Mounting Style

Snap-in, front mount

Rear mount

Snap-in, front mount

Terminations

(STD.) Type 0

Type 1, extended type 0

Type 0 with solder pins

Type 4

Type 5, extended type 4

Type 6

Any combination

Type 1 with solder pins

Type 6 with solder pins

Type 5 with solder pins

Color/Marking/Stops

(STD.) Matte black body,

gloss black wheel,

white marking

Matte gray body,

gloss black wheel,

white marking

Matte black body,

translucent off-white wheel,

black marking

Matte gray body,

translucent off-white wheel,

black marking

Combination of body colors,

wheel colors, marking and/or stops

Seal

(STD.) No seal

Sealed contacts

Dust lens

Sealed contacts & dust lens

Sealing varies

Illumination

NONE

(STD.) No illumination

Red LED

Yellow LED

Green LED

J-8

C&K Components, Inc. Web Site:

www.ckcorp.com

Americas Sales

Tel: 800-635-5936 Fax: 617-926-6846

Europe Sales

Tel: +44-1536-521147 Fax: +44-1536-411602

Asia Sales

Tel: +852-2798-6393 Fax: +852-2751-9926

Rev. A 8/99

322710B01 Related Products

	322710B01	332710B00	342100300	302119300
Description	THUMB/PUSHWHEEL SWITCH-2SWITCHES, BINARY CODED DECIMAL, 0.1A, 28VDC, PANEL MOUNT	THUMB/PUSHWHEEL SWITCH-3SWITCHES, BINARY CODED DECIMAL, 0.1A, 28VDC, PANEL MOUNT	THUMB/PUSHWHEEL SWITCH-4SWITCHES, BINARY CODED DECIMAL, 0.1A, 28VDC, PANEL MOUNT	THUMB/PUSHWHEEL SWITCH-0SWITCHES, BINARY CODED DECIMAL, 0.1A, 28VDC, PANEL MOUNT
Is it lead-free?	Contains lead	Contains lead	Contains lead	Contains lead
Is it Rohs certified?	incompatible	incompatible	incompatible	incompatible
Maker	C&K	C&K	C&K	C&K
Reach Compliance Code	compliant	compliant	compliant	compliant
ECCN code	EAR99	EAR99	EAR99	EAR99
body width	25.91 mm	29.06 mm	28.96 mm	5.26 mm
body height	25.4 mm	25.4 mm	33.02 mm	33.02 mm
Body length or diameter	29.06 mm	34.8 mm	42.52 mm	28.96 mm
Contact (AC) maximum rated R load	.1A@120VAC	.1A@120VAC	.1A@120VAC	.1A@120VAC
Maximum contact current (AC)	0.1 A	0.1 A	0.1 A	0.1 A
Maximum contact current (DC)	0.1 A	0.1 A	0.1 A	0.1 A
Contact (DC) maximum rated R load	.1A@28VDC	.1A@28VDC	.1A@28VDC	.1A@28VDC
Maximum contact voltage (AC)	120 V	120 V	120 V	120 V
Maximum contact voltage (DC)	28 V	28 V	28 V	28 V
Electrical life	100000 Cycle(s)	100000 Cycle(s)	100000 Cycle(s)	100000 Cycle(s)
Manufacturer's serial number	3	3	3	3
Installation features	PANEL MOUNT	PANEL MOUNT	PANEL MOUNT	PANEL MOUNT
Number of positions	10	10	10	10
Number of switching segments	2	3	4	-
Maximum operating temperature	65 °C	65 °C	65 °C	65 °C
Minimum operating temperature	-10 °C	-10 °C	-10 °C	-10 °C
surface mount	NO	NO	NO	NO
switch function	BINARY CODED DECIMAL	BINARY CODED DECIMAL	BINARY CODED DECIMAL	BINARY CODED DECIMAL
Switch type	THUMB/PUSHWHEEL SWITCH	THUMB/PUSHWHEEL SWITCH	THUMB/PUSHWHEEL SWITCH	THUMB/PUSHWHEEL SWITCH
Termination type	SOLDER	SOLDER	SOLDER	SOLDER
Base Number Matches	-	1	1	1
