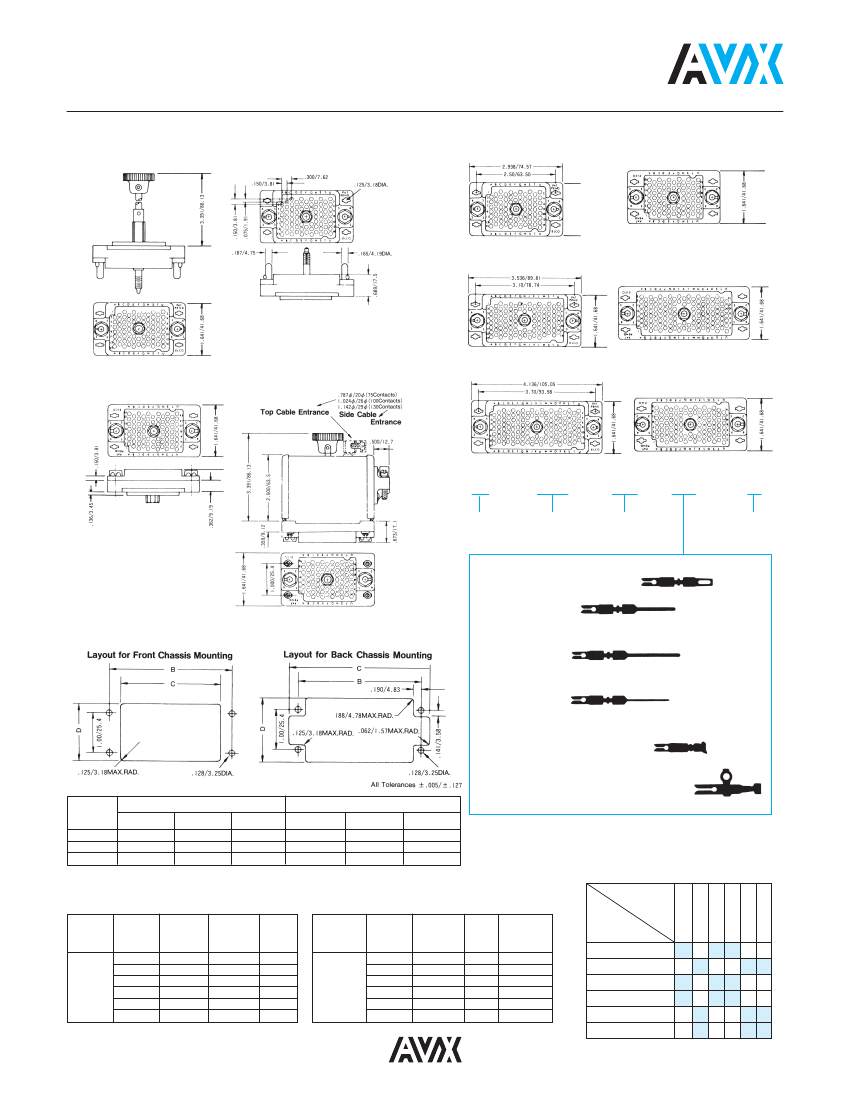

Varicon
®
Series 8017
75/100/130 CONTACTS
Plug with
Actuating Screw 001
Plug with
Fixed Screw 002
75 CONTACTS
Plug
Receptacle
100 CONTACTS
Plug
Receptacle
Receptacle with
Fixed Nut 007
Receptacle with
Actuating Nut 008
130 CONTACTS
Plug
Receptacle
ORDERING CODE
00
Prefix
8017
Series
Number
XXX
Number of
Positions
75, 100, 130
XXX
0XX
See
Variation
Code
Contact Code
217 = Solder 0.098" x 2.49mm –
60 8017 0513 00 339
RECOMMENDED CHASSIS LAYOUT
218 = Wire Wrap –
0.025 x 0.050 x 0.567" / 0.64 x 1.27 x 14.4mm
60 8017 0613 00 339
750 = Wire Wrap –
0.025 x 0.050 x 0.760" / 0.64 x 1.27 x 19.3mm
60 8017 0623 00 339
296 = Wire Wrap –
0.025 x 0.026 x 0.579" / 0.64 x 0.66 x 14.7mm
60 8017 0633 00 339
313 = Wire Crimp (Contacts Loose) –
Must be ordered separately
60 8017 0313 00 339
323 = Wire Crimp (1800 Contacts on a Reel) –
60 8017 0323 99 339
D
No. of
Pos.
75
100
130
Front Chassis Mtg.
B
C
D
B
Back Chassis Mtg.
C
Must be ordered separately
2.500/63.50 1.953/49.61 1.437/36.50 2.500/63.50 2.953/75.00 1.656/42.06
3.100/78.74 2.546/64.67 1.437/36.50 3.100/78.74 3.562/90.47 1.656/42.06
3.700/93.98 3.156/80.16 1.437/36.50 3.700/93.98 4.156/105.56 1.656/42.06
Dimensions inches/mm
CONNECTOR PLUG
AND RECEPTACLE
COMBINATIONS
Receptacle
007
008
009
010
011
Insulator Variation Cover &
Body
Code
Cable Actuating Fixed
Type
No.
Entrance Screw Screw
001
No
Yes
No
002
No
No
Yes
003
Top
Yes
No
Plug
004
Side
Yes
No
005
Top
No
Yes
006
Side
No
Yes
Insulator Variation Cover &
Body
Code
Cable
Fixed Actuating
Type
No.
Entrance Nut
Nut
007
No
Yes
No
008
No
No
Yes
009
Top
Yes
No
Receptacle
010
Side
Yes
No
011
Top
No
Yes
012
Side
No
Yes
Plug
001
002
003
004
005
006
24
012
VARIATION CODE
